Rectangular spot lighting for exhibition graphics

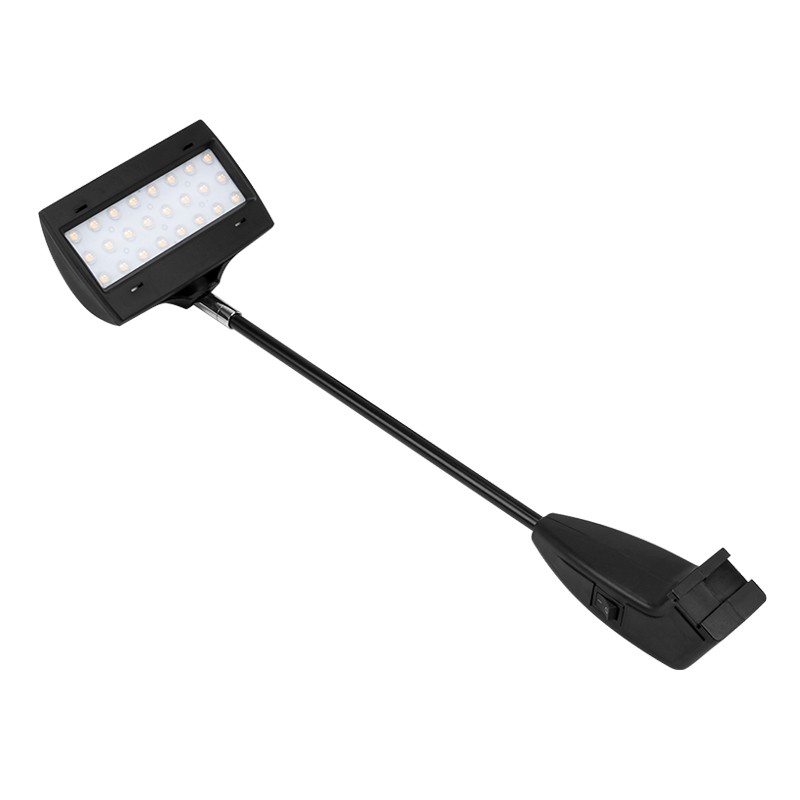

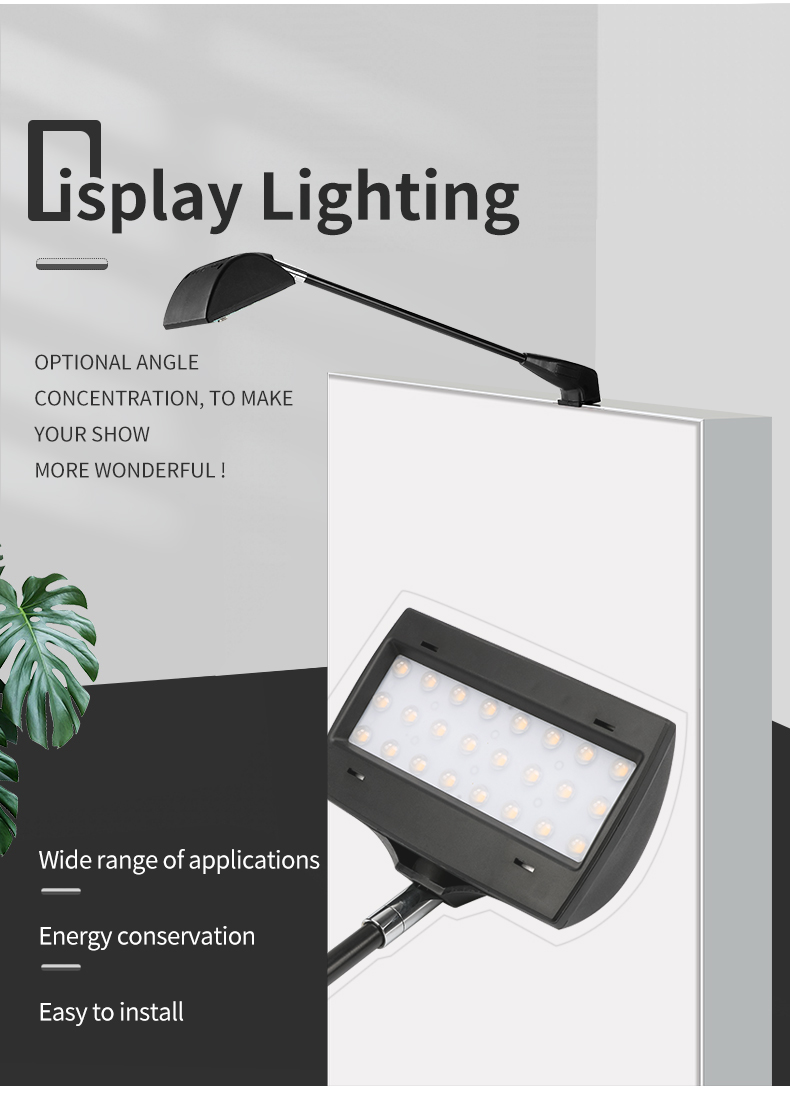

The SL-2091-N24L is a 14W rectangular display arm spotlight with 1200 lm output ±10% and a 60° beam. It uses AC 100–240V input and a figure-eight-style plug. A built-in power supply, base on/off switch and ventilation openings behind the head complete the arm-mounted lighting format.
For exhibition contractors and display suppliers, this format combines a compact rectangular head with an arm-mounted fixing. Specify the graphic dimensions, frame section, mounting choice and white-light version so the quotation can match the lamp and installation kit to the project.

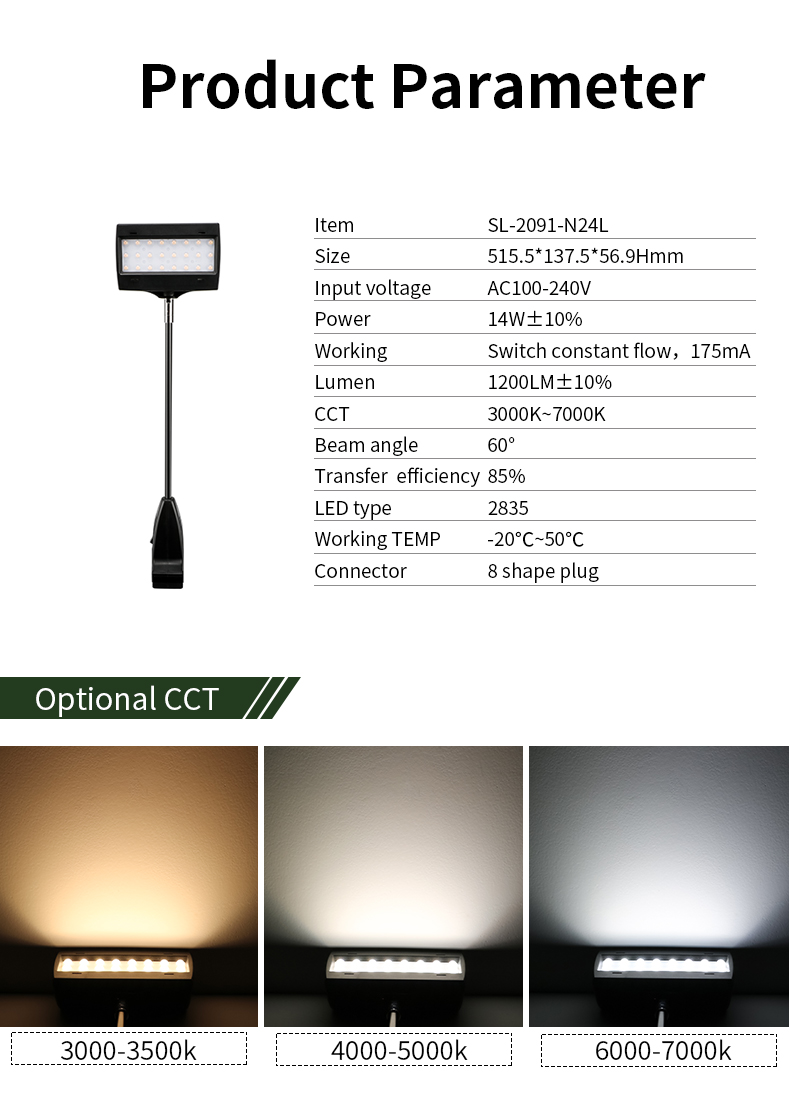

14W rectangular arm-light specifications
| Specification | SL-2091-N24L |
|---|
| Model | SL-2091-N24L |
| Power | 14W ±10% |
| Light output | 1200 lm ±10% |
| Input voltage | AC 100–240V |
| Beam angle | 60° |

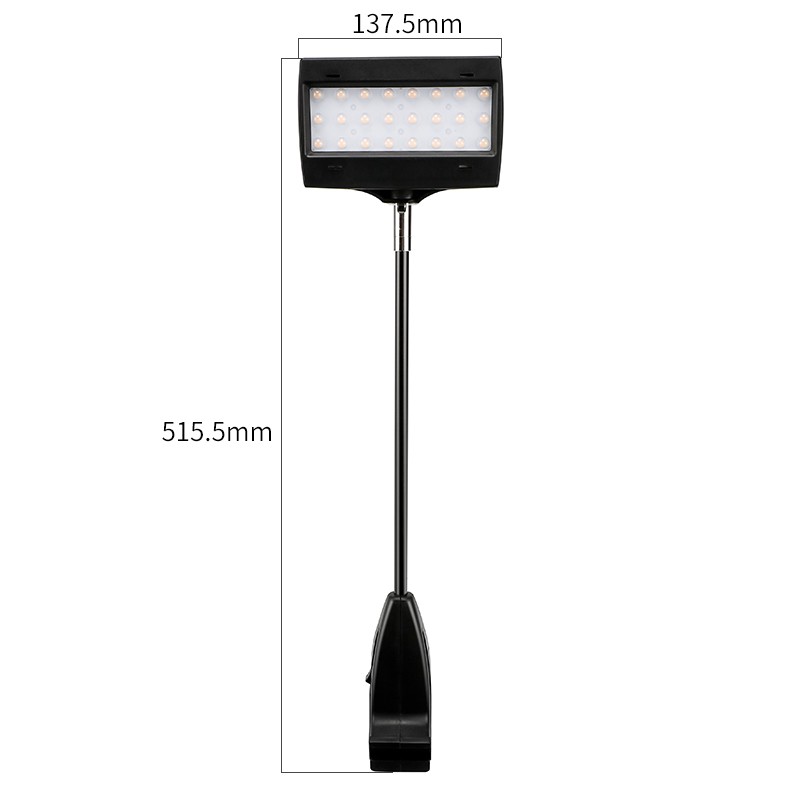

| Dimensions | 515.5 × 137.5 × 56.9 mm |
| Head length | 137.5 mm |
| LED package | 2835 |
| White-light choices | 3000–3500K / 4000–5000K / 6000–7000K; specify the order version |
| Connector | 8-shape / figure-eight-style plug |
| Power-supply arrangement | Built-in supply |
| Switch and head | Base on/off switch; adjustable head and rear ventilation |
| Optional fittings | Forward slider, reverse slider, 0505 or 0509 AL clamp, 0520 mounting plate |
Select the fixing for your stand structure

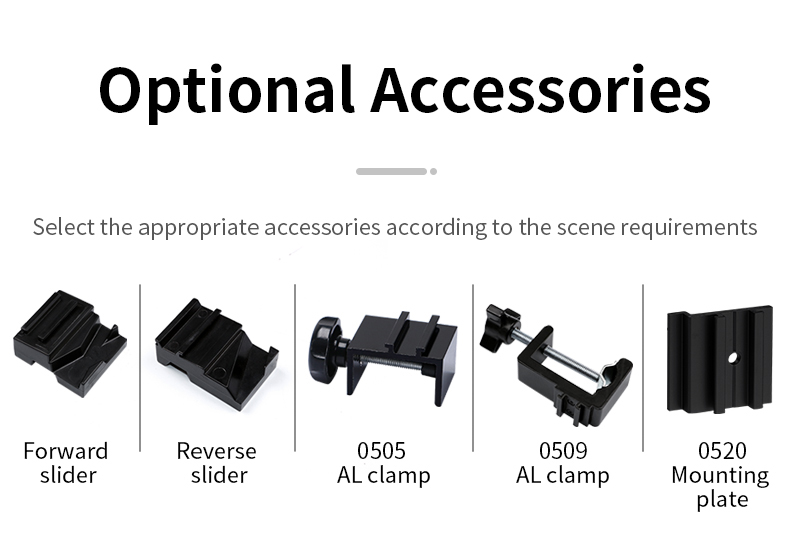

The fitting illustration shows forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 mounting plate. Send the frame section and mounting dimensions to choose the arrangement. Confirm the fitting and kit components with the quotation, and check the mechanical fit with a sample.

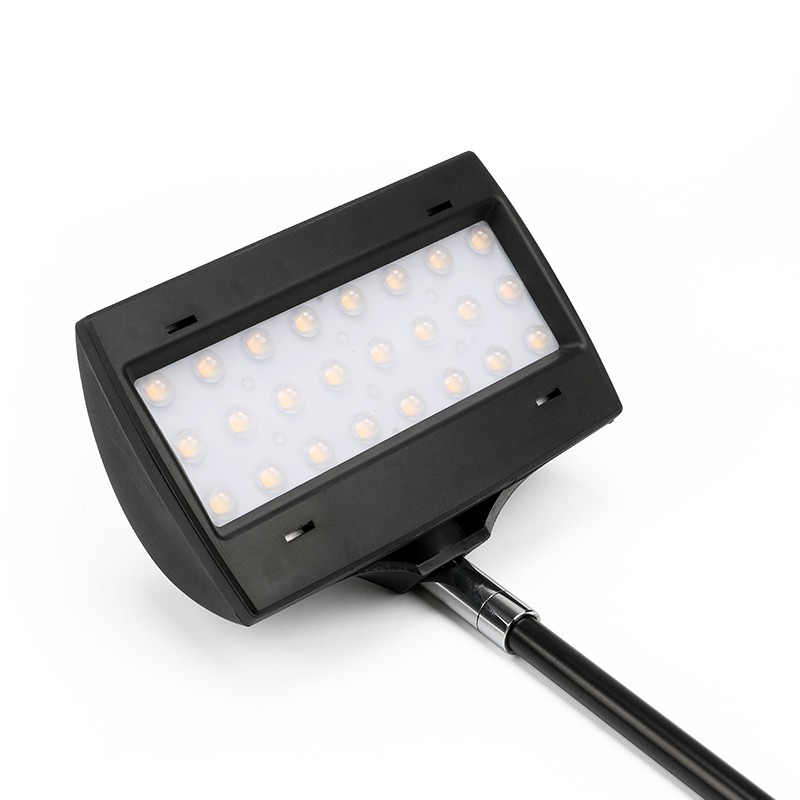

Rectangular head, ventilation and base control

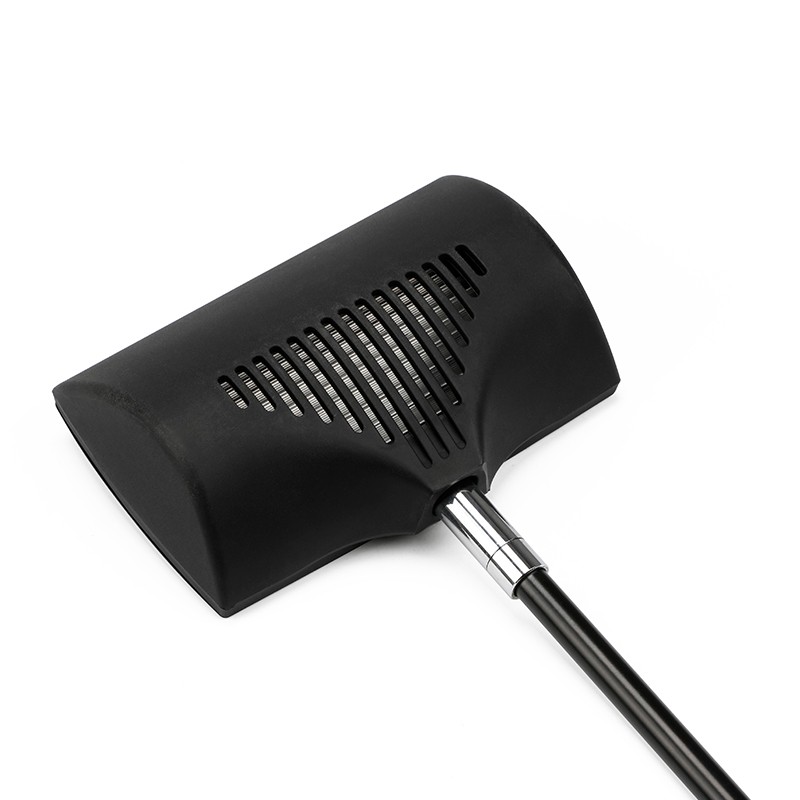

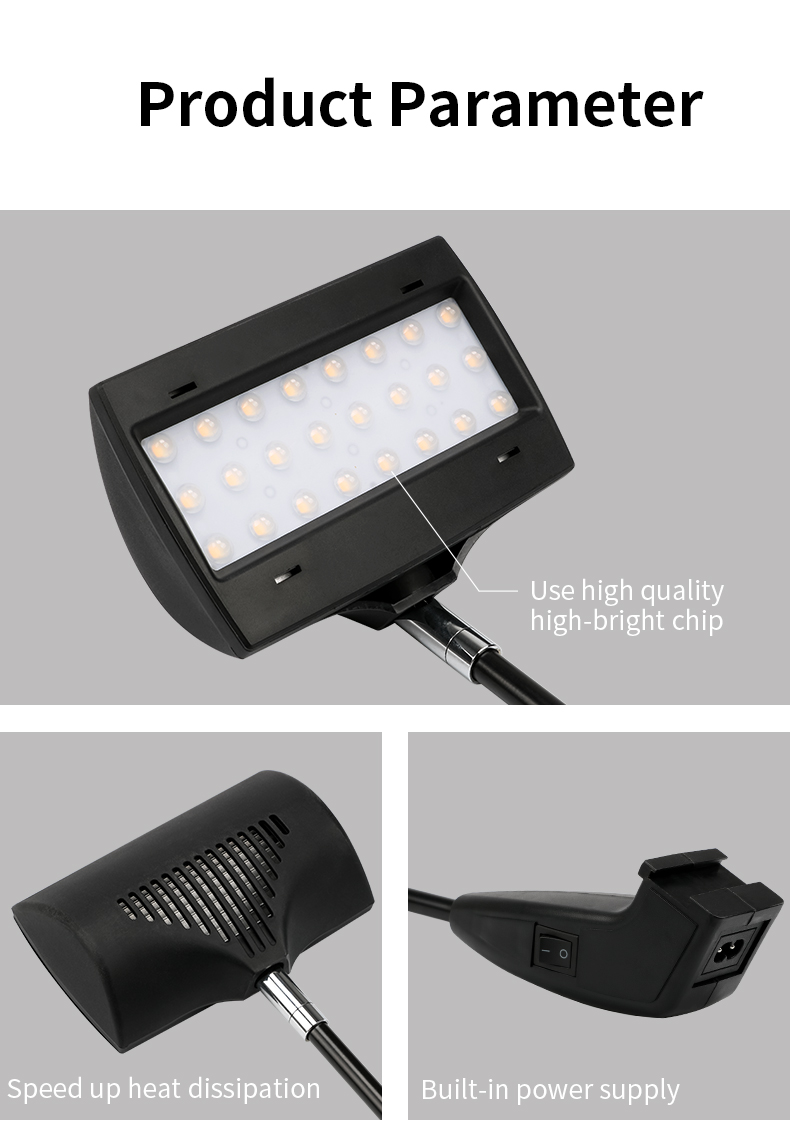

Aim the rectangular head toward the printed graphic and use the base switch for on/off control. Rear ventilation openings and the integrated power-supply base are featured in the product close-ups. Specify the colour-temperature version and destination power plug when ordering.
Exhibition graphics and carton preparation

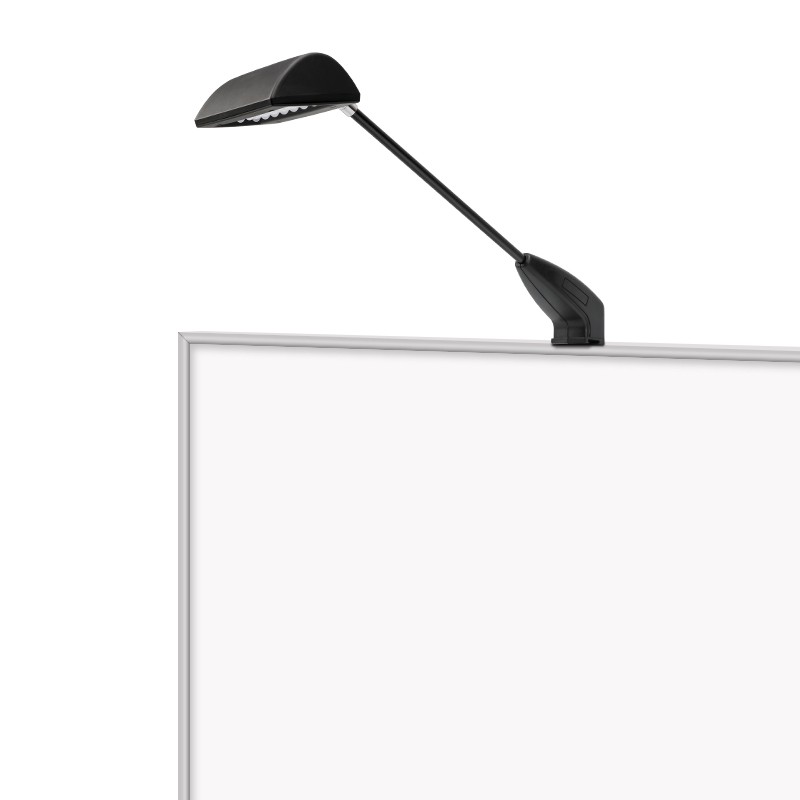

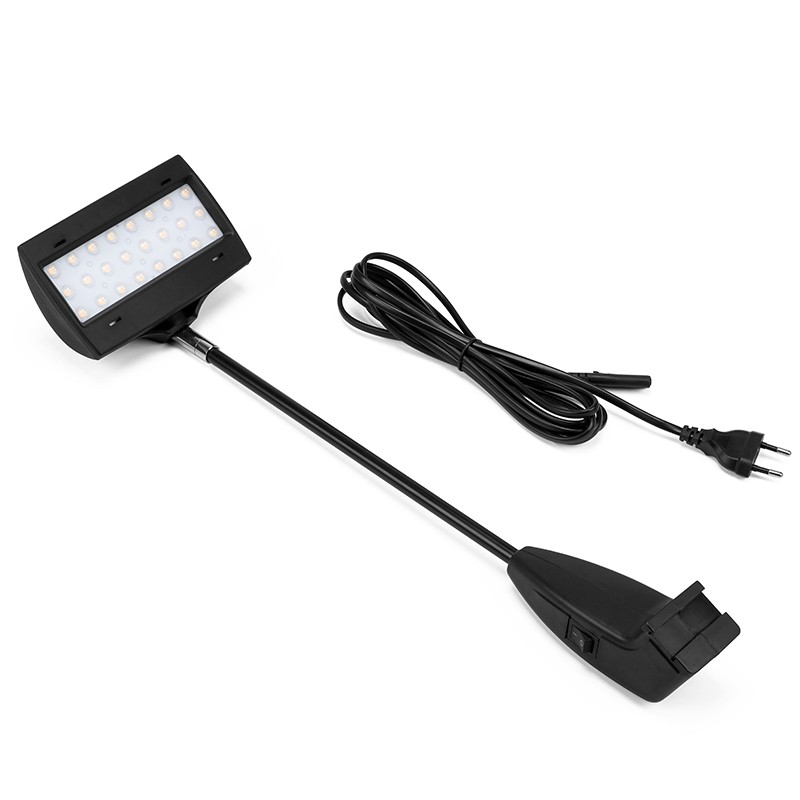

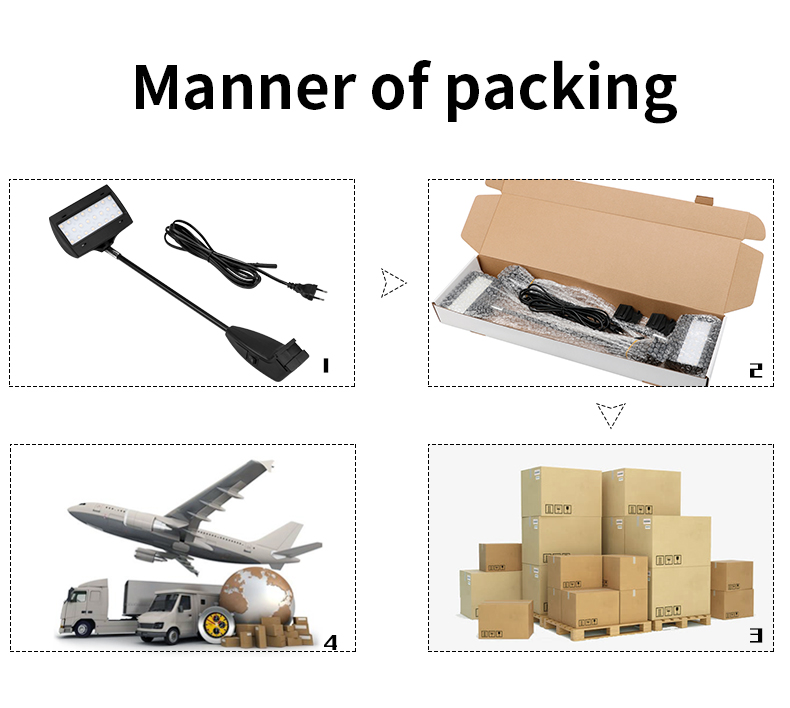

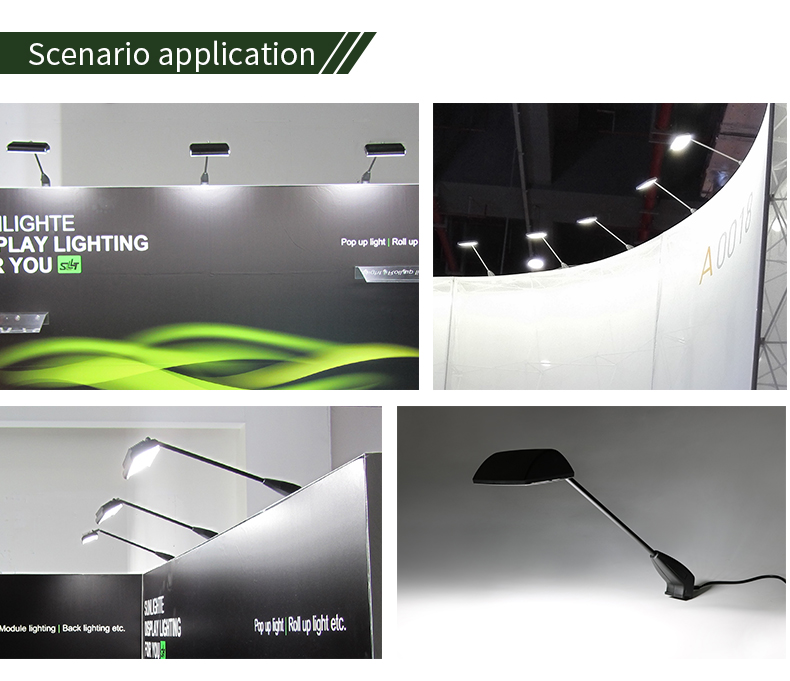

The application pictures show arm spotlights above exhibition graphics and portable display walls. Check the required number and position of lamps on the actual panel or a sample layout. The packing illustration shows the lamp and cable with protective wrapping and a carton; confirm packing quantities and any branding requirements for the order.
Questions for rectangular display-spotlight buyers
How does the 60° beam affect selection?
This model is specified with a 60° beam. Check the intended mounting position and illumination on your actual graphic. A 120° model is available separately when comparing a wider beam format.
Can I choose a warm or cool white version?
The specified range is 3000–7000K, with order choices illustrated at 3000–3500K, 4000–5000K and 6000–7000K. Specify the desired white-light appearance for the quotation and check a sample against your graphics.
Which details are needed for bulk pricing?
Send model SL-2091-N24L, quantity, white-light version, frame dimensions, fitting, destination plug and packing requirements. Orders start at 20 pcs, with lower unit prices at higher quantities.
Samples and custom factory supply
Samples are available for checking the fixing and lighting appearance. Standard lead time is 12–18 days; custom configuration schedules and transit time are confirmed separately. OEM, ODM and private-label enquiries are supported. Share your specifications, packing and branding requirements with the target quantity for a matching supply proposal.
