RGB tube lighting for multi-sided display lightboxes

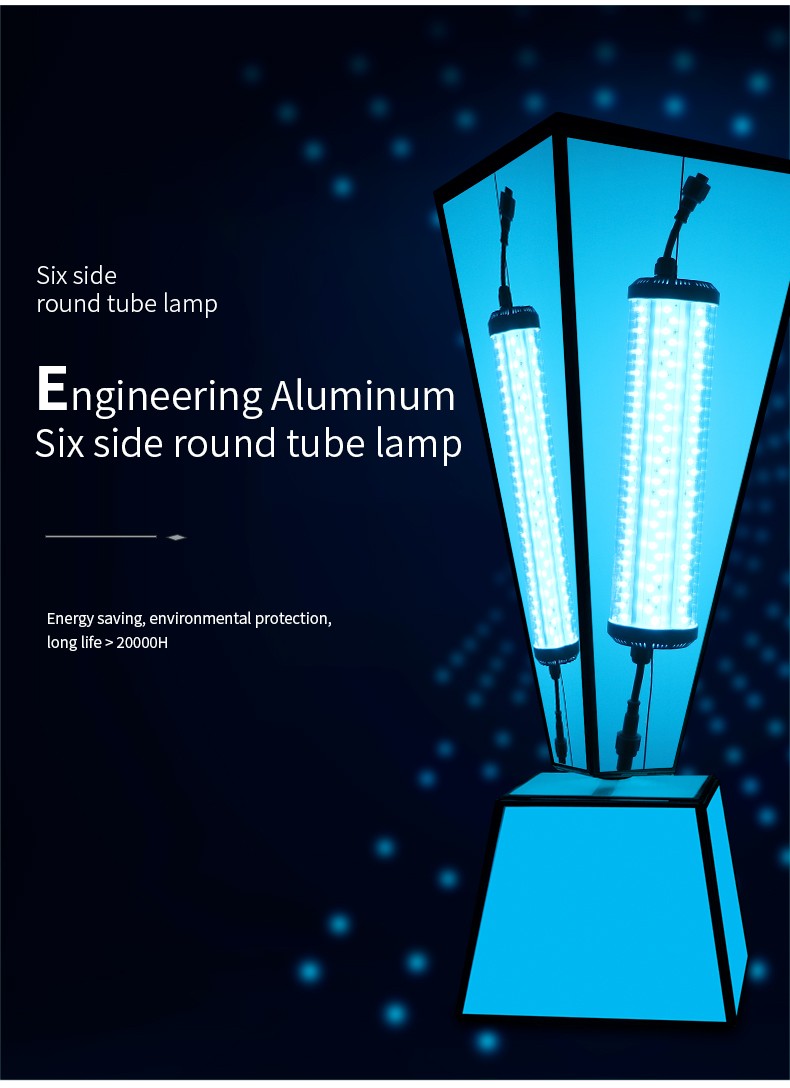

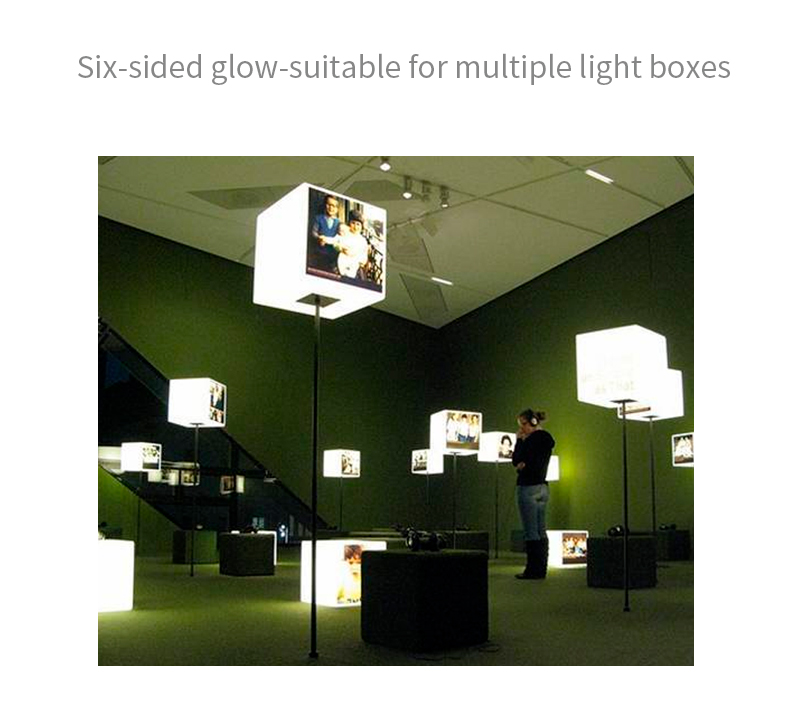

The SL-LT019-180L is a 30W RGB LED tube with six-sided LED placement and a 360° beam. It is designed for a 24V RGB control configuration. The application images show the cylindrical light inside cube lightboxes, upright illuminated displays and decorative enclosures.
For lightbox fabricators and exhibition display suppliers, this model provides an RGB option when the project calls for coloured illumination. Specify the display dimensions, desired control method and connection layout so the lamp, controller and power-supply configuration can be confirmed together.

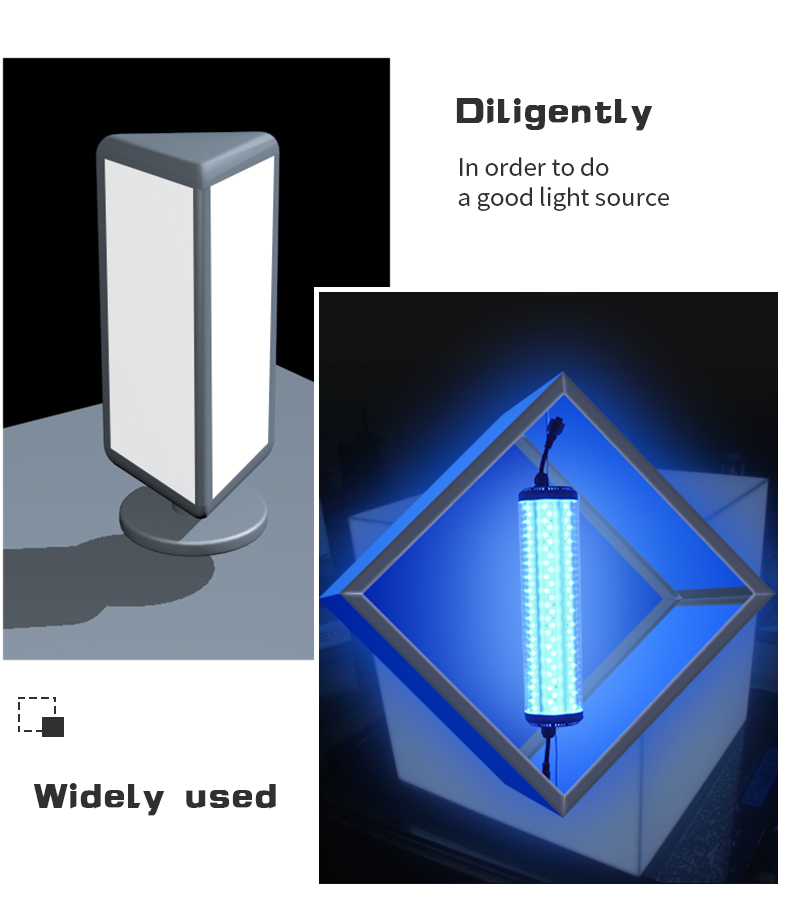

Coloured lighting inside display enclosures

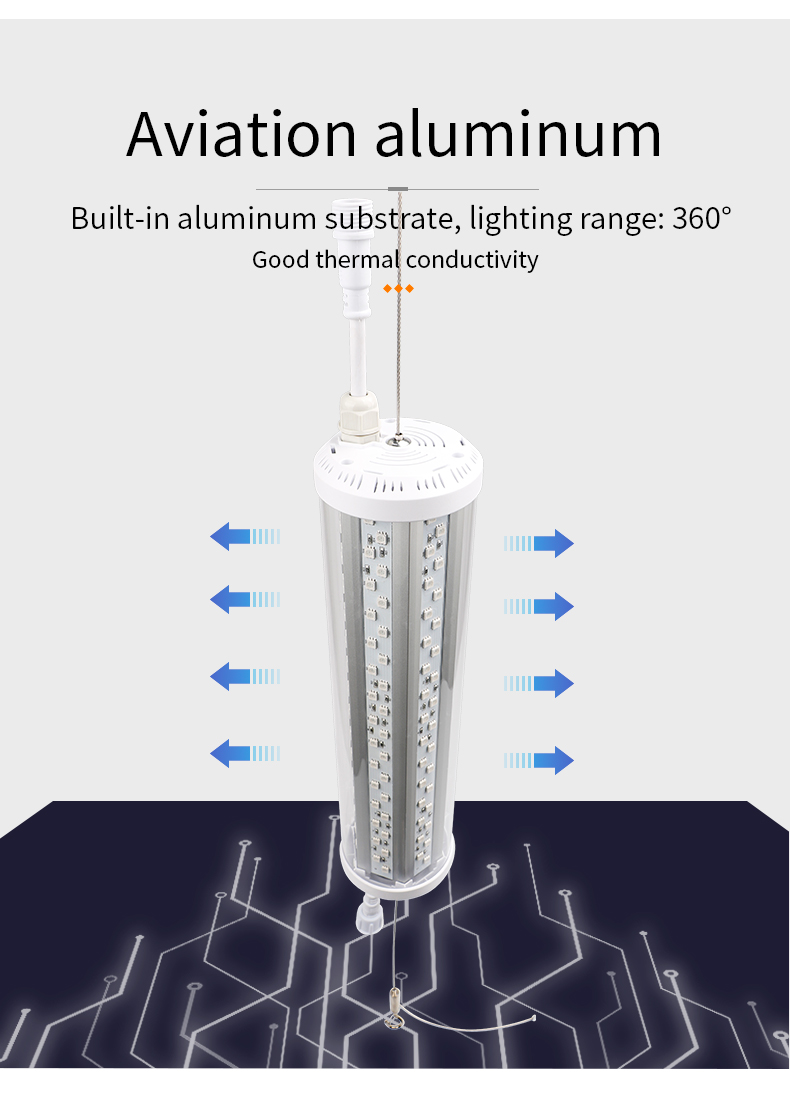

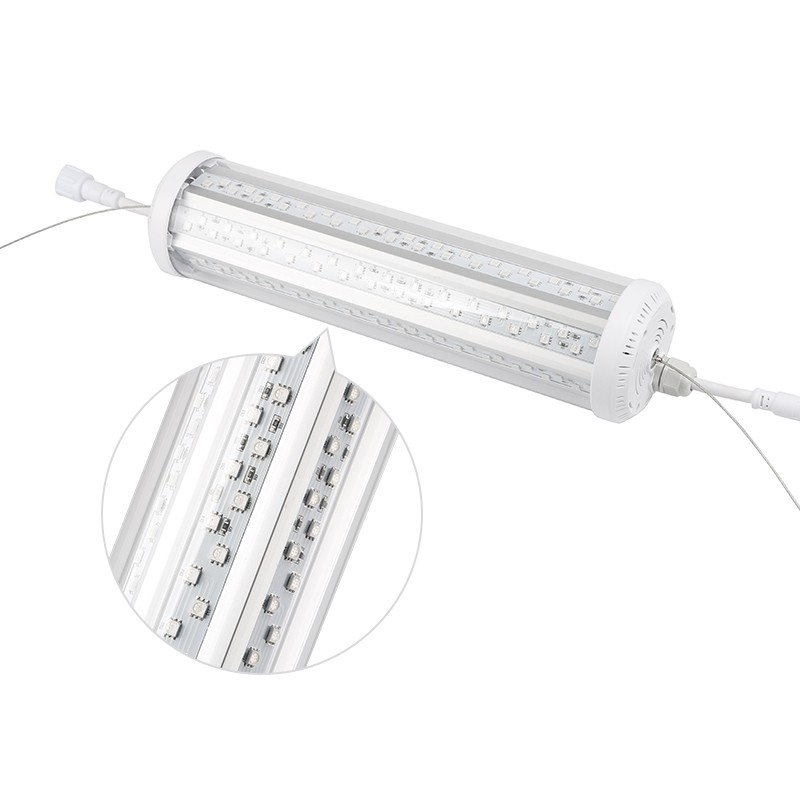

The six-sided LED arrangement directs light around the tube. For a cube lightbox, illuminated column or decorative display, review the colour appearance on the actual graphic or diffuser with a sample. The application images are references; the frame, printed graphics and installation hardware should be specified separately.

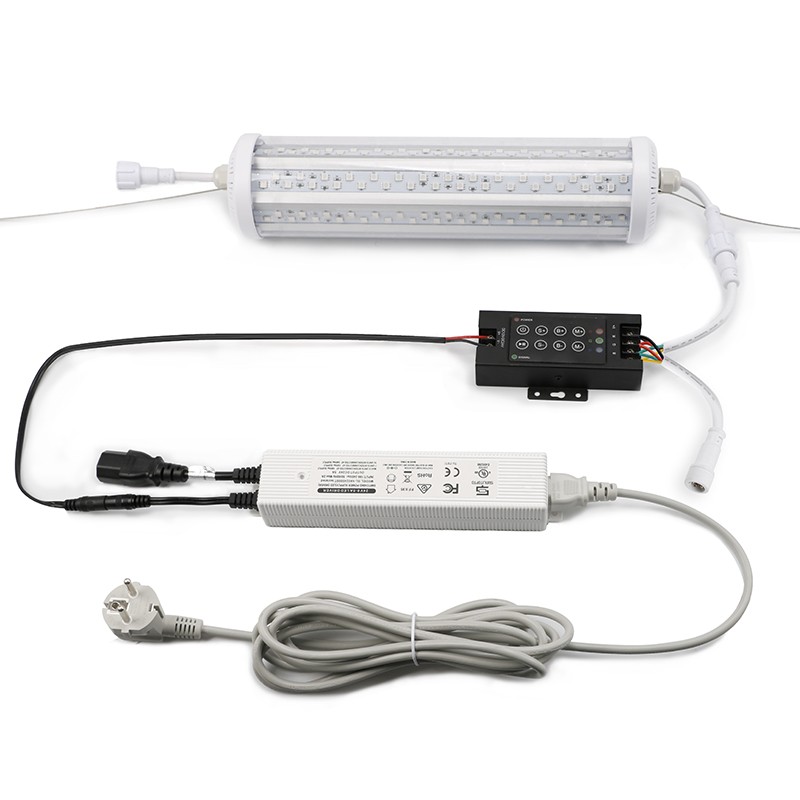

24V RGB control and cabling

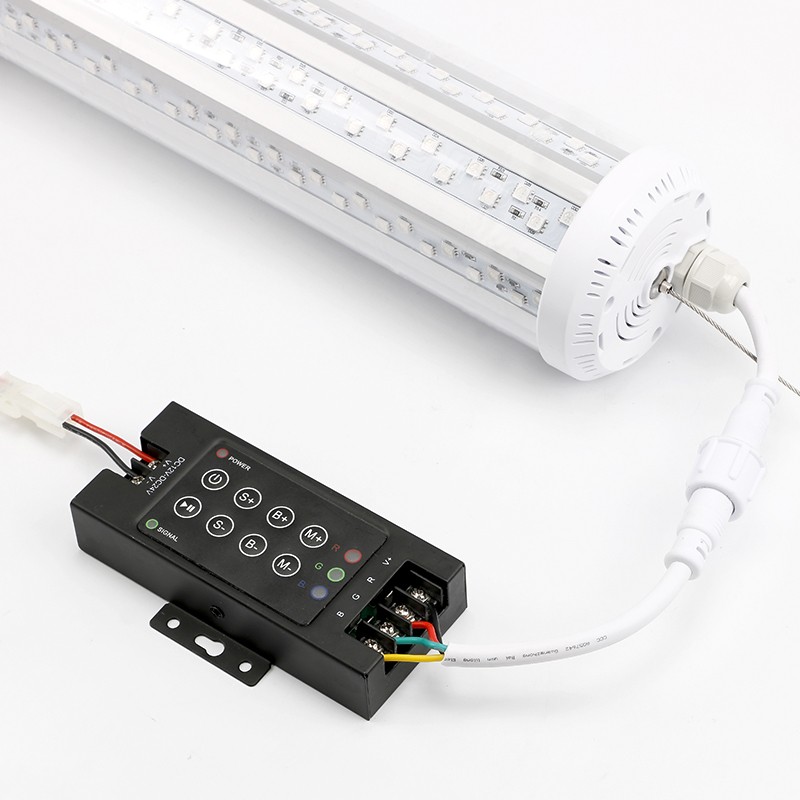

The specification identifies a DC 24V RGB controller configuration and four-core connectors. Confirm the compatible controller, channel connections, total connected load and required power supply. The images do not document a DMX protocol, an app or a supplied remote control.

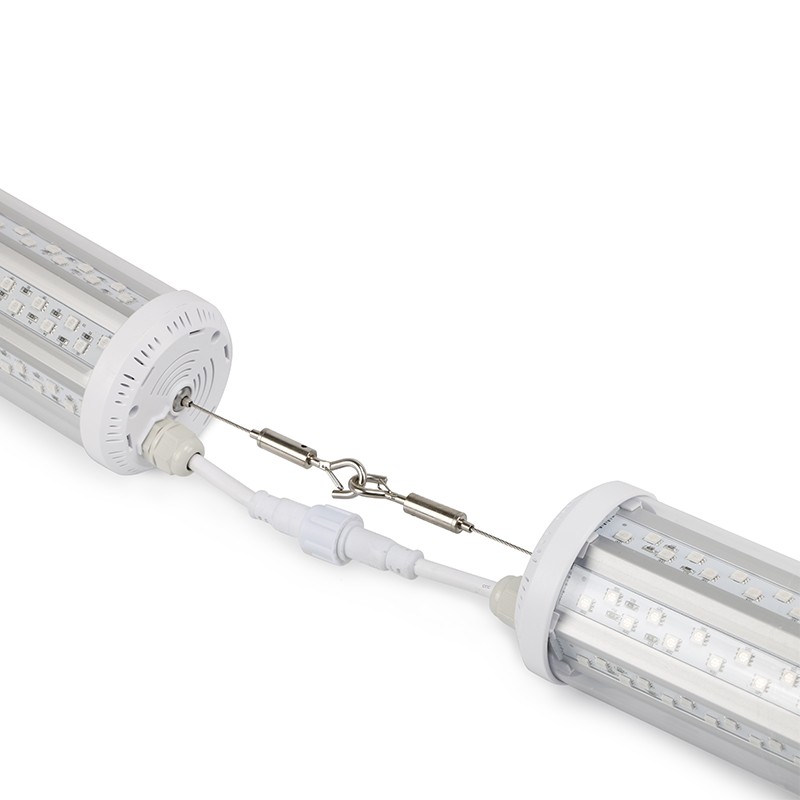

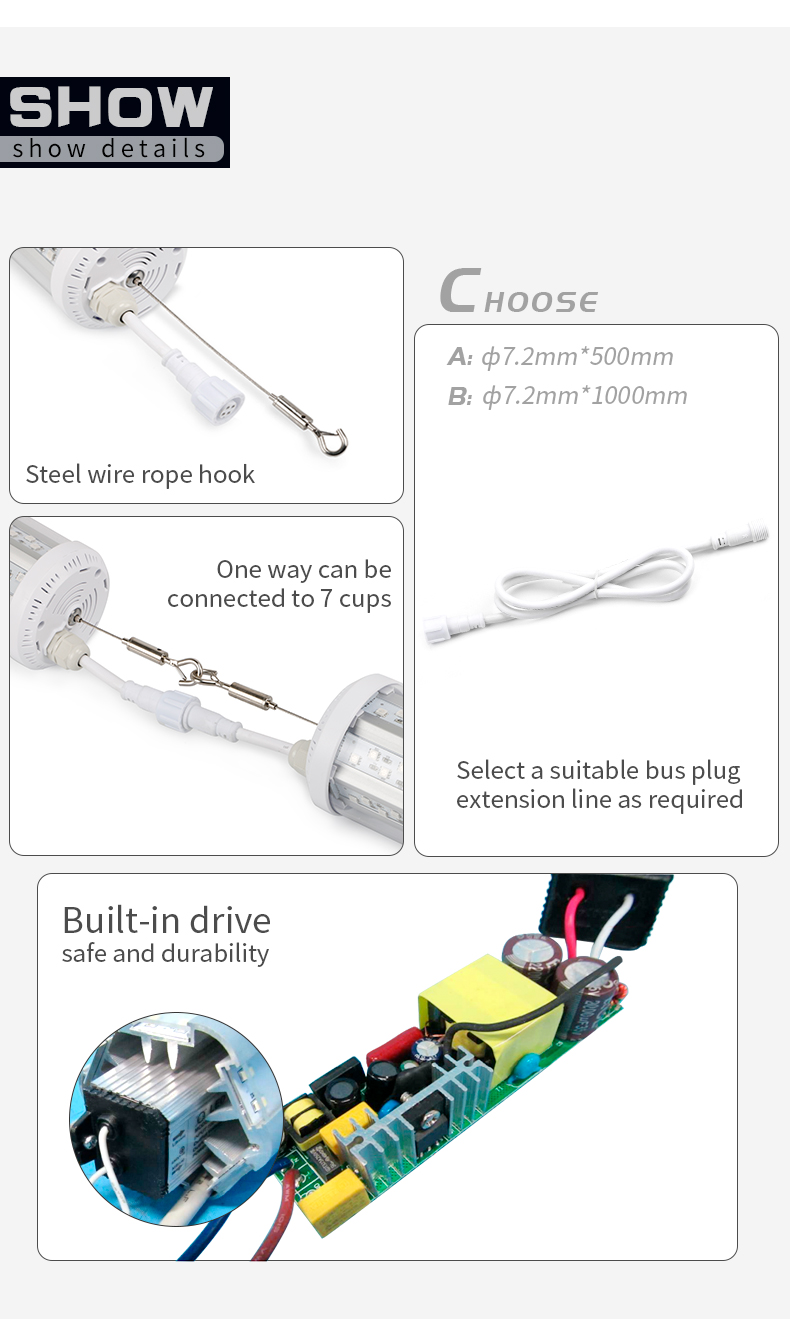

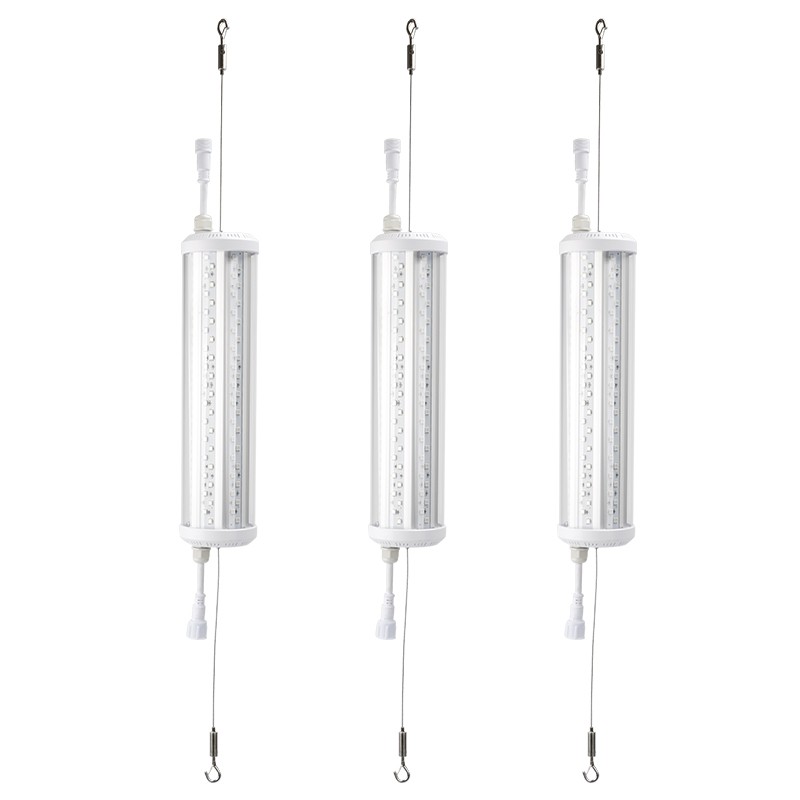

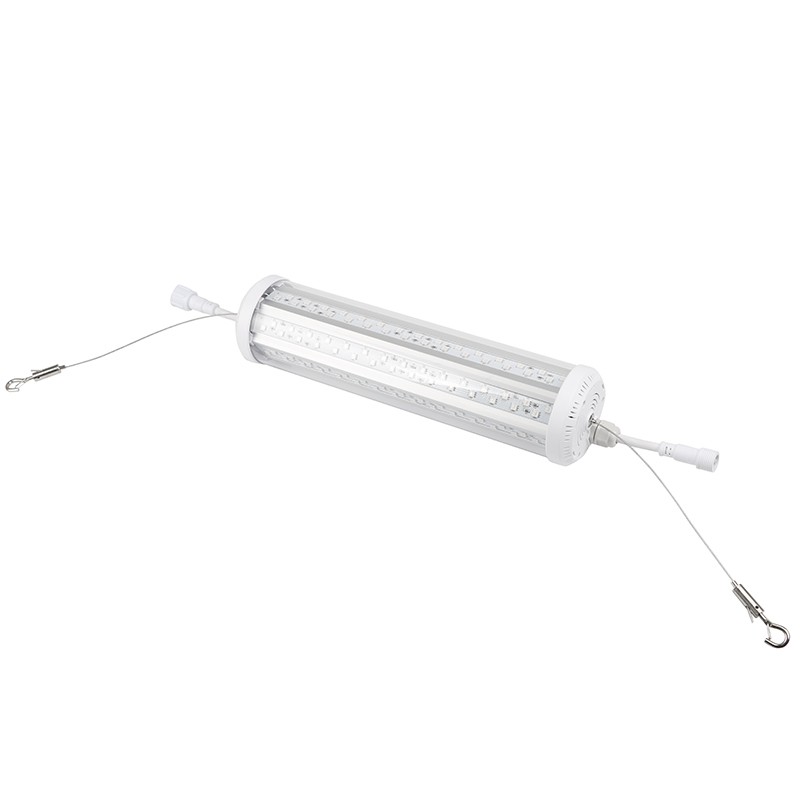

The component reference shows a steel-wire hook and extension options marked 500 mm and 1000 mm. Confirm available leads and the permitted connection layout for the order; the quoted set should identify every included component.

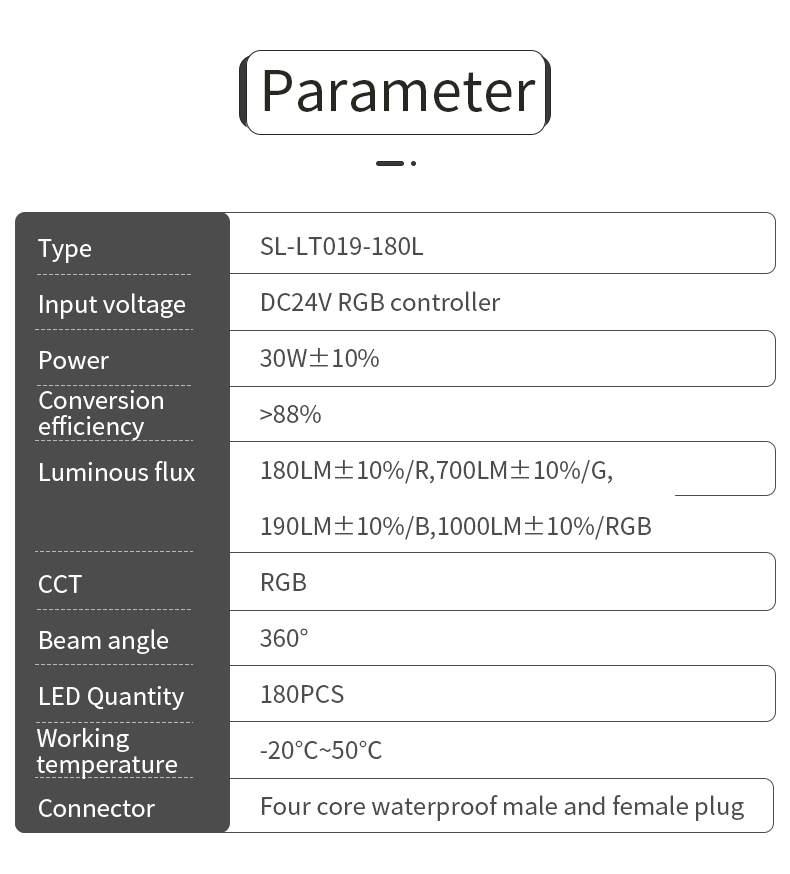

Electrical and optical data
| Specification | SL-LT019-180L |
|---|
| Model | SL-LT019-180L |
| Power | 30W ±10% |
| Input / control configuration | DC 24V RGB controller |
| Light colour | RGB |
| Beam angle | 360° |
| LED quantity | 180 LEDs |
| Listed red output | 180 lm ±10% |
| Listed green output | 700 lm ±10% |
| Listed blue output | 190 lm ±10% |
| Listed combined RGB output | 1000 lm ±10% |
| Working temperature | −20°C to 50°C |
| Connector type | Four-core waterproof male and female plugs |
Display layout and installation requirements
Send the enclosure dimensions, graphic material, lamp positions, cable routing and desired colour-control behaviour. A waterproof plug description applies to the connector; request the model-specific protection and compliance information if the installation requires a defined IP rating.
RGB display lighting questions
Does this tube run directly from mains power?
The listed configuration is DC 24V with an RGB controller. Confirm a suitable supply and controller for the required lamp quantity, and have the final wiring arrangement checked for your installation.
Is the RGB controller included?
The specification identifies the required control configuration. Controller, supply, leads and suspension components should be listed in the quotation so the supplied set is clear.
Is the lamp output 3000 lm like the white-light model?
The RGB specification lists separate outputs: 180 lm red, 700 lm green, 190 lm blue and 1000 lm combined RGB, each ±10%. The 3000 lm white-light tube is a different model.
Is a white-light cylindrical tube available?
Yes. The related SL-LT013-N96L model provides 30W white-light illumination with 3000 lm output and three CCT order options. Its electrical connections differ from this RGB version.
Bulk supply and custom display projects
MOQ is 20 pcs. Higher quantities qualify for lower unit prices, and samples can be supplied for colour and configuration review. Standard lead time is 12–18 days; confirm the schedule for customised components and the shipping time separately.
OEM, ODM and private-label projects are supported. Include model SL-LT019-180L, quantity, display dimensions, control requirements, cable lengths, power-supply requirements, destination market and any branding details with your enquiry.
