360° white lighting for hanging cube lightboxes
The SL-LT013-N96L is a 30W cylindrical LED light for illuminating multi-sided display lightboxes. Its LEDs face around the tube, with a specified 360° beam and 3000 lm output. The application images show the light suspended inside hanging cube displays and display frames.
For exhibition stand builders, lightbox manufacturers and display distributors, the useful starting points are the enclosure size, graphic material, required white-light colour and suspension layout. Send these details with the model number to obtain a matching supply quotation.
Lightbox applications

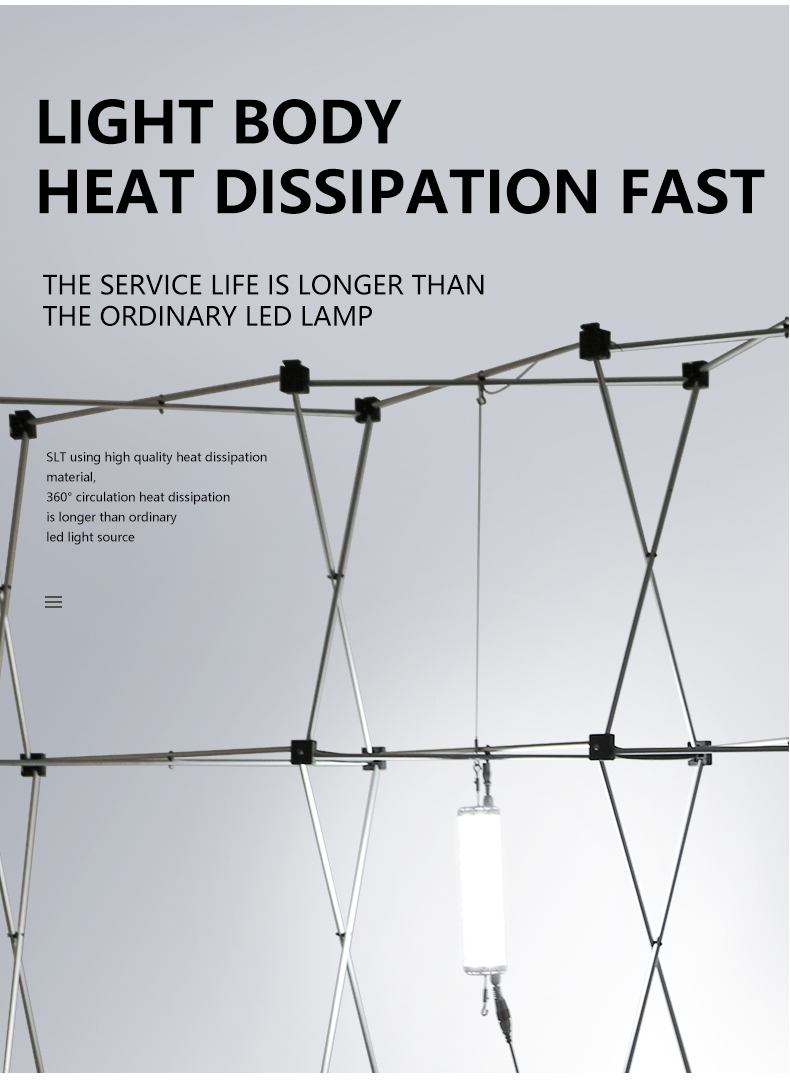

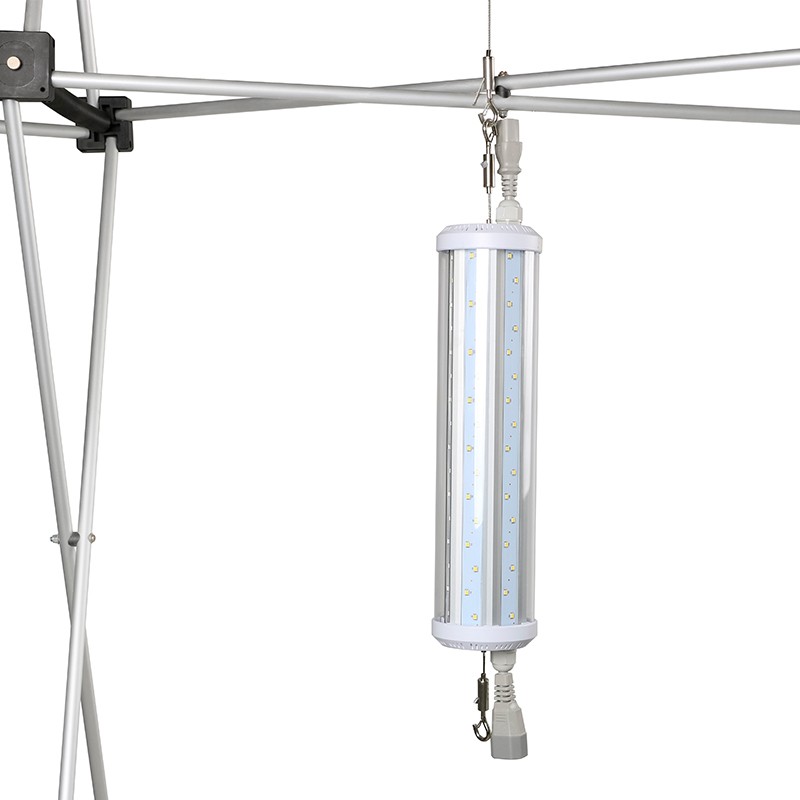

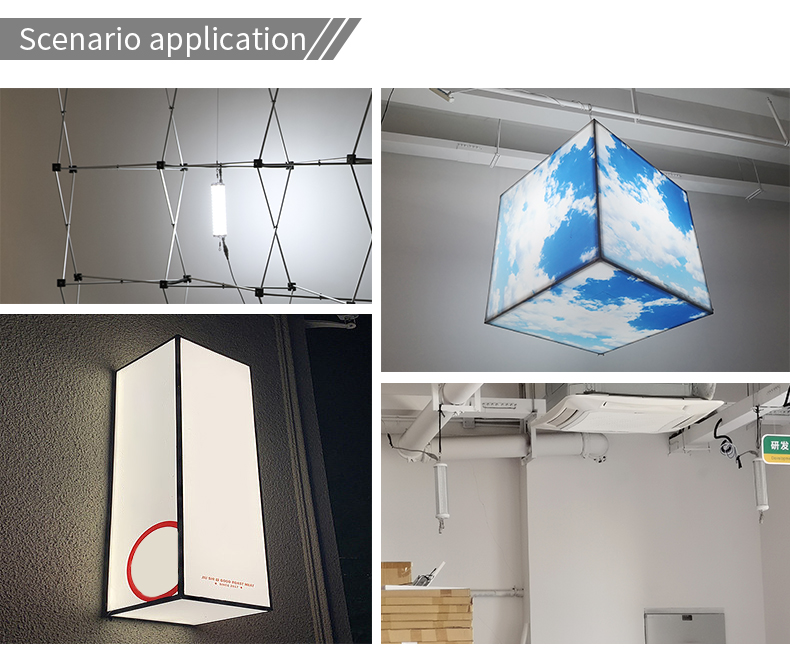

Position the cylindrical light inside the display enclosure using the illustrated steel-wire suspension. For a hanging fabric cube or a multi-sided graphic display, evaluate the light position and spacing with a sample; enclosure dimensions, graphic transmission and internal surfaces affect the finished appearance.
White-light options and connection layout

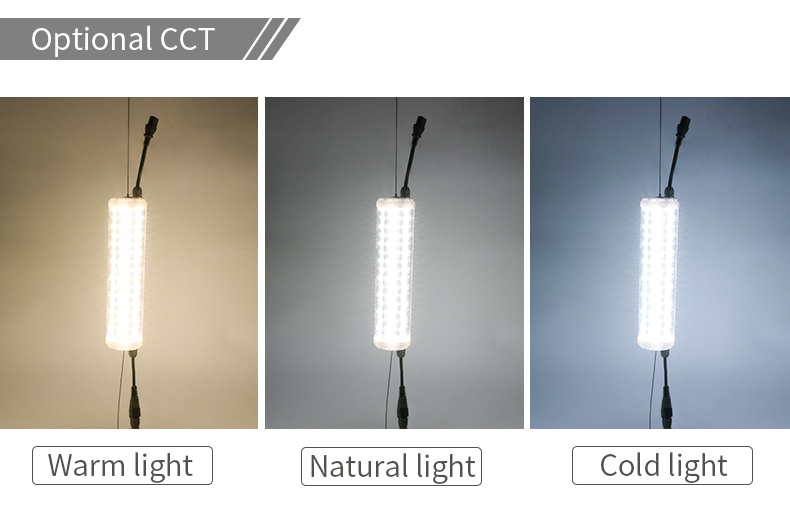

The original images show warm, neutral and cool white versions. Specify one of the listed colour-temperature ranges when ordering. The images identify these as optional CCT choices and do not document a colour-temperature selection switch.

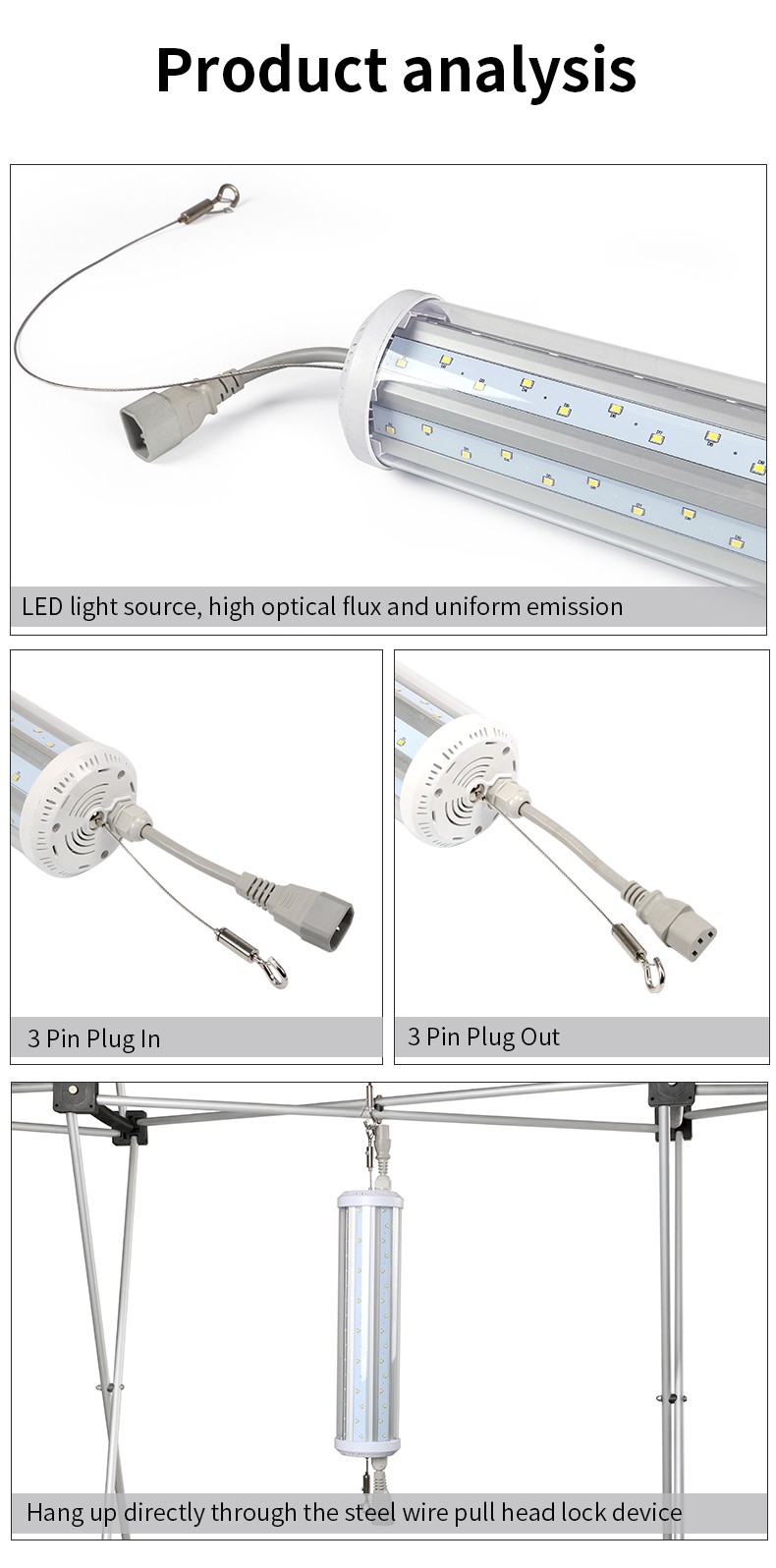

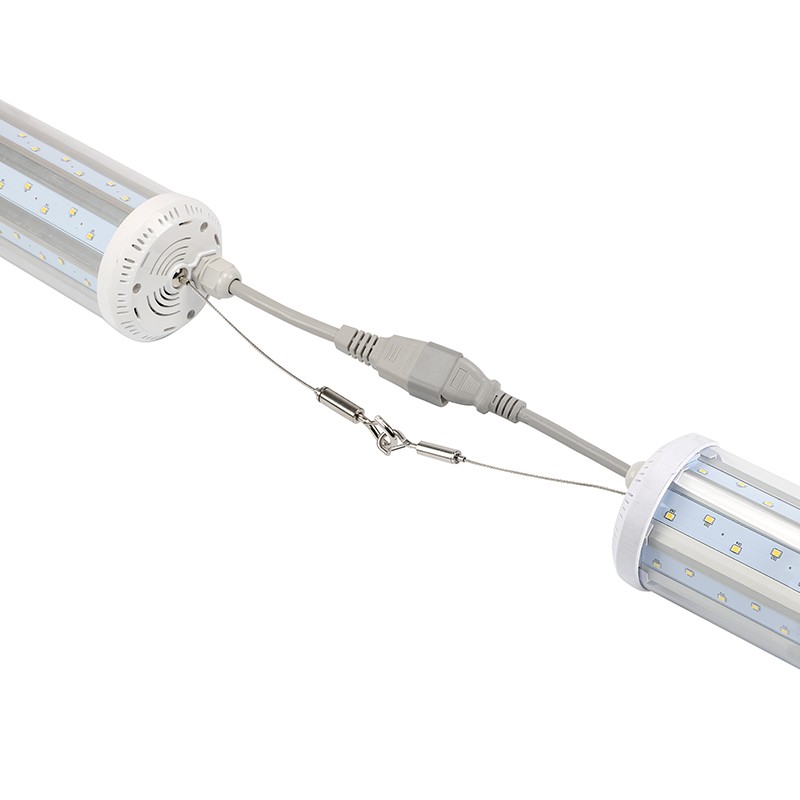

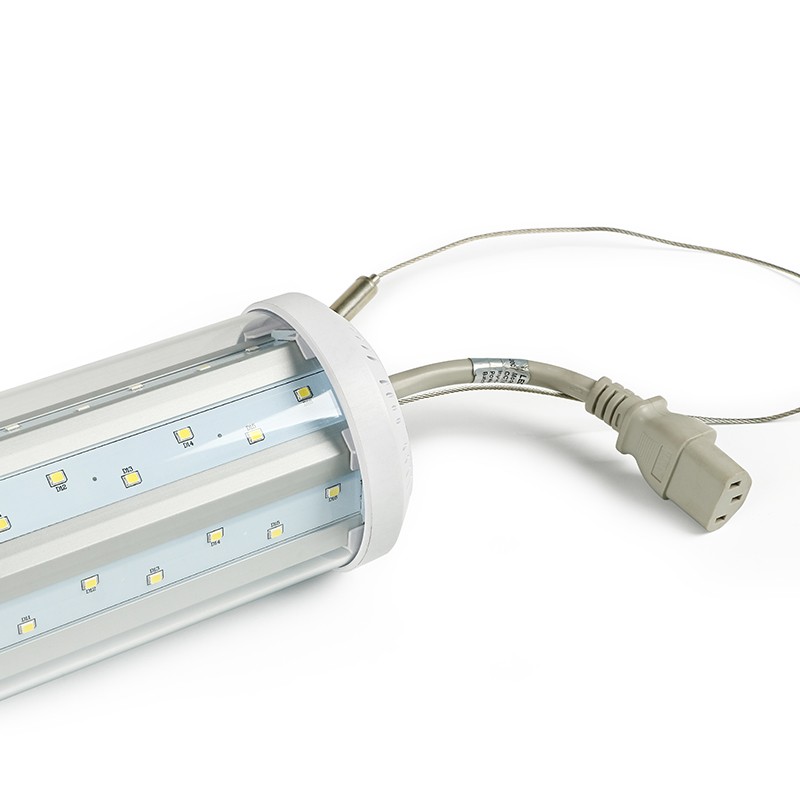

The lamp has 3-pin input and output connections. Confirm the required supply lead, connector compatibility, linking arrangement and allowed number of lamps before finalising the installation.

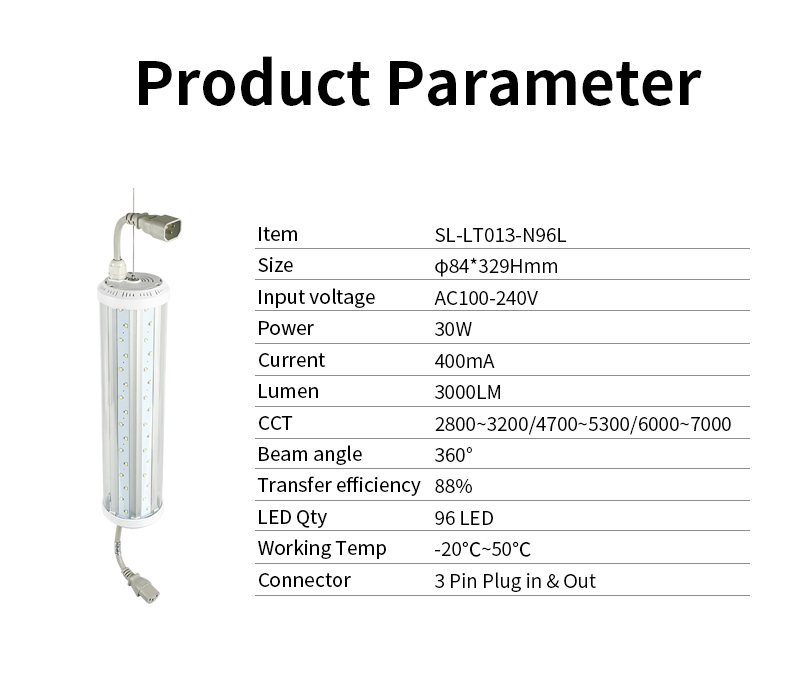

Technical specifications
| Specification | SL-LT013-N96L |
|---|
| Model | SL-LT013-N96L |
| Rated power | 30W |
| Luminous flux | 3000 lm |
| Beam angle | 360° |

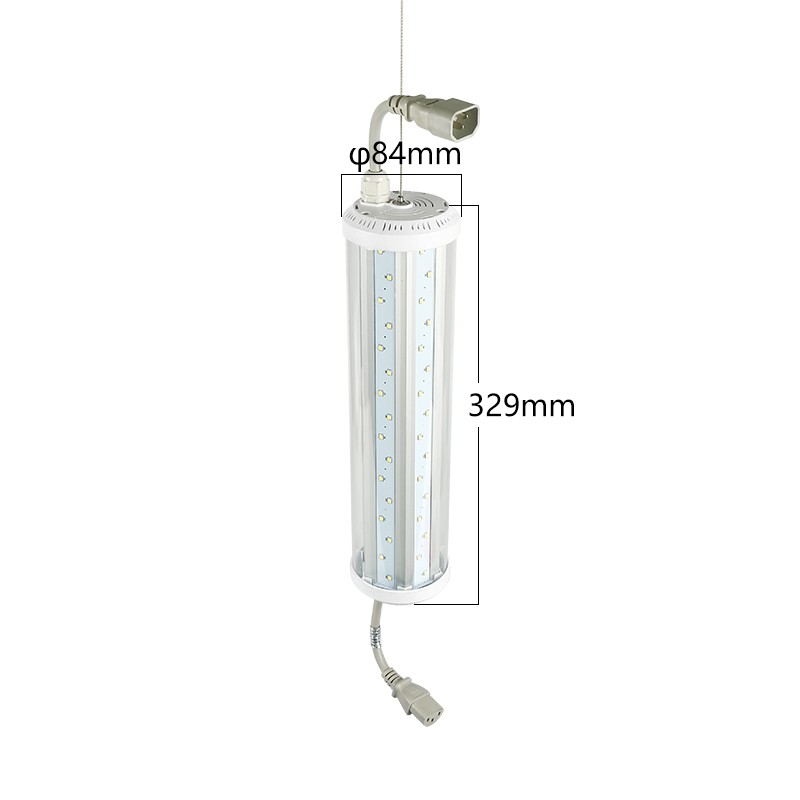

| Dimensions | Ø84 × 329 mm high |
| Input voltage | AC 100–240V |
| Colour temperature options | 2800–3200K; 4700–5300K; 6000–7000K |
| LED quantity | 96 LEDs |
| Working temperature | −20°C to 50°C |
| Connections | 3-pin input and output |
| Suspension | Steel wire with locking device, as illustrated |

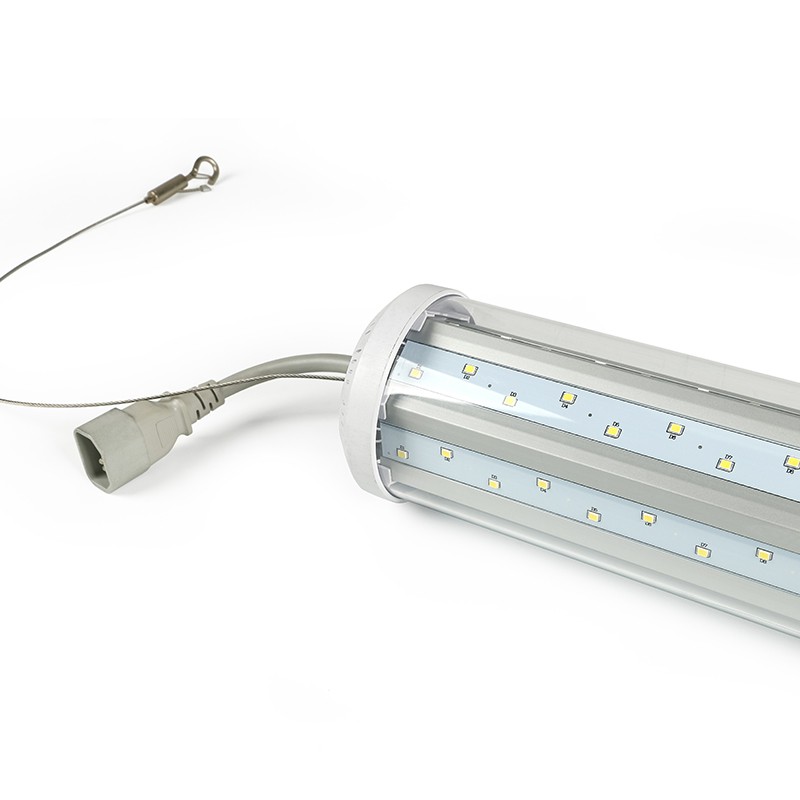

Suspension and supplied components

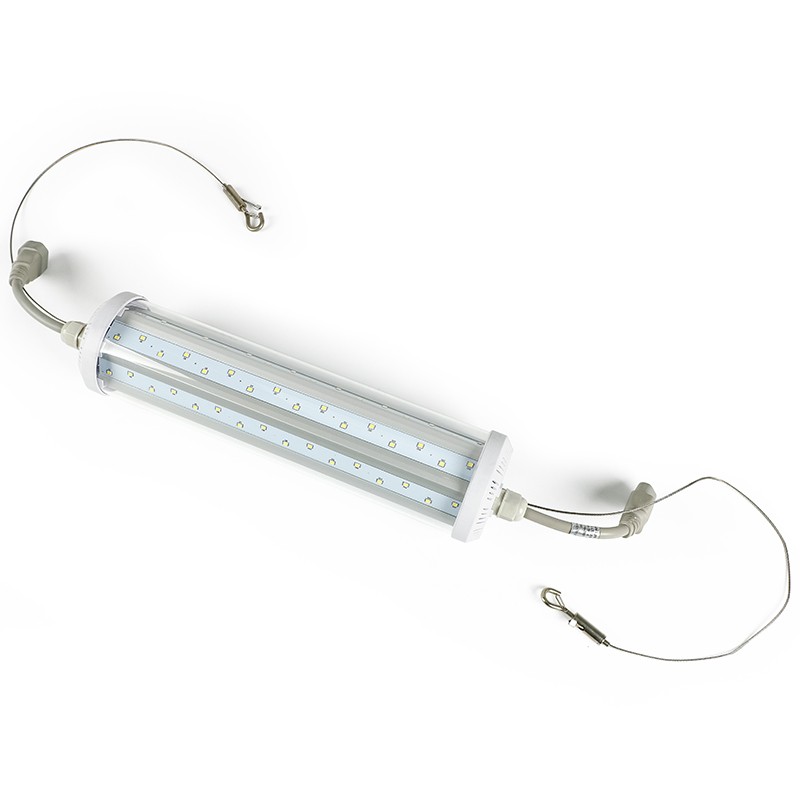

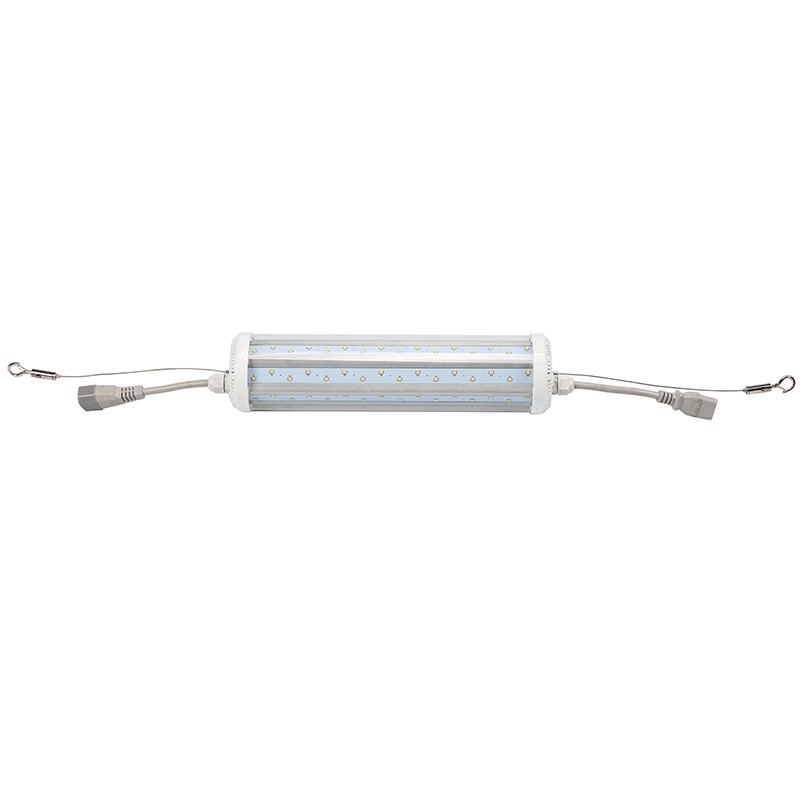

The application and construction images show a steel-wire locking device and a white cylindrical housing. Confirm wire length, fixing points, power and linking leads, and packing requirements in the quotation. A hanging lightbox frame or printed graphic is a project application and should not be assumed to be included with the lamp.
Lightbox lighting questions
Is this cylindrical light 30W or 41W?
This model is 30W according to the product specification image. Its listed luminous flux is 3000 lm. Use these values when planning the display lighting and comparing the sample.

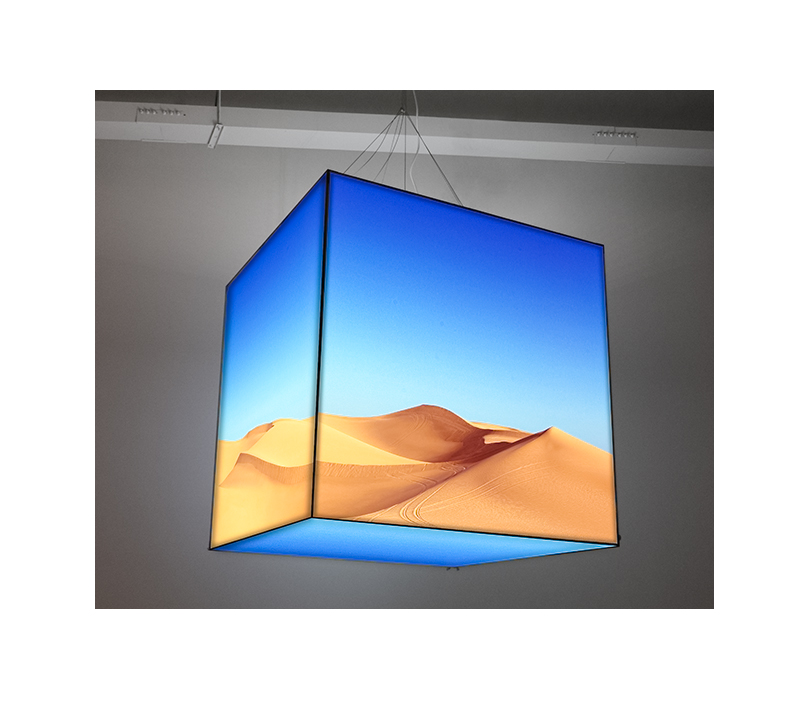

Can it illuminate a hanging cube display?
The application images show illuminated hanging cubes. Share the cube dimensions, graphic material and suspension arrangement so the lamp quantity and placement can be reviewed for your project.
Can I change the colour temperature with a switch?
The images show three optional white-light colour-temperature ranges, without a selection switch. Specify the required version when placing your order.
Is there an RGB version for colour-changing displays?
An RGB cylindrical light is listed separately. It uses a 24V RGB control configuration and four-core connectors; confirm the complete controller and supply arrangement for an RGB project.
Wholesale ordering
Orders start from 20 pcs, with lower unit prices at higher quantities. Samples are available; confirm the selected CCT, sample cost and shipping. Standard lead time is 12–18 days, with transit time and custom project schedules confirmed separately.
OEM, ODM and private-label enquiries are welcome. For a quotation, include model SL-LT013-N96L, order quantity, required white-light colour, lightbox dimensions, suspension and connection requirements, destination country, and any branding specification.
