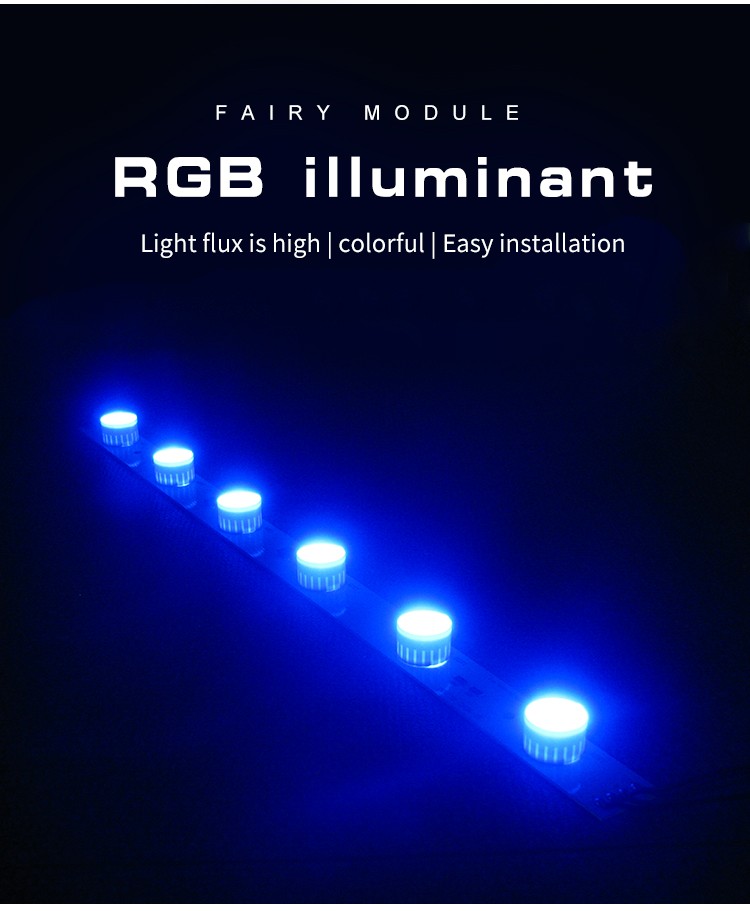

RGB LED sign modules with six 20 × 60° lenses
Specify a rigid RGB light source for colour-based advertising displays and lightbox projects. SL-BL021-RGB240 measures 480 × 27 × 16mm, is rated at 24W with a 24V DC input and uses six LEDs with 20 × 60° lenses. The drawing indicates 80mm spacing between LED positions.
For sign shops, display fabricators and lighting-component distributors, the selection includes the required colour effects, control arrangement and enclosure layout. Provide these details with the number of bars so the quotation can define the sample, connections and production scope.
24W RGB sign module technical data

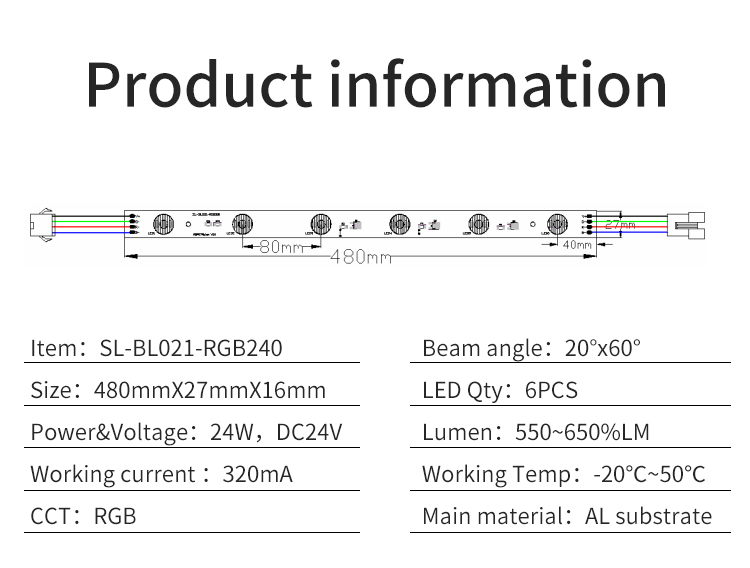

| Specification | SL-BL021-RGB240 |
|---|
| Model | SL-BL021-RGB240 |
| Complete assembly size | 480 × 27 × 16mm |
| Power | 24W |
| Input | 24V DC |
| Light type | RGB |
| LED quantity | 6 pcs |
| LED spacing in drawing | 80mm |
| Lens angle | 20 × 60° |
| Substrate | 1.6mm aluminium |
| Connections illustrated | Four coloured leads with black plugs |
| Operating temperature | −20°C to +50°C |
Colour-lighting selection for illuminated displays

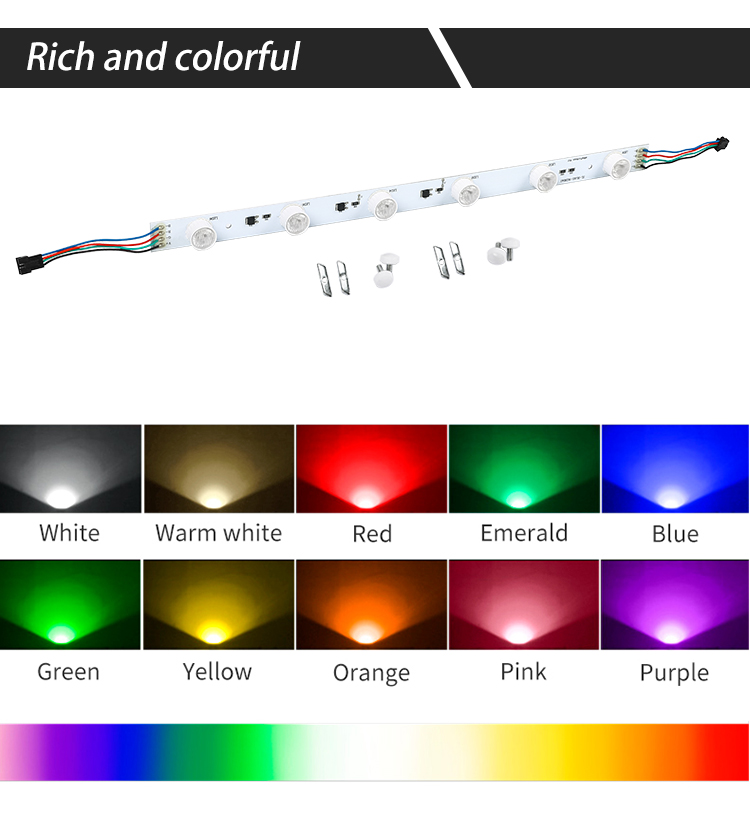

The original artwork illustrates a range of colour appearances from the RGB bar. Select the required effects and review them with the actual printed graphic or display face during sample testing.
Share the proposed RGB controller and power arrangement when specifying the installation. Agree the compatible control equipment, operating modes and supplied parts before production.
Four-wire connections and aluminium-supported construction

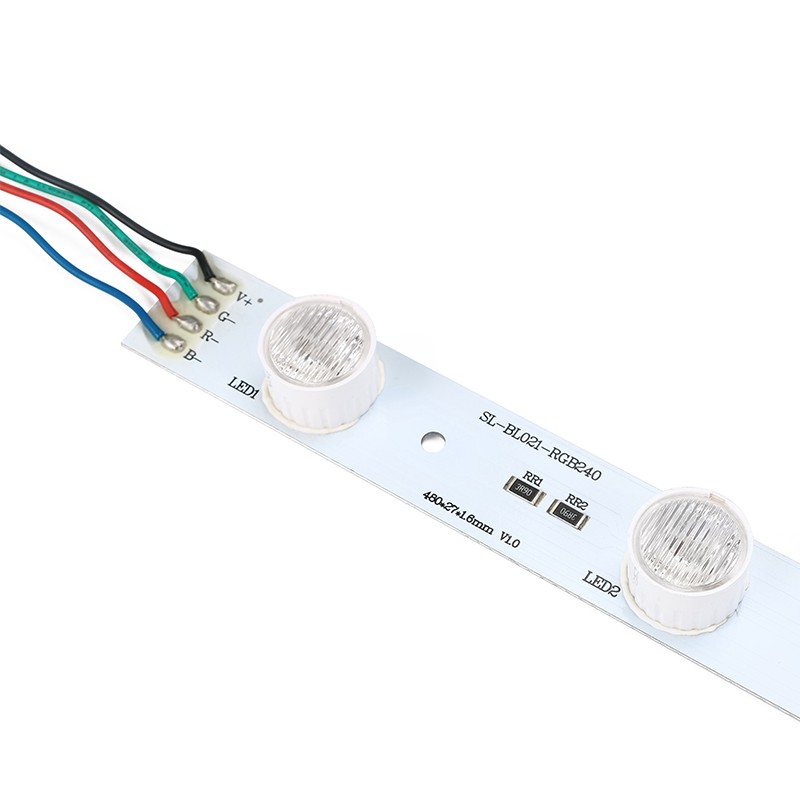

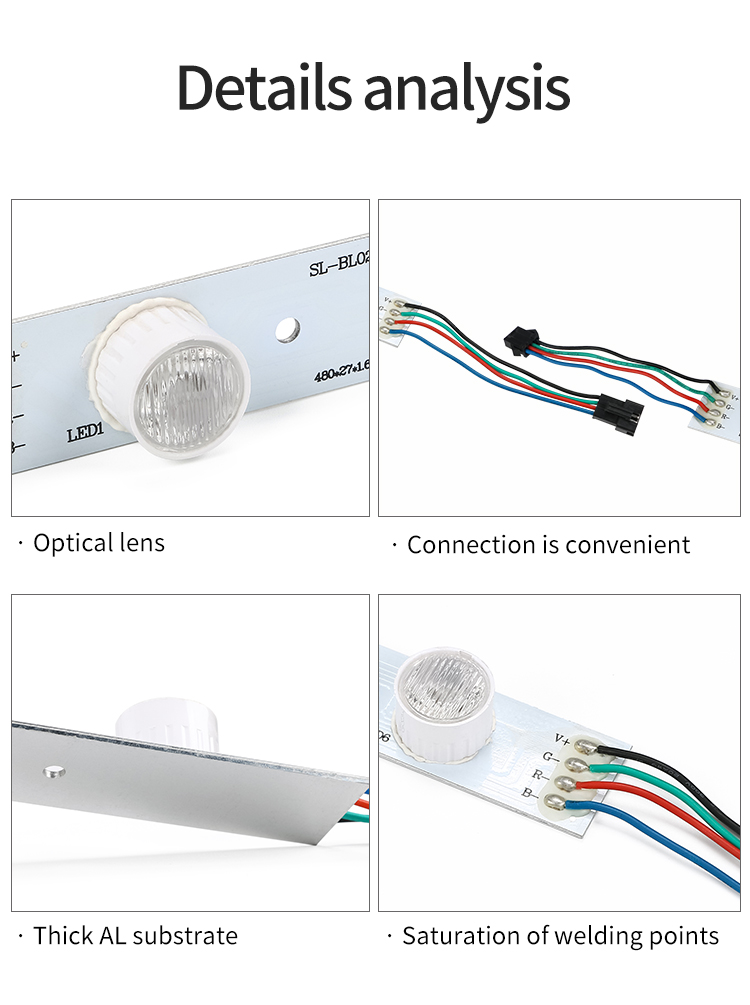

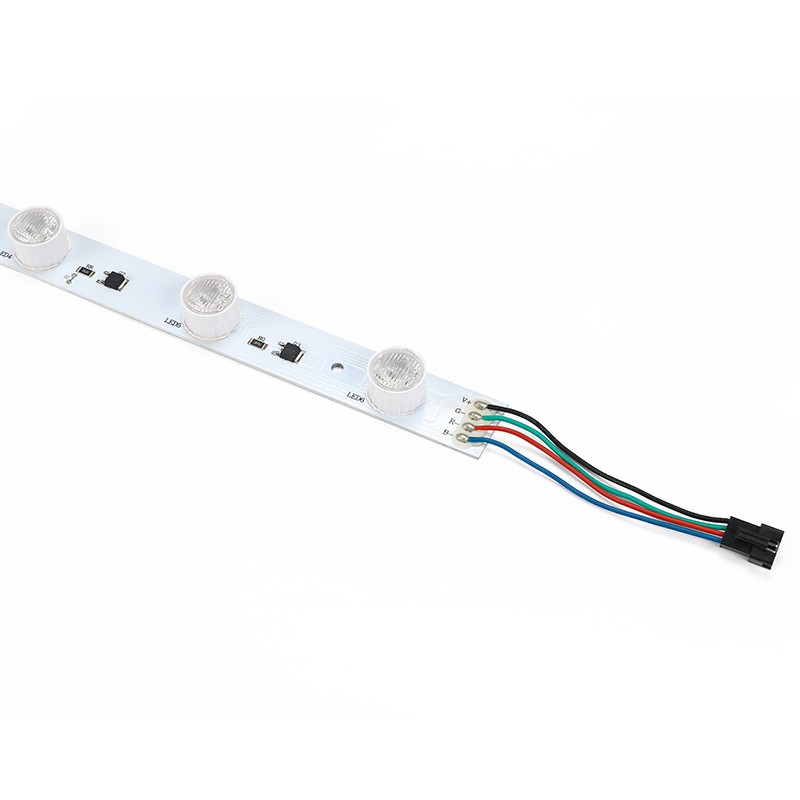

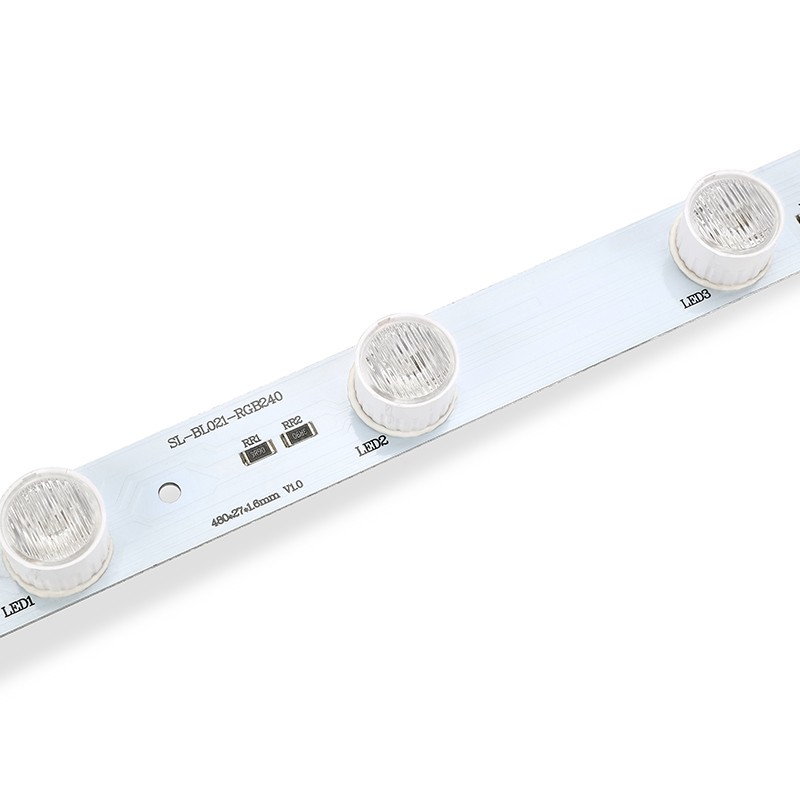

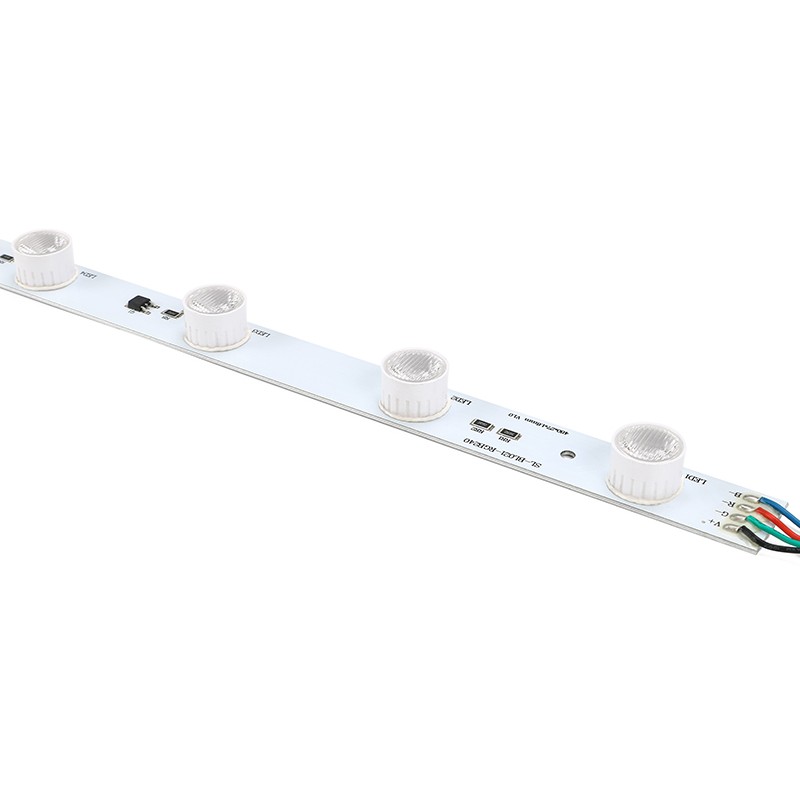

Detail photographs show four coloured leads, black plugs and board connection markings V+, G, R and B. Obtain the wiring information for the delivered assembly and match the connector and controller terminals for the approved layout.

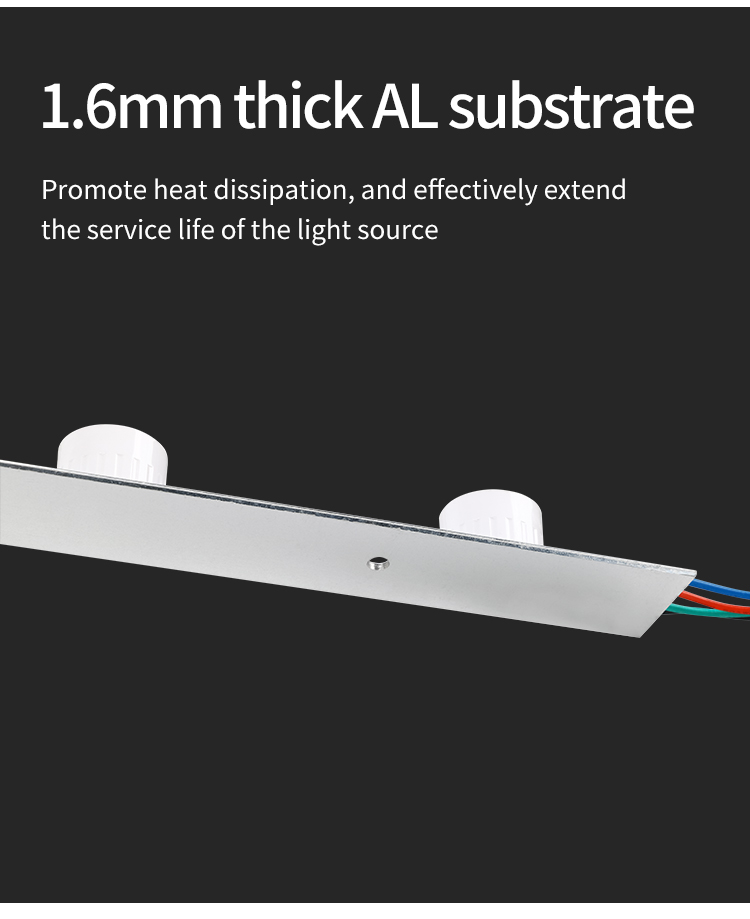

The substrate illustration identifies 1.6mm aluminium support; the complete lens-equipped assembly is 16mm high. Use the full 480 × 27 × 16mm dimensions when checking the frame clearance. Agree the applicable fixings and lead lengths with the quotation.
RGB lightbox project supply and packing
Application pictures present advertising lightboxes, display frames and architectural colour-lighting concepts. Provide the enclosure dimensions, face material and installation conditions to define the sample layout and project requirements.
The packing illustration shows individual boxes and outer cartons. Specify the number of light bars, connection leads, mounting parts and required marking. OEM, ODM and private-label enquiries are supported; confirm the supply scope and sample cost with the quotation.
RGB lens-bar procurement questions
How does this six-LED RGB module connect?
The detail pictures show four coloured wires, black plugs and V+, G, R and B board markings. Request the delivered assembly wiring information and agree the matching controller, supply and connectors for the project.
Does the RGB bar include a separate white-light channel?
The product parameter sheet identifies this model as RGB. If a separate white-light channel is required, include that requirement when selecting an RGBW model or discussing a custom project.
How should I review colour appearance before a bulk order?
Samples are available. Send the intended graphic or face material, frame drawing, required effects and proposed control equipment to define a representative sample. Sample cost and destination shipping are confirmed separately.
What are the wholesale order quantity and usual lead time?
Wholesale orders start at 20 pcs, with lower unit prices for larger quantities. Standard lead time is 12–18 days; confirm the schedule for the bar quantity, connection parts and custom requirements. Transit time is agreed separately.
Compare an RGBW bar or a cool-white lightbox source
480mm 32W RGBW lighting bar with a white channel
517mm 12W five-LED cool-white lightbox bar
