200mm rigid LED strip lights with two lens choices
Select a short three-LED bar for a lightbox frame or compact illuminated display. SL-BL016-070 measures 200 × 23 × 16mm and is specified at 7W ±10%, 24V DC and 700–770 lm. The product sheet lists 20 × 60° and 10 × 45° lens choices, allowing the optical version to be specified with the order.
For lightbox manufacturers, sign makers and display-component buyers, start with the available frame space, required lens direction and white-light specification. Send the enclosure drawing and quantity to select the optical version, connection parts and fixing arrangement for the sample.
7W three-LED rigid strip specification

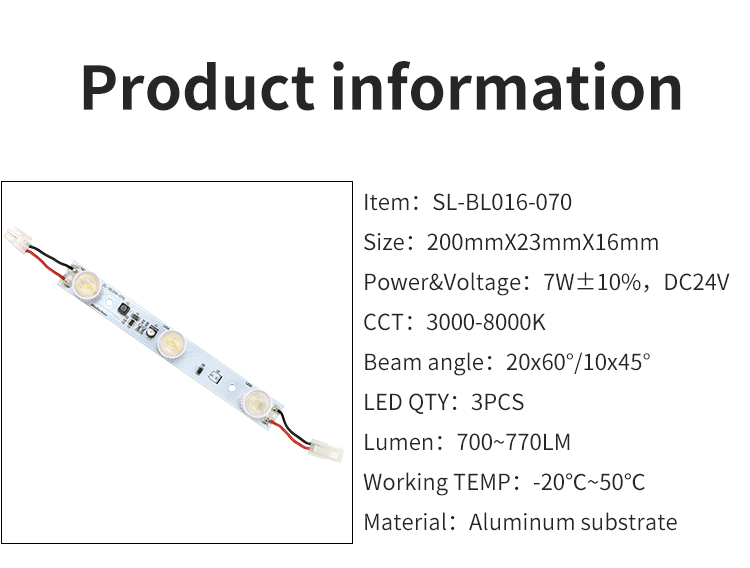

| Specification | SL-BL016-070 |
|---|
| Model | SL-BL016-070 |
| Dimensions | 200 × 23 × 16mm |
| Power | 7W ±10% |
| Input | 24V DC |
| LED quantity | 3 pcs |
| Luminous flux | 700–770 lm |
| Lens choices | 20 × 60° or 10 × 45°; specify with the order |
| White-light order range | 3000–8000K |
| Colour-rendering order option | CRI 90+ available; specify with the order |
| Operating temperature | −20°C to +50°C |
| Support material | Aluminium |
Lens version and white-light selection
The product sheet lists two optical choices: 20 × 60° and 10 × 45°. Identify the required version alongside the proposed bar direction and enclosure dimensions, then assess the lighting with a sample in the actual frame.
White-light orders can be specified within the listed 3000–8000K range. The appearance examples show warm, natural and cool light. CRI 90+ LEDs are available to order; include the white-light and colour-rendering requirements in the sample specification.
Short-bar installation and connection details

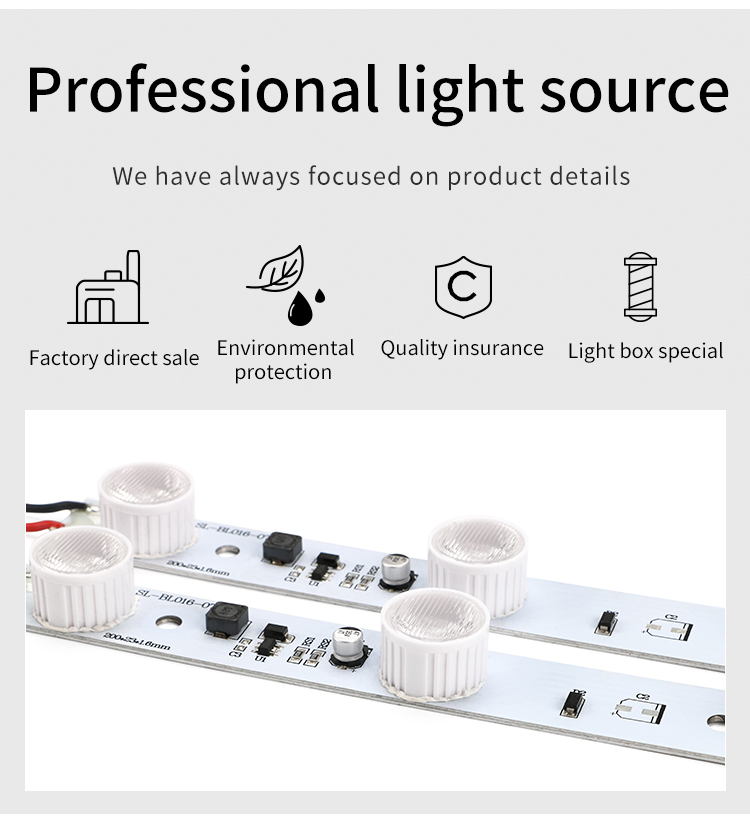

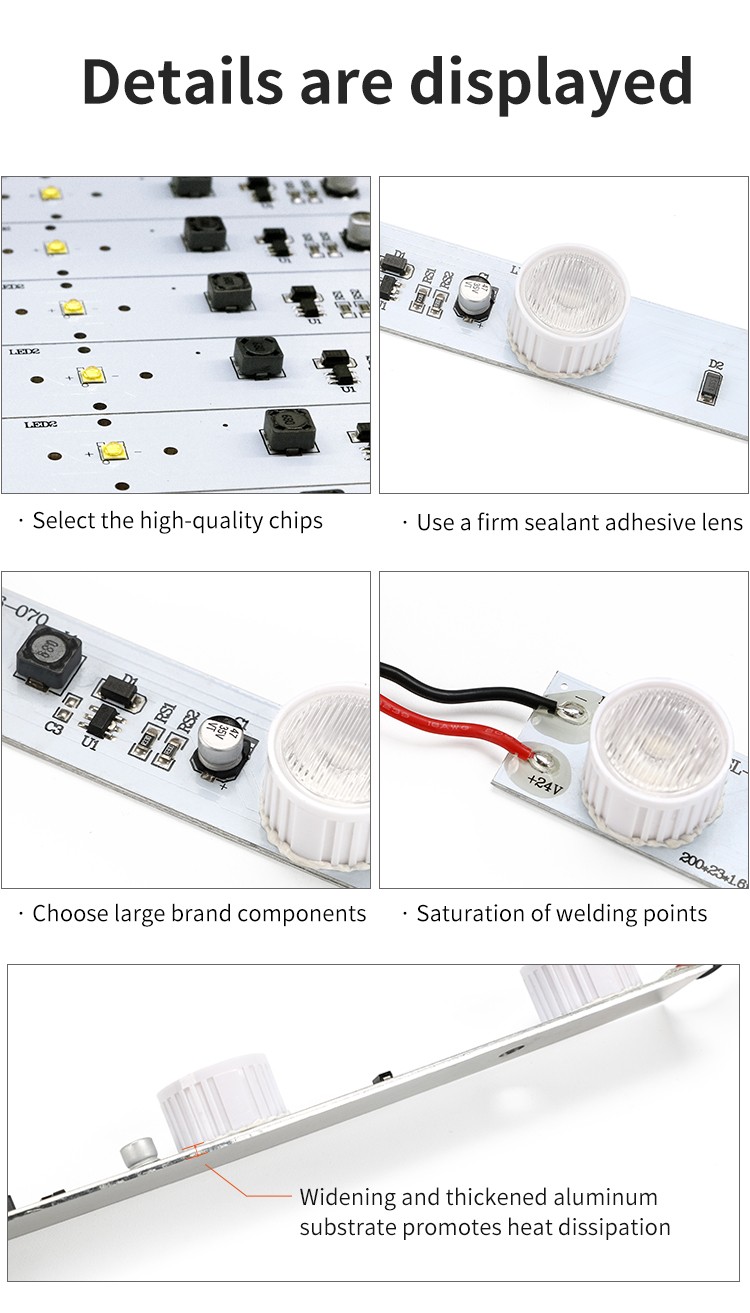

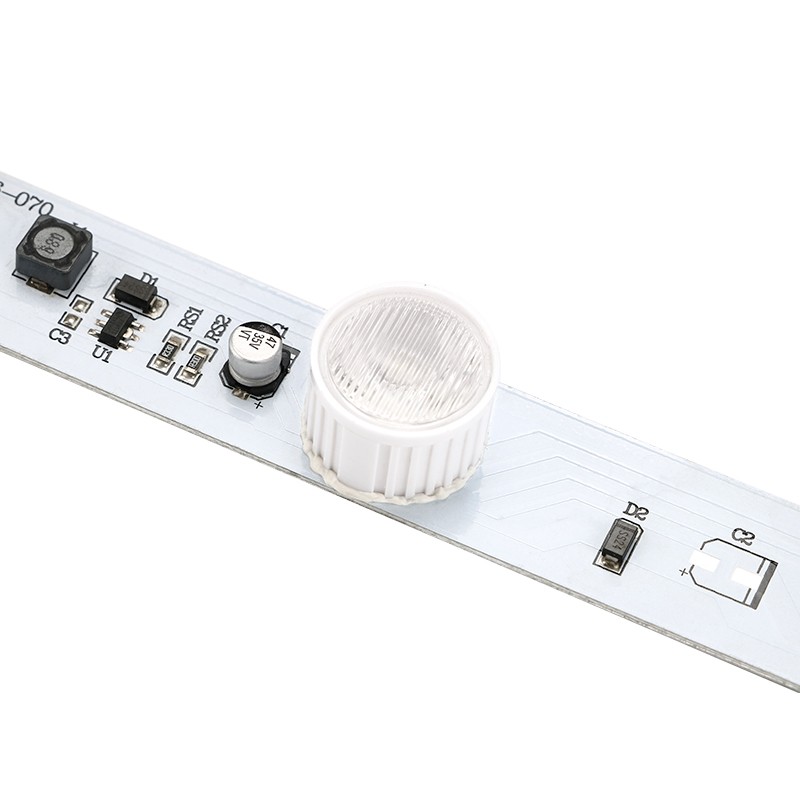

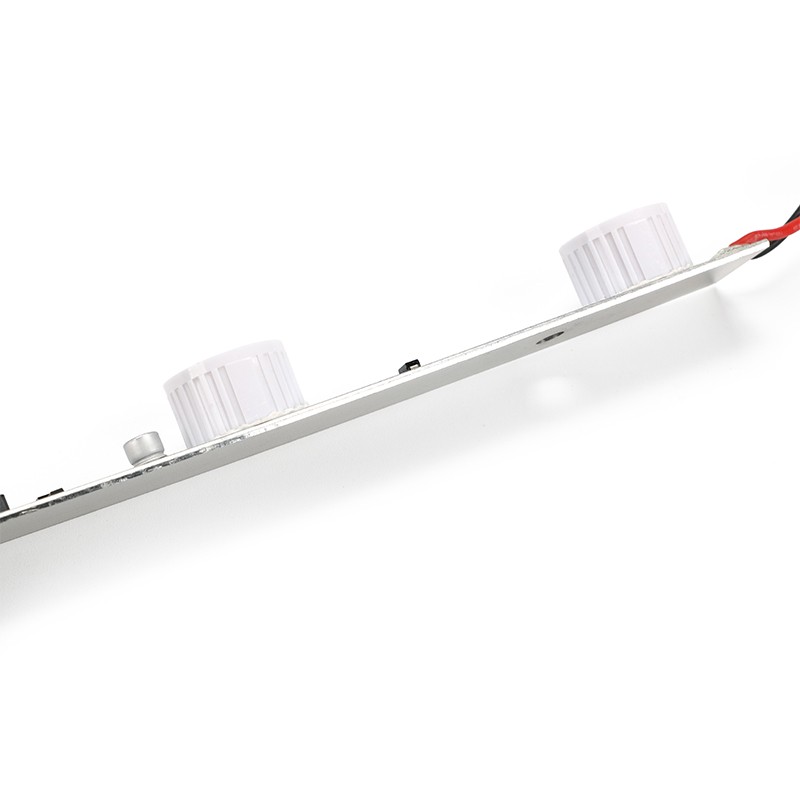

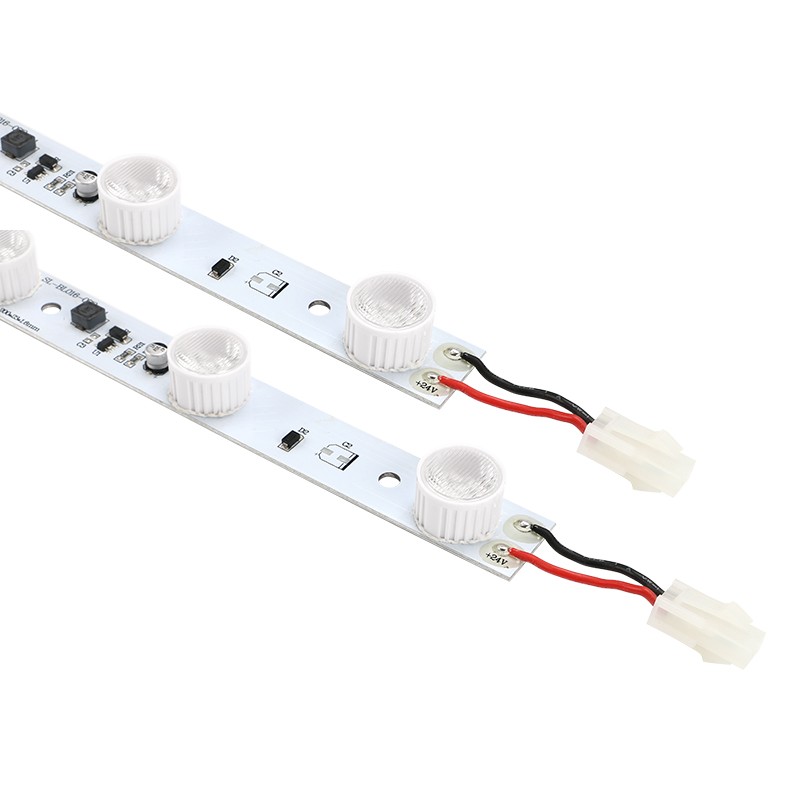

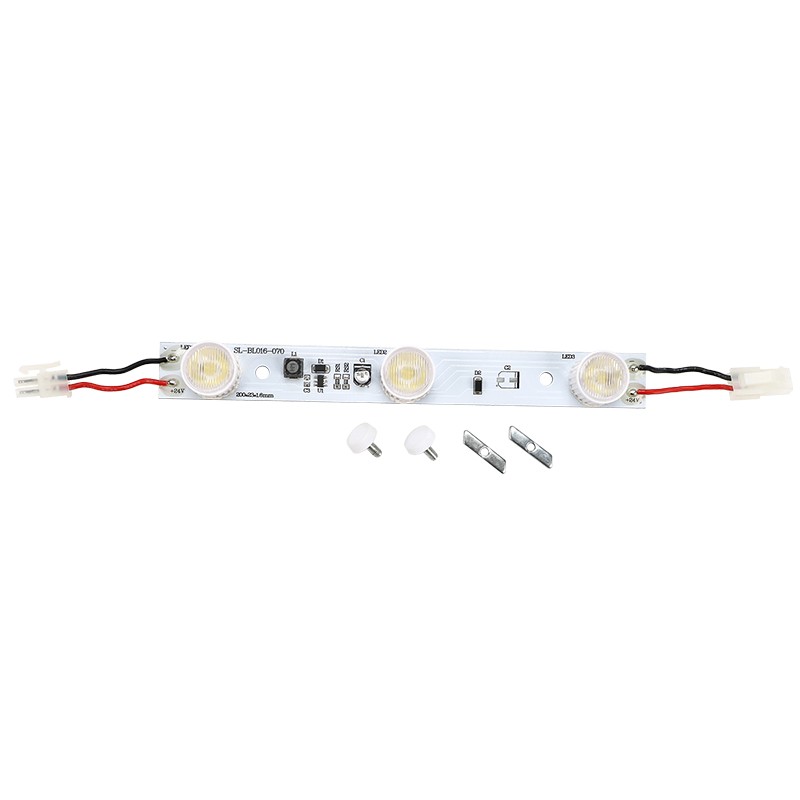

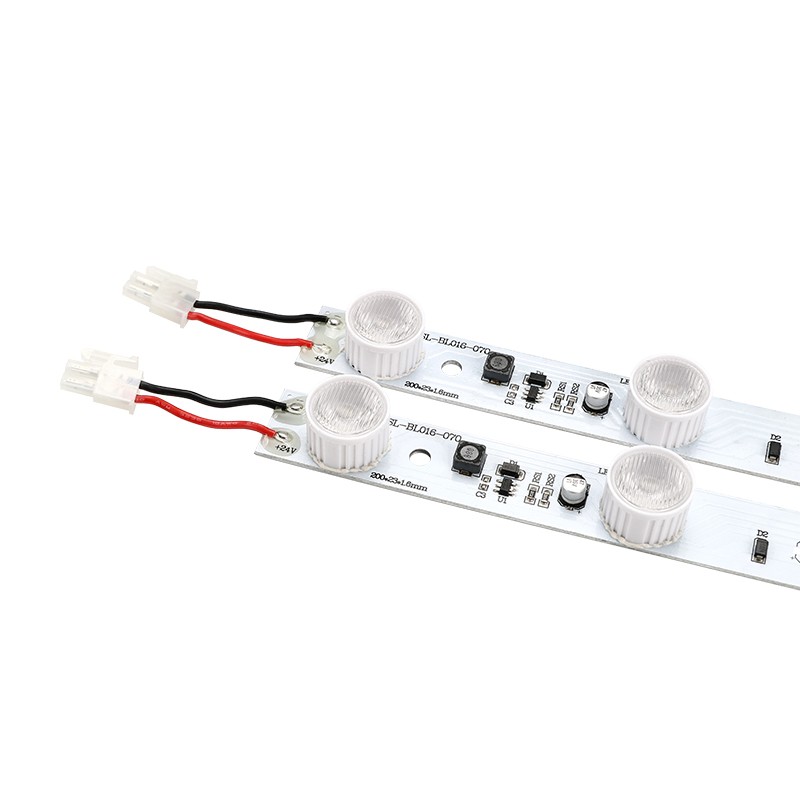

The pictures show red and black leads, white plugs and an aluminium-supported lens assembly. Confirm the supplied connector arrangement, polarity and matching 24V DC wiring layout for the ordered version.

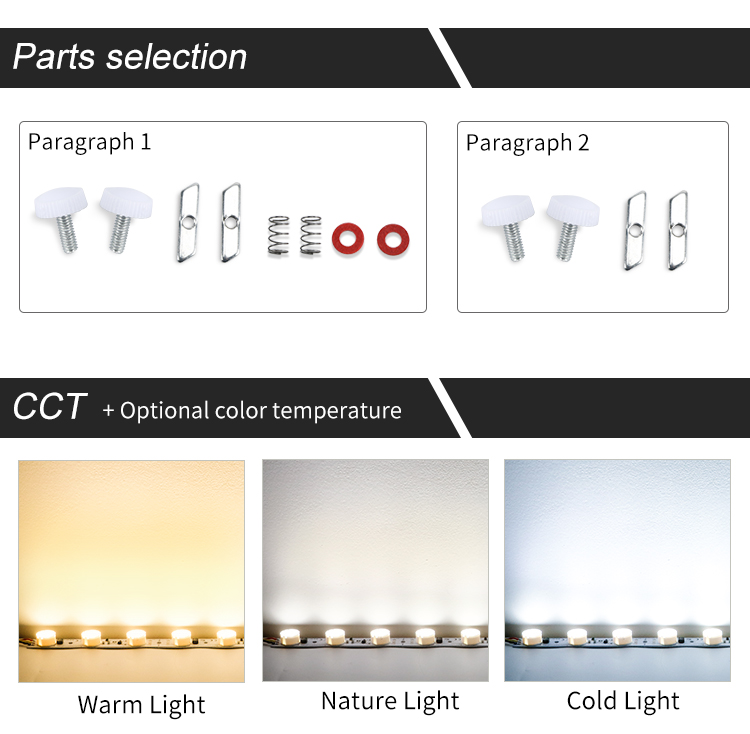

Two fixing sets are illustrated with white threaded knobs and metal pieces; one also includes springs and red washers. Match the mounting set to the frame profile and available clearance, and agree the hardware quantity before production.
Compact lightbox components for wholesale projects
The original artwork presents the lens bar as a lightbox component and shows advertising-display and interior lighting concepts. Use the 200mm format when preparing a layout for a shorter frame section, checking the complete 23mm width and 16mm height.
Packaging illustrations show individual boxes and packed cartons. Provide the selected lens version, white-light specification, bar quantity and required accessories for the quotation. Samples, OEM, ODM and private-label supply are available; confirm sample cost, packing and shipping for the order.
200mm rigid LED strip ordering questions
Which lens angles can I specify for this three-LED bar?
The parameter sheet lists 20 × 60° and 10 × 45°. State the required lens version with the model number and enclosure drawing so the sample and production order use the agreed optics.
Can this compact lightbox bar be ordered with CRI 90+?
Yes. Specify CRI 90+ together with the desired white-light range and sample quantity. Request the model-specific technical information for the selected LED configuration.
Which of the two mounting sets fits my frame?
Send the frame profile, fixing-hole arrangement and available clearance. Select the applicable pictured set and confirm whether springs and washers are required, together with the supplied hardware quantity.
What supply terms apply to the 200mm rigid LED strip?
The minimum wholesale order is 20 pcs and larger quantities qualify for lower unit prices. Standard lead time is 12–18 days; confirm the schedule for the lens choice, LED version, quantity and custom requirements. Transit time is separate.
