398mm LED lightbox bars with four white-light options

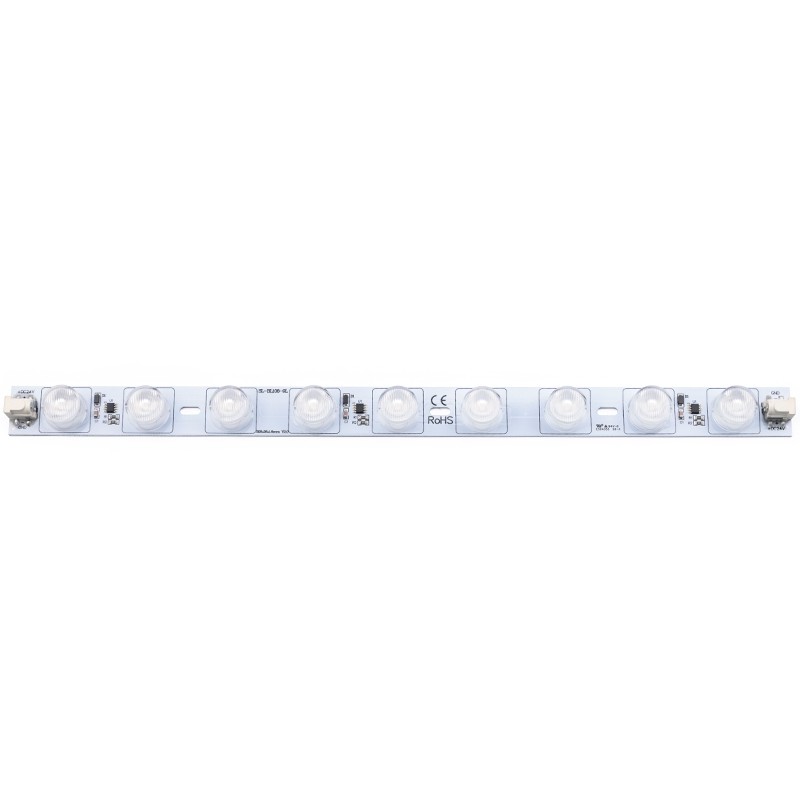

Match the white-light appearance to an illuminated graphic with a nine-LED lightbox bar. SL-BL108-9L measures 398 × 26 × 15.5mm and is specified at 9W ±10%, with 1080 lm ±10% light output, 15 × 60° lenses and a 24V DC input.
For sign manufacturers and display-lighting distributors, this bar offers a defined length and four white-light order ranges for project selection. Send the enclosure drawing, diffuser or face material and required quantity to confirm the bar positions, connection components and wholesale quotation.
Nine-LED lightbox bar specifications

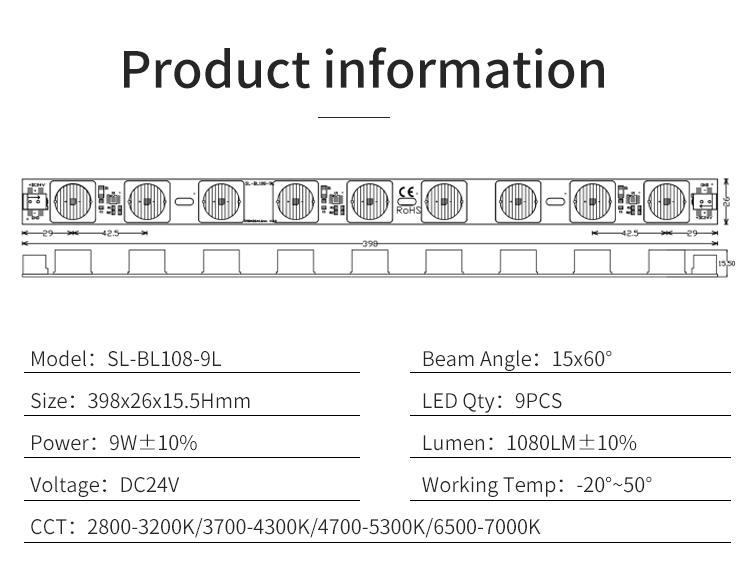

| Specification | SL-BL108-9L |
|---|
| Model | SL-BL108-9L |
| Dimensions | 398 × 26 × 15.5mm |
| Power | 9W ±10% |
| Input voltage | 24V DC |
| Specified luminous flux | 1080 lm ±10% |
| LED quantity | 9 LEDs |
| Lens angle | 15 × 60° |
| White-light order range 1 | 2800–3200K |
| White-light order range 2 | 3700–4300K |
| White-light order range 3 | 4700–5300K |
| White-light order range 4 | 6500–7000K |
| Substrate thickness shown | 1.6mm aluminium |
| Working temperature | −20 to +50°C |
Choose the white-light version for the graphic
Four white-light ranges are listed for ordering: 2800–3200K, 3700–4300K, 4700–5300K and 6500–7000K. Specify one version in the enquiry and assess it behind the intended graphic and diffuser.
The series illustration includes three-, six- and nine-LED variants. This listing is the nine-LED SL-BL108-9L; compare each model's own dimensions and power when preparing a mixed-length layout.
Aluminium substrate and DC connection components

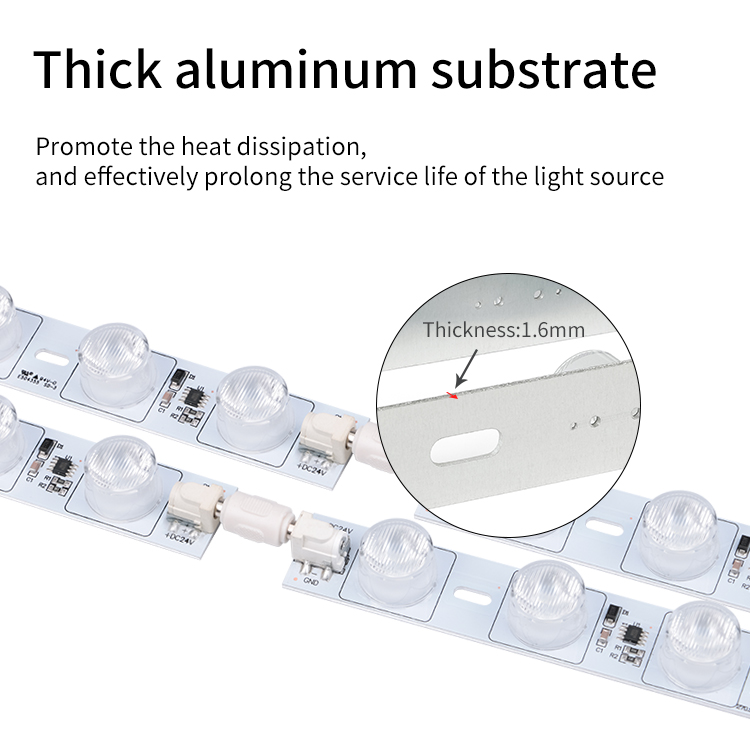

The construction illustration identifies a 1.6mm aluminium substrate and shows slotted fixing areas. The complete module height is 15.5mm, including the lens assembly; use the full envelope when checking mounting space.

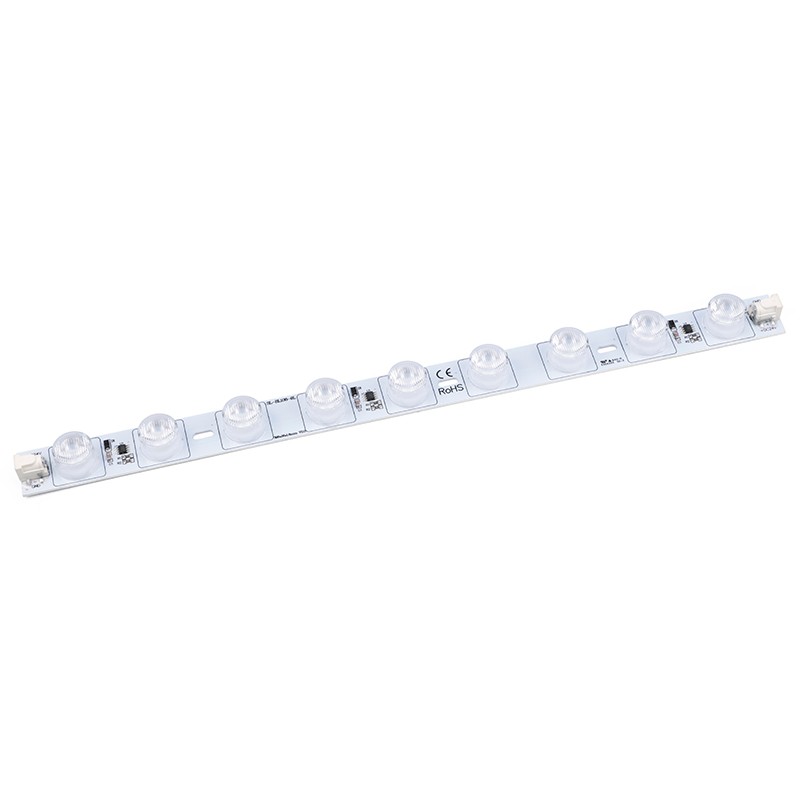

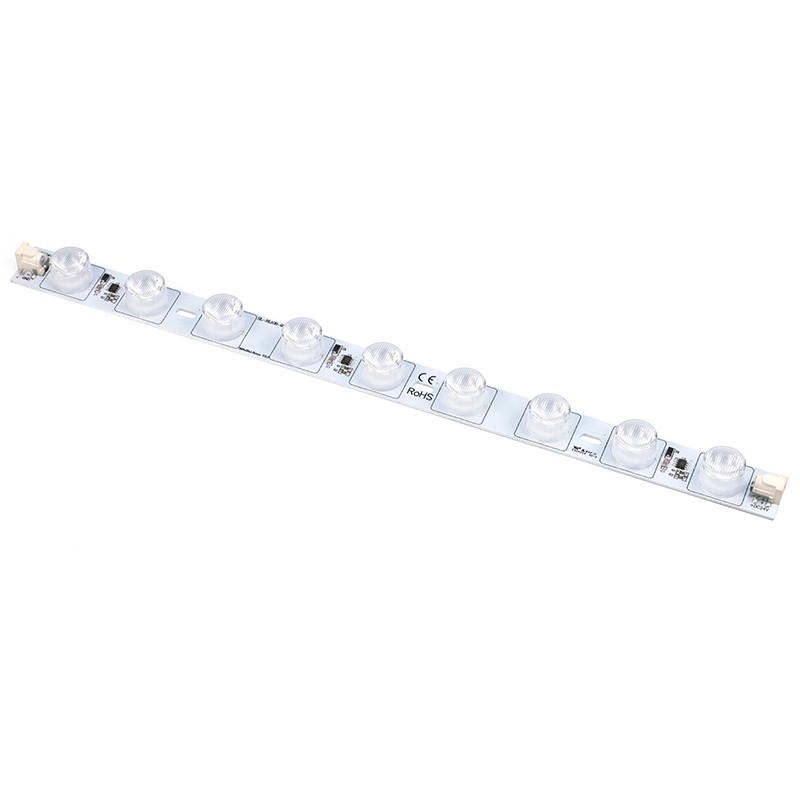

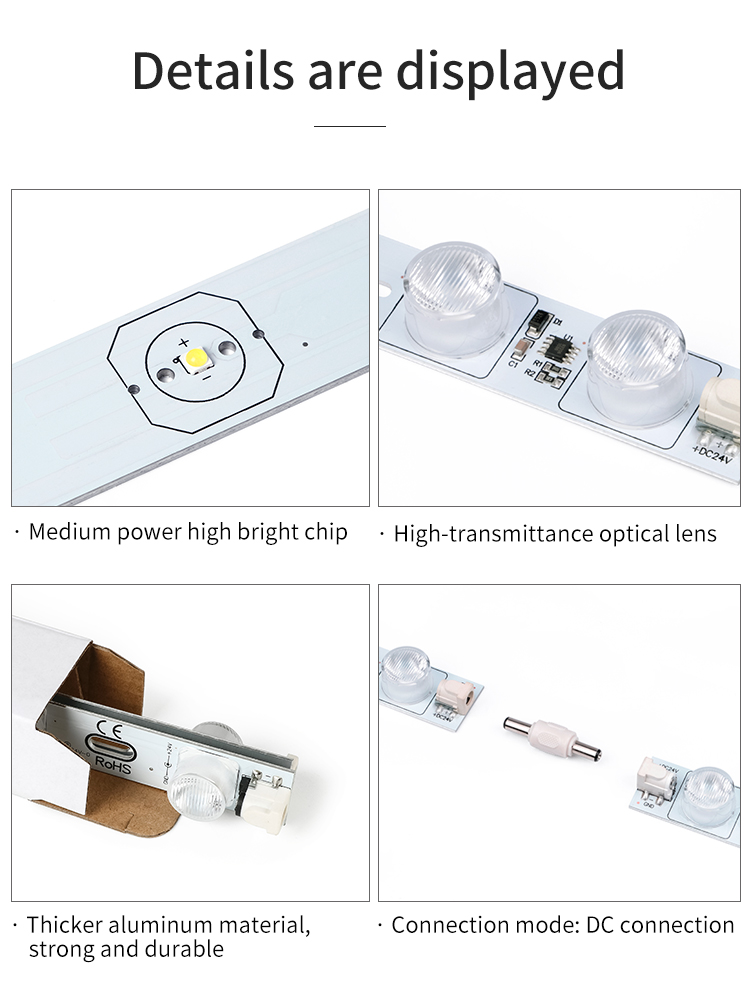

The detail photographs show board-end sockets and a separate DC coupling component. Include the bar positions, cable routing and required connection parts in the project drawing so they can be itemised with the 24V power unit.
Lightbox layout and sample evaluation
The applications include illuminated advertising graphics and decorative displays. Check the 398mm bar length against the usable frame space, then evaluate the proposed lens orientation and bar positions in a sample enclosure.
Send the enclosure dimensions, face material, intended white-light version and quantity. These details allow the lighting bars and supporting components to be quoted for the actual display assembly.
Packing and wholesale production

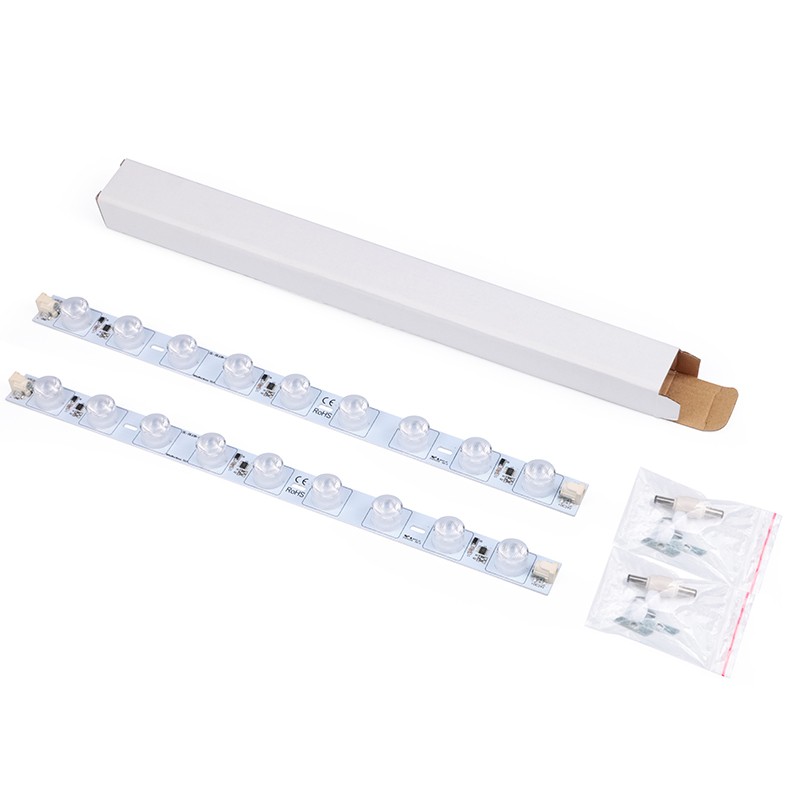

The original packing image shows individual boxes, accessory-bag examples and outer cartons. Confirm the supplied connection parts, packing quantity and shipment dimensions with the order quotation.
Wholesale quantities start from 20 pcs and higher volumes receive lower unit prices. Samples are available, with sample cost and shipping confirmed separately. Standard lead time is 12–18 days; OEM, ODM and private-label requirements are supported, with custom scope and transit time confirmed for the order.
398mm lightbox bar purchasing questions
Which white-light range should I specify?
Choose from the listed 2800–3200K, 3700–4300K, 4700–5300K or 6500–7000K order ranges. Include the graphic and diffuser details and request a sample of the selected version to assess its appearance.
What is the specified output of the nine-LED bar?
SL-BL108-9L is listed at 1080 lm ±10% and 9W ±10%, using a 24V DC supply. Provide the layout and total quantity to confirm the accompanying power-unit configuration.
Are the coupling parts included with the bars?
The photographs illustrate DC coupling components. State the required connection layout so the exact supplied parts and quantities can be itemised in the quotation.
How can I request volume pricing and a sample?
Send SL-BL108-9L, the white-light version, target quantity and delivery country. Samples are available; wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Compare shorter SL-BL108 variants
270.5mm six-LED, 6W signage module
143mm three-LED, 3W side-lighting module
