Black arm lighting for exhibition walls

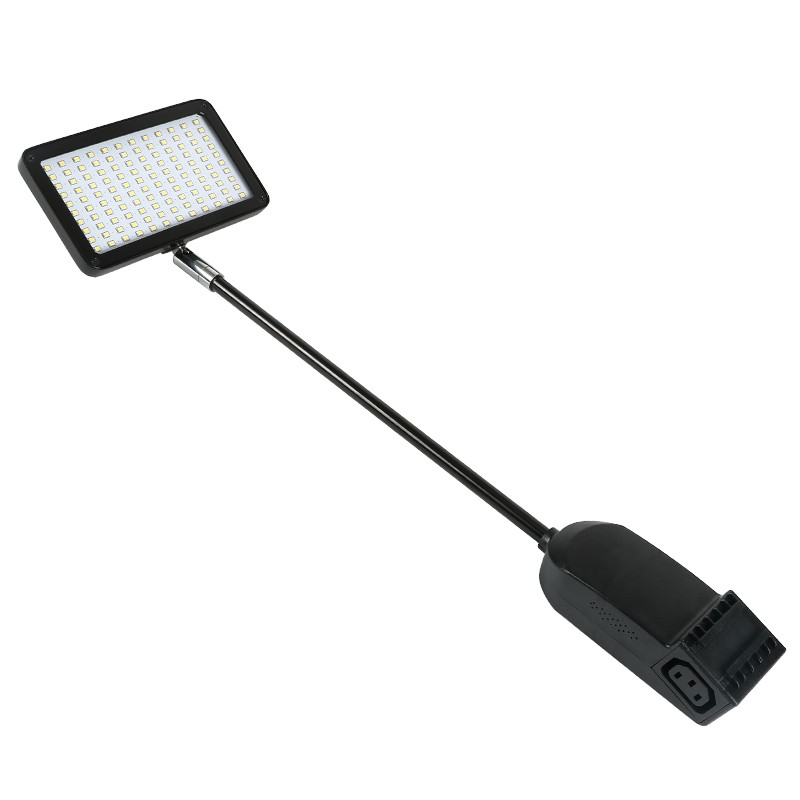

The black SL-2080-12-N120L250 is a 25W LED display arm light for exhibition walls, trade show graphics and display panels. The rectangular lamp head projects a 120° beam, while its long arm positions the light above the display surface.
For booth builders and exhibition stand contractors, the key choices are the mounting profile, colour temperature and connection layout. The black housing suits installations where the fixture should match dark framework; compare the silver version when planning a lighter display system.
Product features
Lighting above display panels

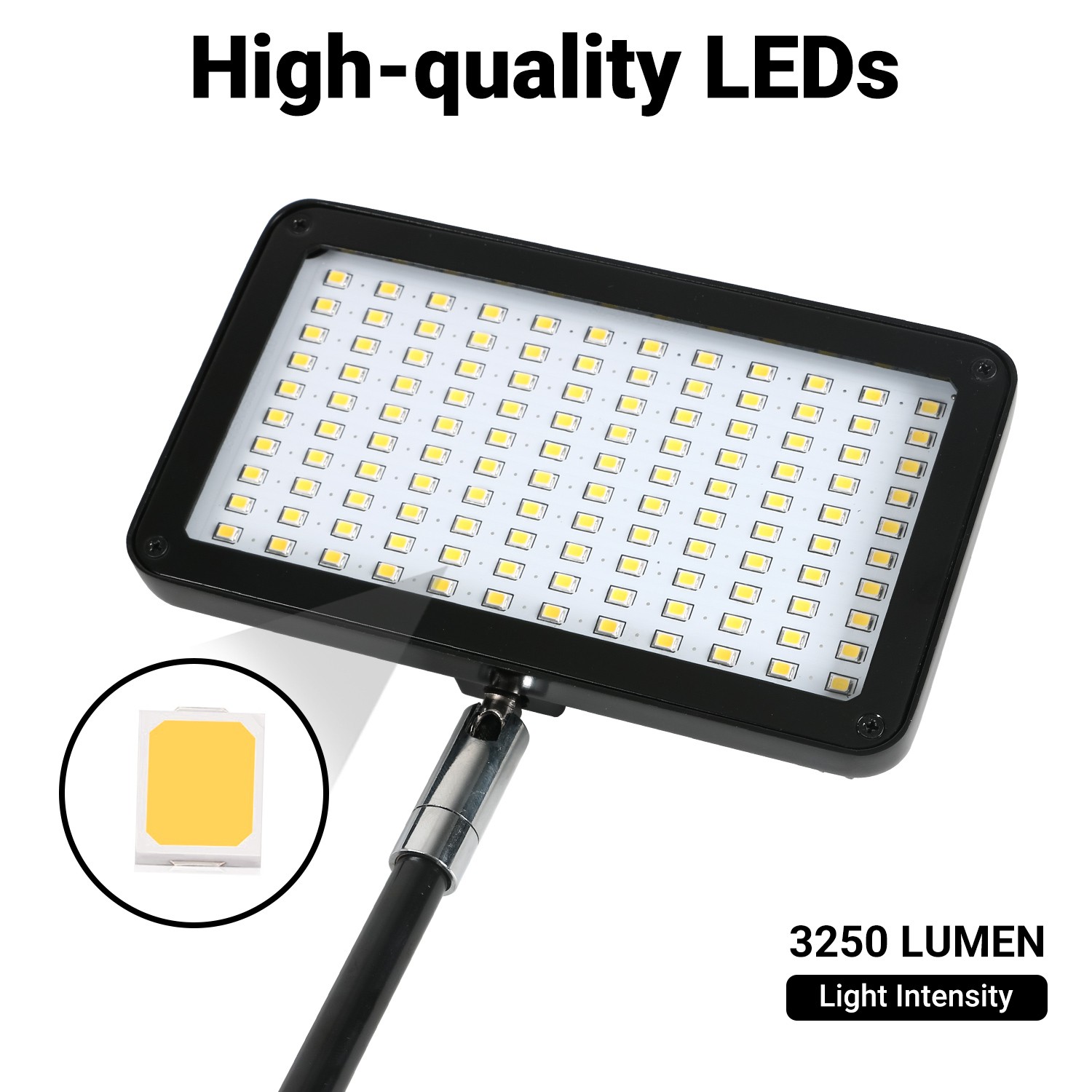

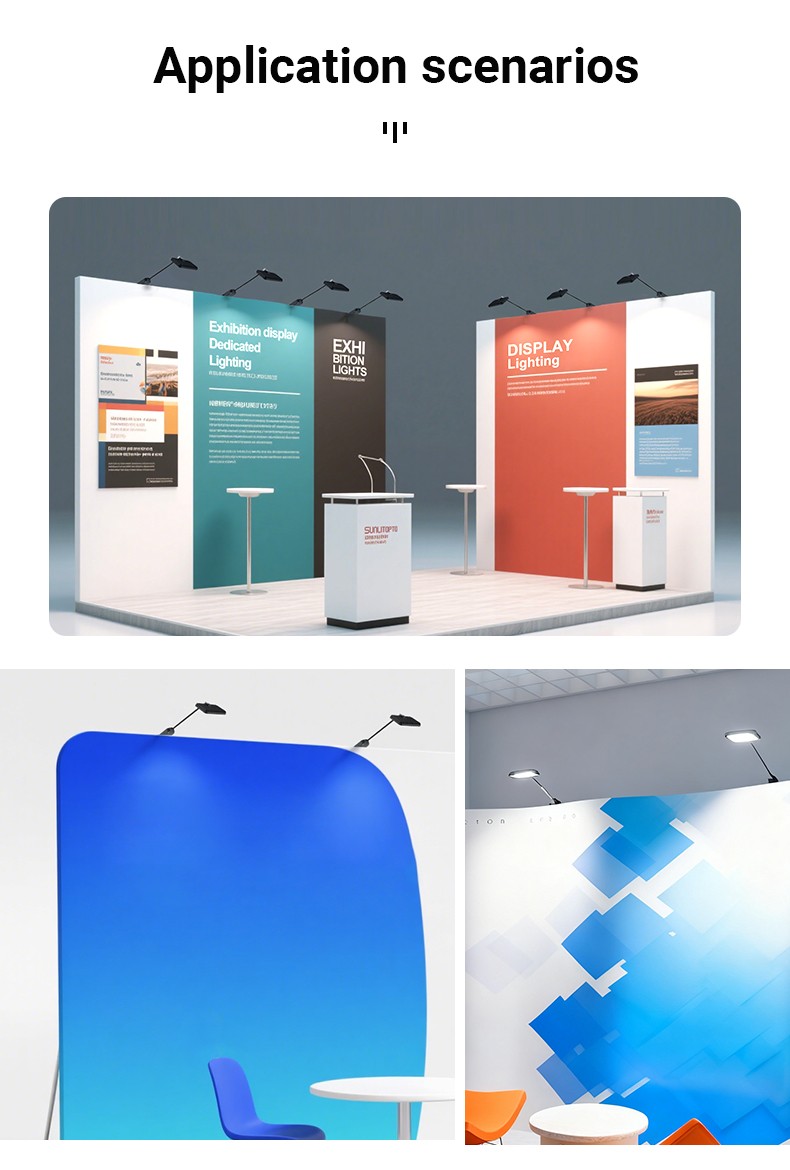

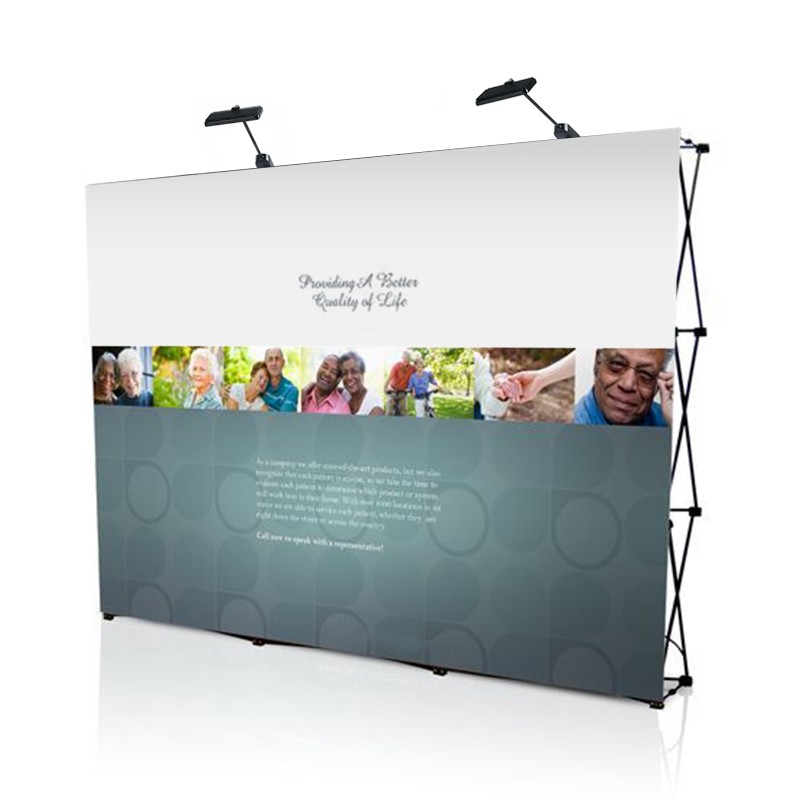

The product images show the fixture mounted above graphic walls. Use the 3250 lm ±10% output and 120° beam specification to compare this model with other exhibition lights; the number and spacing of fixtures depend on the panel and project layout.
Aluminium lamp profile

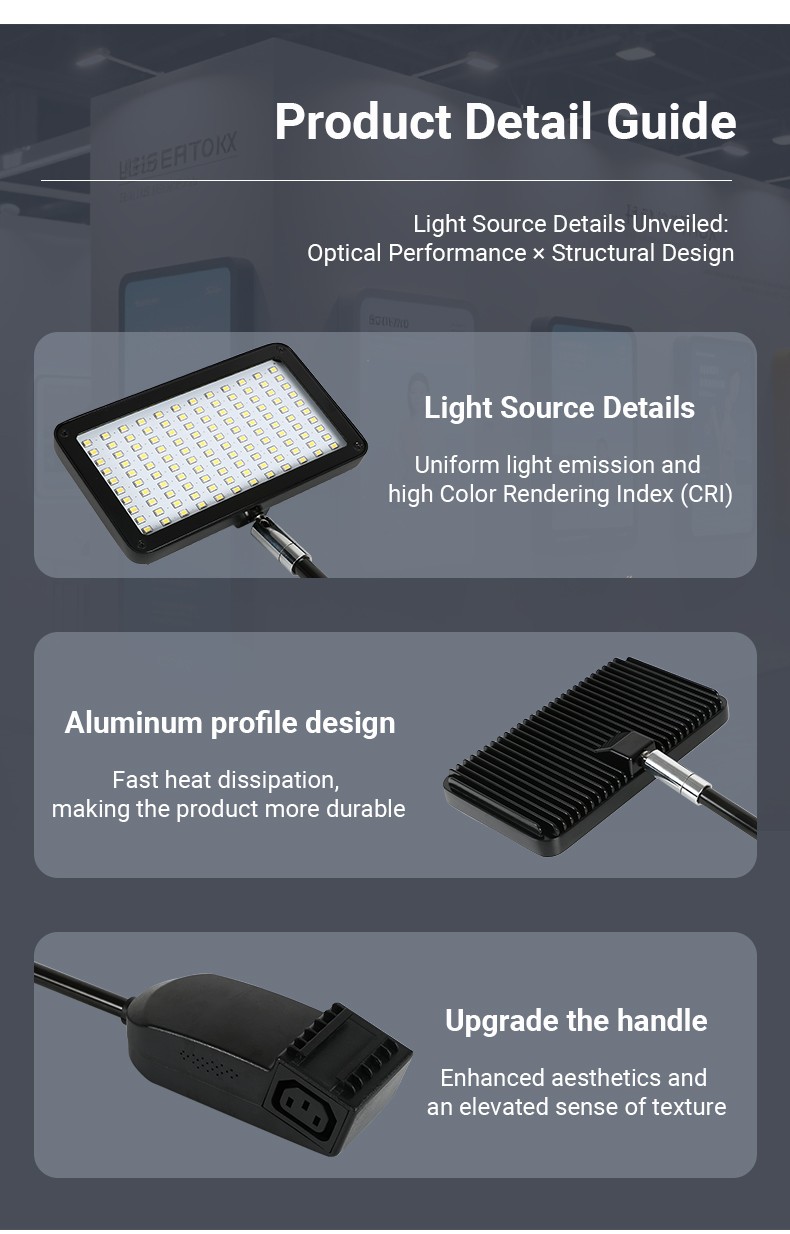

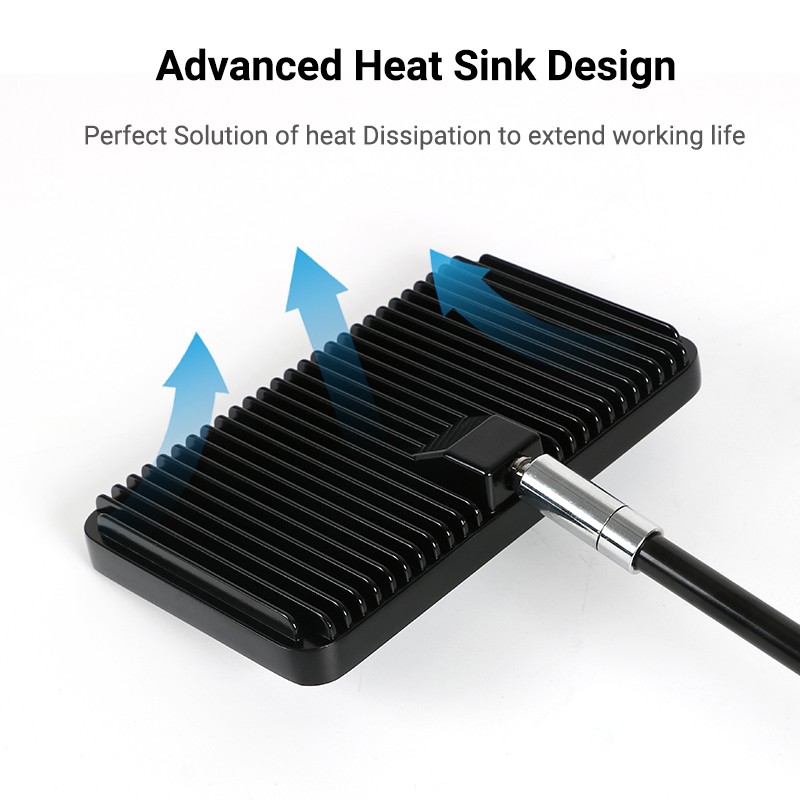

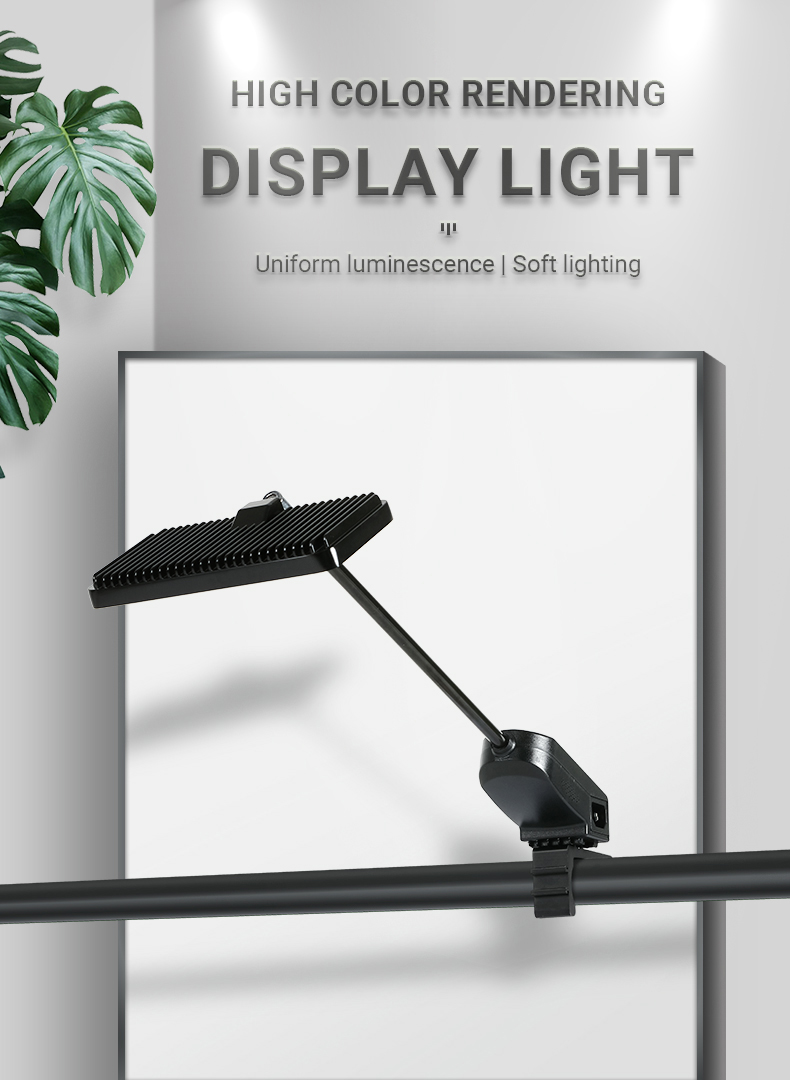

The detail images show an aluminium profile with rear fins for heat dissipation. The mounting and connection components are positioned at the base of the arm.
3-pin linked-light configuration

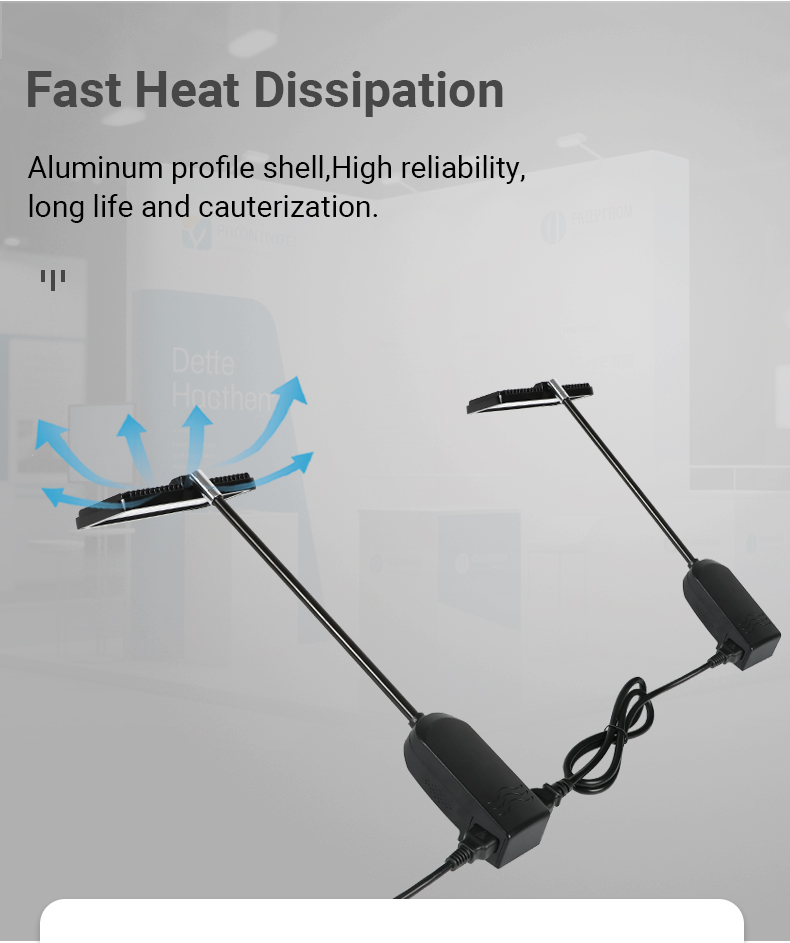

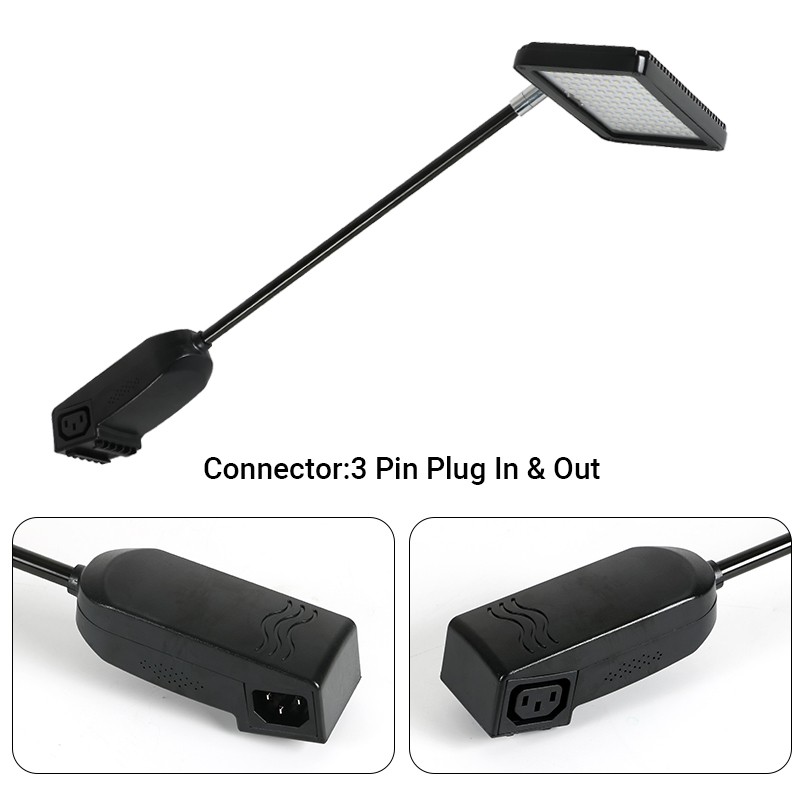

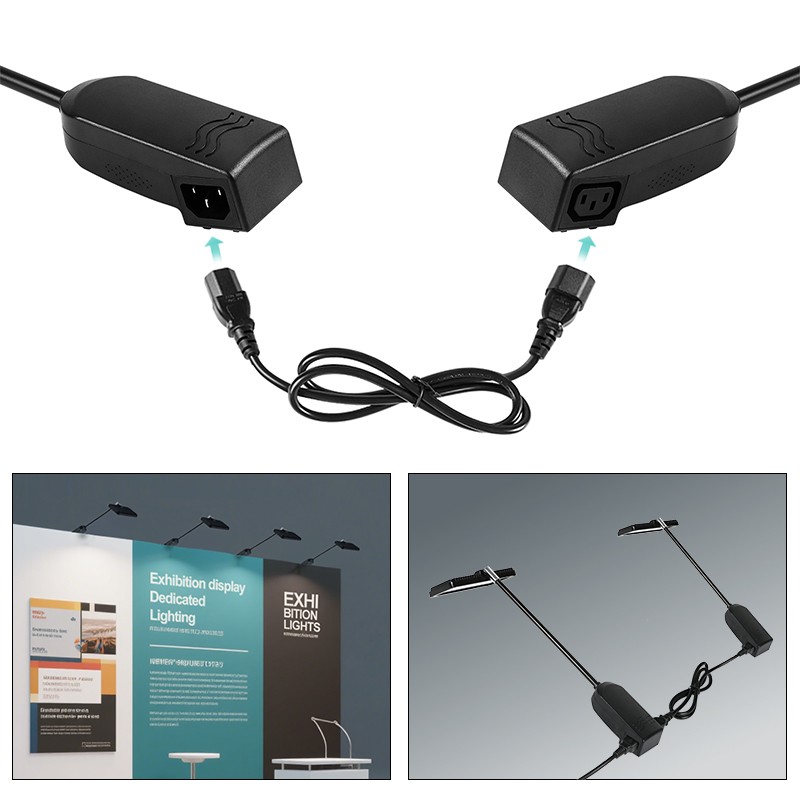

The specification lists 3-pin input and output connections, and the connection image shows two fixtures linked by a cable. Confirm compatible leads, supply configuration and the maximum permitted number of connected lights for your order.

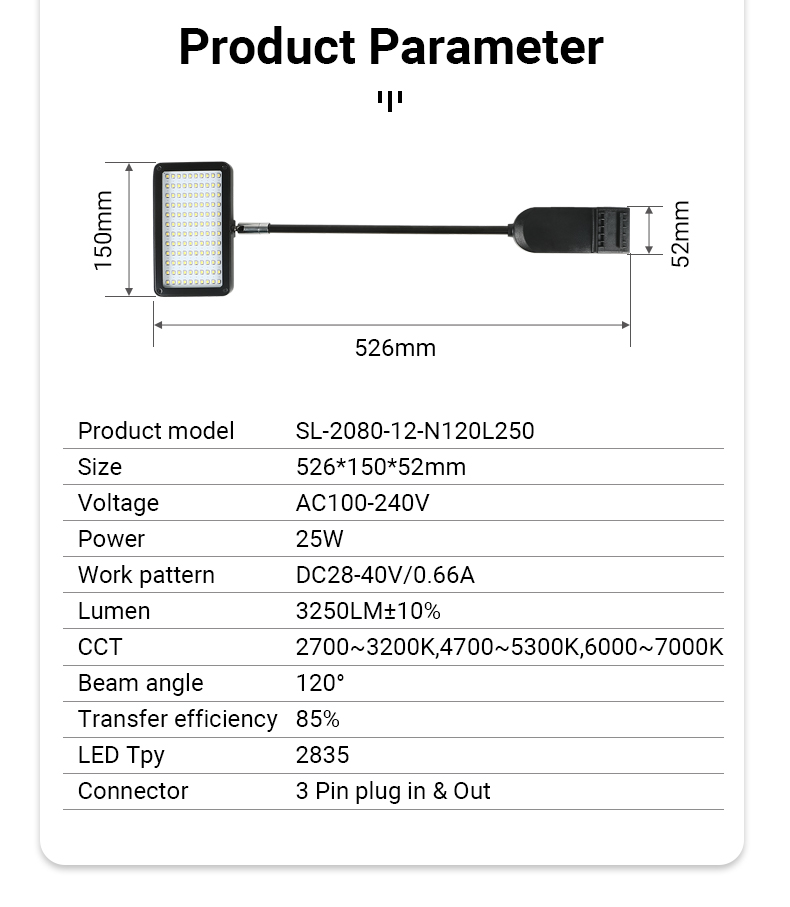

Technical specifications
| Specification | SL-2080-12-N120L250 |
|---|
| Model | SL-2080-12-N120L250 |
| Housing colour | Black |
| Rated power | 25W |
| Luminous flux | 3250 lm ±10% |
| Beam angle | 120° |

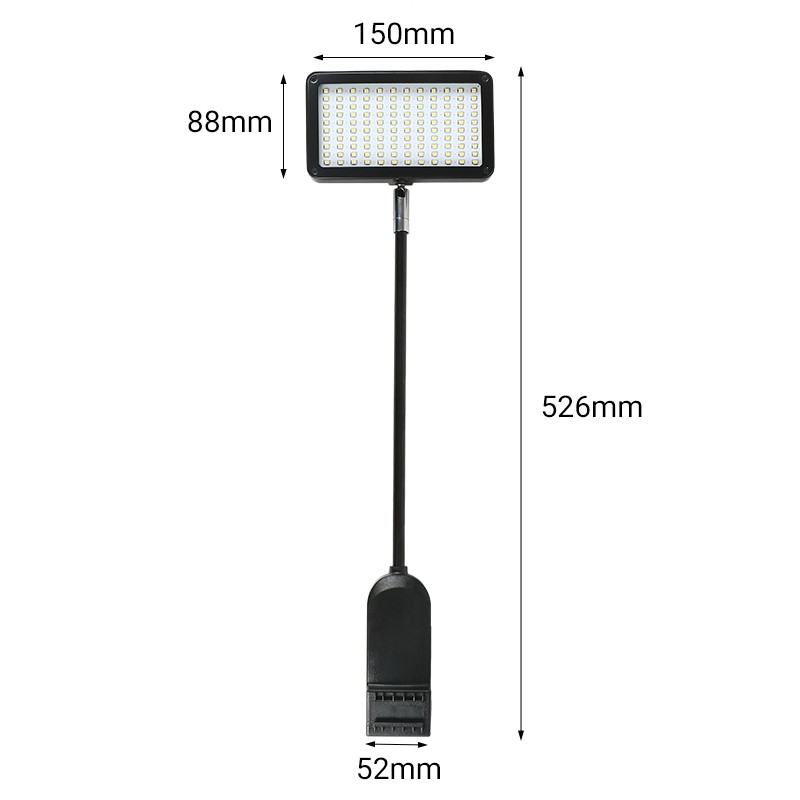

| Overall dimensions | 526 × 150 × 52 mm |
| AC input | 100–240V |
| LED operating specification | DC 28–40V / 0.66A |
| Colour temperature options | 2700–3200K; 4700–5300K; 6000–7000K |
| Conversion efficiency | 85% |
| LED type | 2835 |
| Connections | 3-pin input and output |
Mounting and order configuration

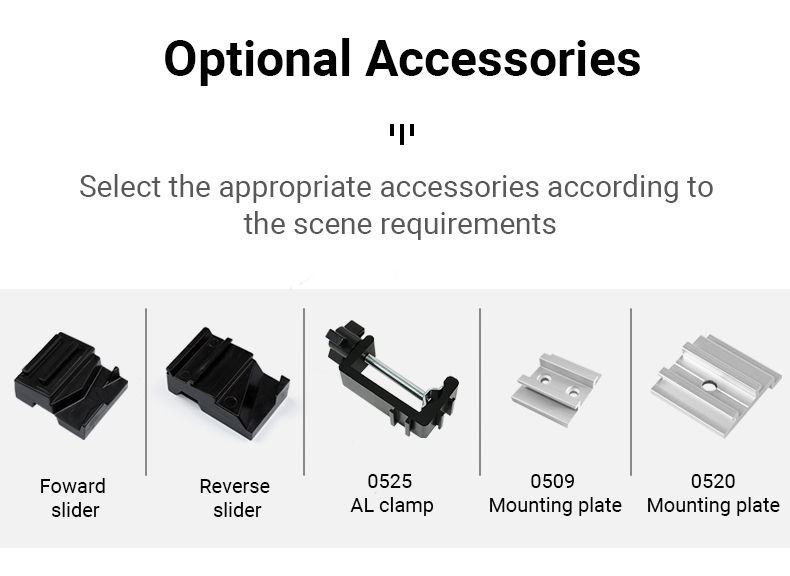

The accessory image lists forward and reverse sliders, an aluminium clamp and mounting plates. Send a frame-profile drawing, panel dimensions or an installation photo so we can confirm the suitable mount. These accessories are identified as optional; the quotation should state which are included.
Compare the silver 25W display arm light, or browse the display arm light range to select a configuration for your project.
Packing and supplied components

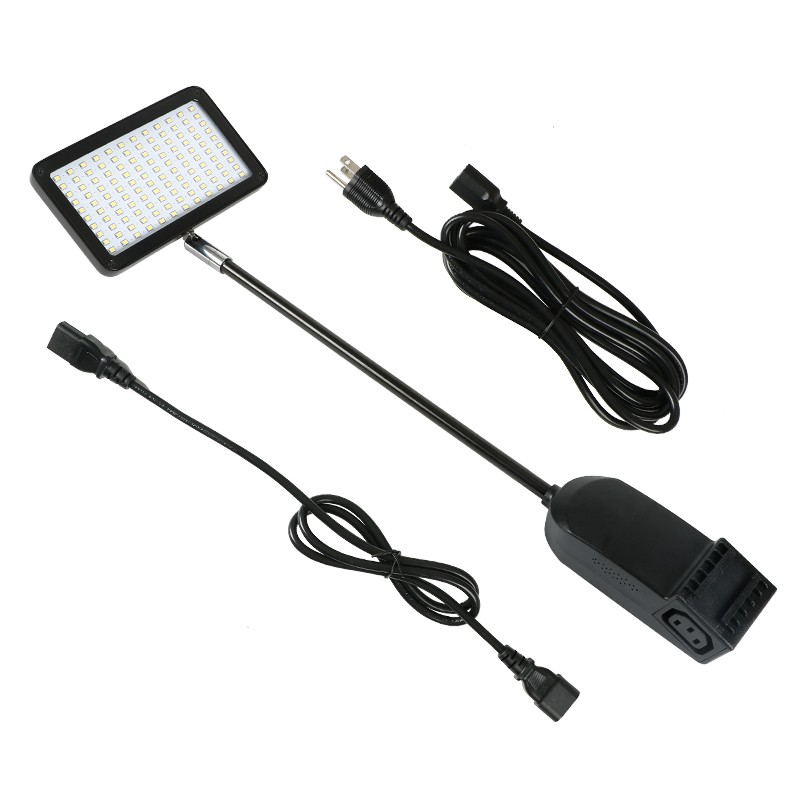

Confirm the lamp quantity, selected mounts, power leads, linking cables and packing requirements in the quotation. Cable lengths and set contents should be agreed for your configuration.
Purchasing and configuration questions
Which mounts can I use for a black exhibition wall light?
The product image shows slider mounts, an aluminium clamp and mounting plates as options. Share your frame profile and dimensions to confirm the appropriate fixing method.
Can I link several 25W display arm lights?
This model has 3-pin input and output connections. Send the required fixture quantity and layout so we can confirm compatible cables, the electrical configuration and the allowed connection limit.
Is the colour temperature switchable on this model?
The specification lists three colour-temperature ranges as order choices. A switching function is not stated for this model; specify the required option when requesting a sample or quotation.
What is the minimum order and can I request a sample?
Wholesale orders for this black LED display arm light start from 20 pcs. Higher quantities qualify for lower unit prices. Samples are available; confirm sample quantity, configuration, cost and shipping with your enquiry.
What is the lead time for a bulk display lighting order?
The standard lead time is 12–18 days. Confirm the schedule for the order quantity, selected configuration and any custom requirements. Transit time is confirmed separately.
Can this light be supplied for OEM or private-label projects?
OEM, ODM and private-label enquiries are welcome. Share your specifications, branding requirements and target quantity so we can confirm the scope, quotation and schedule. Request model-specific technical and compliance documents for your destination market.
Information for your quotation
Please include model SL-2080-12-N120L250, black housing, quantity, colour-temperature requirements, mounting profile, cable and plug requirements, and destination country. Add your branding and specifications for an OEM or private-label enquiry.
