876mm cold-white lighting for advertising lightboxes
Specify an 876mm LED lightbox bar for illuminated graphics and sign-box assemblies. SL-BLA096-16L-320 combines a 32W light source, 16 lens-equipped LEDs and an aluminium support channel. Its listed cold-white range is 6000–7000K, with 1000 lm specified light output.
For sign manufacturers and display distributors, the useful ordering details are the available frame length, graphic face, enclosure depth and planned bar positions. Send the lightbox drawing and quantity to confirm a matching layout, 24V supply arrangement and wholesale price.

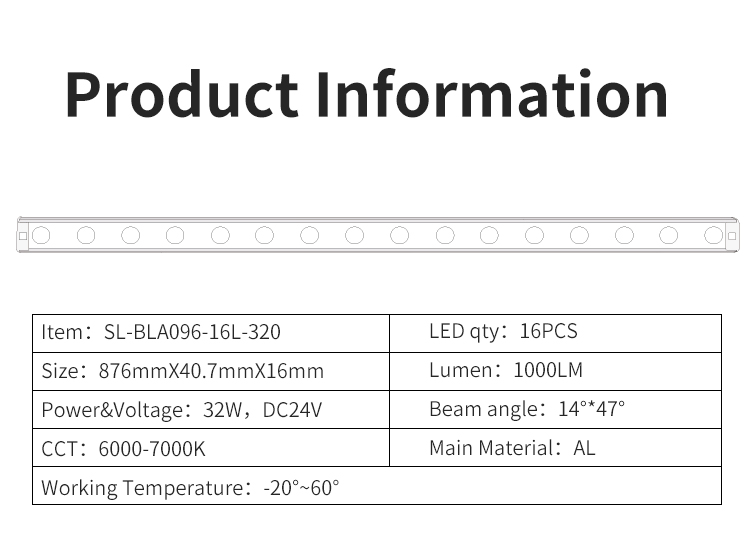

32W lightbox bar specifications
| Specification | SL-BLA096-16L-320 |
|---|
| Model | SL-BLA096-16L-320 |
| Dimensions | 876 × 40.7 × 16mm |
| Power | 32W |
| Input voltage | 24V DC |
| Specified luminous flux | 1000 lm |
| Cold-white range | 6000–7000K |
| LED quantity | 16 LEDs |
| Lens angle | 14 × 47° |
| Support material | Aluminium (AL) |
| Working temperature | −20 to +60°C |

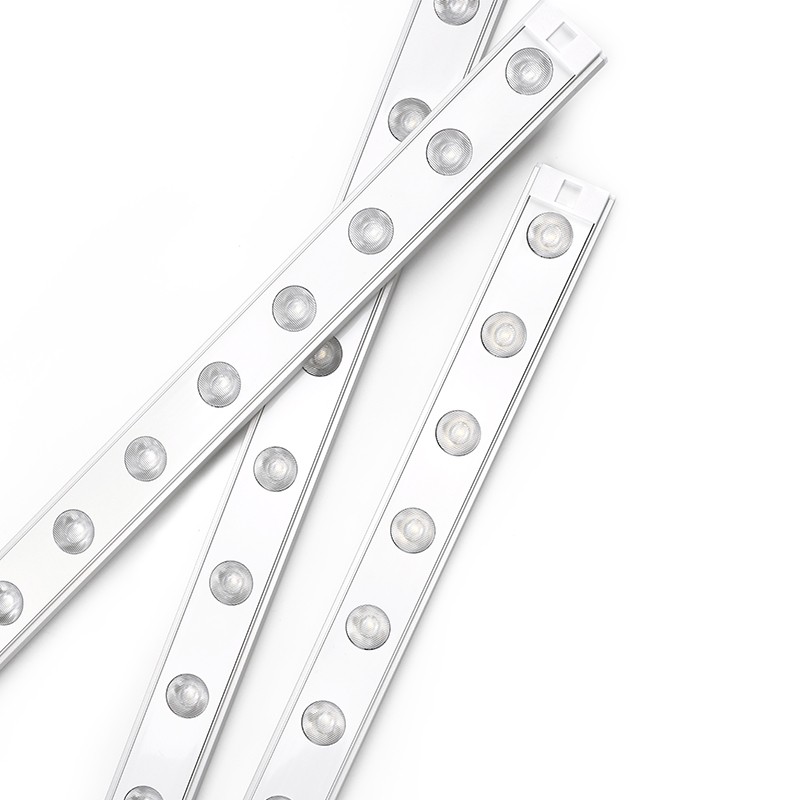

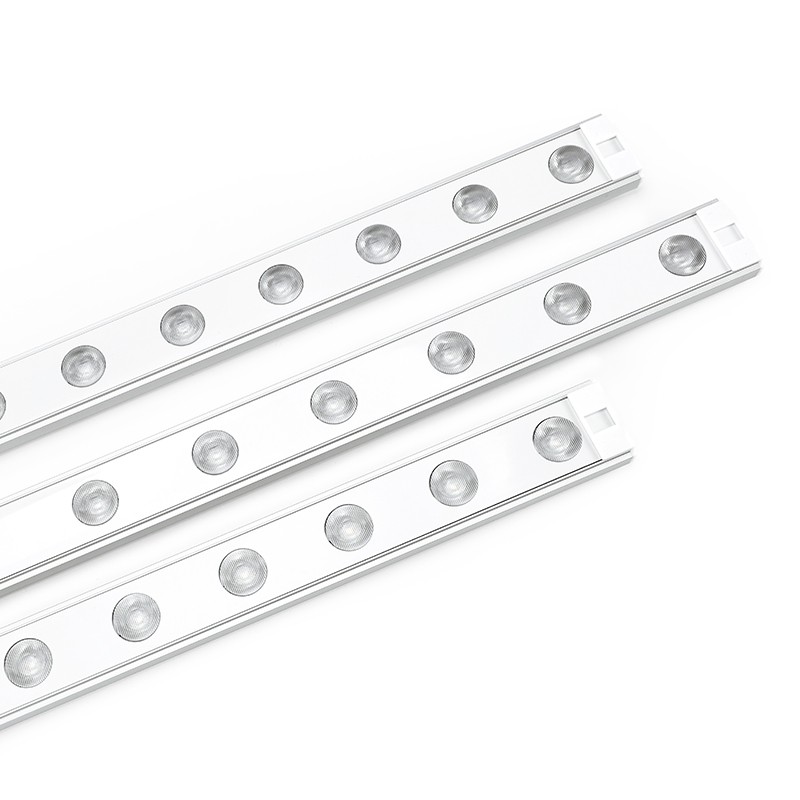

Lens optics and an aluminium support channel

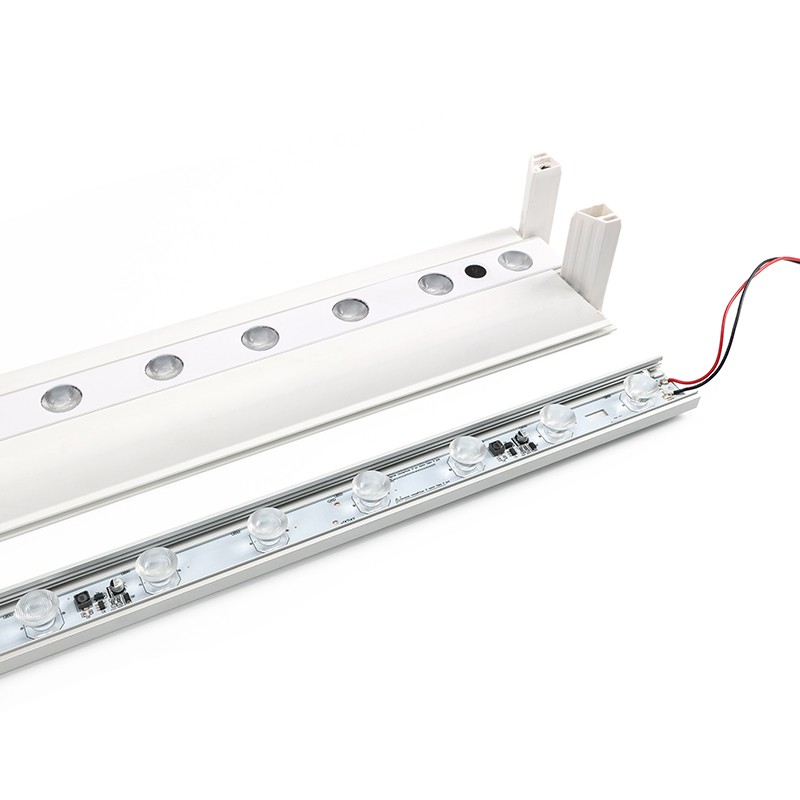

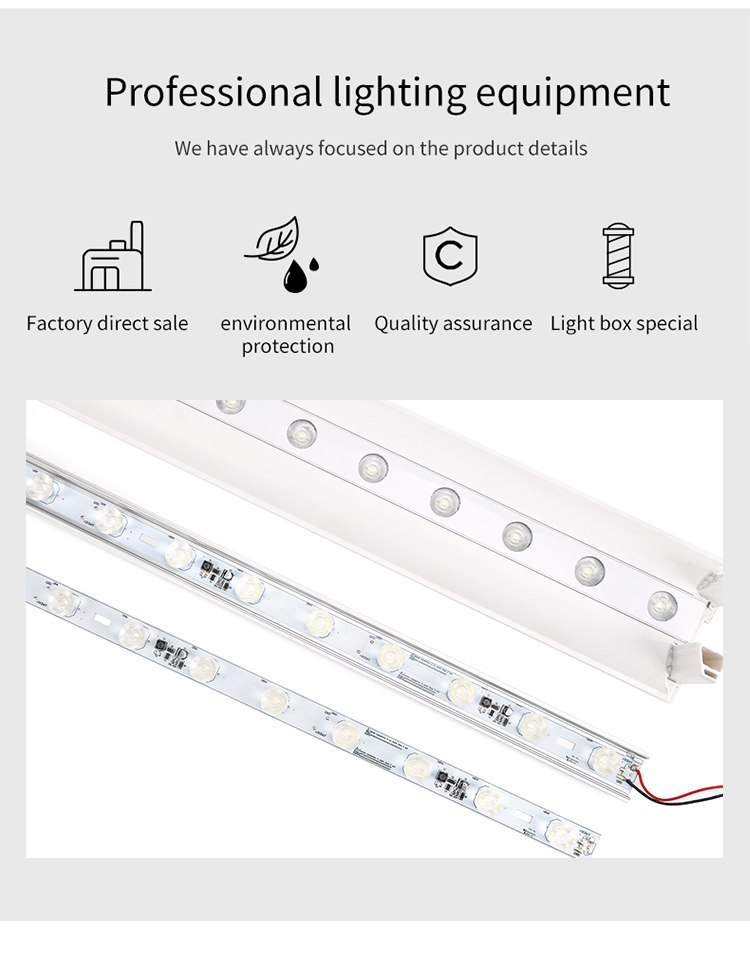

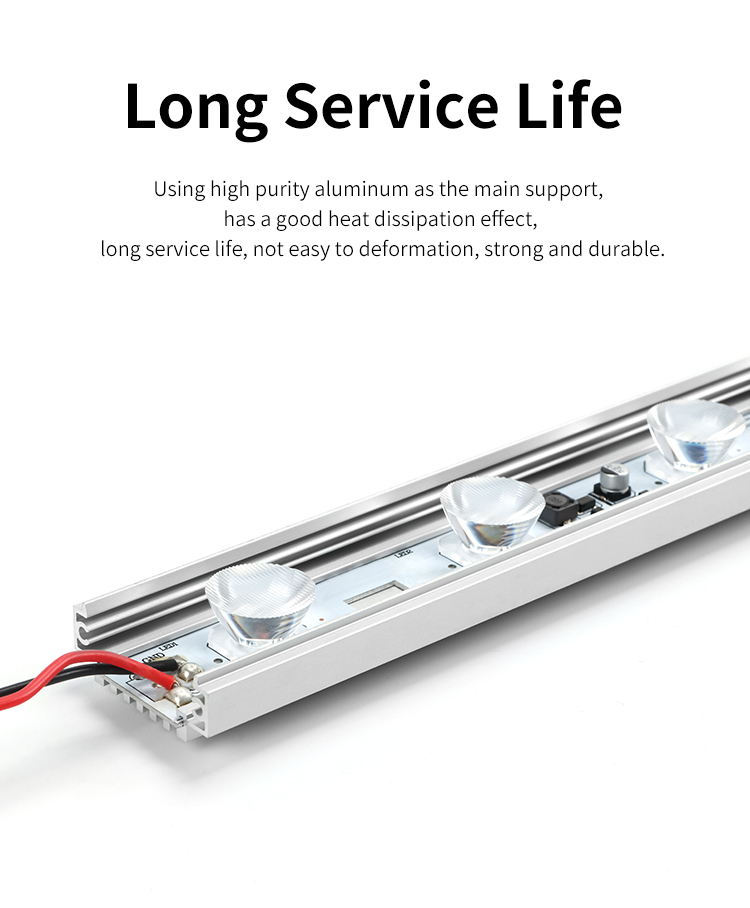

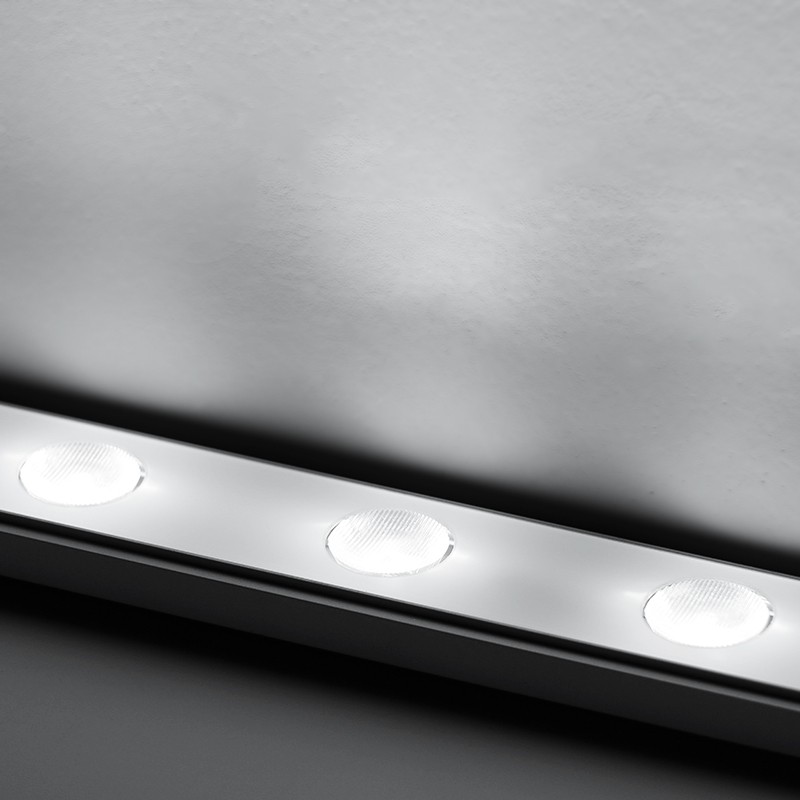

Individual lenses sit along the rigid support channel. The construction photographs show the aluminium profile, LED board and power-lead termination, providing practical reference points for a project bill of materials.

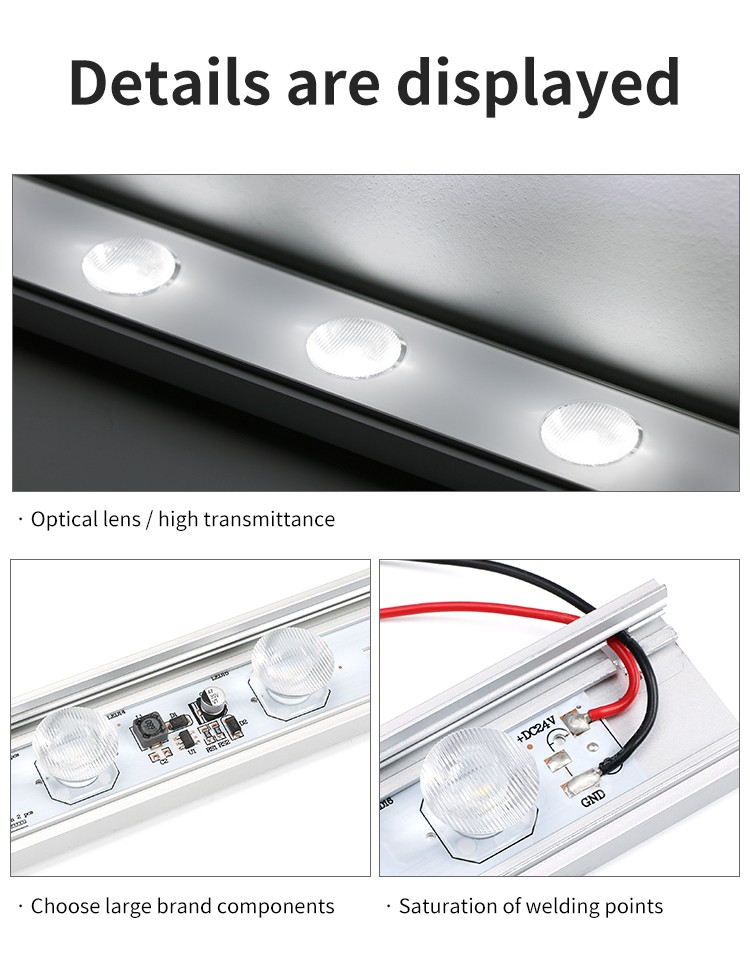

The pictured terminals are labelled +DC24V and GND, with red and black leads. Confirm the cable routing, connection components and power-unit capacity for the quoted quantity and layout.
Plan the cold-white lightbox layout

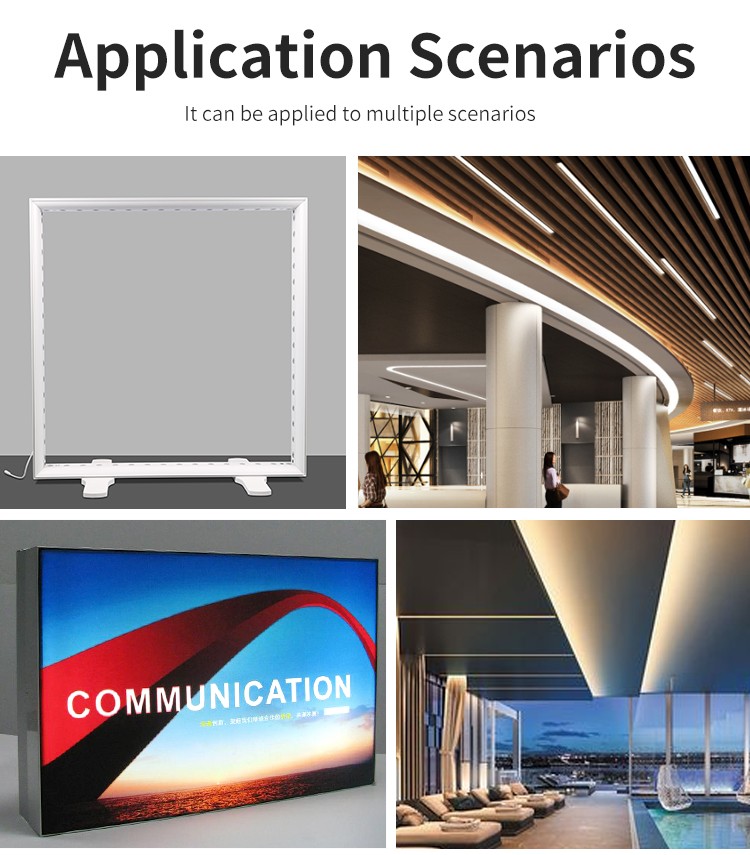

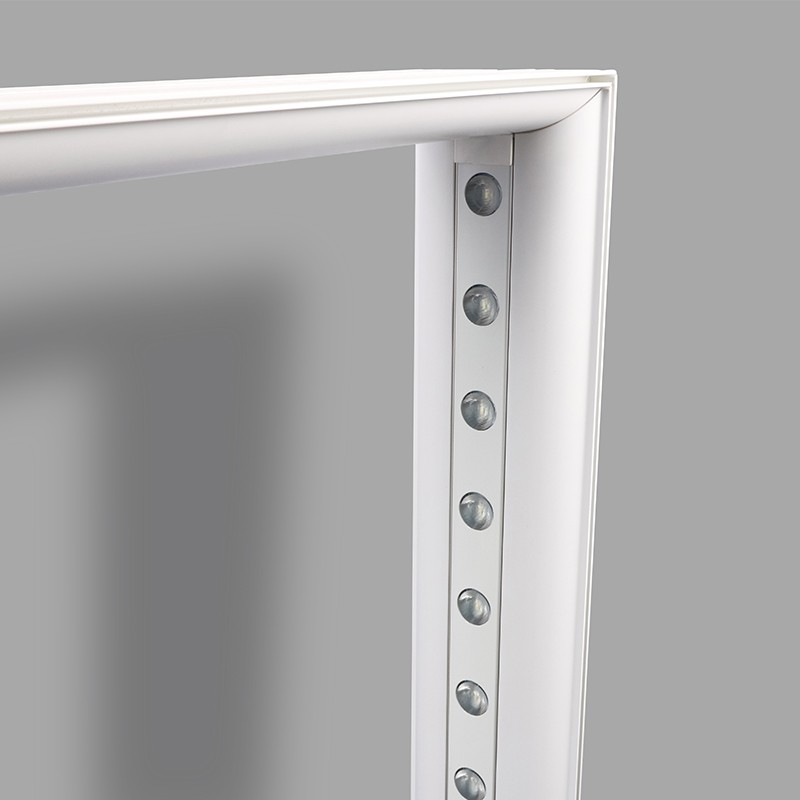

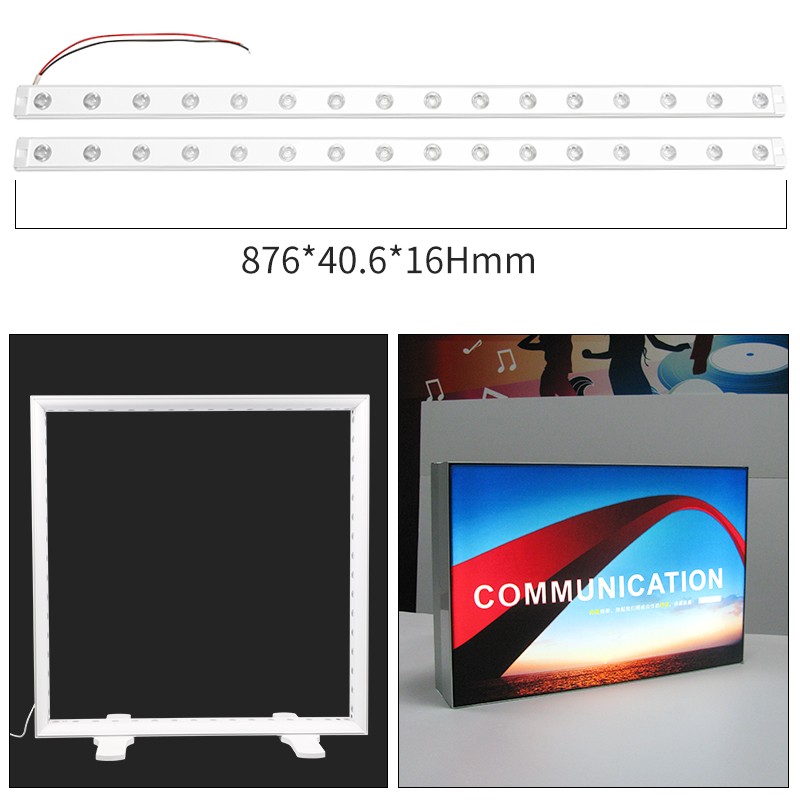

The examples illustrate bars positioned around a display frame and used in advertising lightboxes. Match the 876mm length and 40.7mm width to the usable space, then assess the selected cold-white version behind the actual graphic and diffuser.
Provide the enclosure dimensions, face material and proposed lighting positions with your enquiry. A sample assembly helps assess appearance and fixing arrangements before a production order.
Packing and production orders
The packing illustration shows individual protection and outer cartons. Ask for the packing specification, units per carton and shipment dimensions for your order quantity.
Wholesale orders start from 20 pcs, with lower unit prices at higher quantities. Samples are available; standard lead time is 12–18 days. OEM, ODM and private-label requirements can be included in the same quotation, with custom schedules and transit time confirmed separately.
Cold-white lightbox bar purchasing questions
Which white-light version is specified for this 876mm bar?
The listed range is 6000–7000K cold white. Share the graphic and diffuser details and request a sample of the quoted version to review its appearance in the finished lightbox.
What power supply should accompany the 32W LED bars?
The input is 24V DC. Send the number of bars, wiring layout and destination market so the power-unit capacity and connecting components can be confirmed with the quotation.
Can I order fewer units for evaluation?
Samples are available before a wholesale order. State the model, sample quantity and delivery country to confirm sample pricing and shipping; production orders start from 20 pcs.
Can the bars be supplied for a branded display project?
OEM, ODM and private-label enquiries are supported. Provide your drawing, branding requirements and target volume so the production scope, price and schedule can be confirmed.
Compare lengths for the same display project
For an alternative bar length or power level, compare the full specifications and mounting space before selecting a configuration.
