Low-voltage linear lighting for display panels
The SL-2100-135L is a 12V DC linear display arm light rated at 11W ±10%, with 135 LEDs and 720 lm output. The specification lists a 456mm head, a 60° beam and neutral-white or cool-white versions. Its adjustable head and illustrated slider or clamp options help position the light above exhibition graphics.
For display manufacturers and project buyers, specify the white-light version, frame fixing and compatible 12V supply arrangement together. Send the graphic size, frame section and destination plug details so the quotation covers the complete required configuration.

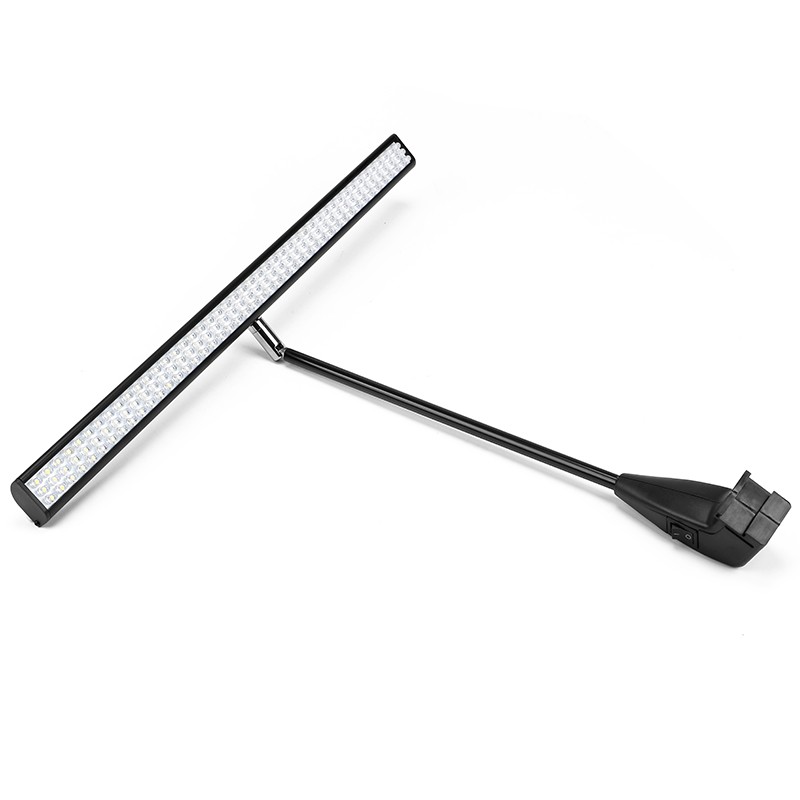

135-LED linear head and adjustable aiming

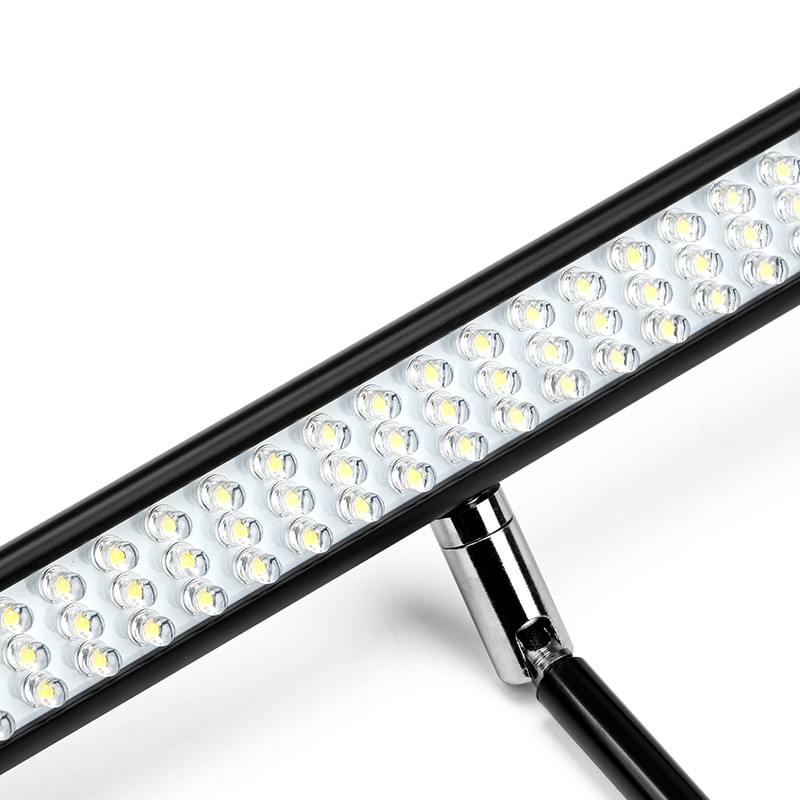

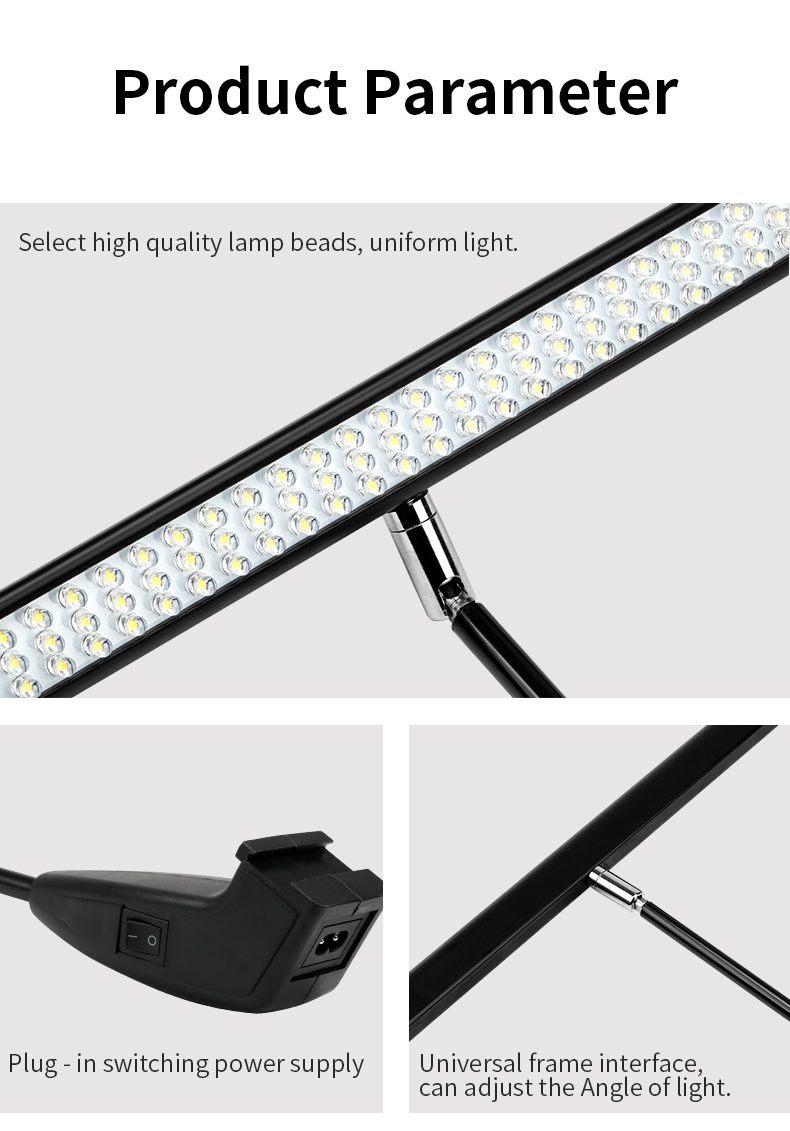

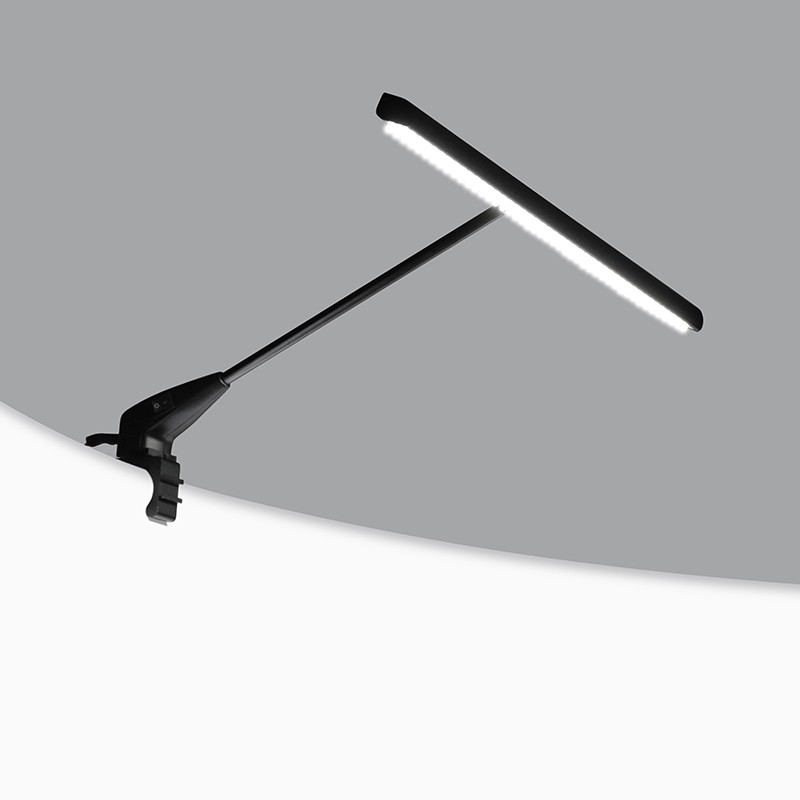

The close-up shows the LED row along the linear head and the joint used to aim the light. Position the head above the panel and check the illumination on the printed graphic. Choose neutral white or cool white for the order; the images do not specify an on-lamp CCT switch.
11W low-voltage model specifications
| Specification | SL-2100-135L |
|---|
| Model | SL-2100-135L |
| Power | 11W ±10% |
| Input voltage | DC 12V |
| Output | 720 lm |
| LED quantity | 135 pcs |
| Beam angle | 60° |

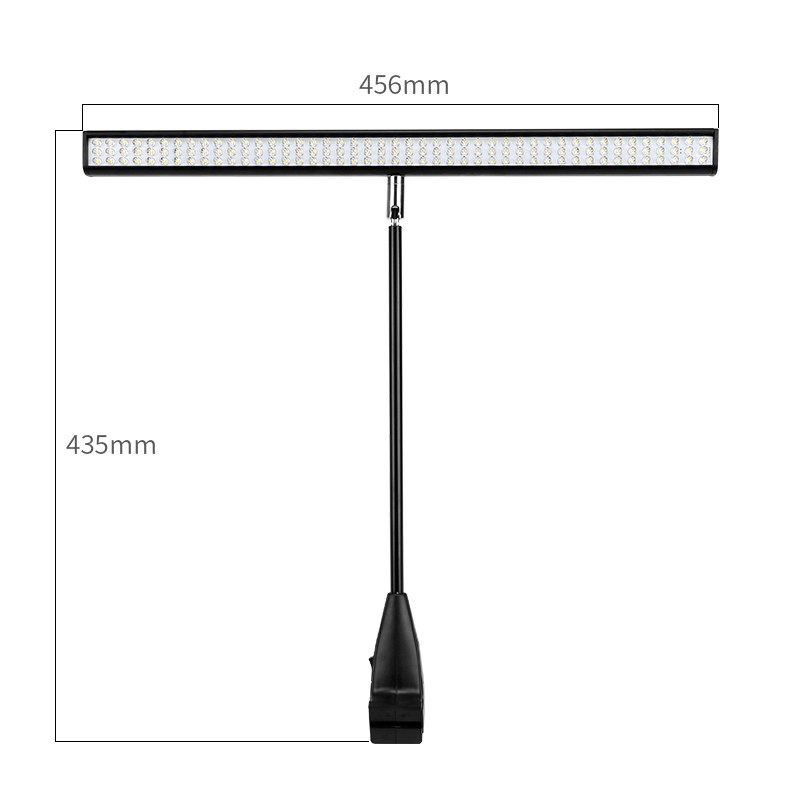

| Dimensions listed | 435 × 456 × 40 mm |
| Head length | 456 mm |
| White-light versions | NW / CW: neutral white or cool white |
| Main materials listed | Aluminium, iron and ABS |
| Connector named in the sheet | B Shape Plug; confirm the supplied 12V power arrangement and leads |
| Optional fittings illustrated | Forward slider, reverse slider, 0505 AL clamp or 0509 AL clamp |

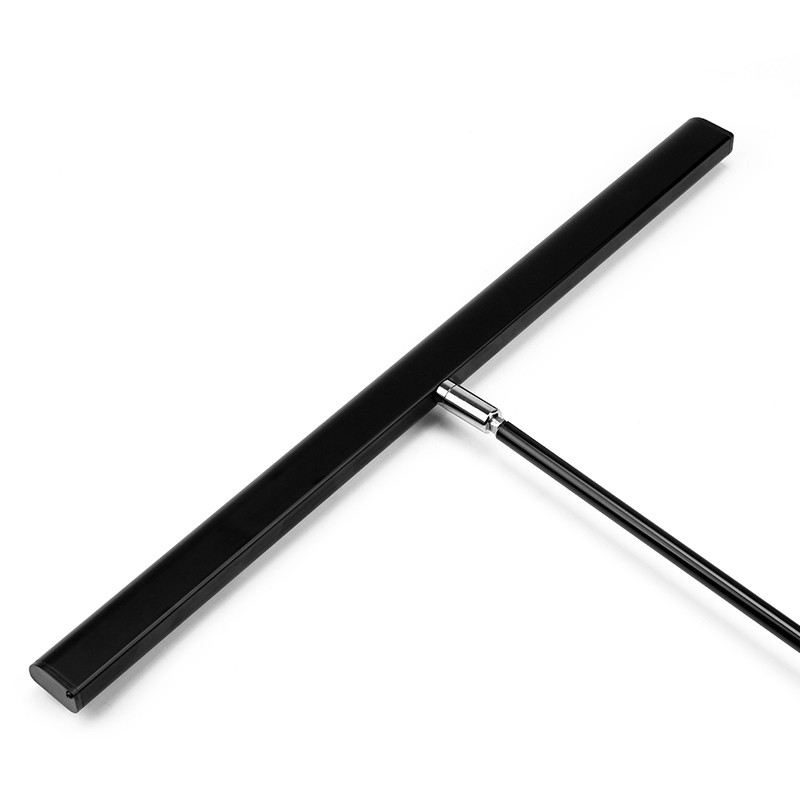

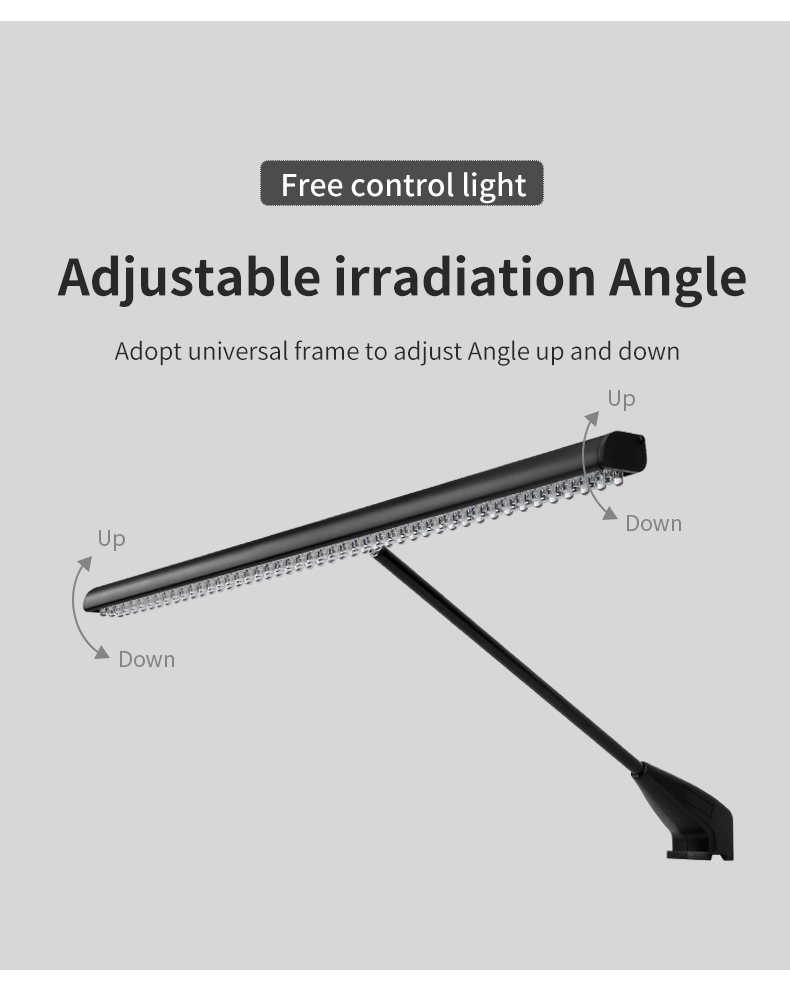

| Aiming illustrated | Adjustable linear head |
Fixings for portable and modular displays

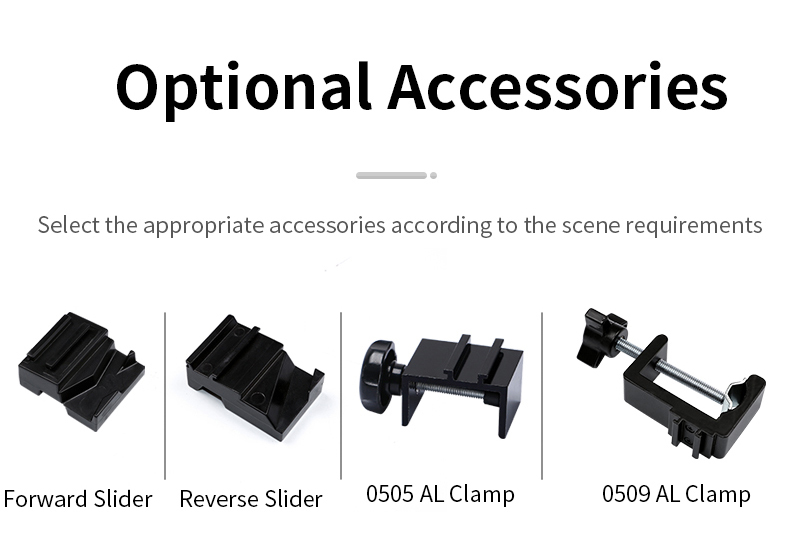

The optional-fitting image shows forward and reverse sliders and 0505 or 0509 aluminium clamps. Provide the frame profile and mounting dimensions so the fixing can be checked. Confirm the exact fitting and the compatible 12V power supply, leads and destination plug as part of the quoted kit.
Exhibition graphics and protected packing

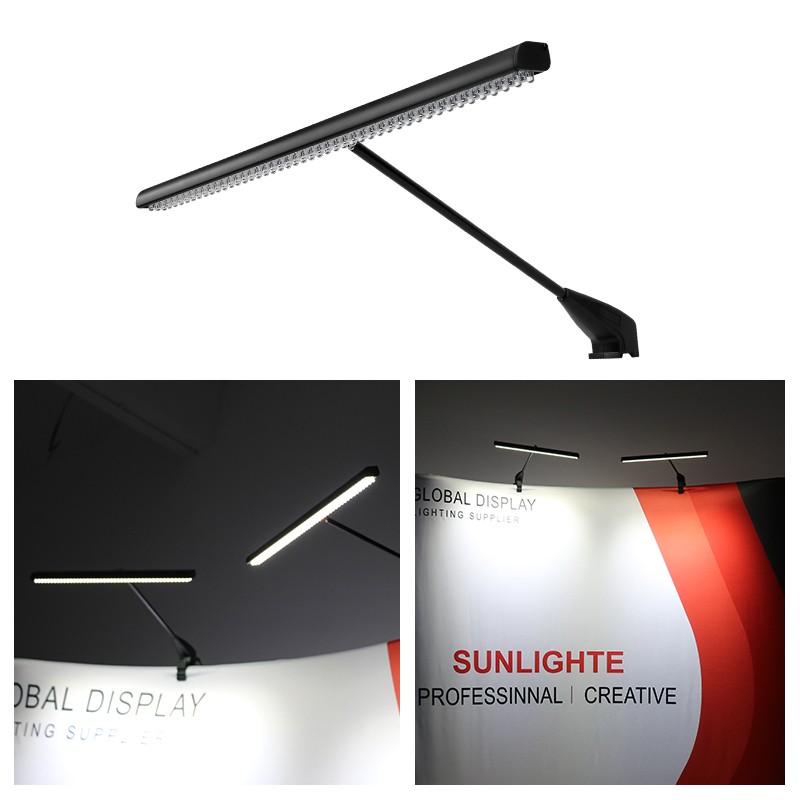

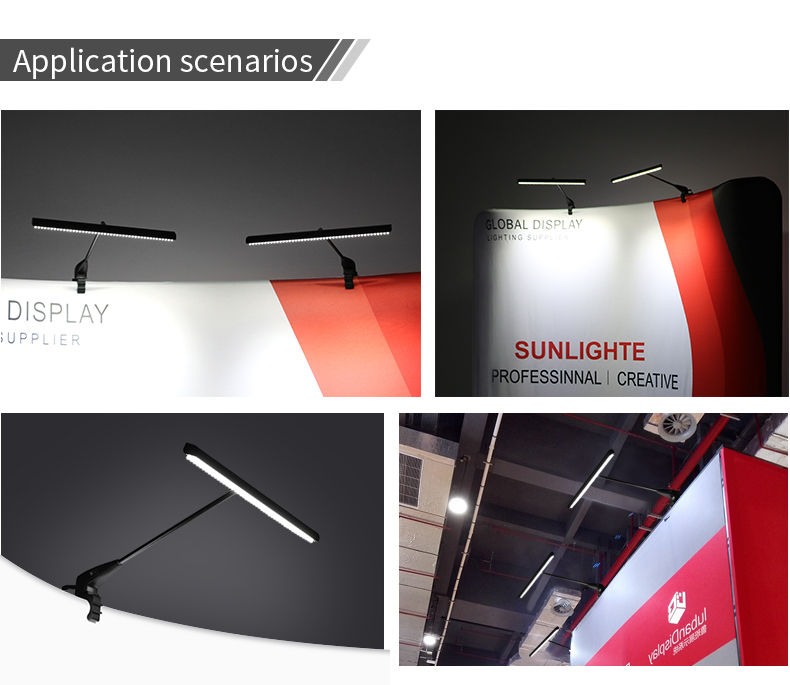

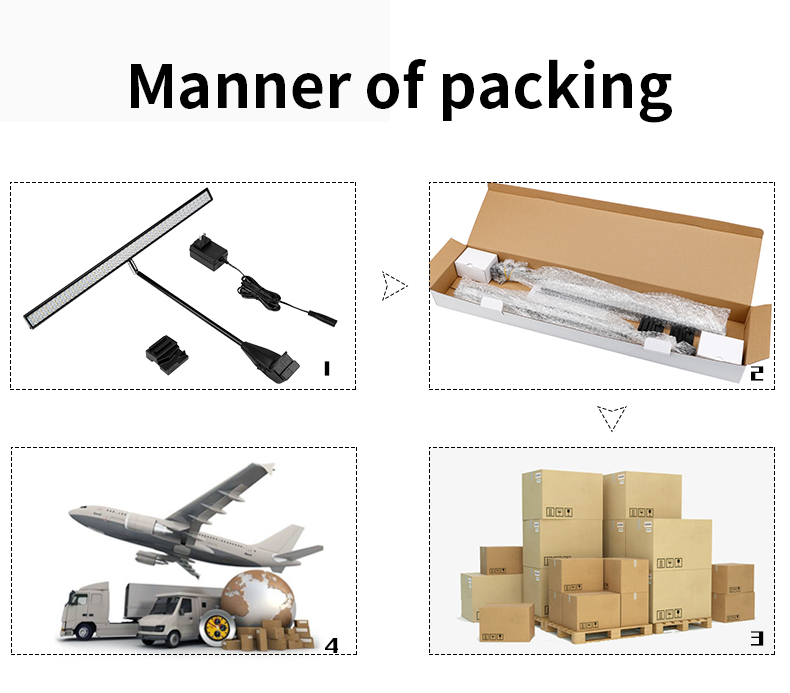

The original applications show the light above display boards and exhibition graphics. The packing illustration includes the light, supply and fitting components with protective wrapping and cartons. Confirm the components and carton configuration for your order before production.
Questions for 12V display-light buyers
Can I connect the light directly to mains power?
The lamp specification lists DC 12V. Request the compatible supply and wiring configuration for the destination market; do not treat the lamp as a direct-mains fitting.
Are warm-white lamps listed for this model?

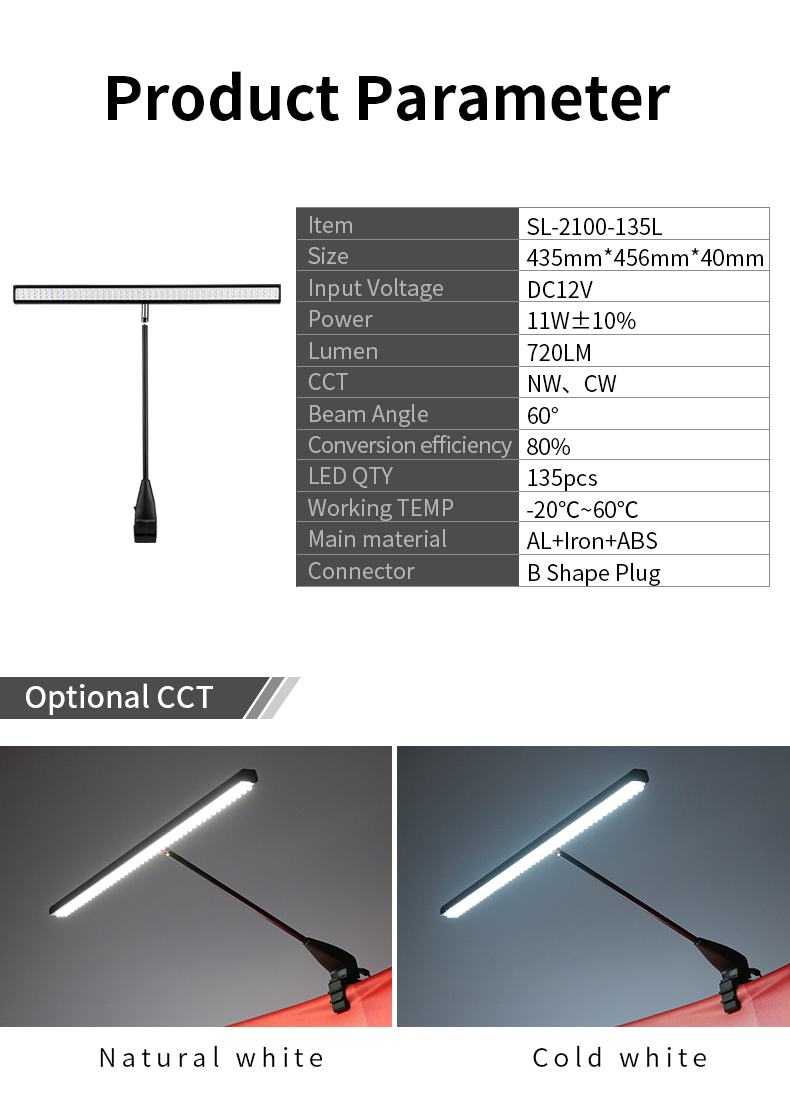

The parameter image lists NW and CW, meaning neutral white and cool white. Specify one of these versions, or ask about a custom requirement so availability can be confirmed.
Can I check the fixing before a bulk order?
Samples are available. Send the frame dimensions and preferred slider or clamp so the sample configuration can be confirmed. Wholesale orders start at 20 pcs, with lower unit prices at higher quantities.
Production and custom-supply enquiries
Standard lead time is 12–18 days. Custom configuration schedules and transit are confirmed separately. OEM, ODM and private-label enquiries are supported. Include model SL-2100-135L, quantity, white-light version, fitting, 12V supply requirements, destination plug, packing and branding details for a matching quotation.
