Slim arm lighting for modular display frames

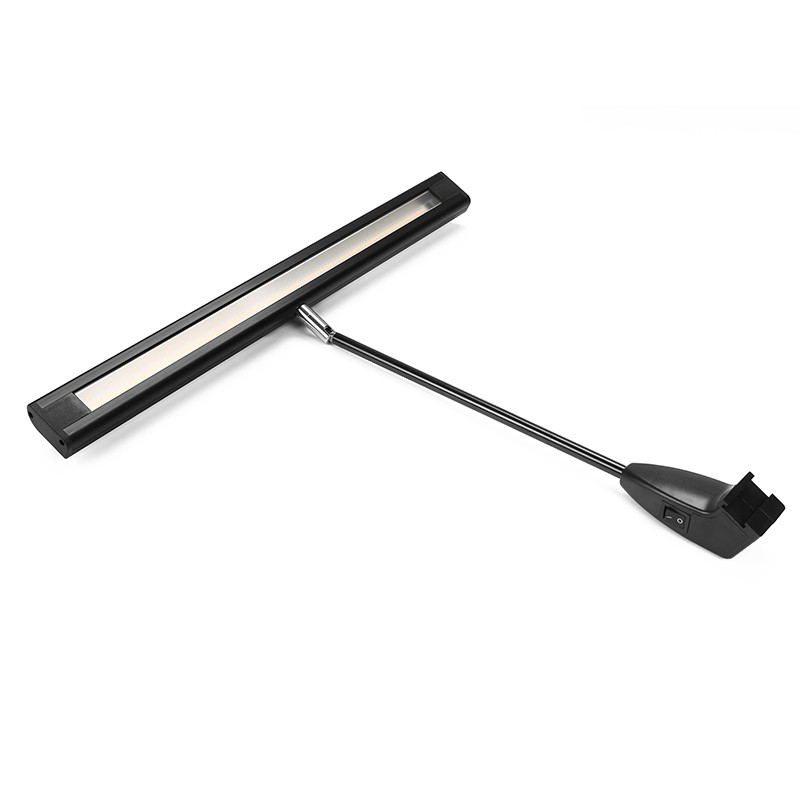

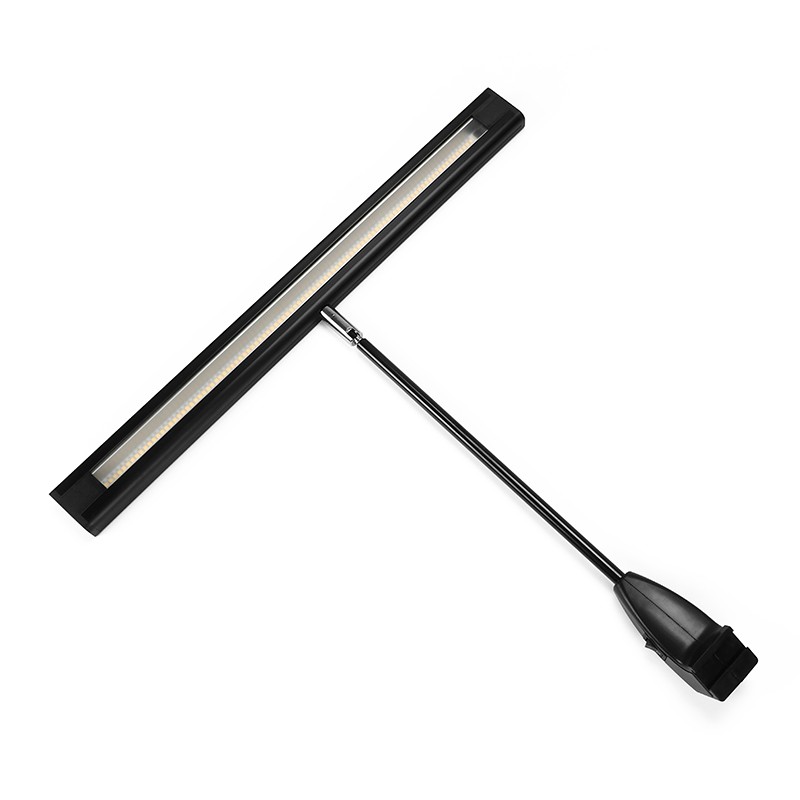

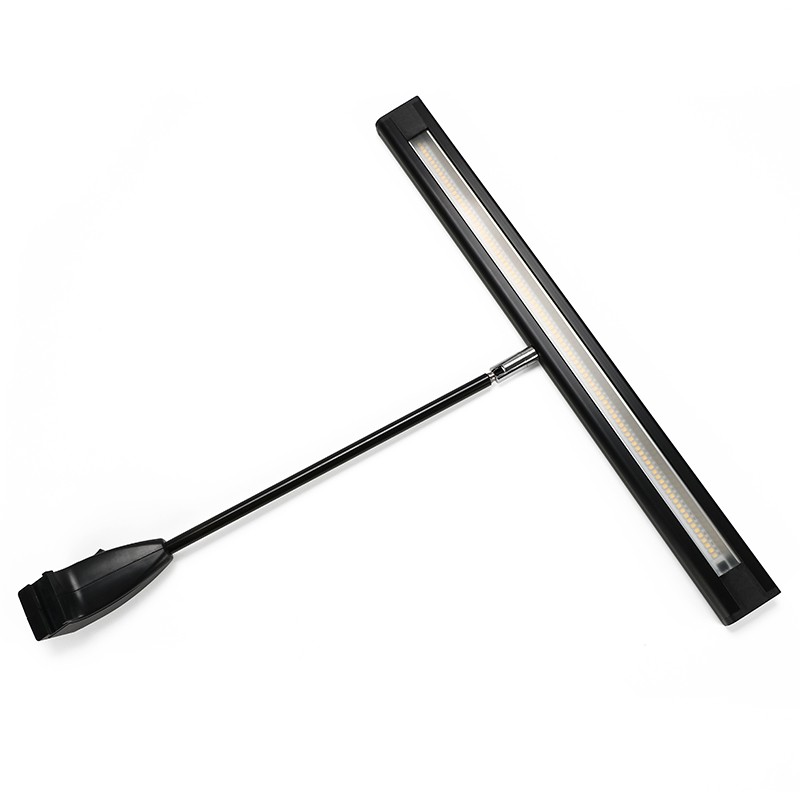

The SL-2101-96L is a 16W slim linear display light specified with 96 LEDs, 1300 lm output and a 60° beam. Its parameter sheet lists AC 100–240V input and a 466mm head within the 436 × 466 × 46.5mm dimensions. The illustrated forward slider, reverse slider and clamp fittings provide mounting choices for display-frame projects.
For modular-display suppliers, booth builders and exhibition contractors, matching the fixing to the frame is central to a repeatable installation. Send the frame section, graphic size and mounting position so the slider or clamp arrangement and white-light version can be specified for the order.
Slider and clamp options for frame integration
Select the fitting against the actual frame section. The original illustration identifies forward and reverse sliders, a 0505 aluminium clamp and a 0509 aluminium clamp. Include the preferred mounting arrangement in the enquiry; confirm fit and which fittings are supplied in the kit.
96-LED slim arm-light specifications
| Specification | SL-2101-96L |
|---|
| Model | SL-2101-96L |
| Power | 16W |
| Output | 1300 lm |

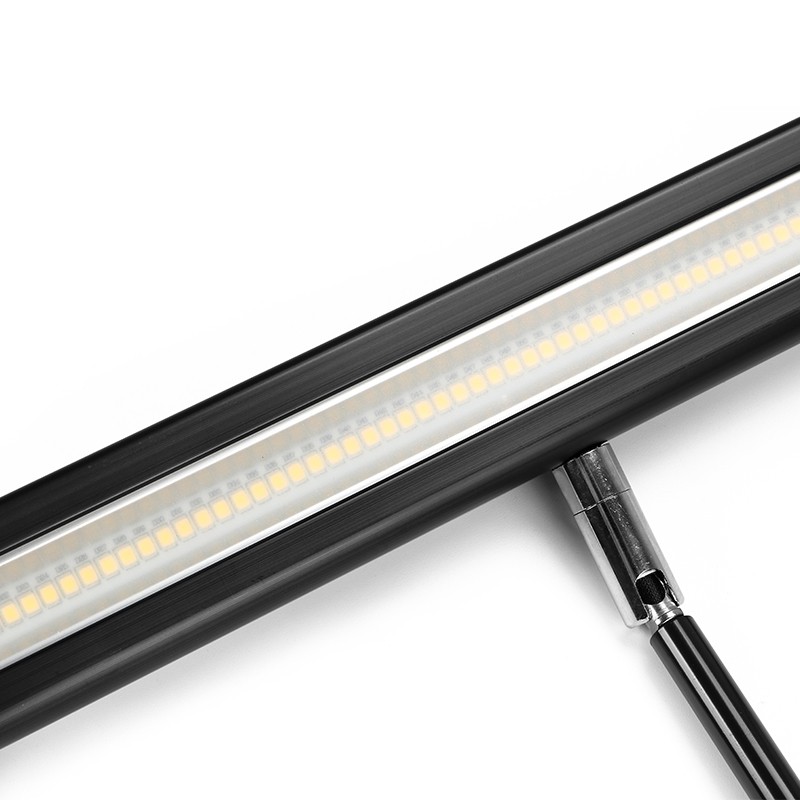

| LED quantity | 96 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 60° |

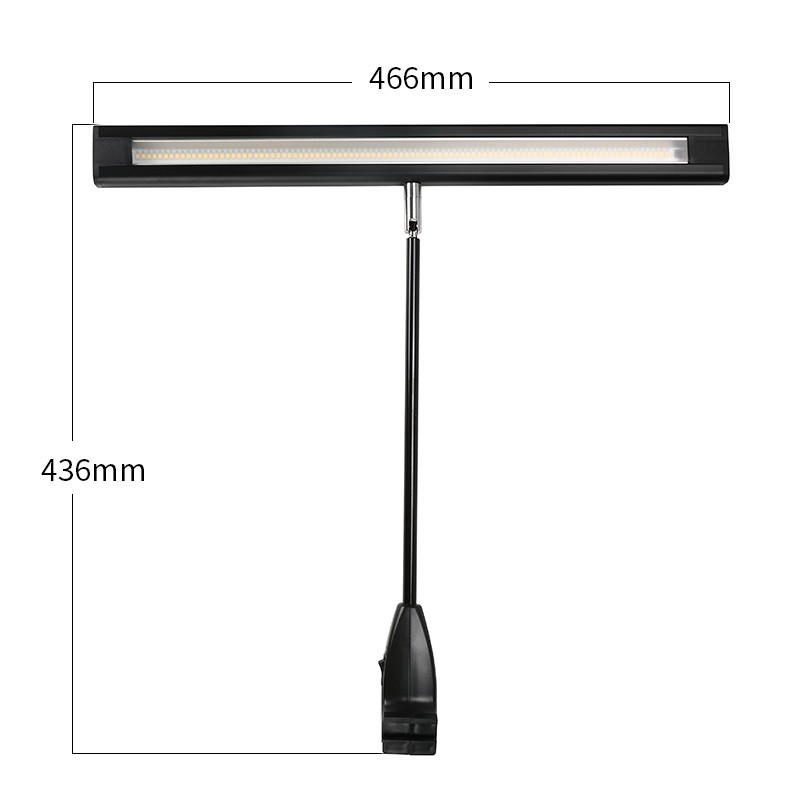

| Dimensions listed | 436 × 466 × 46.5 mm |
| Head length | 466 mm |
| Colour-temperature order options | 3000K / 4000K / 6500K |
| Main materials listed | Aluminium, iron and ABS |
| Connector listed | B Shape Plug |
| Optional fittings illustrated | Forward slider, reverse slider, 0505 AL clamp or 0509 AL clamp |
| Control and aiming | Base on/off switch; adjustable head shown |
Aim the head and select the white-light version

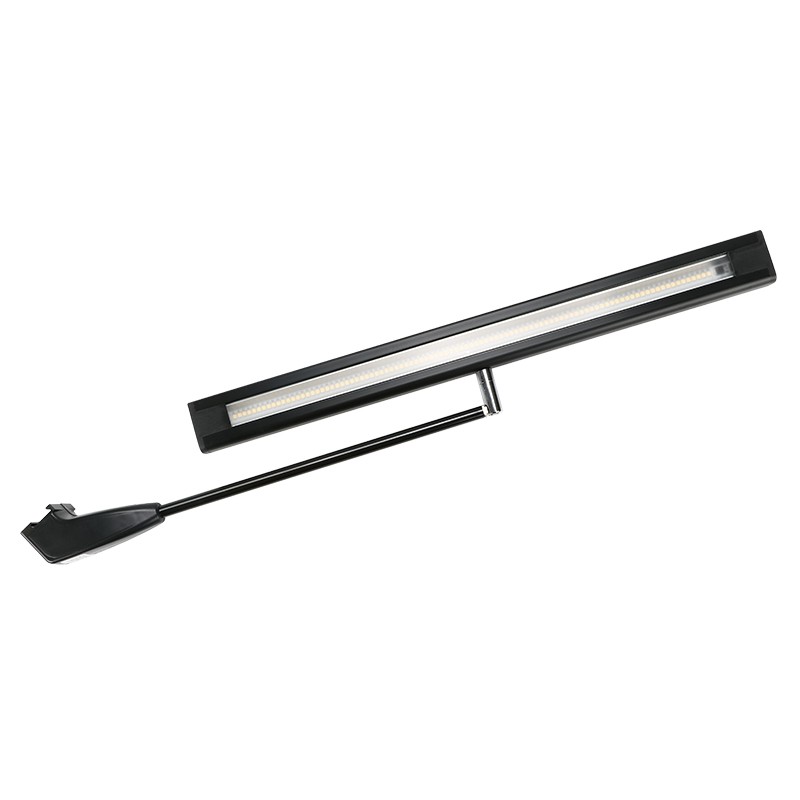

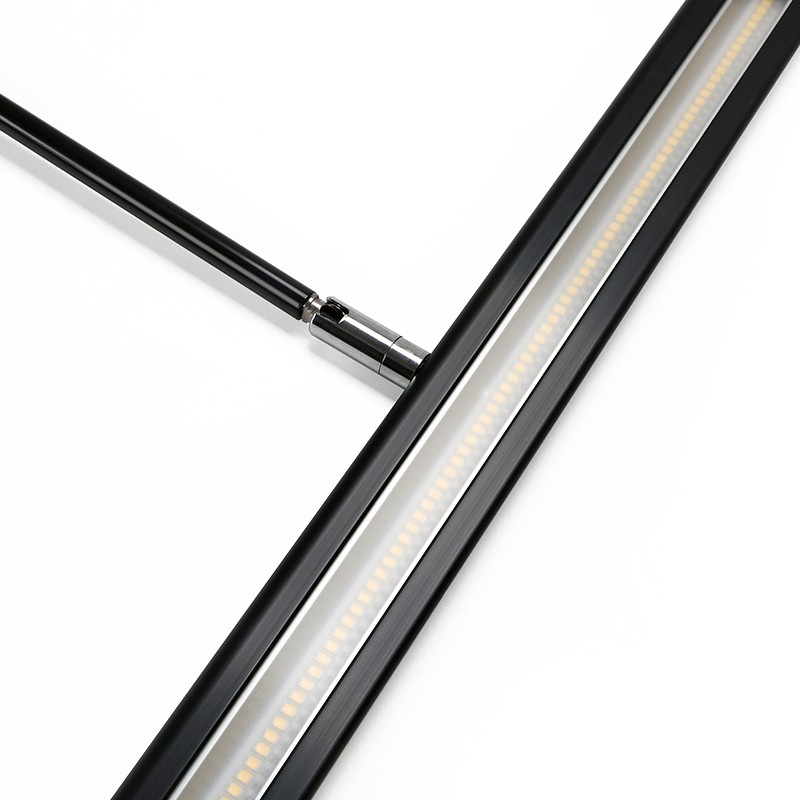

The aiming illustration shows up-and-down movement of the linear head, while the close-ups show the base switch and arm joint. Check the head position on a sample display to set the light across the graphics. The listed 3000K, 4000K and 6500K options are order choices; no on-lamp colour-changing function is specified.
Display graphics and shipment planning

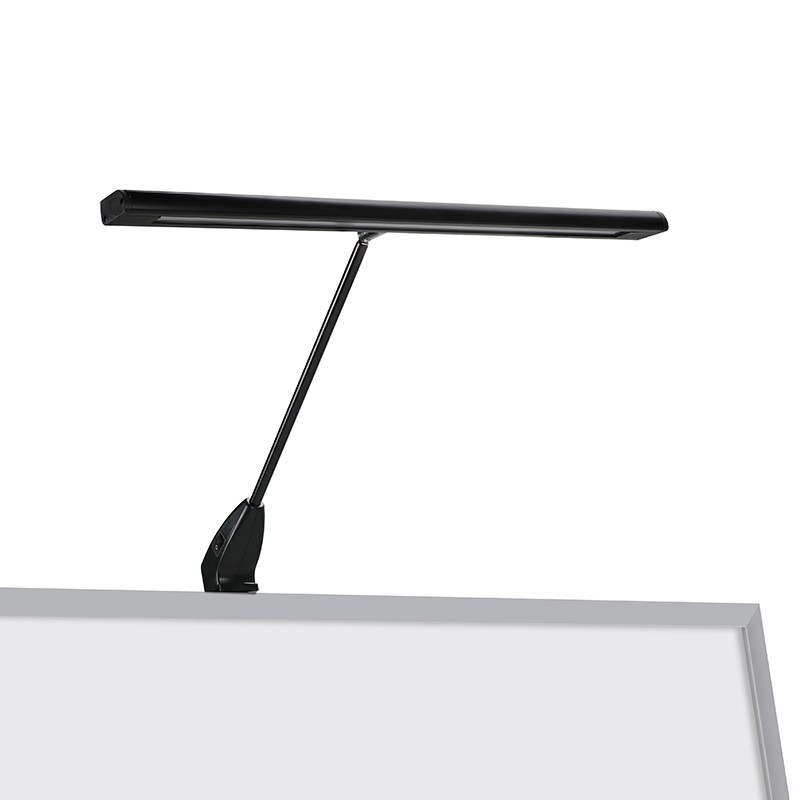

The application images show illumination of display boards and exhibition graphics. Specify the panel dimensions and mounting height when selecting the layout. The packing image illustrates protective wrapping and cartons; confirm the ordered kit components, carton quantities and destination plug in the quotation.
Questions from display-frame buyers
Will either slider fit my frame?
Fit depends on the frame section and fixing dimensions. Send a drawing or photo with dimensions, and check the selected slider or clamp with a sample.
Is this a different wattage from the other SL-2101-96L listing?
Both specification sheets identify the same 16W, 96-LED model. This page presents the illustrated frame-mounting choices to help specify the installation.
How do I request bulk pricing?
Send model SL-2101-96L, quantity, colour temperature, fitting, electrical plug and packing requirements. The minimum order is 20 pcs, with lower unit prices at higher quantities.
Sample checking and factory supply
Samples are available for mounting and lighting checks. Standard lead time is 12–18 days; custom-order schedules and transit are confirmed separately. OEM, ODM and private-label enquiries are supported. Share your frame requirements, branding and target quantity for a configuration-specific quotation.
