Wide-beam arm lighting for exhibition displays

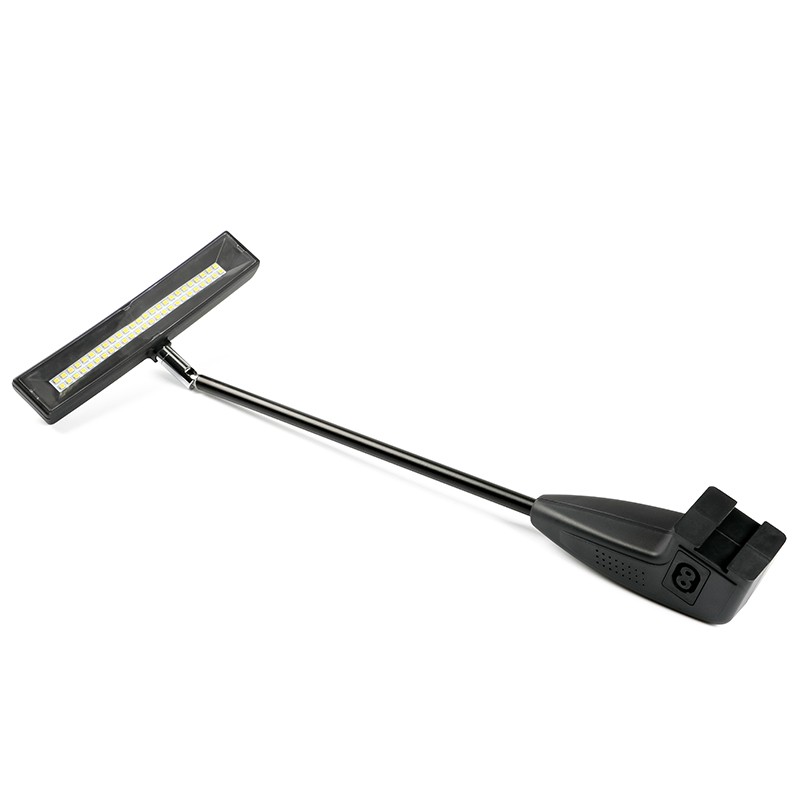

The SL-2087-N50L is a 12W display arm light with a 120° beam and 1300 lm output ±10%. It combines AC 100–240V input, a 189.3mm head and figure-eight-style input and output connectors. An adjustable head, rear ventilation openings and a built-in power-supply base support installation above exhibition graphics.
For exhibition stand builders and pop-up display suppliers, the wider beam format and input/output connector arrangement are useful selection points. Provide the graphic dimensions, mounting positions, frame profiles and required cable layout so the complete lighting configuration can be checked before quotation.
120° beam and input/output specifications

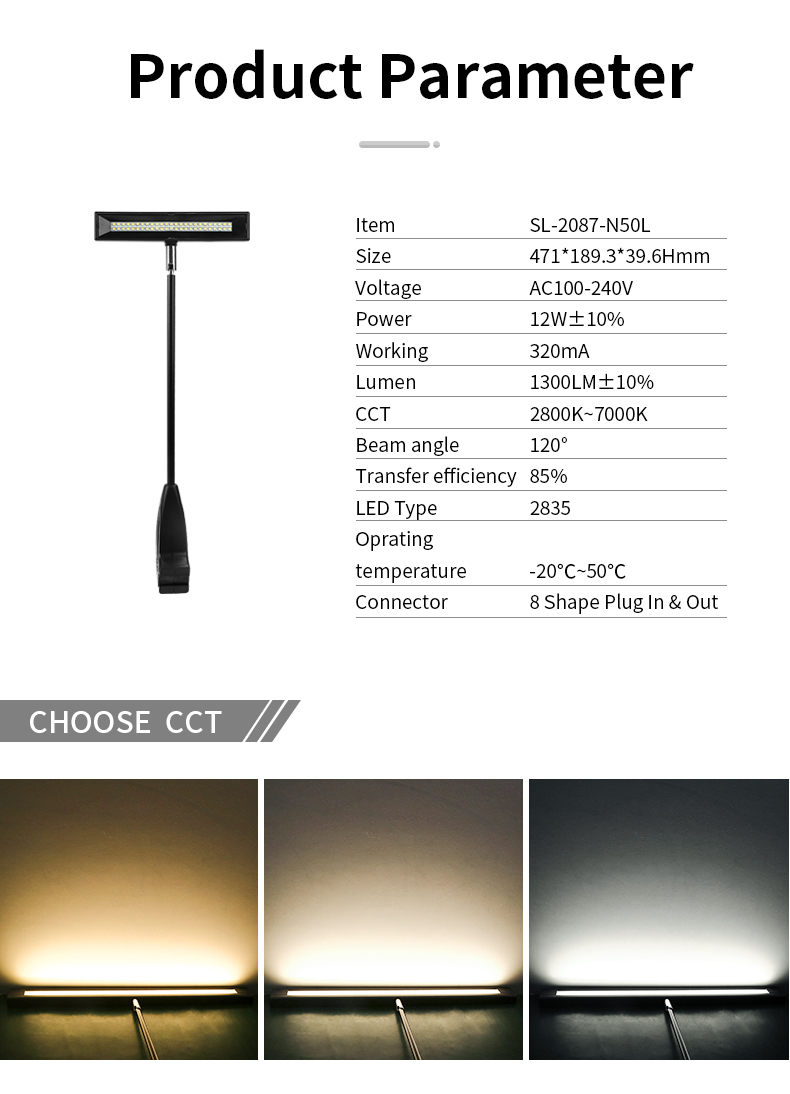

| Specification | SL-2087-N50L |
|---|
| Model | SL-2087-N50L |
| Power | 12W ±10% |
| Light output | 1300 lm ±10% |
| Input voltage | AC 100–240V |
| Beam angle | 120° |

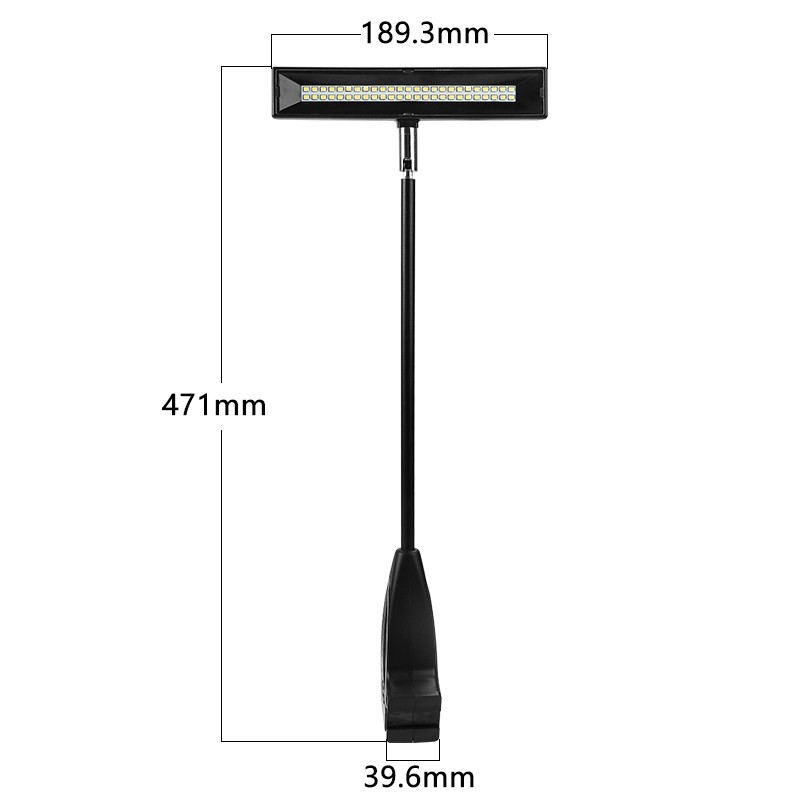

| Dimensions | 471 × 189.3 × 39.6 mm |
| Head length | 189.3 mm |
| Colour-temperature range | 2800–7000K; confirm the order version |
| LED package | 2835 |

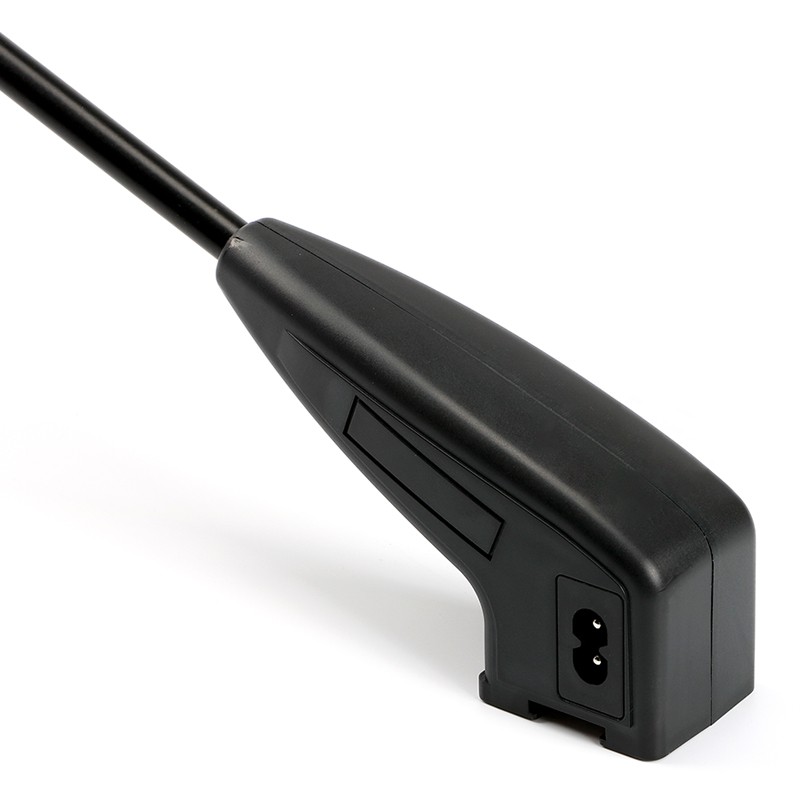

| Connector arrangement | 8-shape / figure-eight-style input and output |
| Power-supply arrangement | Built-in supply |
| Head features | Adjustable head with rear ventilation slots |
| Optional fittings | Forward slider, reverse slider, 0505 AL clamp or 0525 AL clamp |
Plan the fixing and cable arrangement

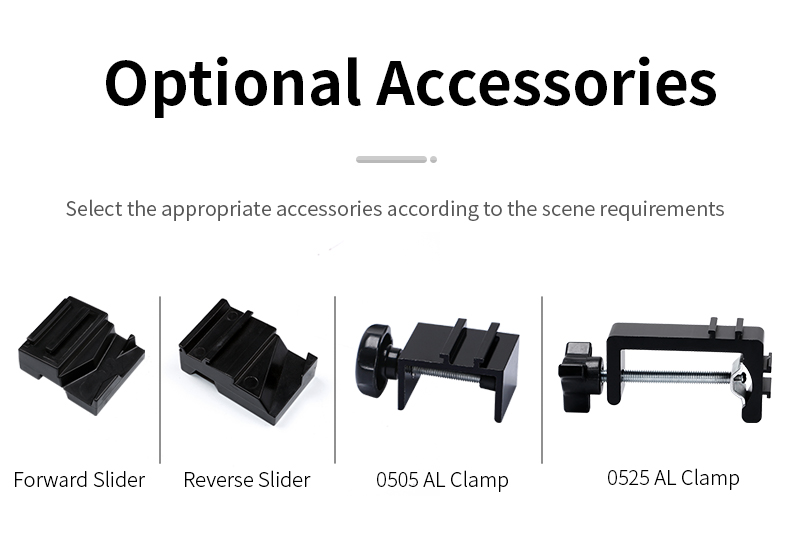

Choose the fitting for the actual display structure. The illustration identifies forward and reverse sliders and 0505 or 0525 aluminium clamps. Supply the frame dimensions so the fixing can be checked.

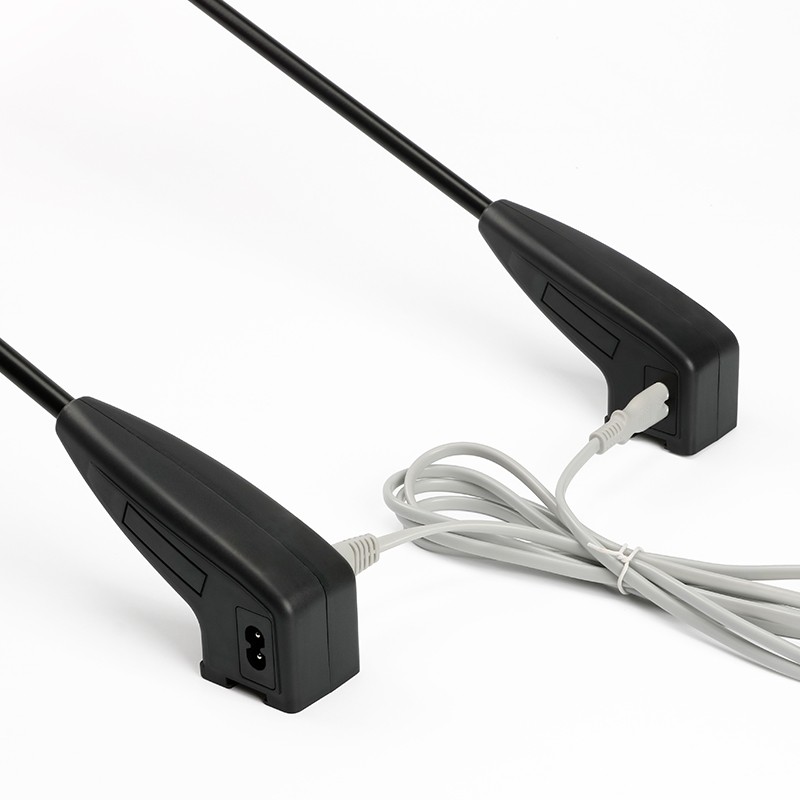

Specify the required input/output leads and connection layout for the installation. Confirm the permitted lamp quantity, cable configuration and destination plug as part of the complete lighting kit.

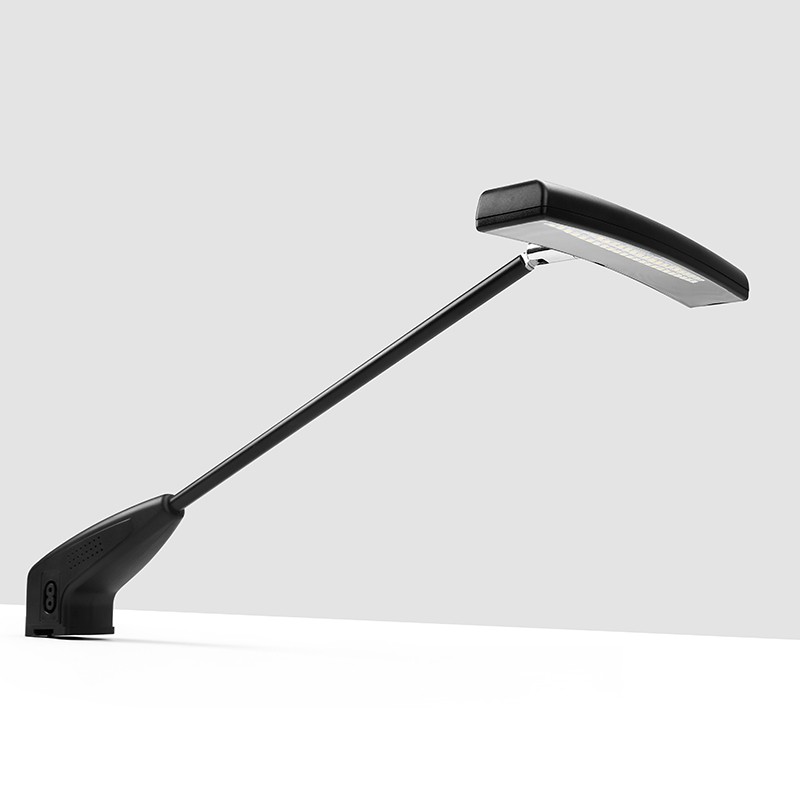

Adjustable head above display graphics

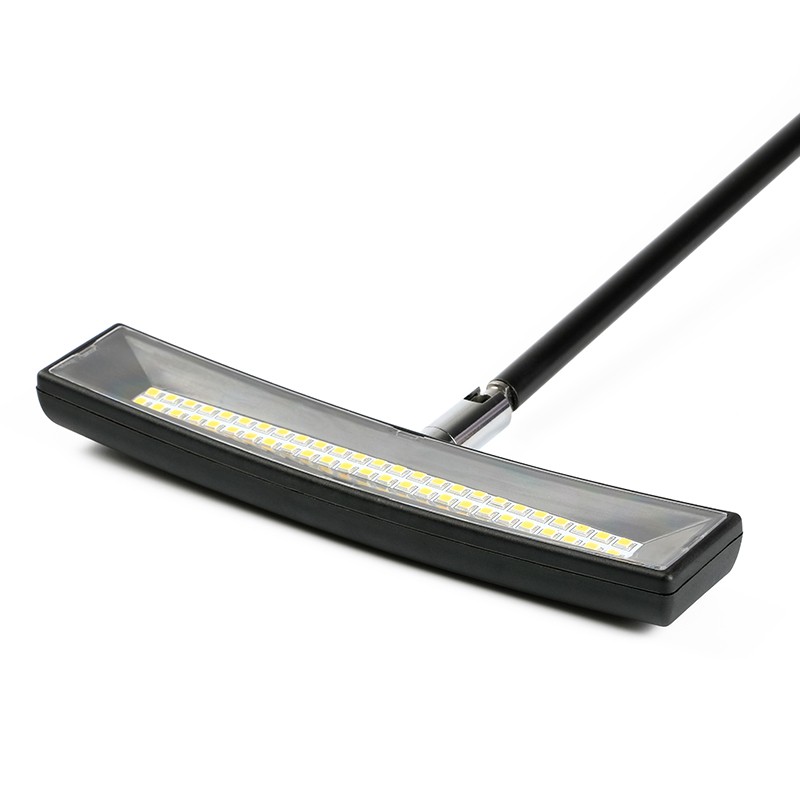

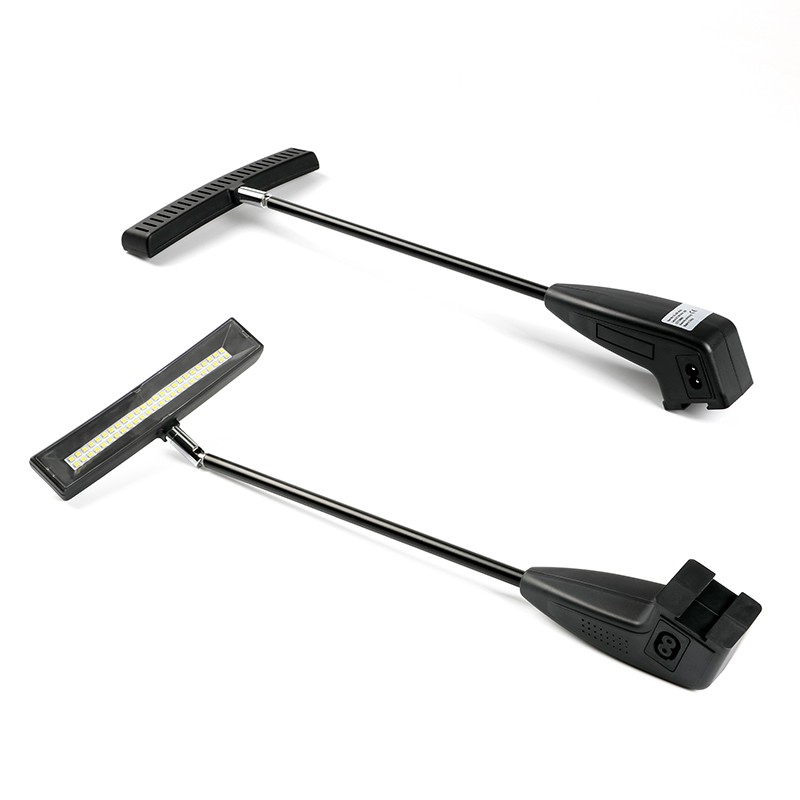

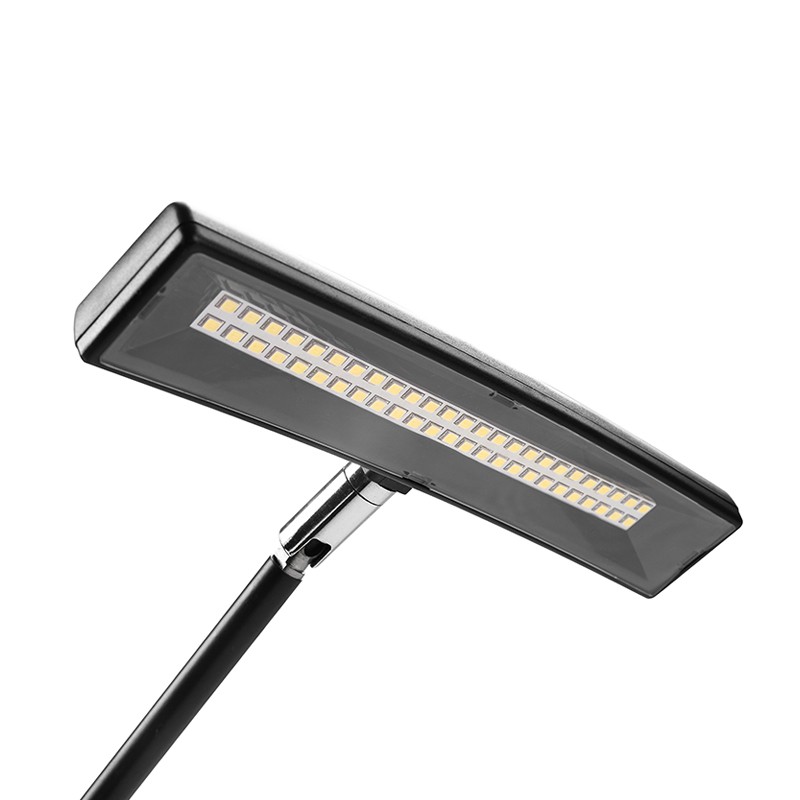

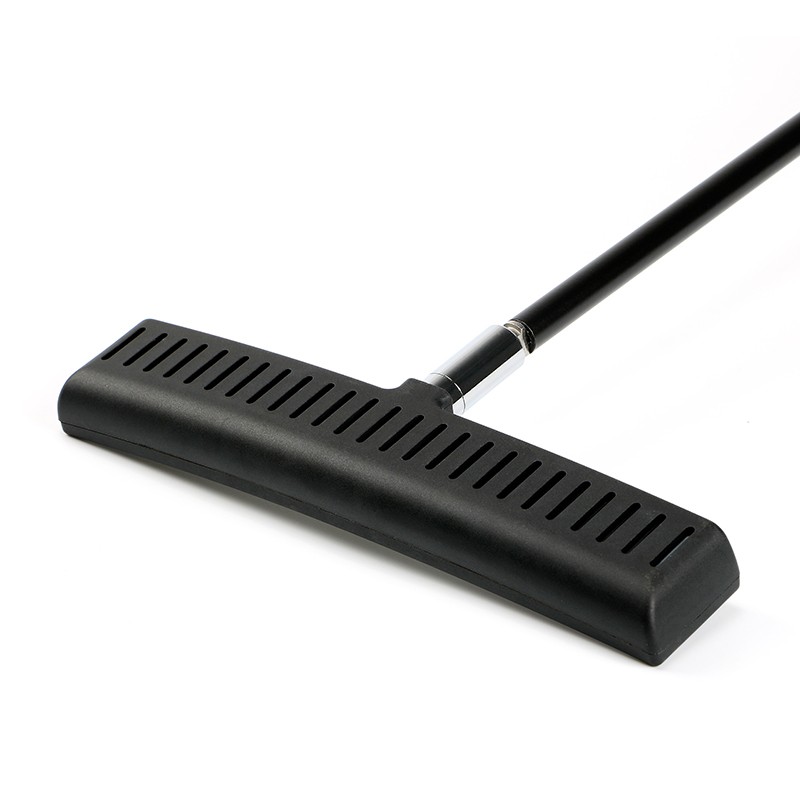

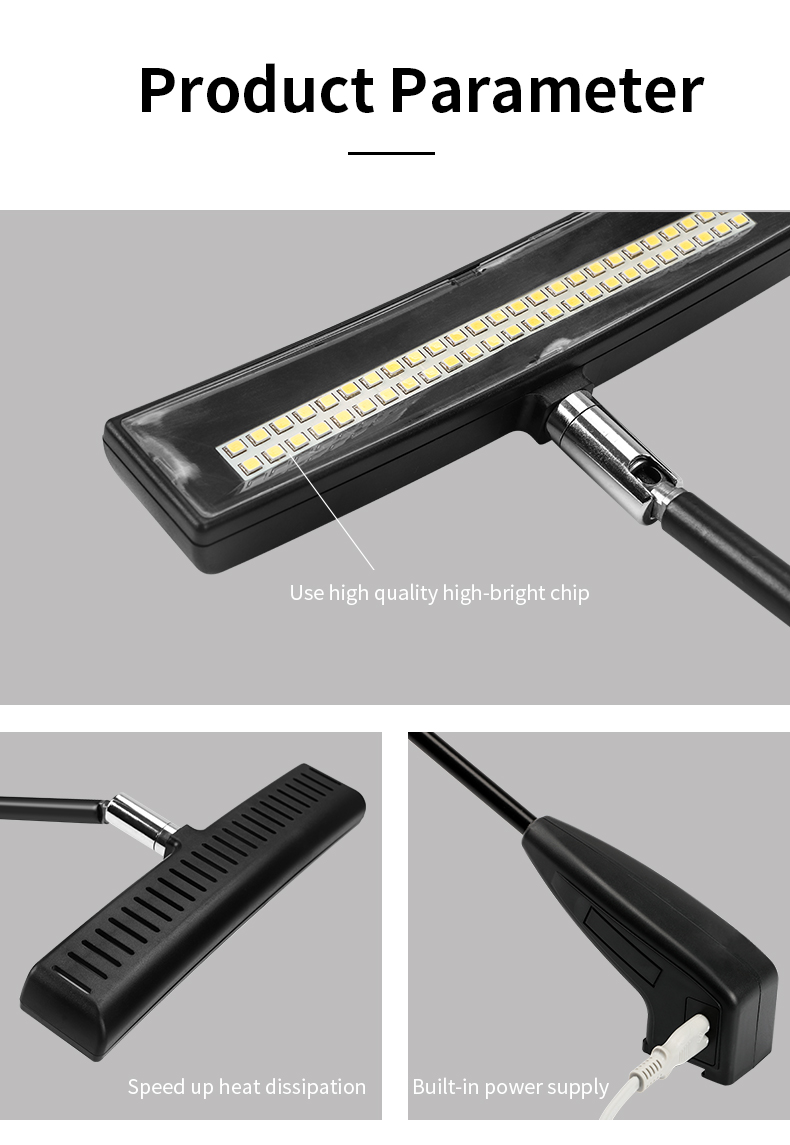

Aim the head toward the printed display surface and check the illumination with the selected white-light version. The close-ups show the LED row and rear ventilation openings. The specification lists 2800–7000K as the colour-temperature range; confirm the particular version required for the order.
Kit contents and protective packing
The packing illustration shows two lamps, fittings and connection cables with protective wrapping and cartons. Confirm the lamp quantity, included fittings, lead lengths and carton configuration with the quotation. Application images show different finish examples; specify the required finish so availability can be confirmed.
Questions for wide-beam exhibition-light orders
Is this a 60° or 120° spotlight?
The SL-2087-N50L parameter sheet specifies 120°. The 14W rectangular SL-2091-N24L is a separate 60° model, so select the beam and head format against the actual graphic and mounting position.
How many lamps can I connect together?
Send the lamp count and cable layout so the permitted configuration and required leads can be confirmed. The input/output connection arrangement must be checked for the complete kit before ordering.
Can I test the fitting and lighting first?
Samples are available. Send the display-frame dimensions, white-light requirement and intended connection layout to confirm the sample configuration. Wholesale orders start from 20 pcs, with lower unit prices at higher quantities.
Wholesale production and private-label enquiries
Standard lead time is 12–18 days. Custom configuration schedules and transit are confirmed separately. OEM, ODM and private-label enquiries are supported. Include model SL-2087-N50L, quantity, colour temperature, fitting, cable layout, destination plug and branding or packing requirements for a configuration-specific quotation.
