Clip-mounted MR16 lighting for exhibition graphics

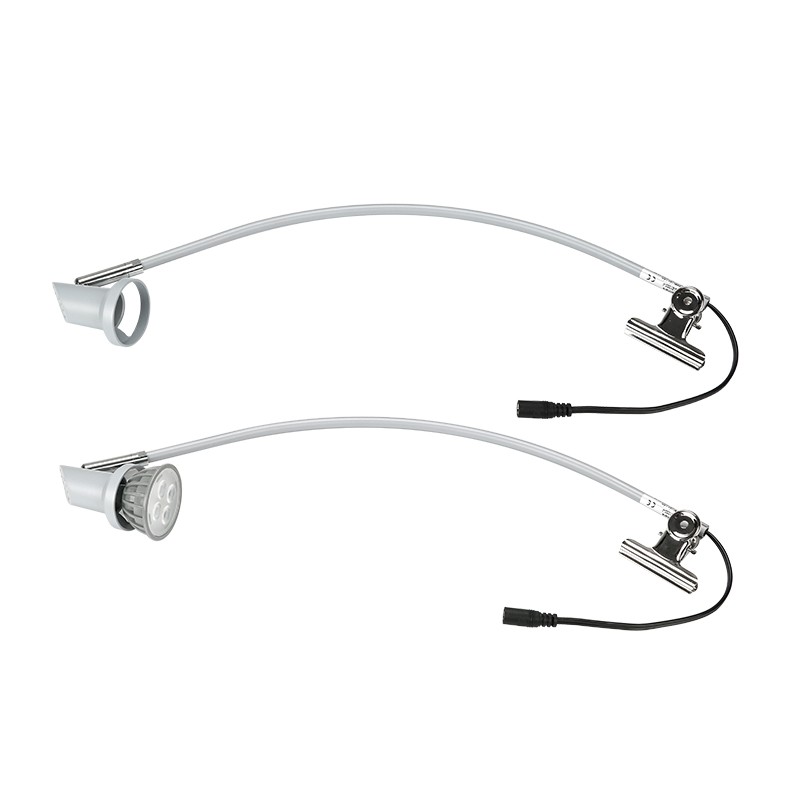

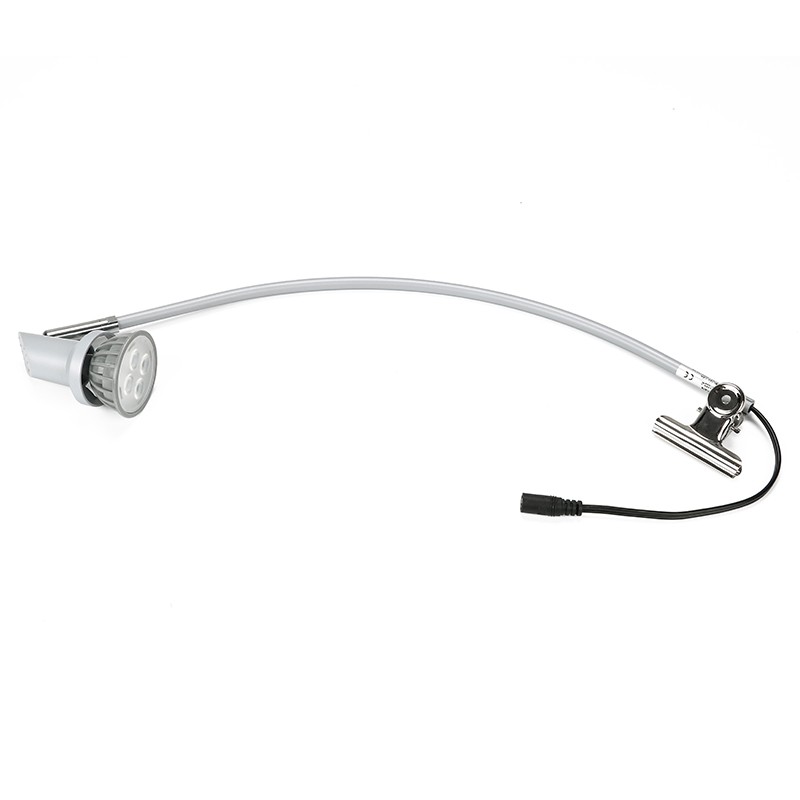

The SL-1005-5W is a 12V MR16 display spotlight with a curved arm and clip fixing. The specification lists 5W power, 350 lm output ±10% and a DC plug. Its adjustable head has rear ventilation openings, and the lamp can be separated from the holder as illustrated.
For display distributors and stand contractors, this model provides a clip-mounted option with a distinct vented-head profile. Match the fixing to the display frame, select the white-light version and confirm the 12V supply and DC connection before ordering the complete set.

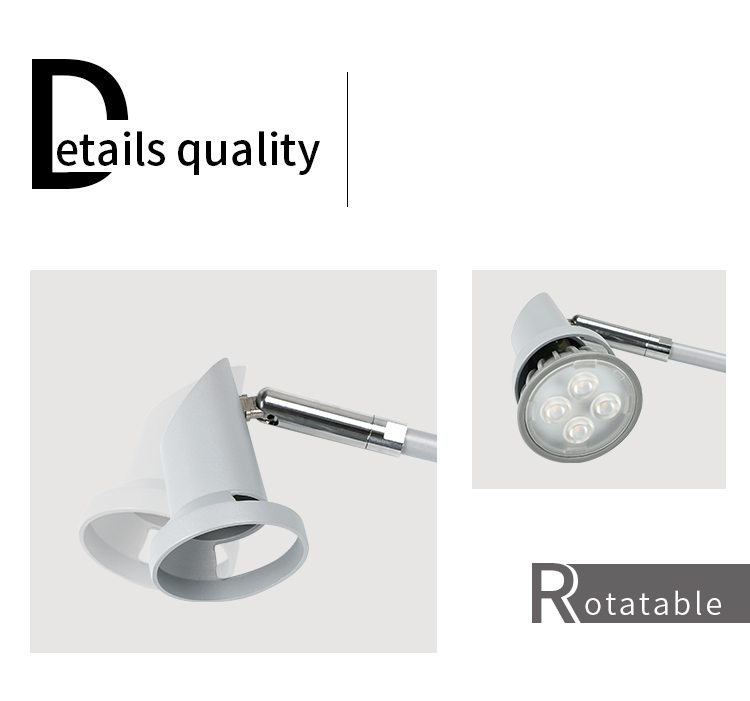

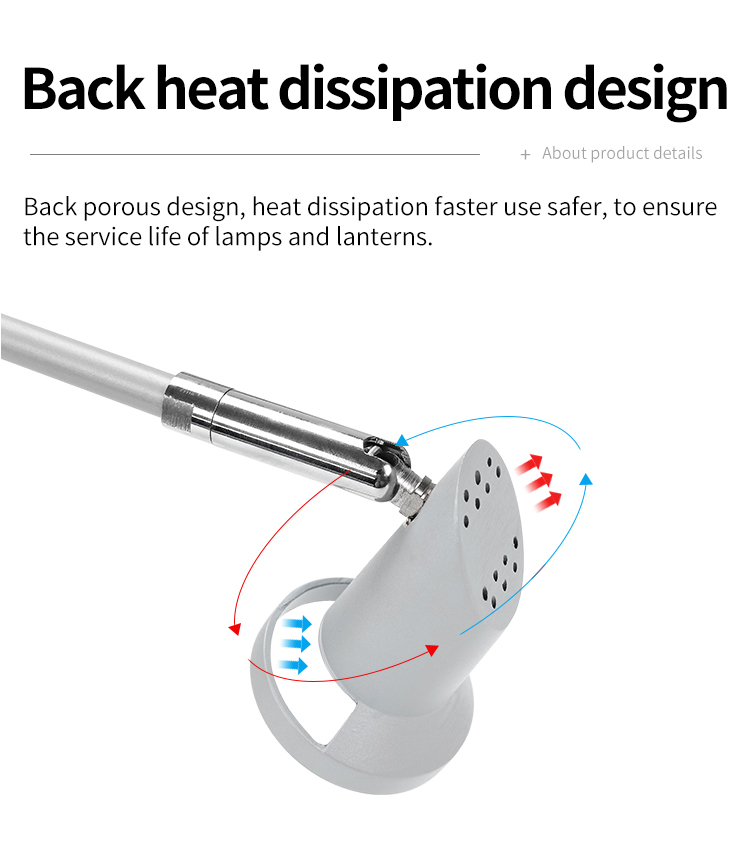

Adjustable vented head and lamp replacement

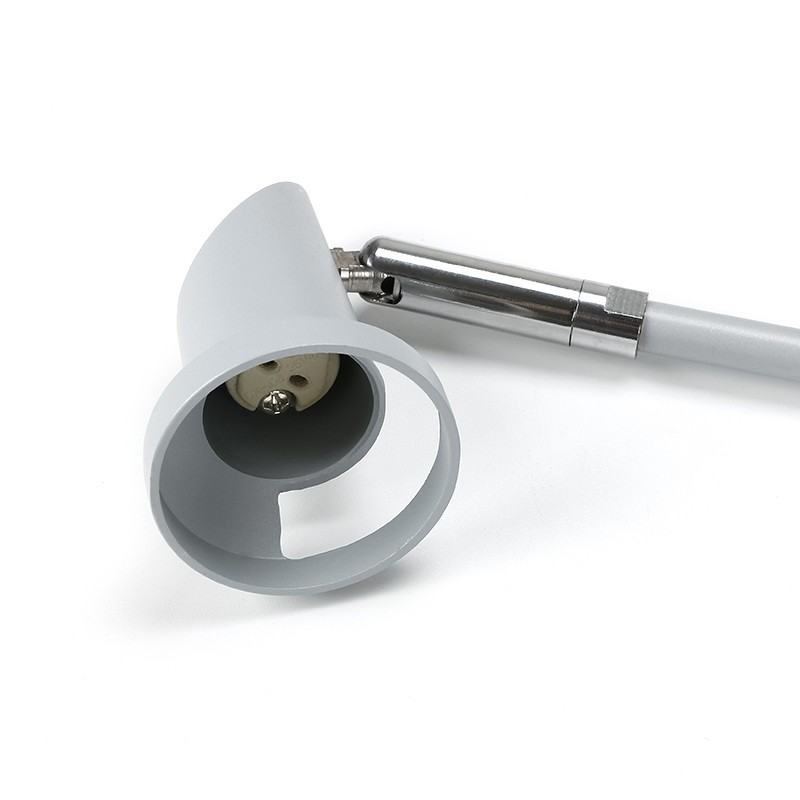

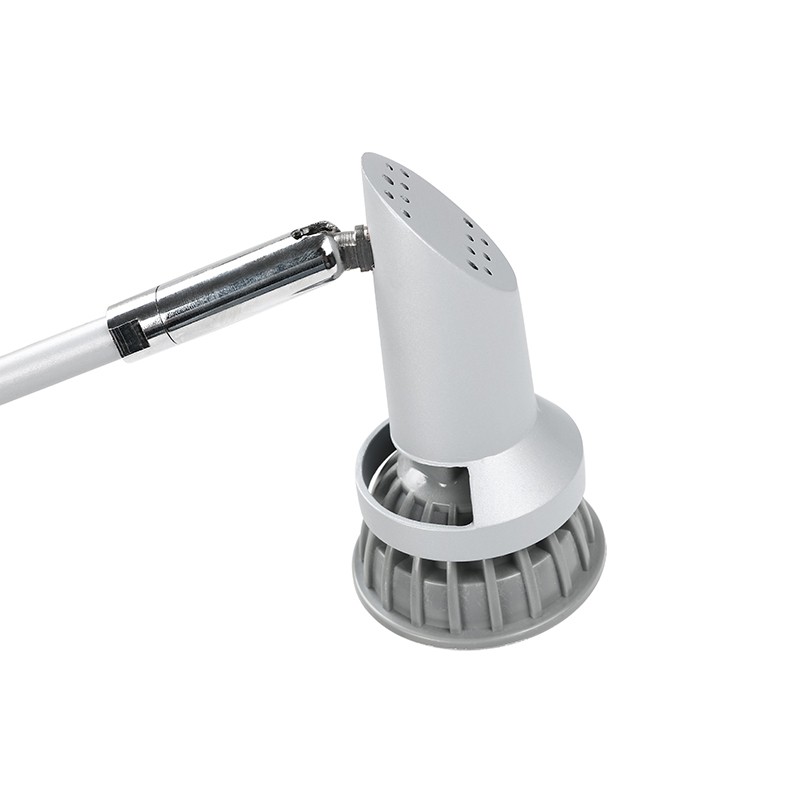

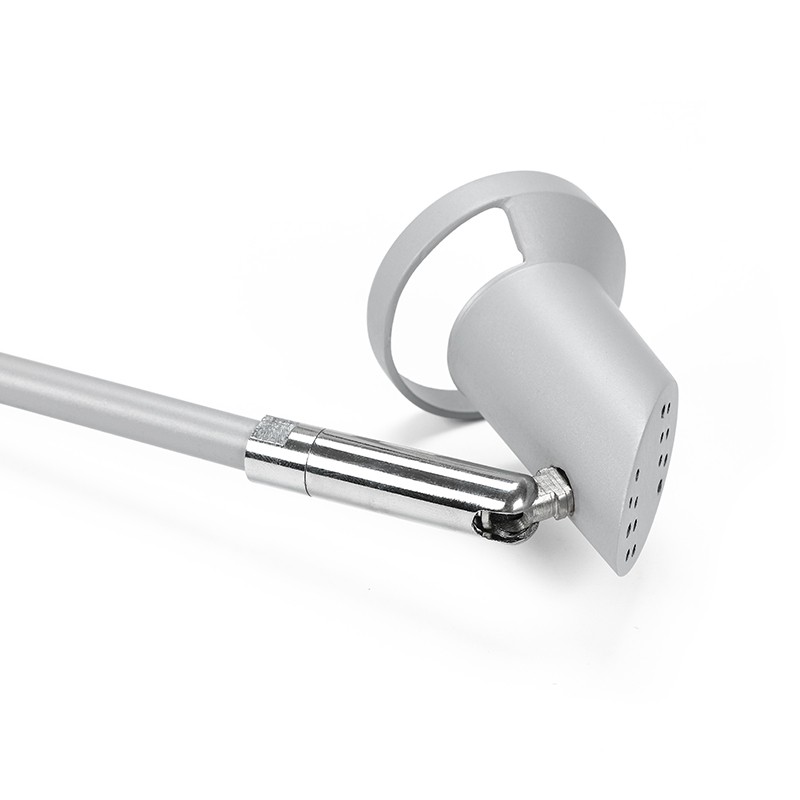

Aim the head toward the graphic after fitting the clip to the display structure. The detail images show rear ventilation openings, an adjustment joint and a removable MR16 lamp. Keep the mounting and cable arrangement appropriate to the selected fitting, and confirm replacement-lamp compatibility.

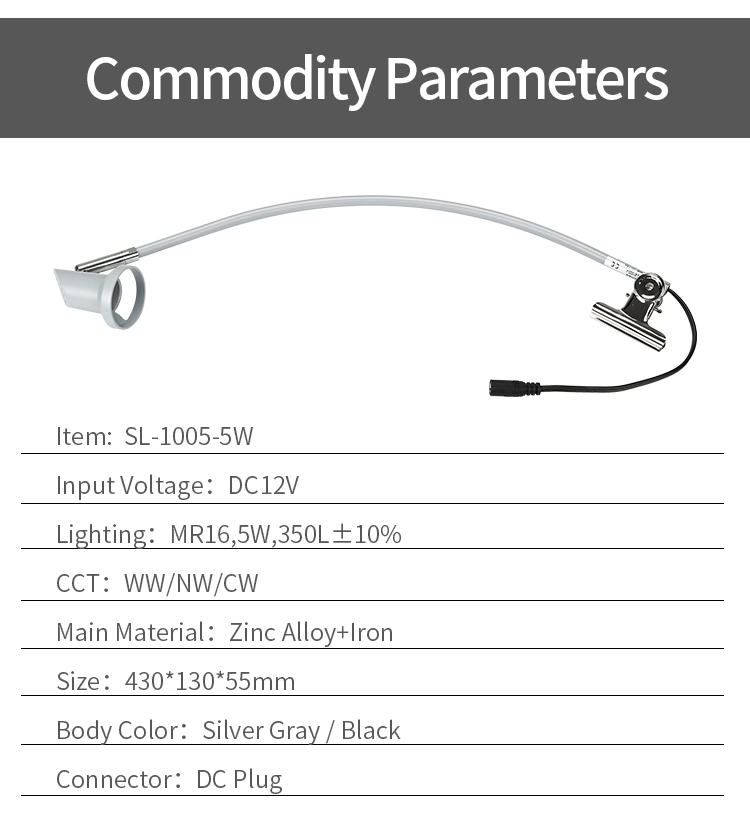

Clip-mounted model specifications
| Specification | SL-1005-5W |
|---|
| Model | SL-1005-5W |
| Lamp type | MR16 |
| Power | 5W |
| Output | 350 lm ±10% |
| Input voltage | DC 12V |
| Connection | DC plug |
| Dimensions | 430 × 130 × 55 mm |
| White-light versions | WW / NW / CW: warm, neutral or cool white |
| Body finishes | Silver-grey or black |
| Main materials listed | Zinc alloy and iron |
| Mounting reference | Clip fixing as illustrated |
| Head details | Adjustable aiming; rear ventilation openings |
| Lamp service | Separable MR16 lamp and holder shown |

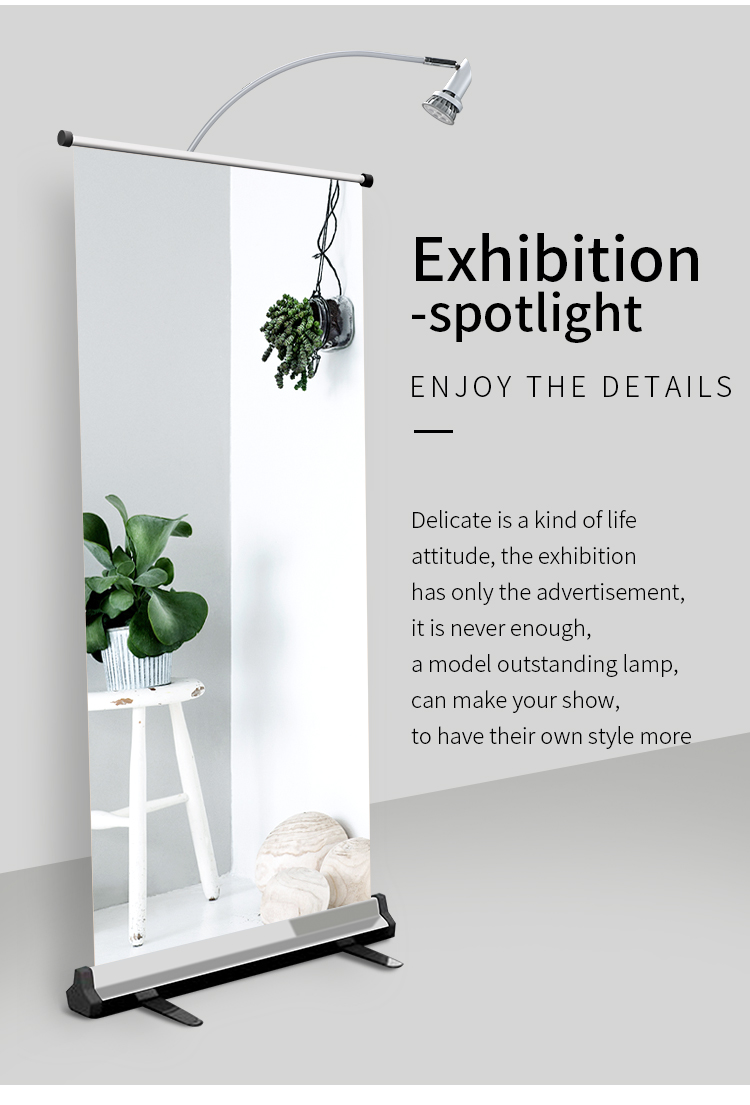

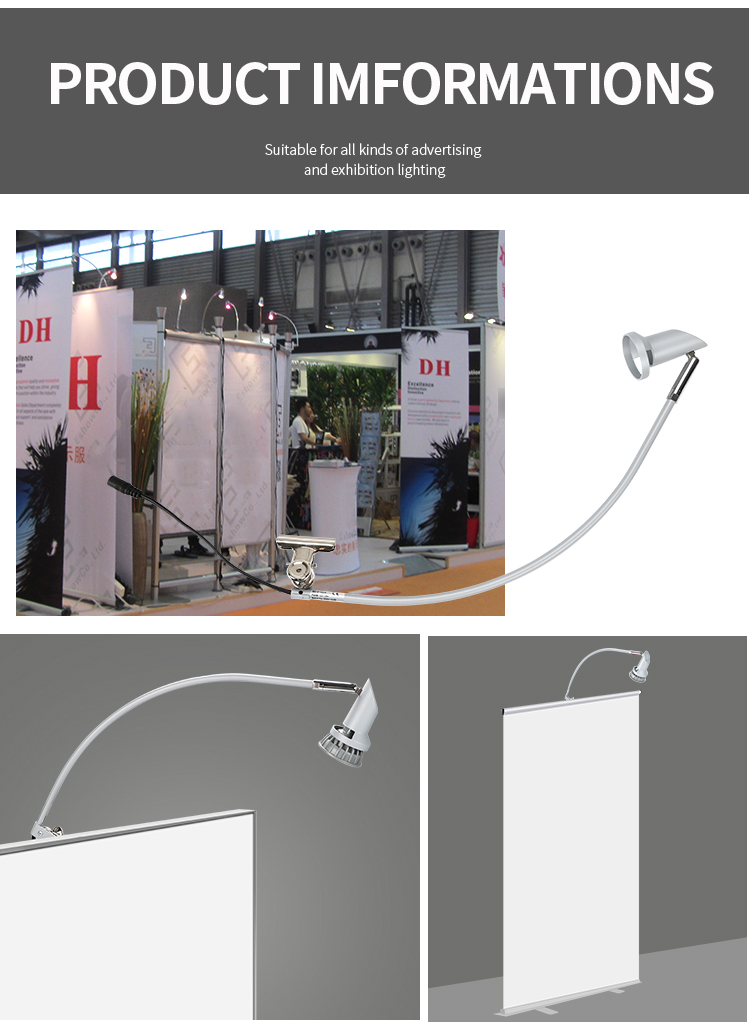

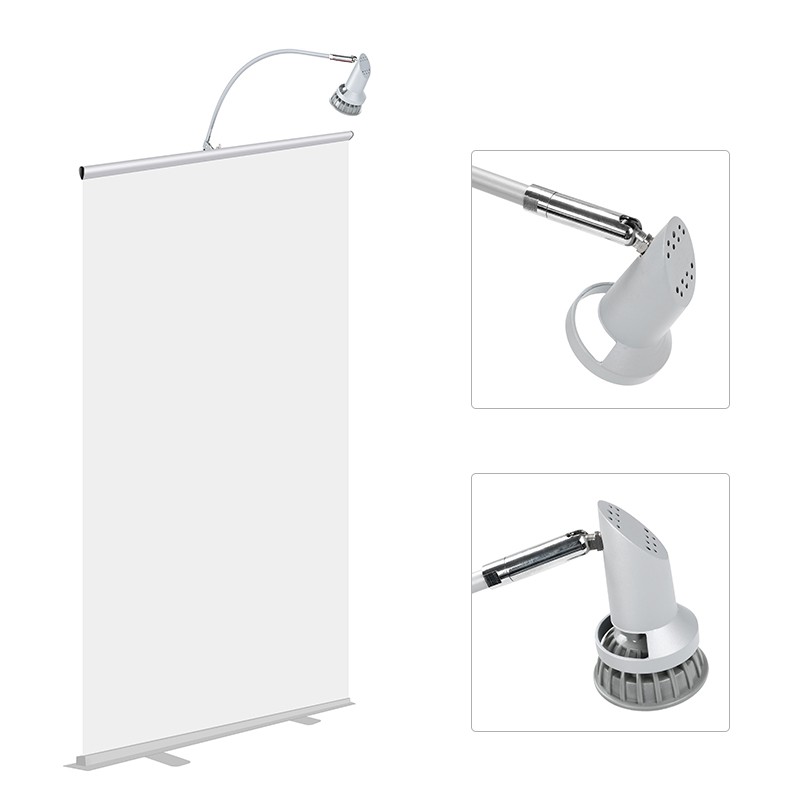

Graphic stands and exhibition displays

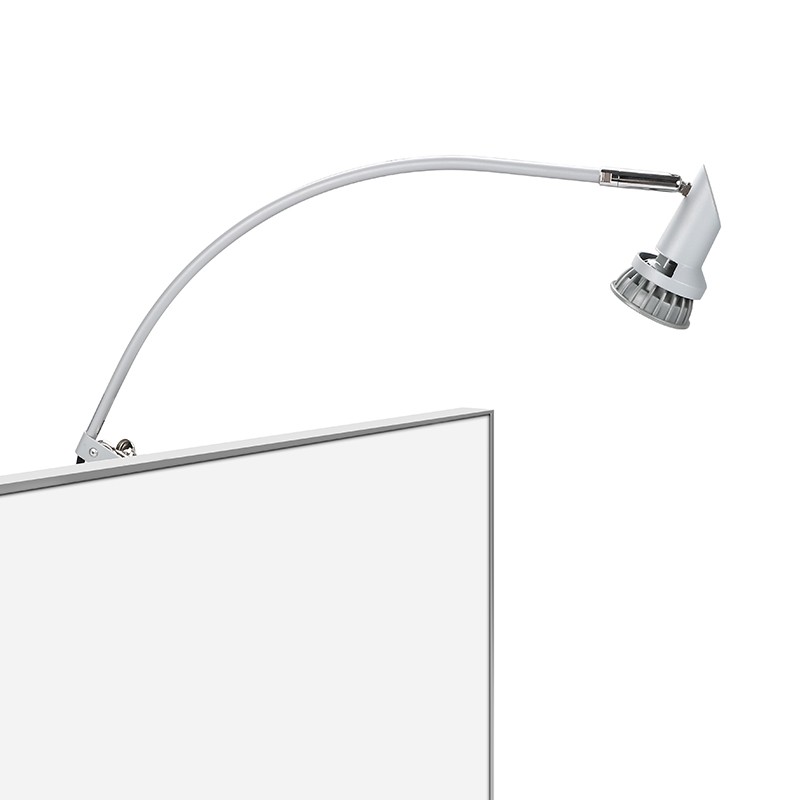

The application images show curved spotlights above display graphics and exhibition structures. Share the panel dimensions, frame profile and intended lamp positions. Test a sample on the actual graphic to check the light appearance and mounting fit before setting the bulk-order configuration.
Clip fit, white-light version and packing
Choose silver-grey or black housing and a warm, neutral or cool white lamp version. The detailed specification lists zinc alloy and iron as the main materials. Confirm the clip profile and fixing dimensions against the display frame.

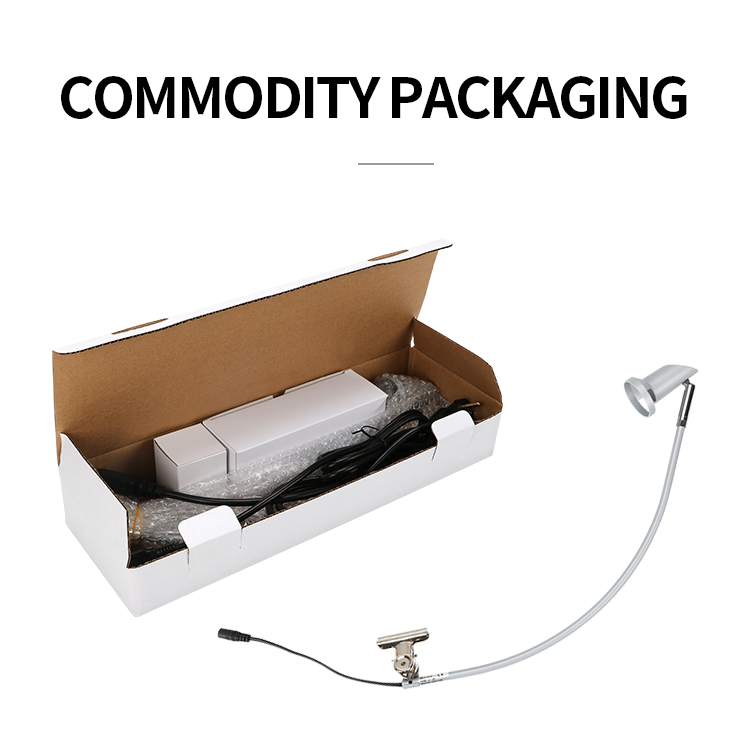

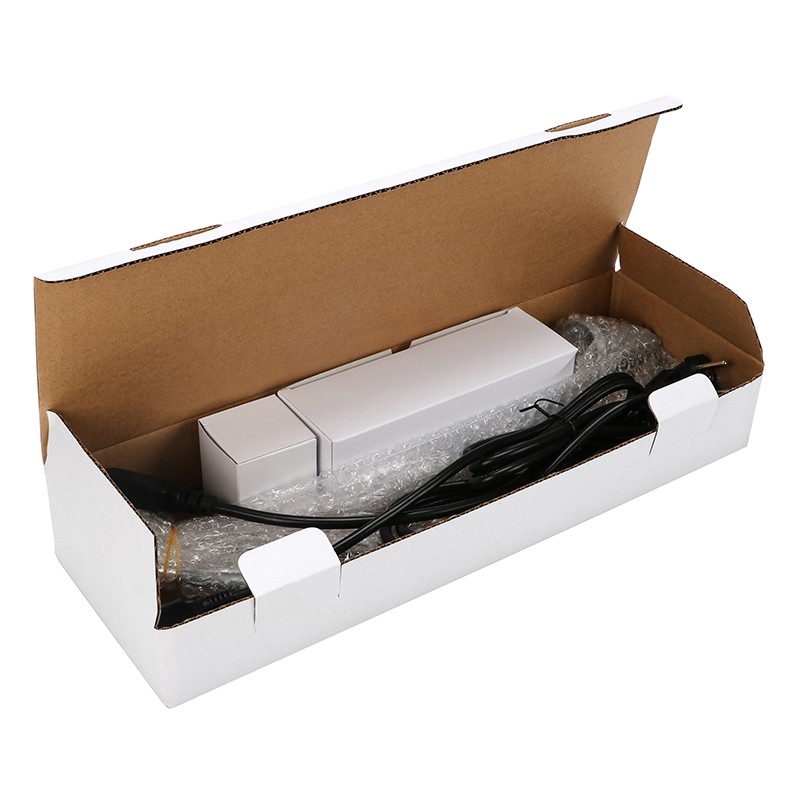

This model is specified for DC 12V with a DC plug. Request an itemised quotation covering the compatible supply, lead connections, mounting component and packing. The protective-carton image is a reference for the set; connector size, polarity and included parts should be confirmed for the order.
Clip-on MR16 spotlight purchasing questions
Does the DC plug connect to mains power?
The lamp input is DC 12V. Confirm a compatible supply, DC connector configuration and leads for the selected lamp quantity; the fitting is not specified as a direct mains-input lamp.
How does this compare with the slim curved MR16 light?
This model lists 350 lm ±10% and 430 × 130 × 55 mm dimensions, with a clip fixing and vented-head design. The related SL-1008-5W lists 300 lm and 460 × 130 × 35 mm dimensions. Compare the fitting and sample appearance for your display.

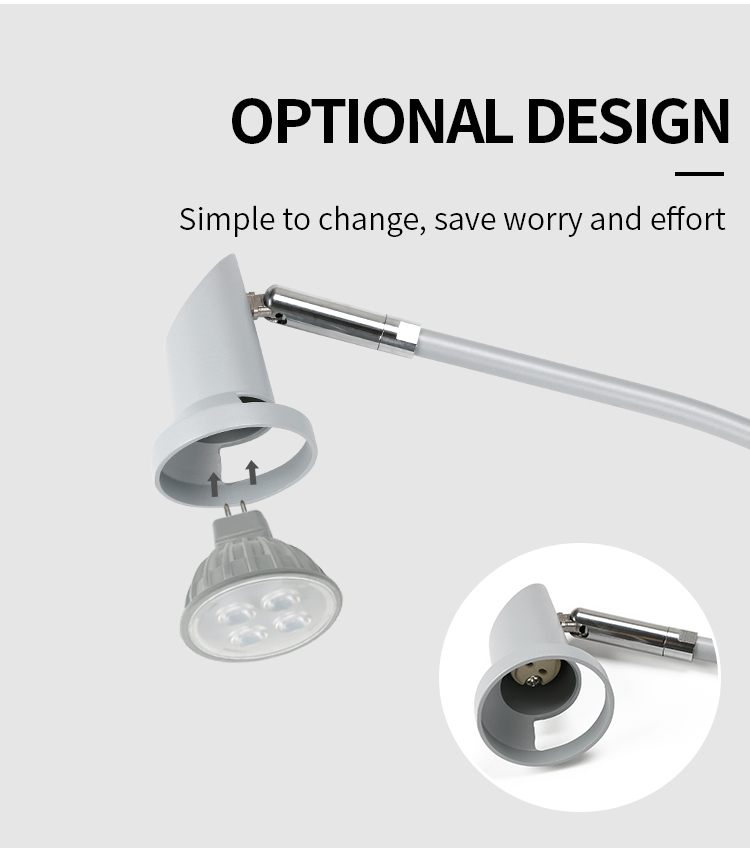

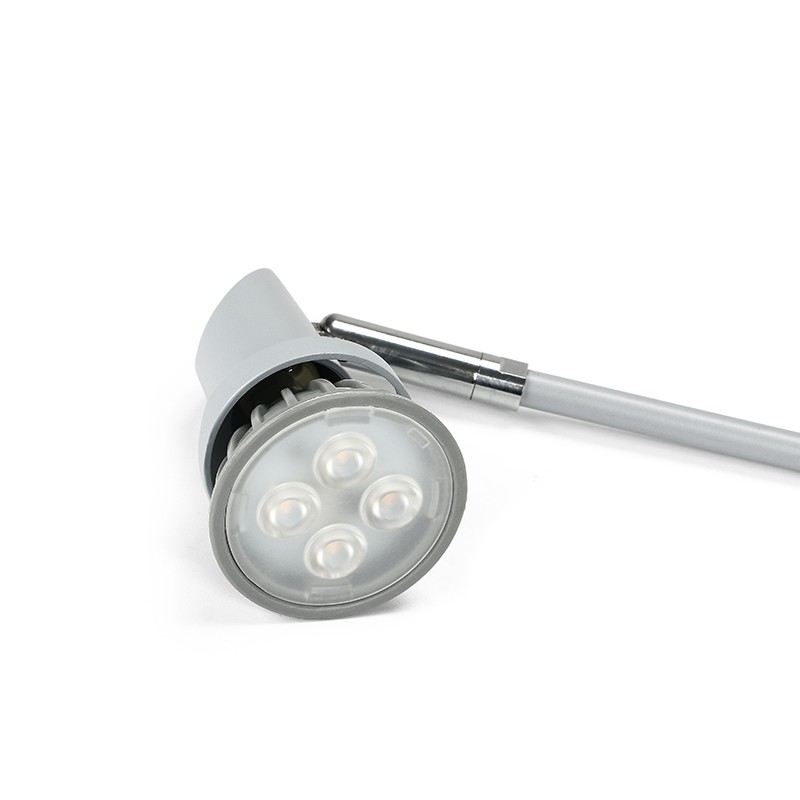

Can the MR16 lamp be removed?
The replacement image shows a separable lamp and holder. Select a compatible 12V lamp with suitable dimensions and power for the fitting.
Will the clip fit every display frame?
Frame profiles vary and the images do not give a universal clamping range. Provide the frame dimensions and mounting photographs, or evaluate a sample, to confirm the fit.
Wholesale supply and OEM display projects
Orders start from 20 pcs, with lower unit prices at higher quantities. Samples are available. Standard lead time is 12–18 days; confirm the schedule for custom sets and transit time separately.
OEM, ODM and private-label enquiries are supported. Include model SL-1005-5W, quantity, finish, white-light version, frame profile, required supply and DC leads, destination market, packing and branding details for a matching quotation.
