5000 lm COB spotlight for exhibition display walls

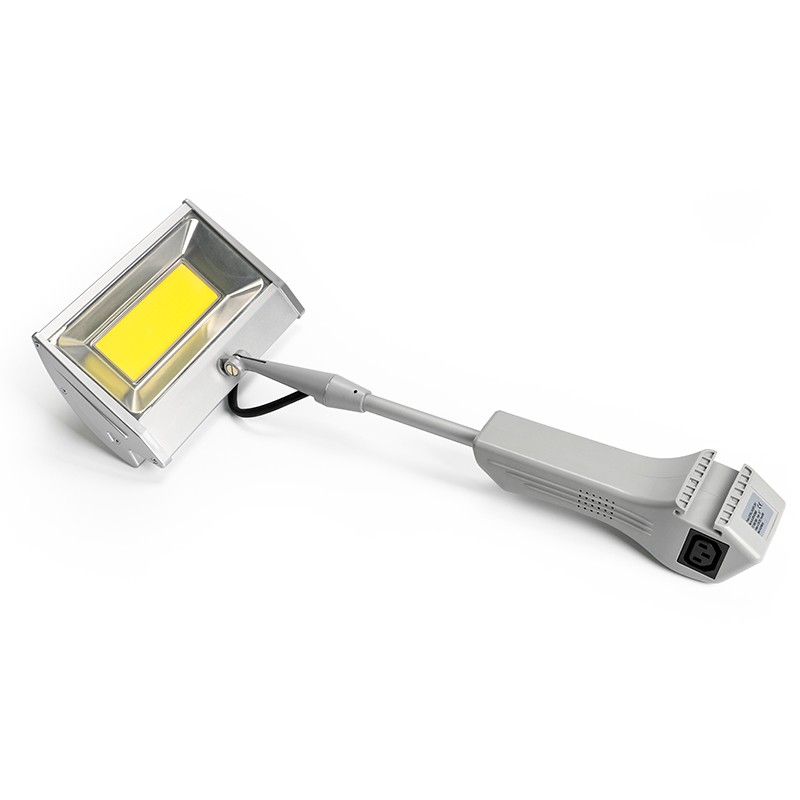

The SL-6018-NCOB450 is a 45W COB exhibition spotlight with 5000 lm output and a 90° beam. Its arm positions the light above the graphic, and the adjustable head allows directional aiming. The construction image identifies a built-in power supply, with 3-pin input and output connections listed in the specification.
For booth builders, exhibition contractors and wholesale display-light buyers, this model is an option when the design calls for higher light output from an arm-mounted fitting. Compare the 5000 lm output, 90° beam and physical dimensions against the display layout, then confirm the frame fitting and electrical set for the project.
Directional COB lighting above the graphic

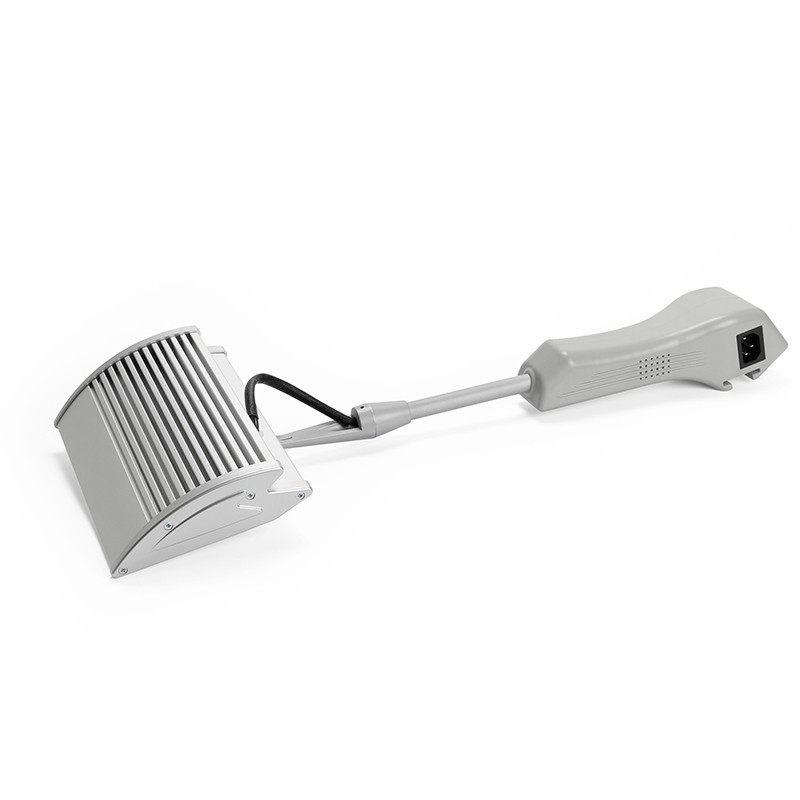

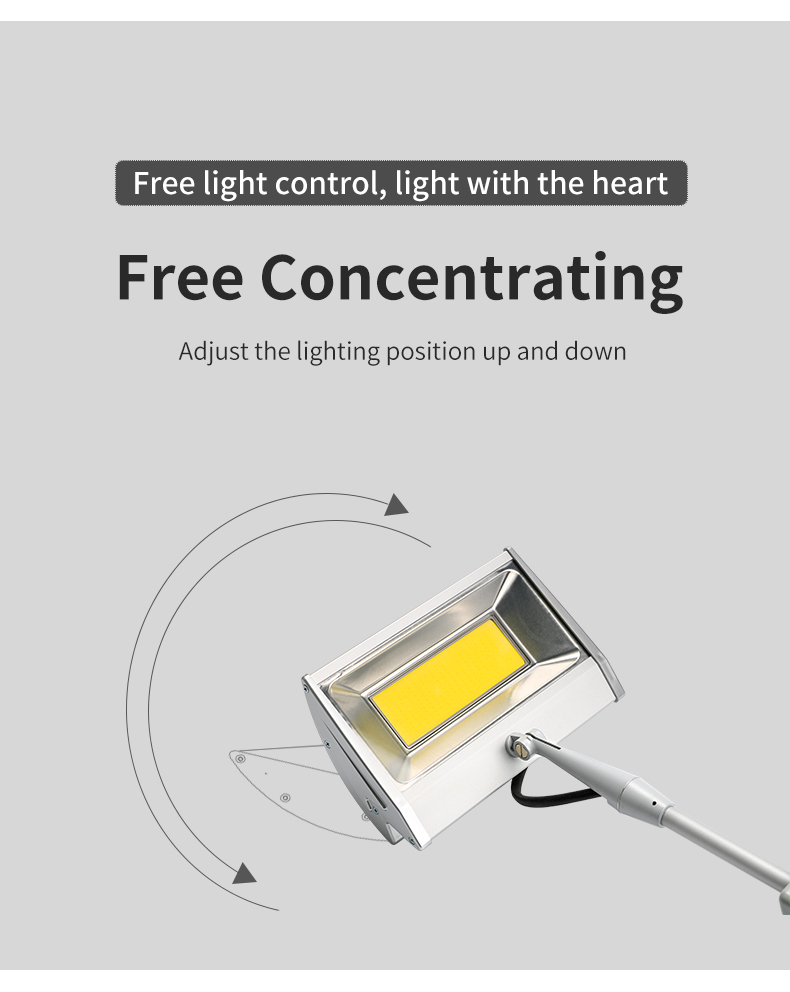

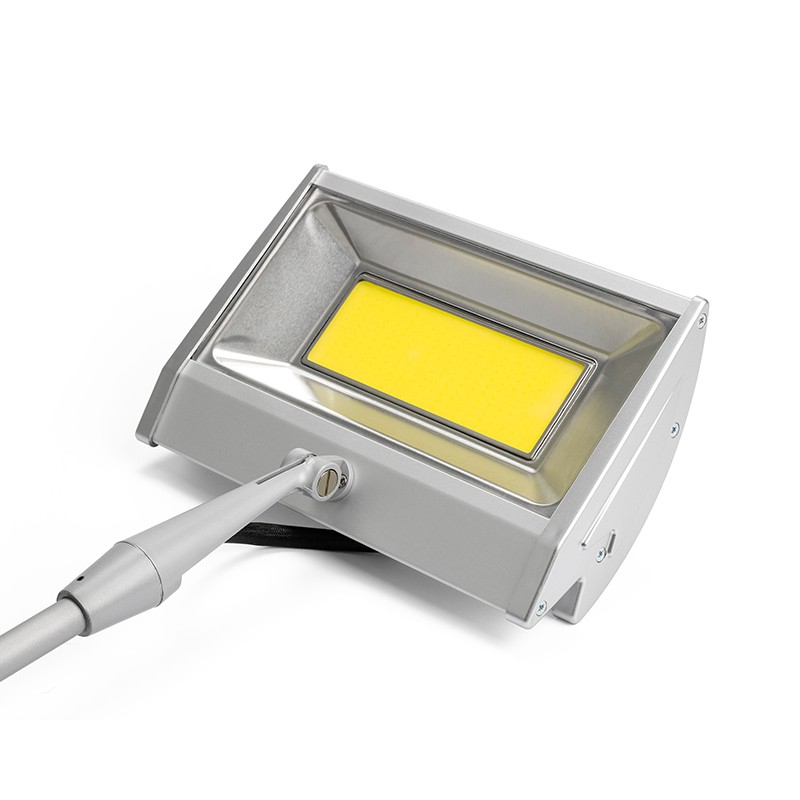

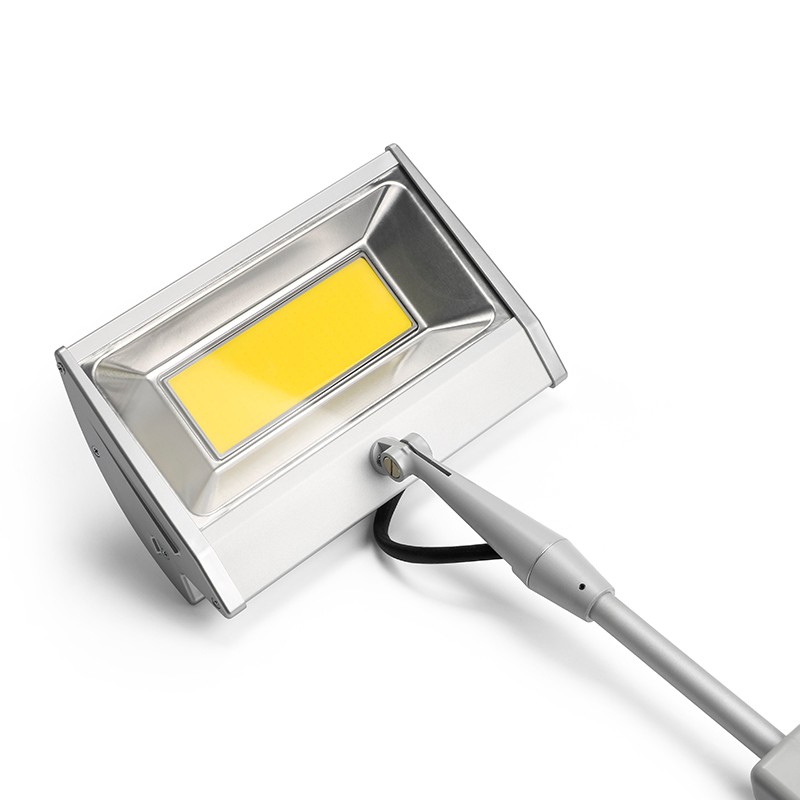

Aim the adjustable head at the display surface while allowing space for the lamp housing and cable routing. The COB head and rear cooling fins are shown in the construction images. The 90° beam is an optical specification; the images do not document a zoom function or an exact mechanical rotation range.

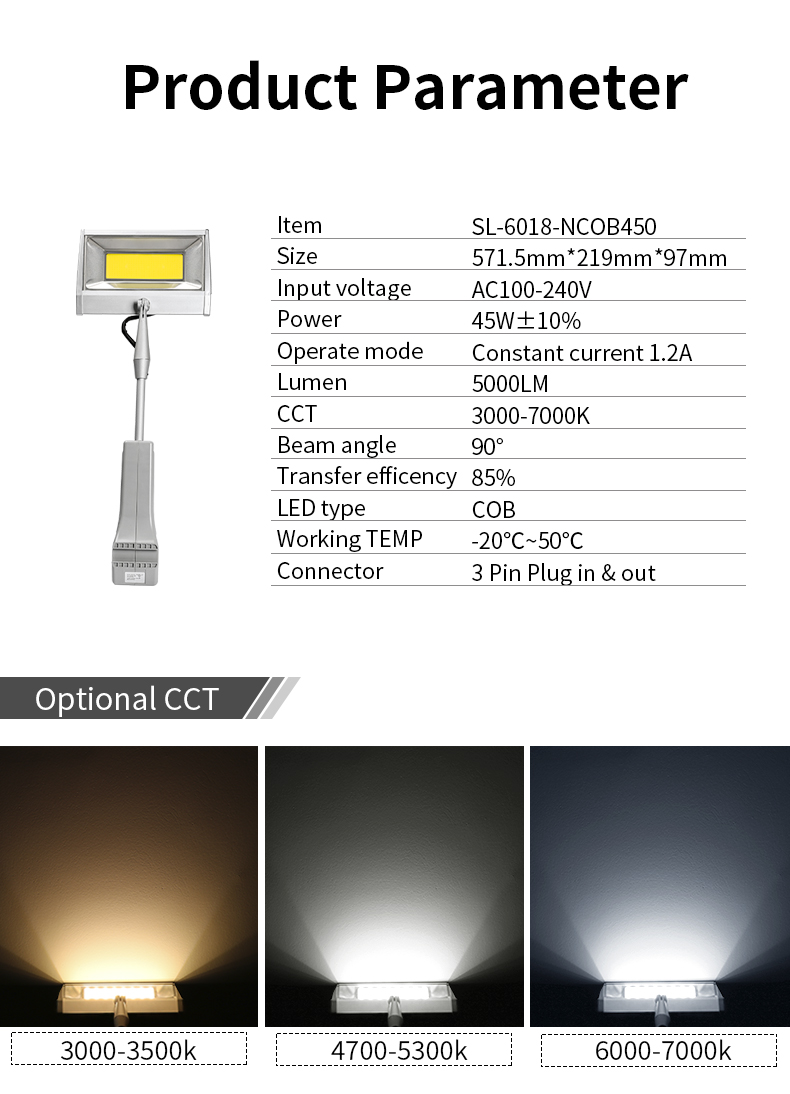

45W model specifications
| Specification | SL-6018-NCOB450 |
|---|
| Model | SL-6018-NCOB450 |
| Power | 45W ±10% |
| Luminous flux | 5000 lm |
| Beam angle | 90° |
| LED light source | COB |
| Dimensions | 571.5 × 219 × 97 mm |
| Input voltage | AC 100–240V |
| Constant-current operating value | 1.2 A |
| Colour temperature range | 3000–7000K |
| CCT order options shown | 3000–3500K; 4700–5300K; 6000–7000K |
| Working temperature | −20°C to 50°C |
| Connection | 3-pin input and output |
| Power supply | Built-in, as identified in the construction image |
| Mounting options shown | 0526 AL clamp; 0527 and 0528 mounting plates |
Lighting exhibition panels and display walls

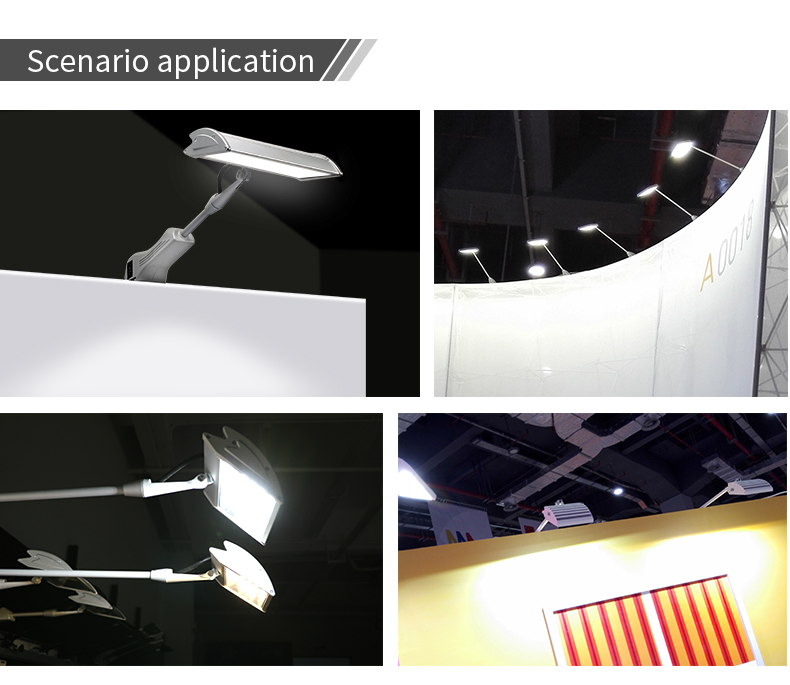

The application images show lights positioned above exhibition graphics and display-wall structures. Provide the wall dimensions, graphic material, intended arm position and required lamp quantity when planning the installation. Use a sample to assess the illumination on the actual display rather than assuming a fixed coverage area.
Mounting choices and 3-pin connection layout

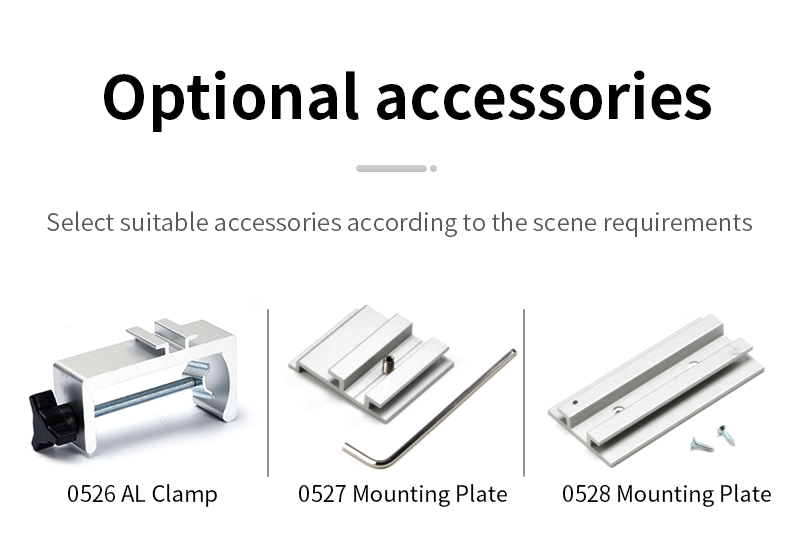

The mounting image identifies a 0526 AL clamp and 0527 or 0528 mounting plates. Select the fitting to suit the exhibition frame profile, and confirm the fixing dimensions. These accessory references differ from those listed for the smaller 20W COB model.

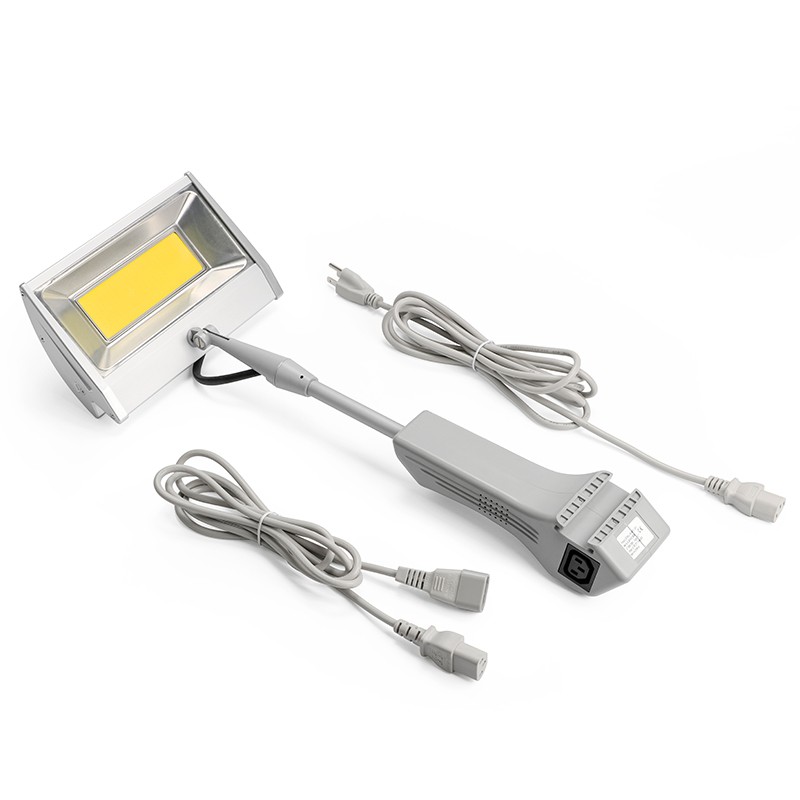

The lamp specification lists 3-pin input and output, and the construction image identifies a built-in supply. Confirm the regional mains lead, connection leads, allowed linking arrangement and all included parts before placing the order. The packing image is a reference for the supplied set and should be checked against the quotation.
High-output display spotlight questions
How does this spotlight compare with the 20W COB display light?
The 45W model lists 5000 lm with a 90° beam and dimensions of 571.5 × 219 × 97 mm. The 20W model lists 1800 lm ±10% with a 120° beam and a smaller housing. Select according to the display layout, fitting requirements and sample result.
Can the 90° beam be widened or narrowed?
The specification lists a 90° beam. The head can be aimed, but a variable-beam or zoom mechanism is not documented in the images.
Is the power supply built into the lamp?
Yes, the construction reference identifies a built-in power supply. The input specification is AC 100–240V with 3-pin input and output. Confirm the mains lead, connection layout and permitted linked load for the complete order.
Can I select warm or cool white versions?
The specification shows order options of 3000–3500K, 4700–5300K and 6000–7000K within the listed 3000–7000K range. State the required version in your enquiry; a CCT switching control is not shown.
Factory supply for exhibition lighting projects
Orders start from 20 pcs, with lower unit prices for higher quantities. Samples are available for evaluating the output, colour and mounting arrangement. Standard lead time is 12–18 days; custom requirements and transit time are confirmed separately.
OEM, ODM and private-label projects are supported. For a quotation, include model SL-6018-NCOB450, quantity, CCT option, display dimensions, frame profile, selected clamp or plate, cable requirements, destination country and branding details.
