480mm LED Lightbox Light Bar - 20W DC Connection

480mm LED lightbox light bars with DC connection parts

Build the component specification for a display lightbox around a 480mm nine-LED bar. SL-BL050-9L-200 is rated at 20W with 2000 lm ±10% luminous flux and a 24V DC input. The aluminium-supported assembly measures 480 × 23.5 × 16mm and uses individual 20 × 60° lenses.

For advertising-display builders and lighting-component wholesalers, the important selection details include the 53.5mm LED spacing, white-light range and DC connection arrangement. Send the frame drawing and proposed module positions to confirm the sample configuration, accessories and quantity quotation.

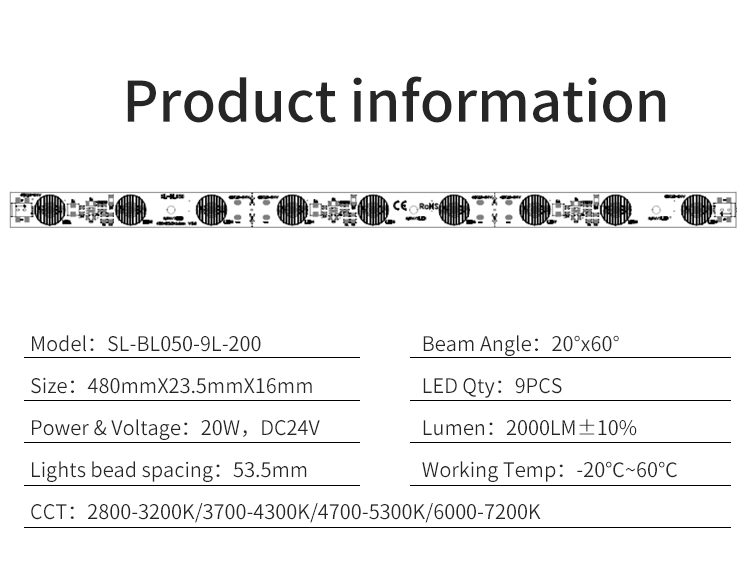

20W nine-LED lightbox bar technical data

Module positioning and aluminium construction

The parameter drawing states 53.5mm spacing between LEDs. This describes the light source itself; the distance between separate bars depends on the enclosure and the face material. Share the mounting plan and assess the arrangement with a sample.

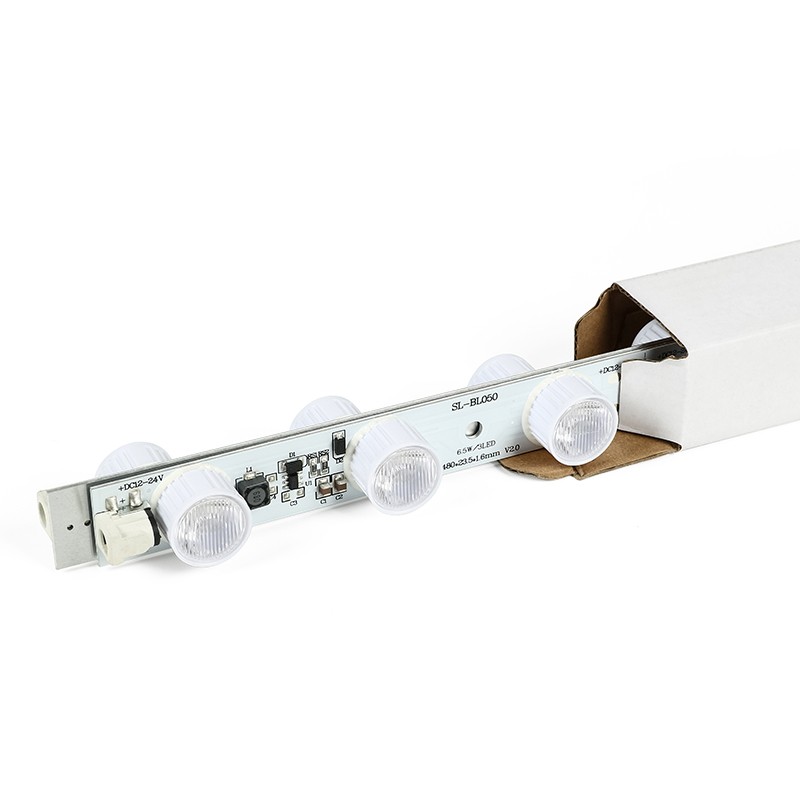

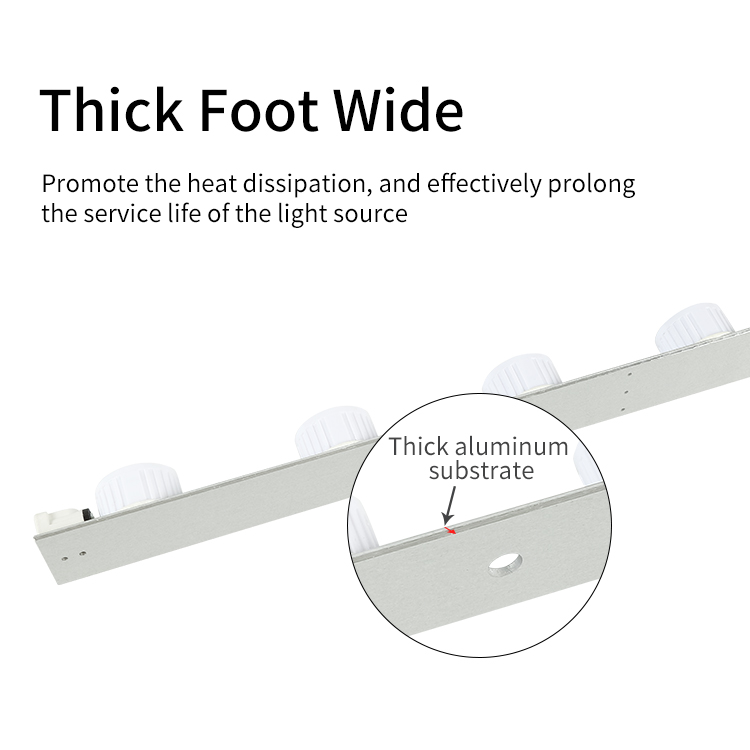

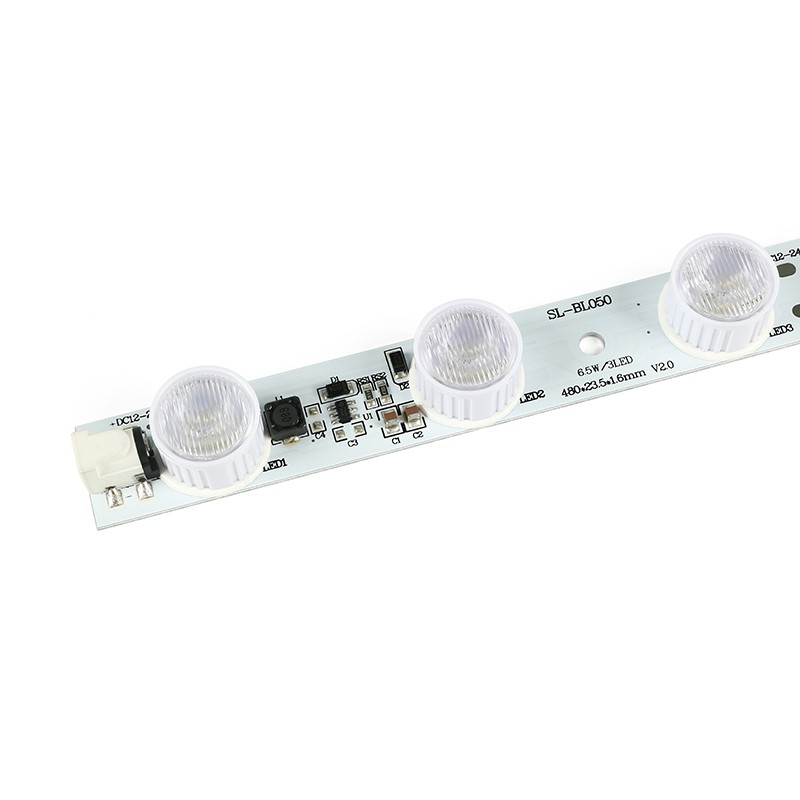

The rear construction image shows aluminium support under the lens board. Check the full 480 × 23.5 × 16mm mounting envelope against the frame, and confirm the required fixing method for the order.

DC sockets and configuration details

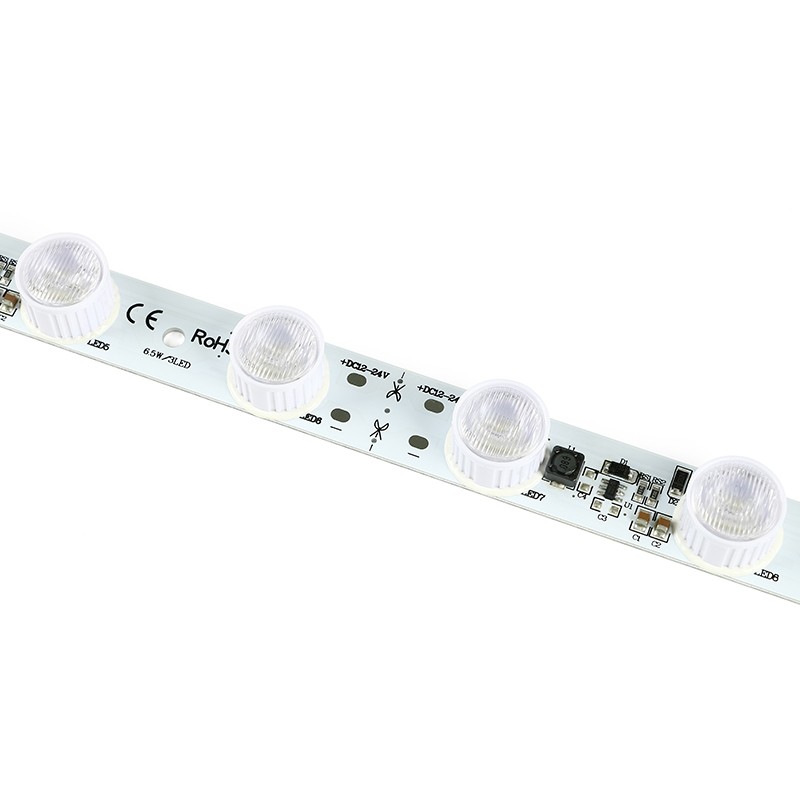

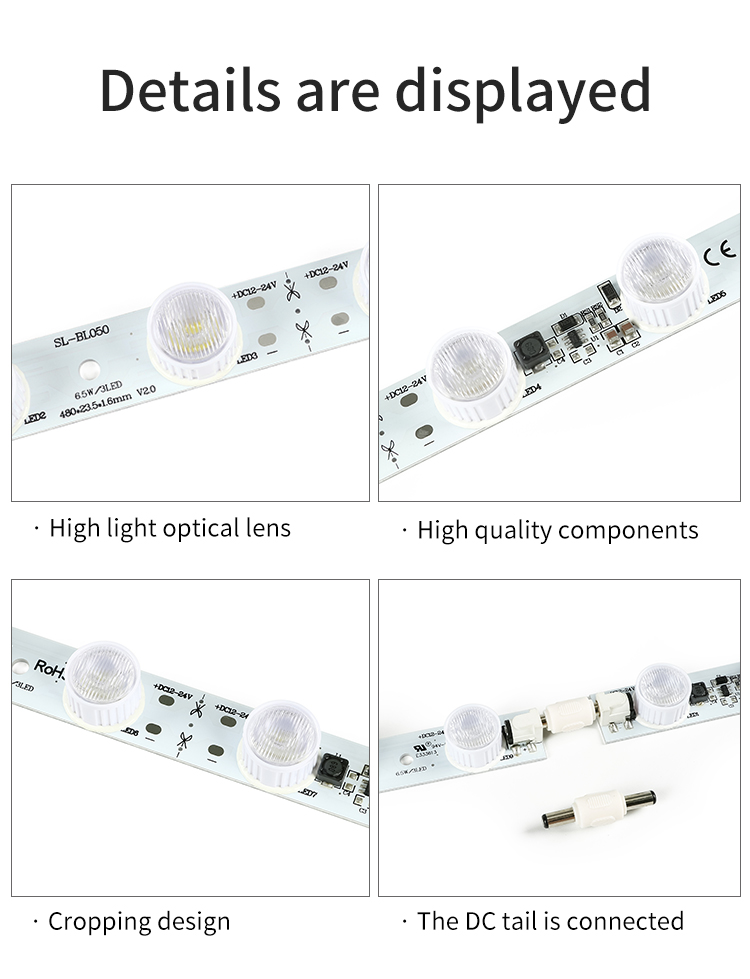

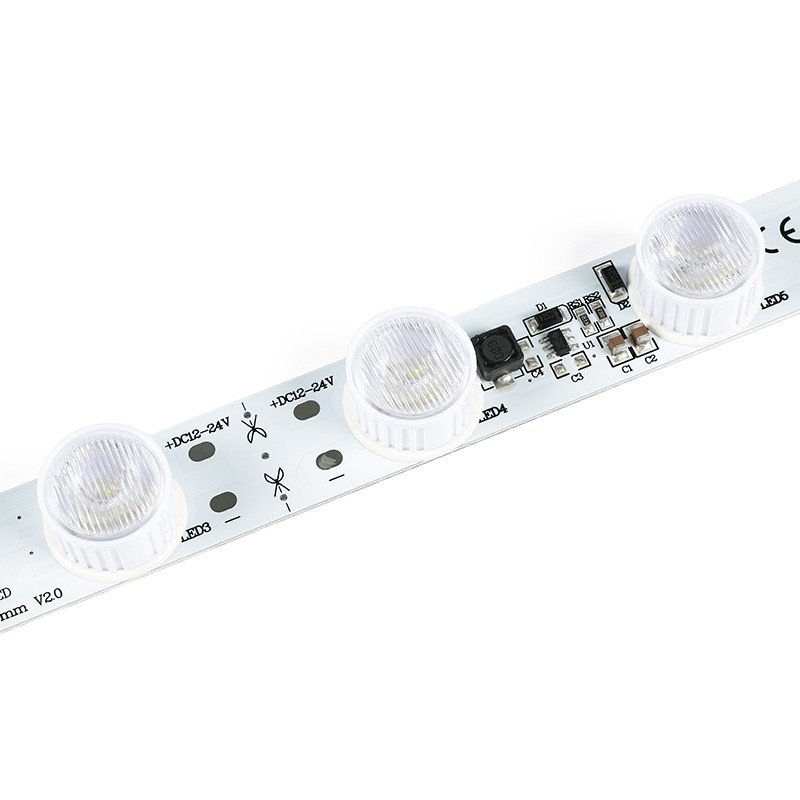

The close-up shows board-end DC sockets and a straight coupling connector. Specify the desired module arrangement, connector scope and matching 24V DC supply together. Confirm polarity and the approved wiring configuration for the complete assembly.

The original detail also shows marked segmentation positions. If a modified length is required, confirm the permissible position, revised rating and connection method before ordering. The quotation is based on the listed 480mm assembly unless a different configuration is agreed.

White-light ordering ranges for advertising displays

Choose from the four ranges listed in this model’s parameter sheet: 2800–3200K, 3700–4300K, 4700–5300K and 6000–7200K. The warm, natural and cold photographs illustrate the appearance of white-light selections.

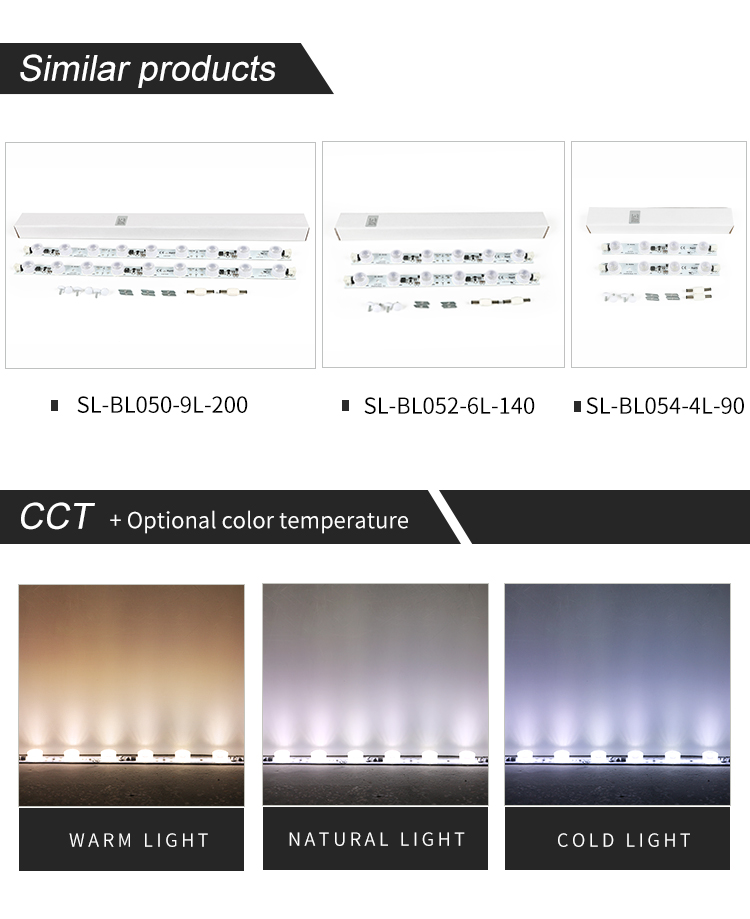

The family picture compares nine-, six- and four-LED assemblies. Request each model by its own specification; this nine-LED bar is the 480mm, 20W version with 20 × 60° optics.

Display-lightbox sourcing and order packing

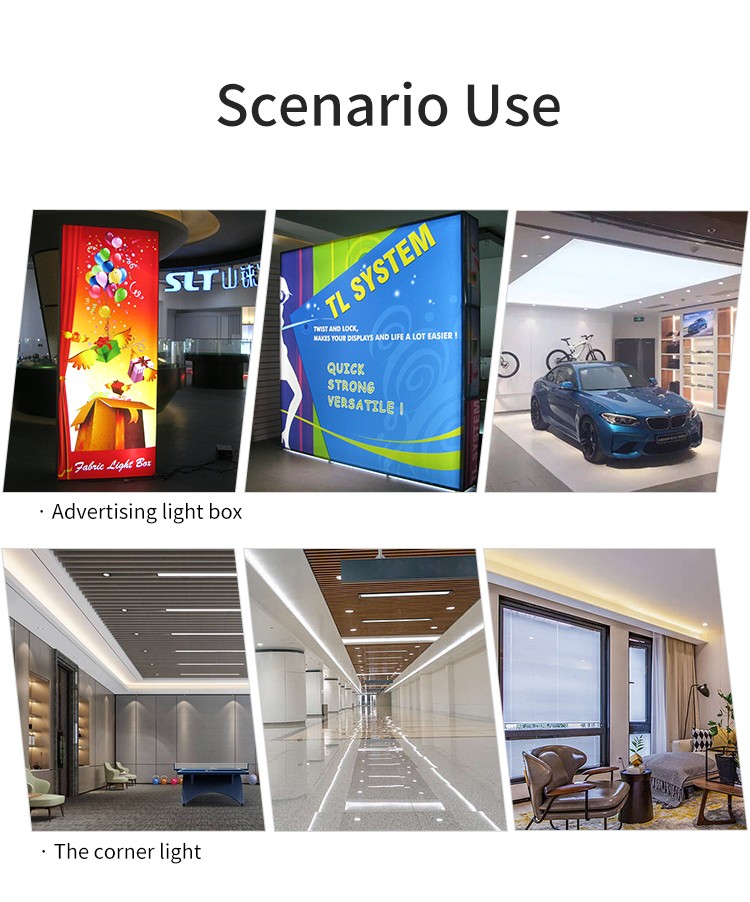

The original application images show advertising lightboxes and illuminated display surfaces. Supply the box dimensions, graphic or diffuser material and intended installation layout to review the sample and production configuration.

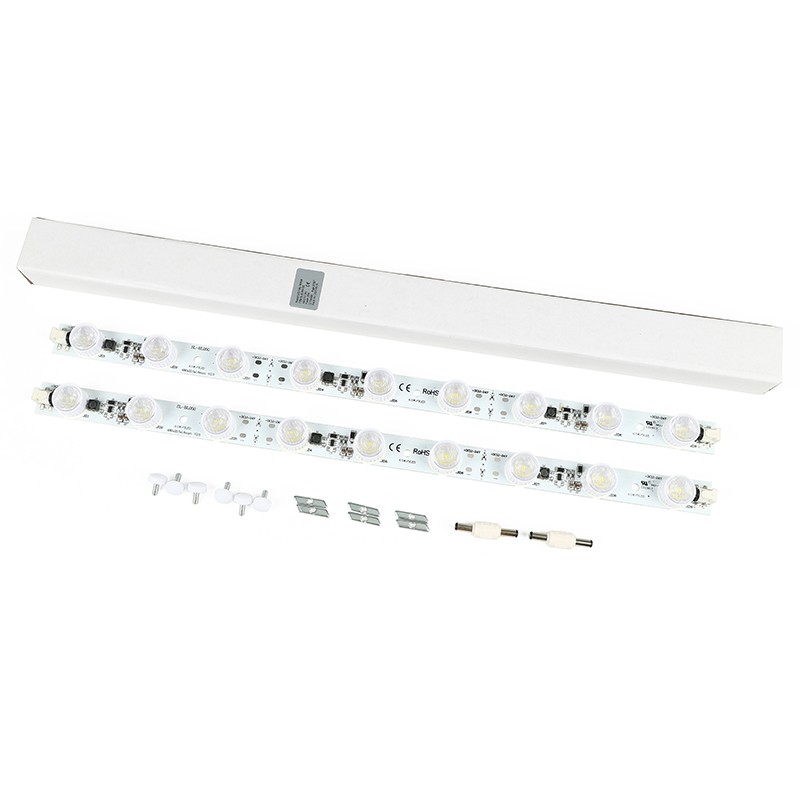

Packing photographs show white individual packages and an outer carton. Confirm the number of bars per package, DC connector quantities, marking and shipping requirements with the order.

Nine-LED lightbox bar purchasing questions

What should I specify with a 480mm lightbox bar sample?

Samples are available. Include SL-BL050-9L-200, the required white-light range, enclosure drawing, DC connection arrangement and destination country to confirm the sample configuration, cost and shipping.

Can the bar be supplied for a different component length?

The original detail shows segmentation marks. Send the requested length for confirmation of the permitted modification, revised electrical rating and wiring. The standard specification on this page is the complete 480mm, 20W assembly.

What is the minimum quantity for nine-LED bar orders?

Wholesale supply starts at 20 pcs. Larger quantities qualify for lower unit prices; state the number of bars and required connection parts to receive a quotation for the agreed configuration.

Are OEM packaging and private-label orders available?

OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; confirm the schedule for your quantity, component changes and packing design. Transport time and charges are confirmed separately.

Compare shorter bars or a different lens angle

319mm 14W six-LED backlighting module

470mm 20W side-light module with 10 × 45° optics
