400mm RGBW LED modules for colour display projects

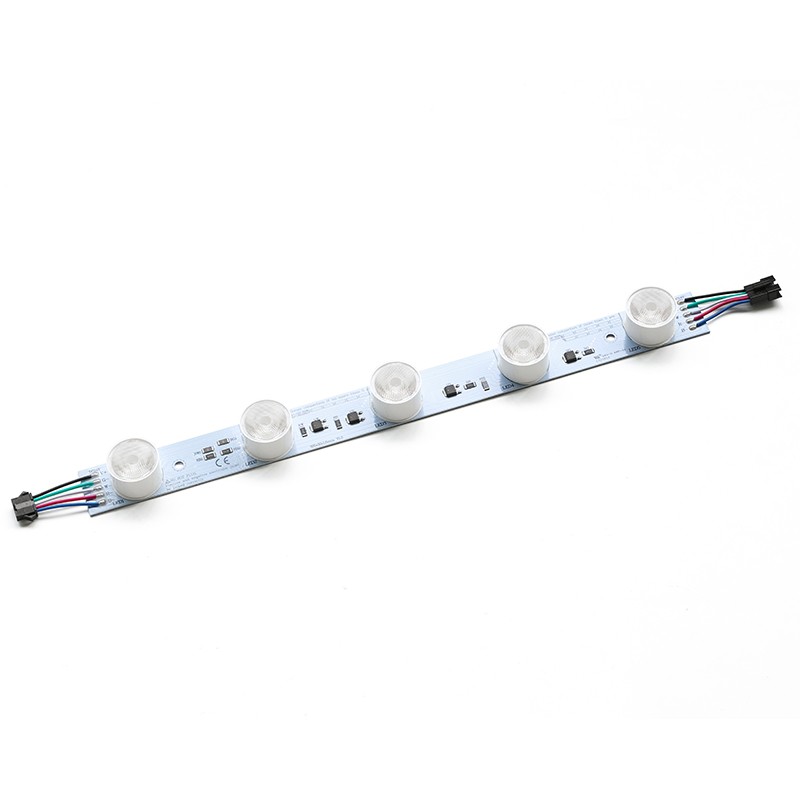

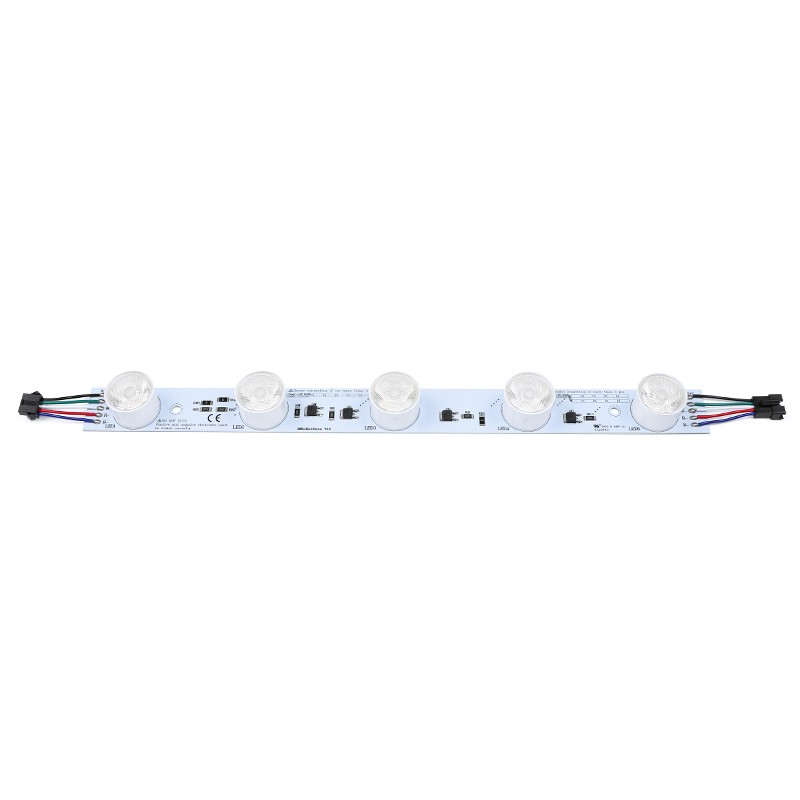

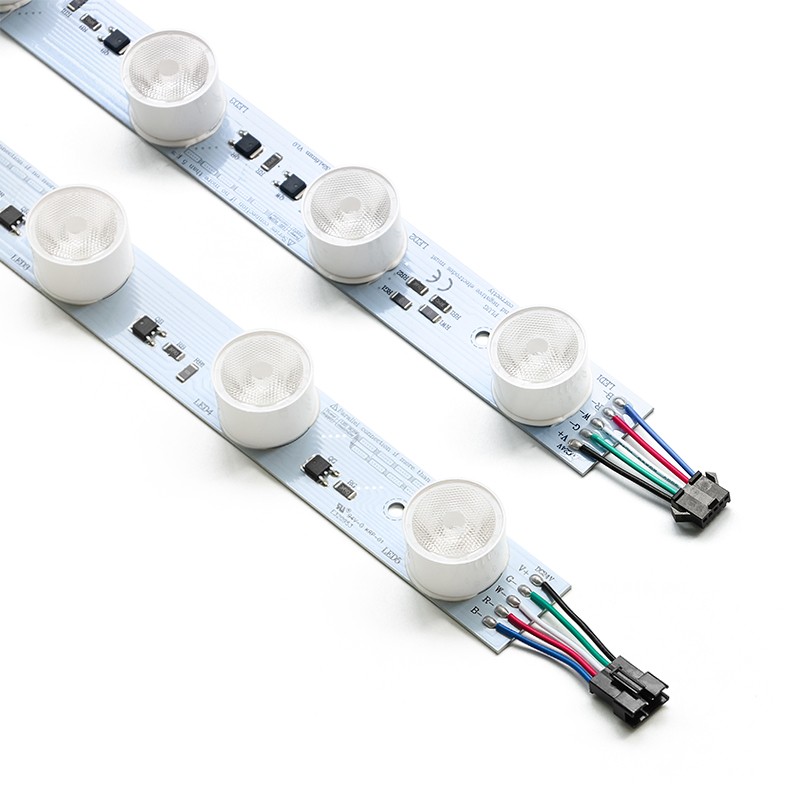

Specify a colour-lighting component for a display-frame or edge-lighting project. SL-BL043-RGBW300 is a 400 × 30 × 22mm aluminium module with five LEDs and individual 25° lenses. The product sheet lists 30W at 24V DC and 1100–1300 lm luminous flux.
For display manufacturers and project buyers, colour control and connection compatibility are as important as the module size. Share the intended colour effects, control-system requirements and frame drawing so the module, wiring and mounting configuration can be reviewed and sampled before a bulk order.

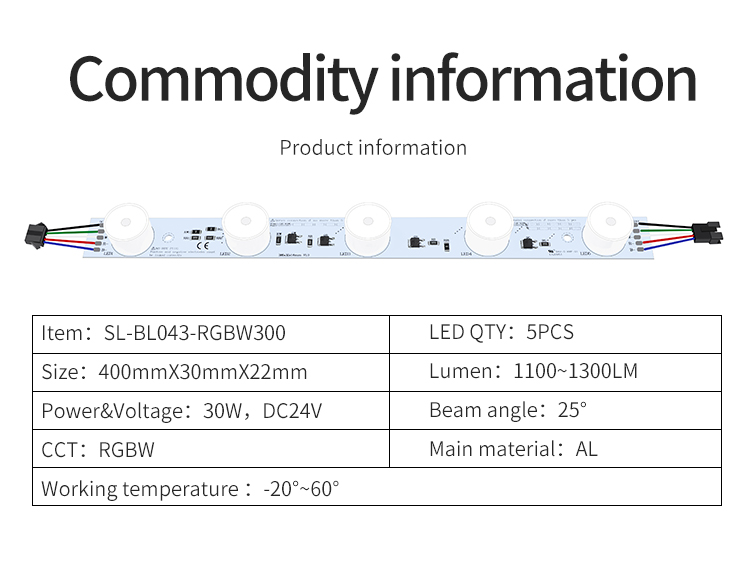

30W RGBW edge-light module specification
| Specification | SL-BL043-RGBW300 |
|---|
| Model | SL-BL043-RGBW300 |
| Dimensions | 400 × 30 × 22mm |
| Power | 30W |
| Input | 24V DC |
| Light type | RGBW |
| LED quantity | 5 pcs |
| Listed luminous flux | 1100–1300 lm |
| Lens angle | 25° |
| Material | Aluminium |
| Operating temperature | −20°C to +60°C |
Colour requirements and control-system configuration

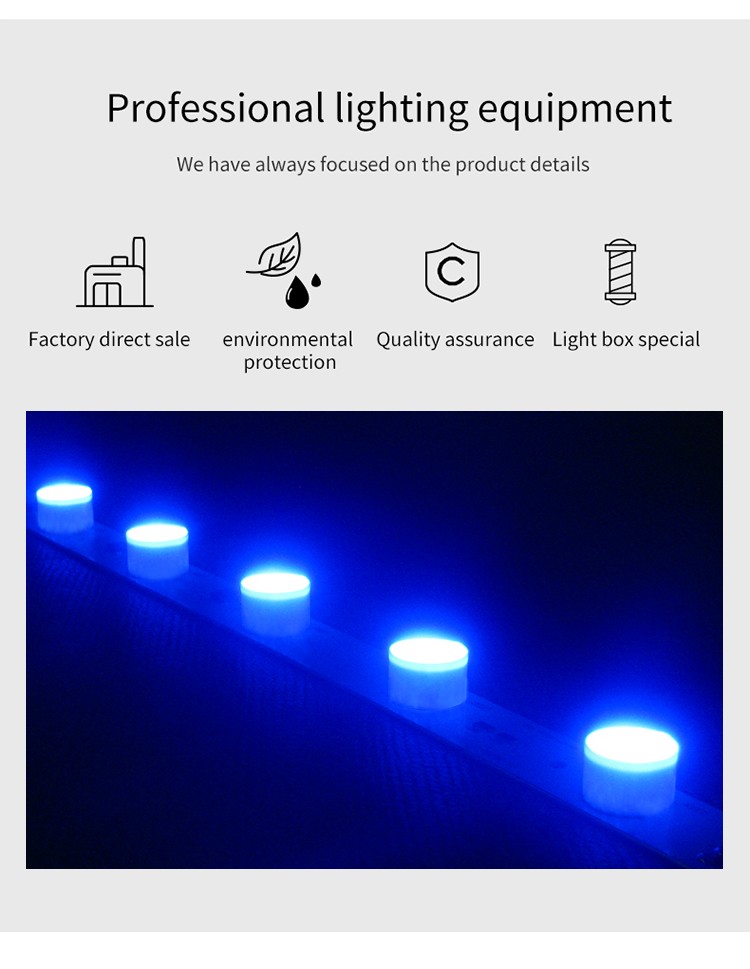

The original colour illustrations show white, warm-white and coloured appearance examples, with blue-light output photographed on the module. Define the required colour effects and white-light appearance for the project before choosing the sample configuration.

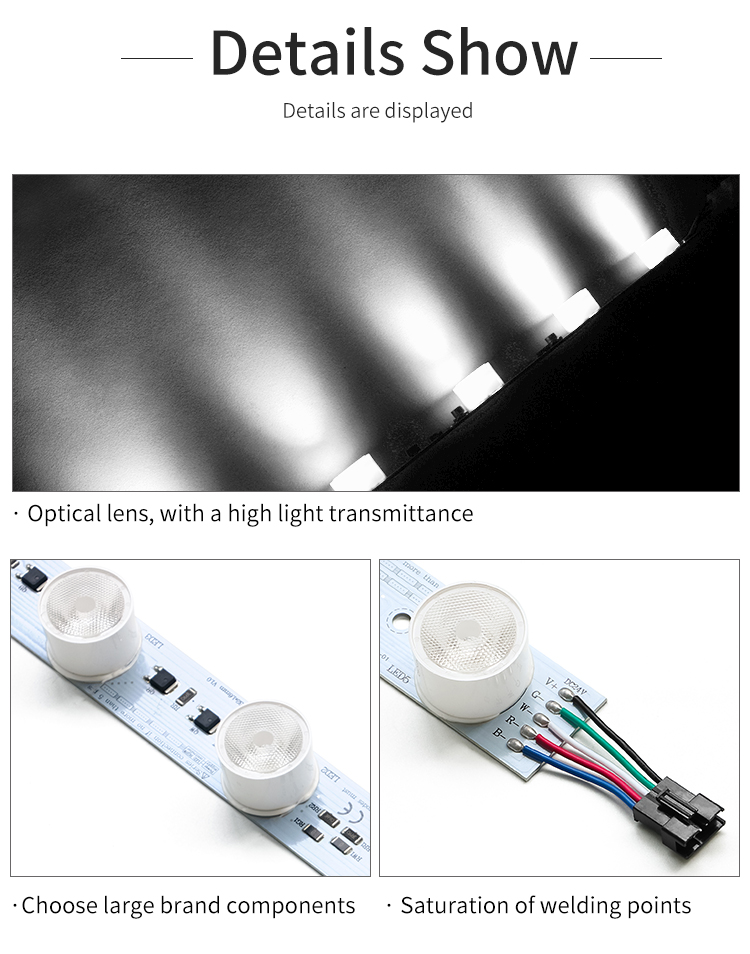

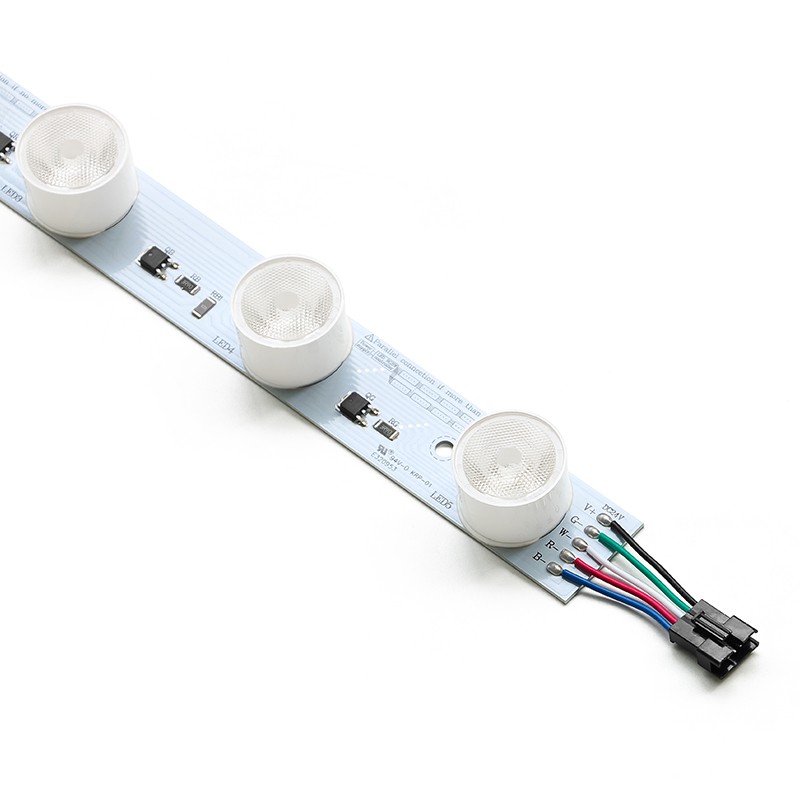

The connection close-up shows five wires and PCB pads marked V+, R, G, B and W. Confirm the connector mapping, channel polarity, matching 24V DC supply and required control configuration with the order. Specify any controller or cable requirements as part of the quotation.
Fixing parts and display-frame layout

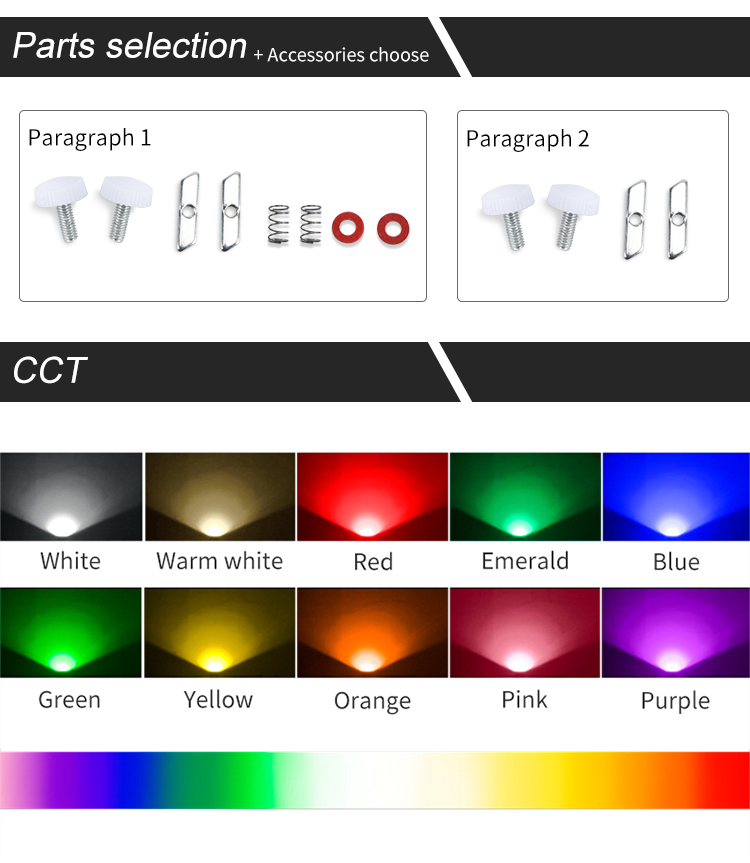

Two fixing-part arrangements are pictured. Both use threaded white knobs and metal fixing pieces; one also shows springs and red washers. Select the mounting arrangement for the frame profile and agree the supplied parts quantity.
The frame illustration shows a possible module arrangement within a display. Provide the enclosure dimensions, face material and proposed module positions so the mounting envelope and lens direction can be checked with a sample.
Project samples, packaging and production supply
The application artwork presents decorative and interior lighting concepts. Review the required appearance and installation conditions with the sample, together with the control and wiring requirements of the actual project.
Packaging images show individual white boxes and an outer carton. Confirm module quantities, leads, fixing parts, marking and private-label packing with the quotation. Samples are available, with sample cost and shipping agreed separately.
RGBW LED module procurement questions
Which controller should I specify for the RGBW edge light?
Send the required control-system specification and colour effects. The pictured connection has V+, R, G, B and W markings; confirm channel polarity, connector mapping and controller compatibility for the agreed configuration. Controller and wiring scope are confirmed with the quotation.
Does the listed lumen range describe each colour channel?
The product sheet lists 1100–1300 lm without separate values for each colour. If output data are required for a technical comparison, request the relevant measurement configuration and model-specific information with the sample enquiry.
Can I order RGBW module samples before a bulk project?
Samples are available. Provide the frame drawing, required control arrangement, colour appearance and delivery country to confirm configuration, sample cost and shipping. Wholesale orders start at 20 pcs, with lower unit prices at larger quantities.
Can the order include OEM marking or private-label packaging?
OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; confirm the production schedule for the order quantity, control configuration and custom packing. Transit time is agreed separately.
