319mm LED Backlighting Module - 14W Six Lens LEDs

319mm LED backlighting modules for lightbox component orders

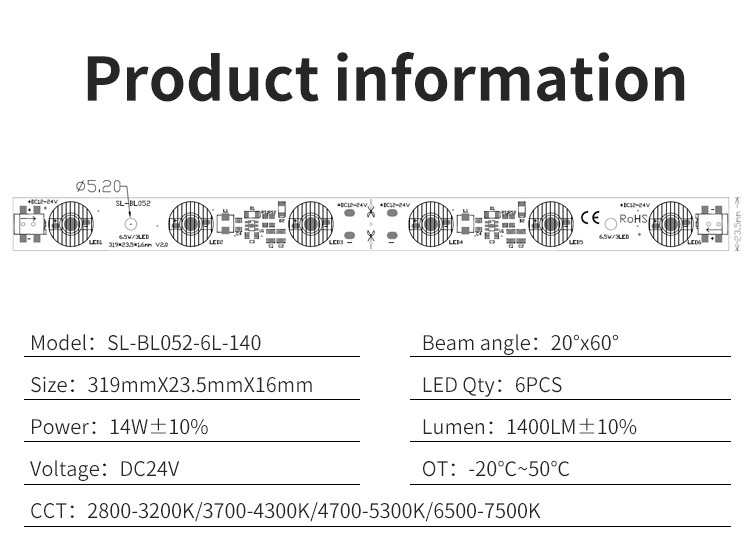

Specify the light source and its connection parts together for an advertising lightbox project. SL-BL052-6L-140 is a six-LED lens module measuring 319 × 23.5 × 16mm. Its product sheet lists 14W ±10%, 1400 lm ±10% and a 24V DC input, with 20 × 60° optics.

For sign fabricators and display-component distributors, this 319mm assembly offers a defined component size for planning the frame layout. Include the enclosure drawing, white-light requirement and connector arrangement in your enquiry so the sample and bulk configuration can be checked before production.

14W six-LED module technical specification

Frame mounting and aluminium support

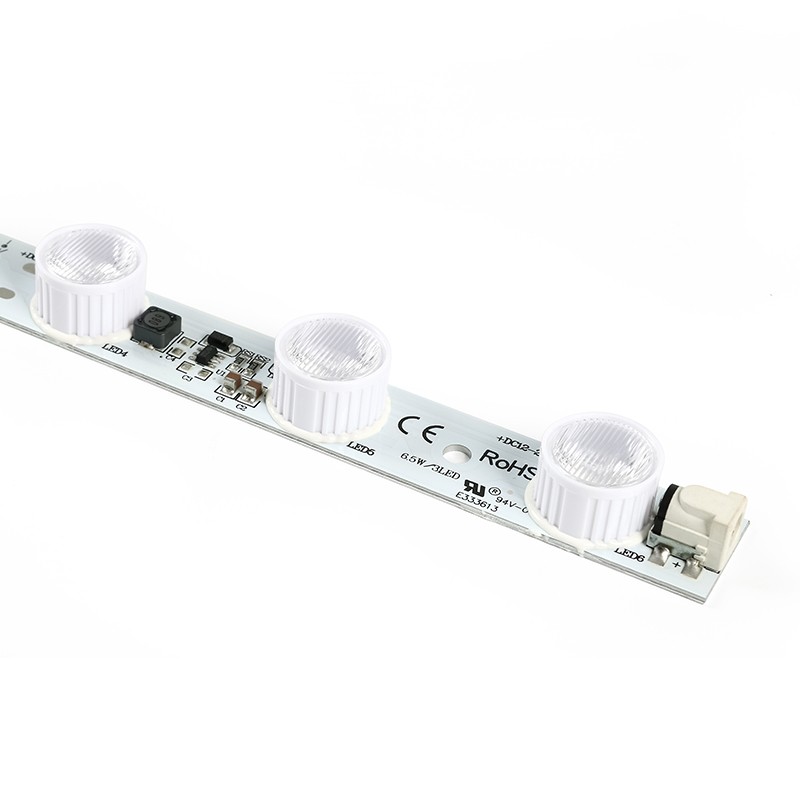

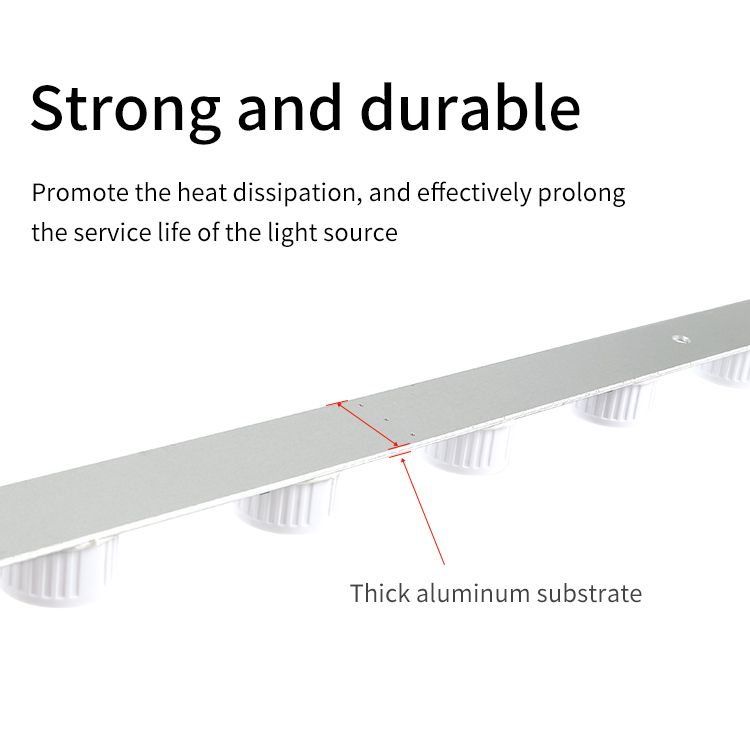

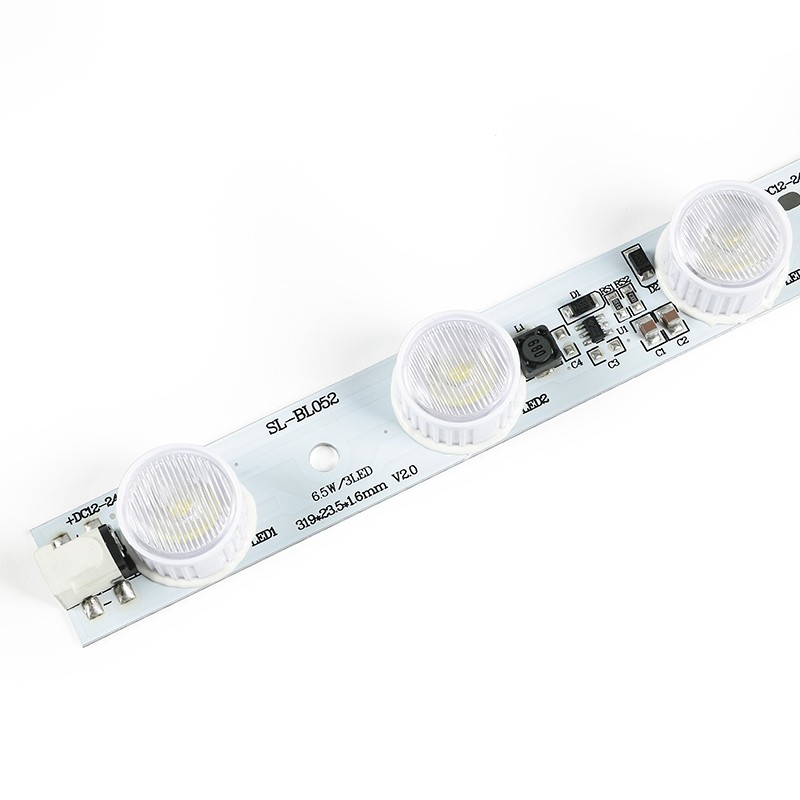

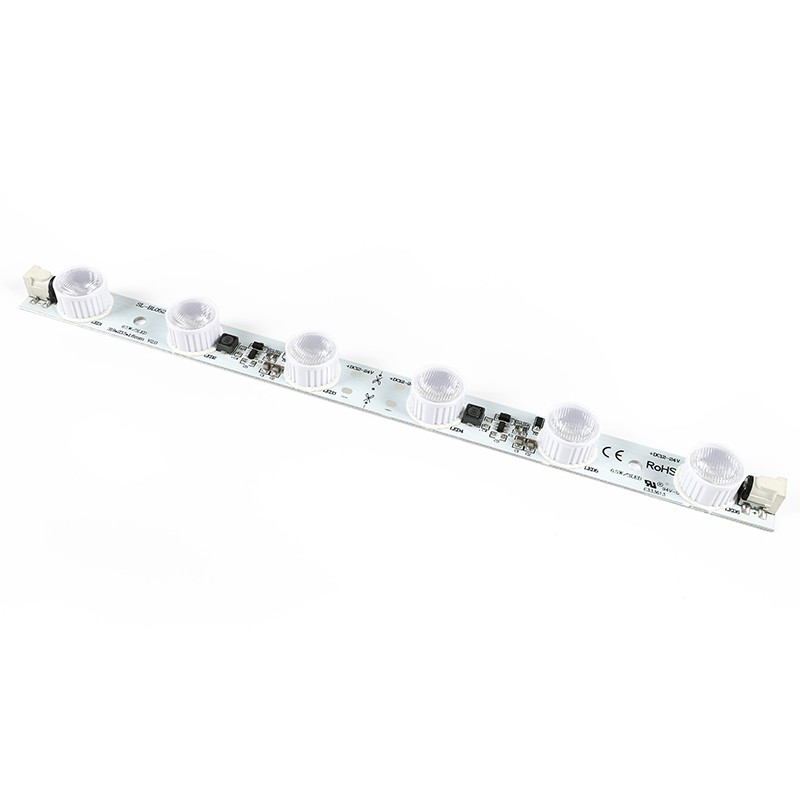

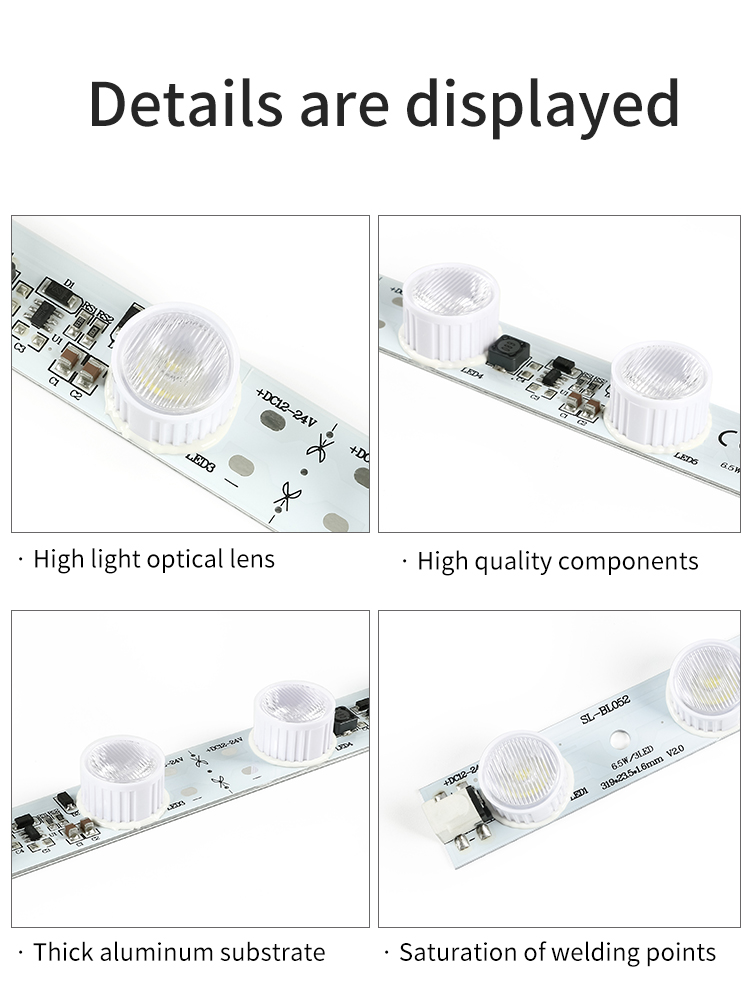

Use the 319 × 23.5 × 16mm dimensions and the indicated Ø5.2mm fixing hole when checking the available mounting envelope. The construction photograph shows an aluminium substrate beneath the individual lenses.

Provide the frame section and proposed fixing method for approval. Lens direction, face material and module position should be checked in the complete lightbox; select the layout after a sample evaluation.

DC connection parts for the six-LED lightbox module

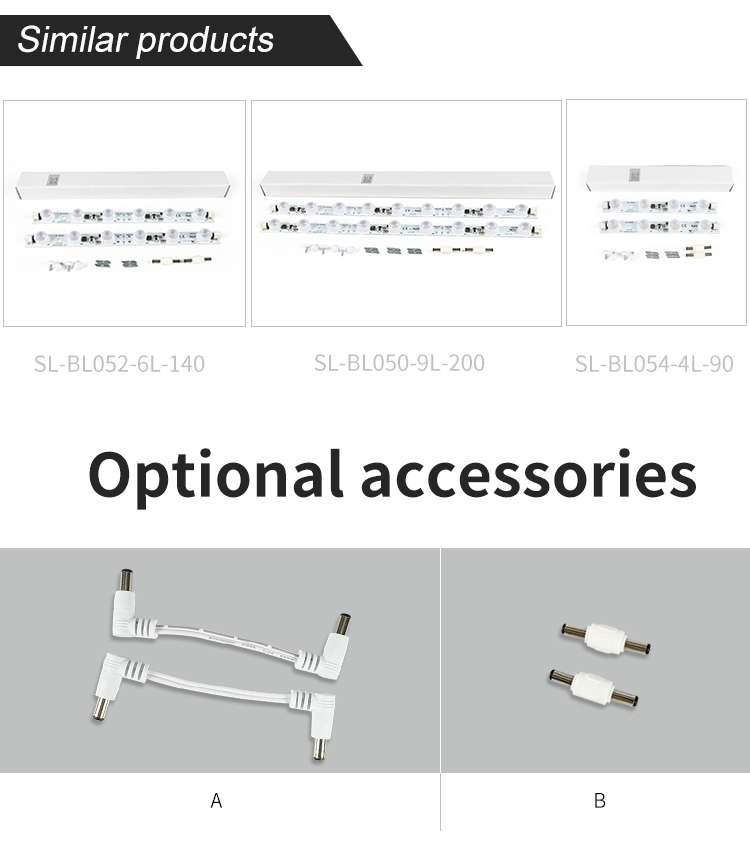

The original detail shows board-end DC sockets. The accessory picture offers right-angle connecting leads and straight DC couplers as separate choices. Specify the required connection arrangement and parts quantity with the module order.

Confirm the matching 24V DC supply, polarity and approved wiring layout for the complete assembly. The family comparison picture includes longer and shorter models; their dimensions and electrical ratings are not the specification of this six-LED module.

Select the white-light version for your display

Four ordering ranges are listed for this model: 2800–3200K, 3700–4300K, 4700–5300K and 6500–7500K. Choose one range for the sample and bulk order; the warm, natural and cold photographs illustrate colour appearance.

These are order selections. For an existing display, share the required colour appearance and assess the sample with the actual graphic or diffuser before confirming the production configuration.

Advertising lightbox projects and order packaging

The application pictures show illuminated display faces and advertising lightboxes. Send the enclosure size, face material, installation drawing and destination market so the component configuration can be reviewed.

The packing images show individual white boxes and outer cartons. Confirm modules per box, connector scope and any private-label packaging with the quotation. Sample cost, transport method and shipping charges are agreed separately.

Six-LED backlighting module purchasing questions

What is the minimum order for the 319mm module?

Wholesale orders start at 20 pcs, with lower unit prices at larger quantities. State the number of modules and the required DC connection parts so the bulk quotation covers the intended assembly.

Can I test the colour and connection parts with a sample?

Samples are available. Choose the required white-light range and send the frame drawing, connection arrangement and delivery country to confirm the sample configuration, cost and shipping.

Are the straight and right-angle DC accessories included?

They are pictured as optional accessories. Confirm the connector type, quantity, polarity and supplied scope before ordering; the module price and accessory package depend on the agreed configuration.

What are the production and branding options?

Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; provide the target quantity, specifications and packaging requirements to confirm pricing and the custom schedule. Transit time is separate.
