25W LED exhibition lighting with mounting options
SL-2080-04-N120L250 is a 25W LED display arm light for exhibition graphics and stand panels. Its rectangular head provides a listed 120° beam and 3250 lm ±10% output. Select a clamp, slider or mounting plate for the display frame, and specify the white-light version for the project.
For booth builders, stand contractors and display distributors, the key ordering choices are the fixing arrangement, colour temperature and incoming connection. Send the frame profile and lighting positions with the model number so the fixture and optional hardware can be agreed together in a sample and wholesale quotation.
25W, 3250-lumen fixture specification
Use the model and AC input when specifying the complete arm light. The DC working reference in the original table describes the LED operating data; provide the required incoming supply lead and connector details with the fixture enquiry.
The artwork lists three white-light colour-temperature ranges. Specify the required version for sample approval, together with CRI 90+ if required. The selected LED configuration and current technical information are confirmed in the quotation.

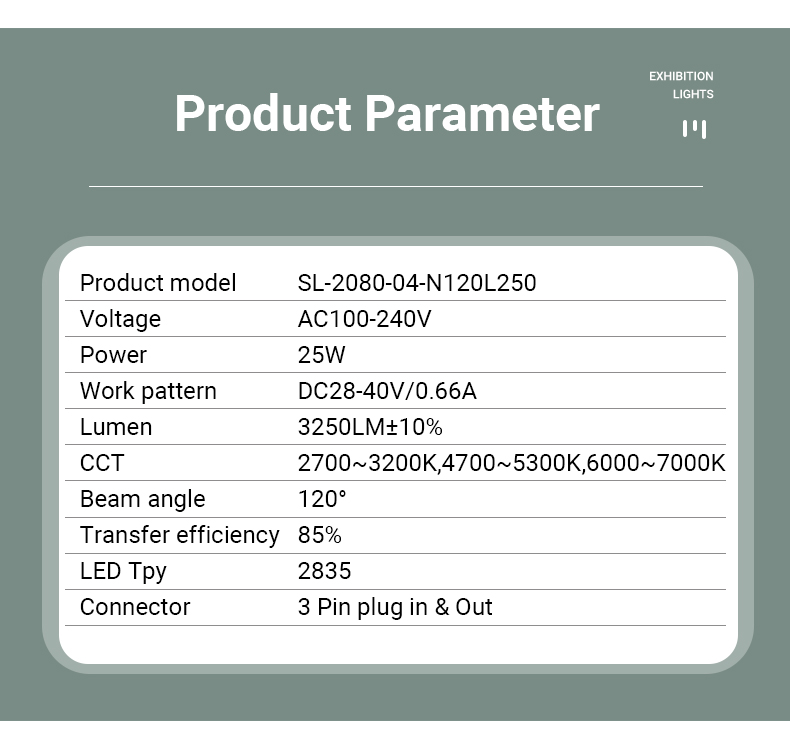

| Specification | SL-2080-04-N120L250 |
|---|
| Model in reference table | SL-2080-04-N120L250 |
| Fixture input | AC100–240V |
| Power | 25W |
| Listed luminous flux | 3250 lm ±10% |
| Listed beam angle | 120° |
| White-light ordering references | 2700–3200K / 4700–5300K / 6000–7000K |
| LED type | 2835 in the original table |
| Connection reference | 3-pin plug input and output |
| LED operating reference in artwork | DC28–40V / 0.66A; fixture supply specified by the AC input above |
| Fixing options shown | Forward slider, reverse slider, 0525 aluminium clamp, 0509 or 0520 mounting plate |
| Colour-rendering option | CRI 90+ white-light LEDs available to order; confirm the selected configuration |
Aim light across the exhibition graphic

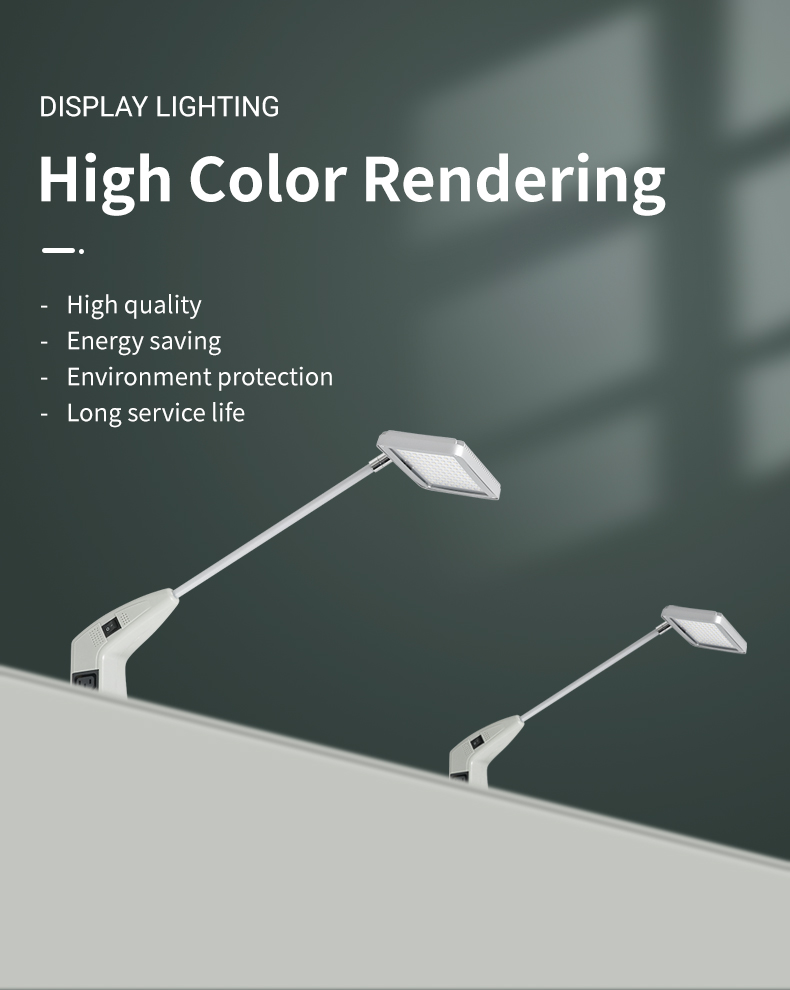

The product pictures show a rectangular LED head, a long angled arm and an on/off switch on the base. Set the lighting position to suit the graphic area and use the head joint to aim the light. Confirm the adjustment range and installation space with the sample.
The original construction artwork identifies an aluminium profile. Send the required finish and display-frame details so the visible fixture and selected fixing parts can be approved together.
0525 aluminium clamp, sliders and mounting plates

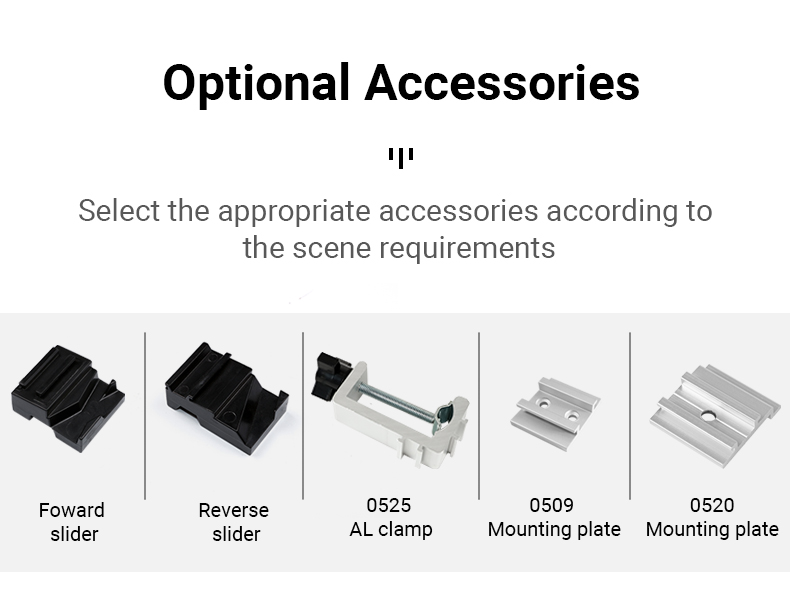

The accessory picture identifies forward and reverse sliders, a 0525 aluminium clamp, and 0509 and 0520 mounting plates. These are optional fixing choices. Send the frame cross-section, clamp position or fixing-hole drawing to select the appropriate arrangement.
The quotation lists the fixture, selected fittings, incoming lead and any connection accessories. Confirm the dimensions and supplied quantities for each item when approving the sample.
Trade show panels and exhibition stand layouts

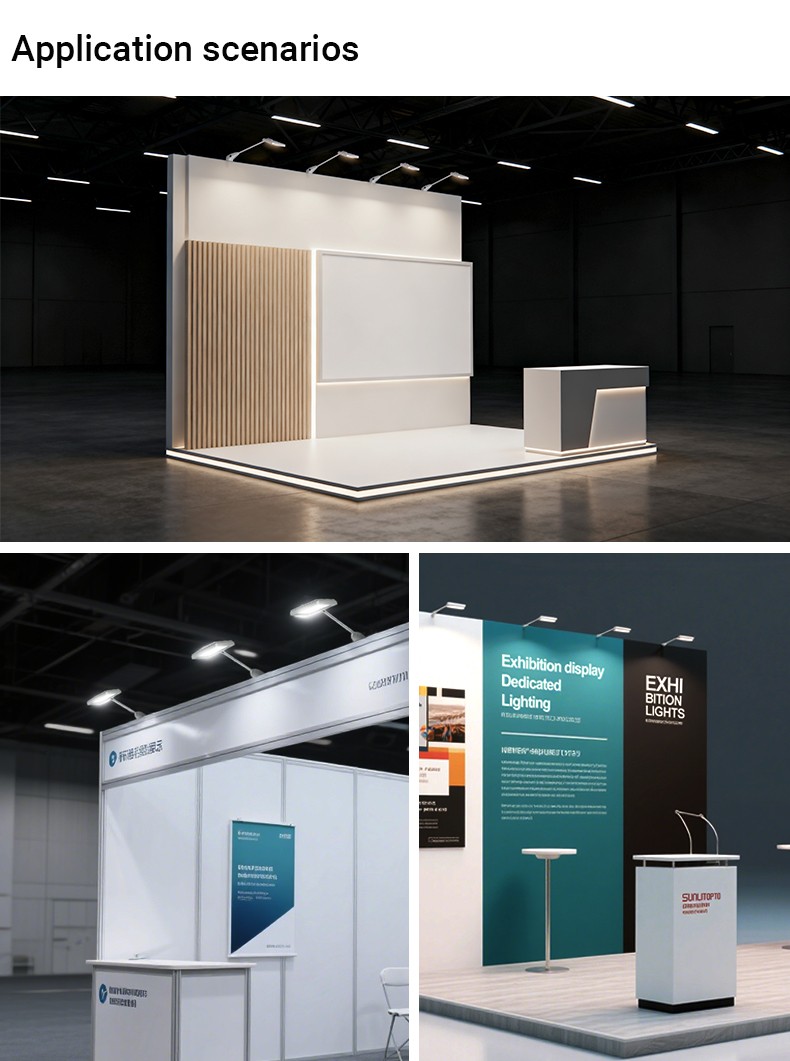

The application pictures illustrate arm-light placement above exhibition graphics and display panels. Share the panel dimensions, intended lamp positions and viewing conditions when requesting a project sample.
The source table specifies 3-pin input and output connections. For a layout using multiple fixtures, provide the fixture count and connection drawing to confirm the incoming lead, linking parts and permitted electrical arrangement.
Bulk display arm lights and custom supply
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available to evaluate the fixture, white-light version, mounting hardware and incoming connection. Standard lead time is 12–18 days; confirm the schedule for the order configuration and custom scope.
OEM, ODM and private-label enquiries can include fixture markings, lead requirements, selected fixings and packing. Send the artwork, frame drawing, target quantity and destination country for a matching quotation. Sample charges, shipping and transit time are agreed separately.
Exhibition spotlight purchasing questions
How do I choose between the clamp, sliders and mounting plates?
Send the frame profile and fixing-position drawing. Identify the preferred 0525 clamp, forward or reverse slider, or 0509/0520 plate so the matching dimensions and supplied parts can be agreed with the sample.
Which white-light colour should I specify for exhibition graphics?
The original table lists 2700–3200K, 4700–5300K and 6000–7000K ordering references. Select the required version for the project. CRI 90+ white-light LEDs are available to order; request the technical data for that configuration.
What input and lead information is needed for this 25W arm light?
Specify the destination mains supply, incoming plug and cord requirements, and the mating 3-pin connection details. The fixture input reference is AC100–240V. The quotation defines the supplied lead and connection accessories.
Can I order several lights for one display wall?
Provide the fixture quantity, lamp positions and wiring plan. The model table shows input and output connections; confirm the linking parts and permitted electrical arrangement for the complete layout with the technical quotation.
Can I approve an exhibition arm light sample before bulk production?
Samples are available. Include the model, white-light version, fixing selection and destination country to confirm the sample configuration, charges and shipping. Wholesale orders start from 20 pcs.
What should I include in an OEM display-light enquiry?
Send the model, target quantity, finish and marking requirements, lead details, frame drawing and packing specification. The custom scope, pricing and production schedule are confirmed with the quotation; standard lead time is 12–18 days.
Compare other 25W display-light configurations
Choose the model around the installation and white-light control required for the project. Include the selected fixture model and fixing photo when requesting a quotation.
25W silver display arm light with 3250 lm output
25W black CCT-switchable exhibition arm light
