24-LED arm lighting for trade show graphics

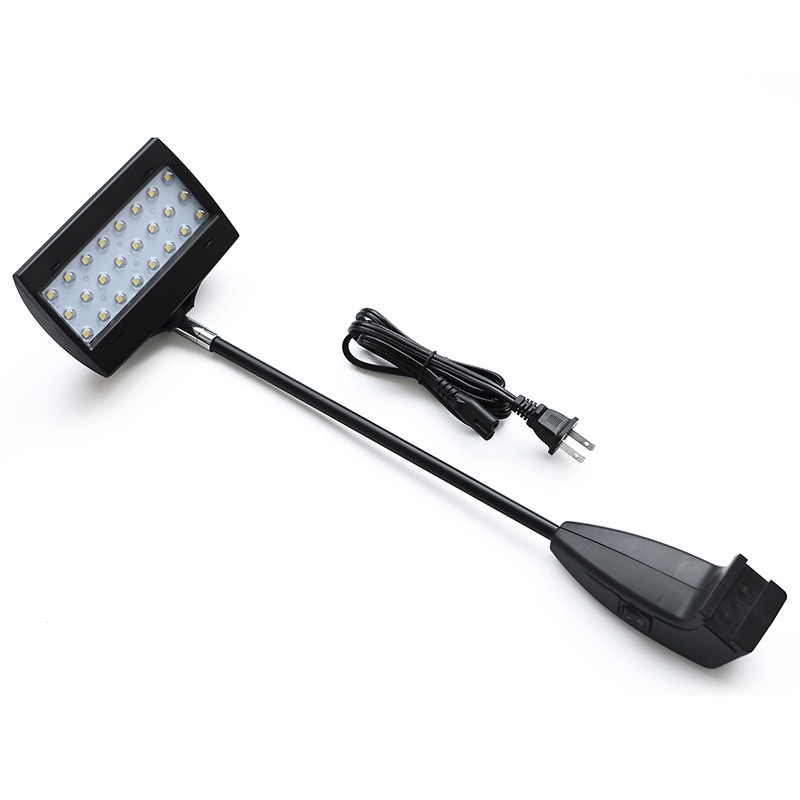

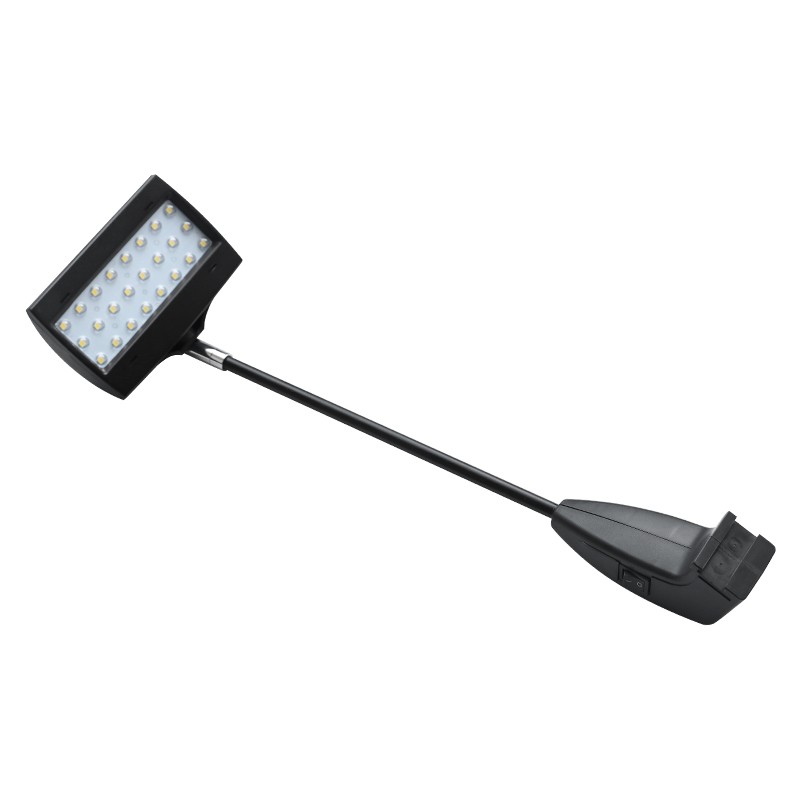

The SL-2081-N24L is an 18W trade show arm light with 24 LEDs, a specified 1800 lm output and a 60° beam. Its adjustable rectangular head directs light toward exhibition panels and printed graphics. The lamp uses a figure-eight plug and a built-in power supply, with black and silver body options shown.
For exhibit distributors and stand contractors, select the finish, white-light version and fixing against the actual display structure. Include panel dimensions, lamp positions, destination plug and lead requirements so the lighting configuration can be quoted as a complete order.

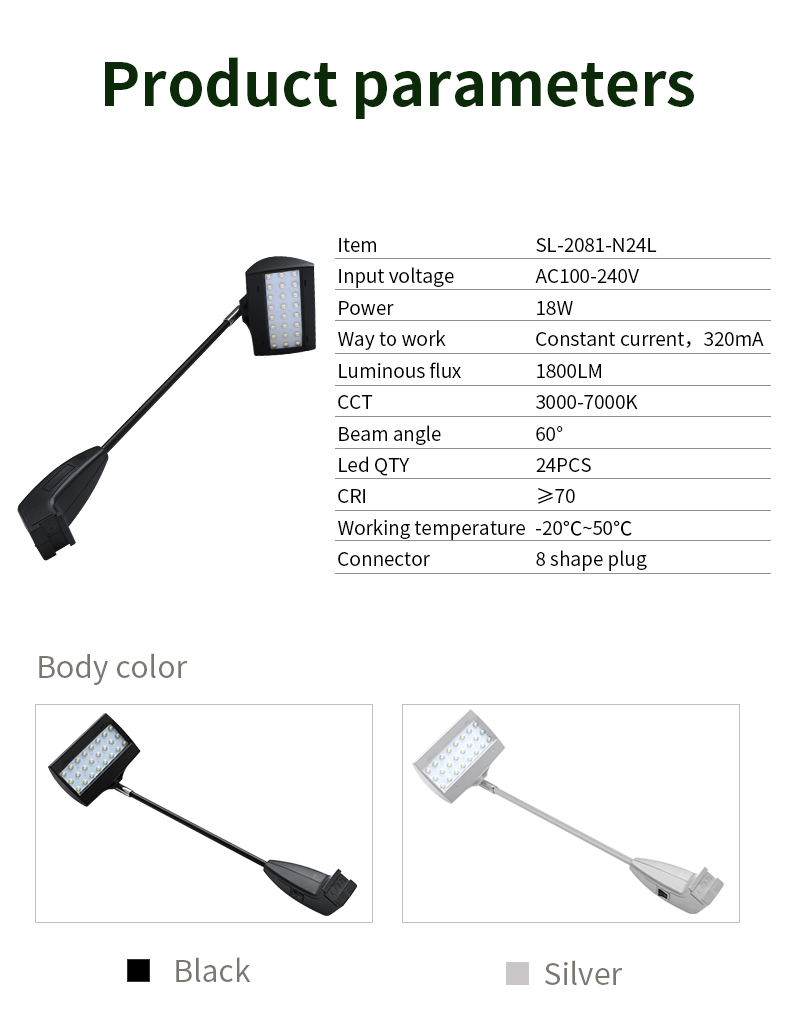

18W figure-eight arm-light specifications
| Specification | SL-2081-N24L |
|---|
| Model | SL-2081-N24L |
| Power | 18W |
| Light output | 1800 lm |
| LED quantity | 24 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 60° |
| Colour-temperature range | 3000–7000K; specify the order version |
| Colour rendering | CRI ≥70 |
| Operating mode listed | Constant current, 320 mA |
| Working-temperature range | -20°C to +50°C |
| Connector | Figure-eight plug |
| Body options | Black / silver |
| Head and supply | Adjustable head; built-in power supply |
Aim the head and match the mains lead

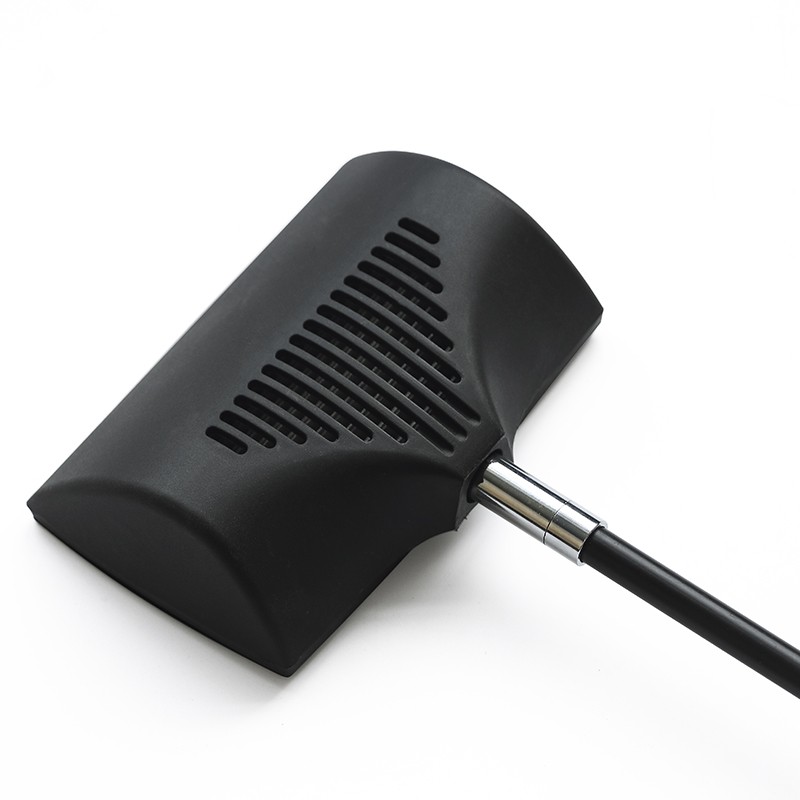

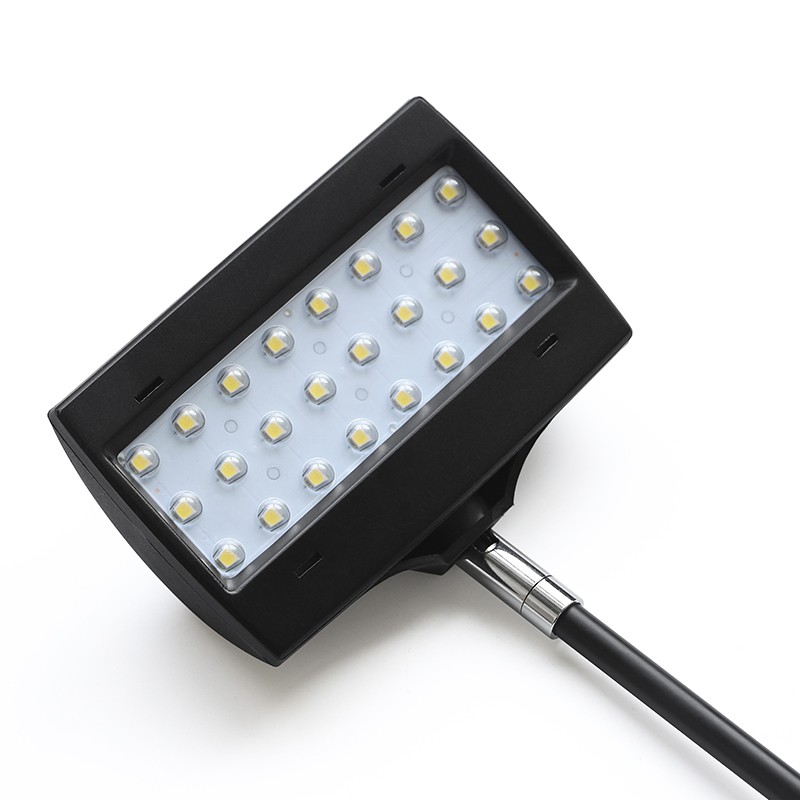

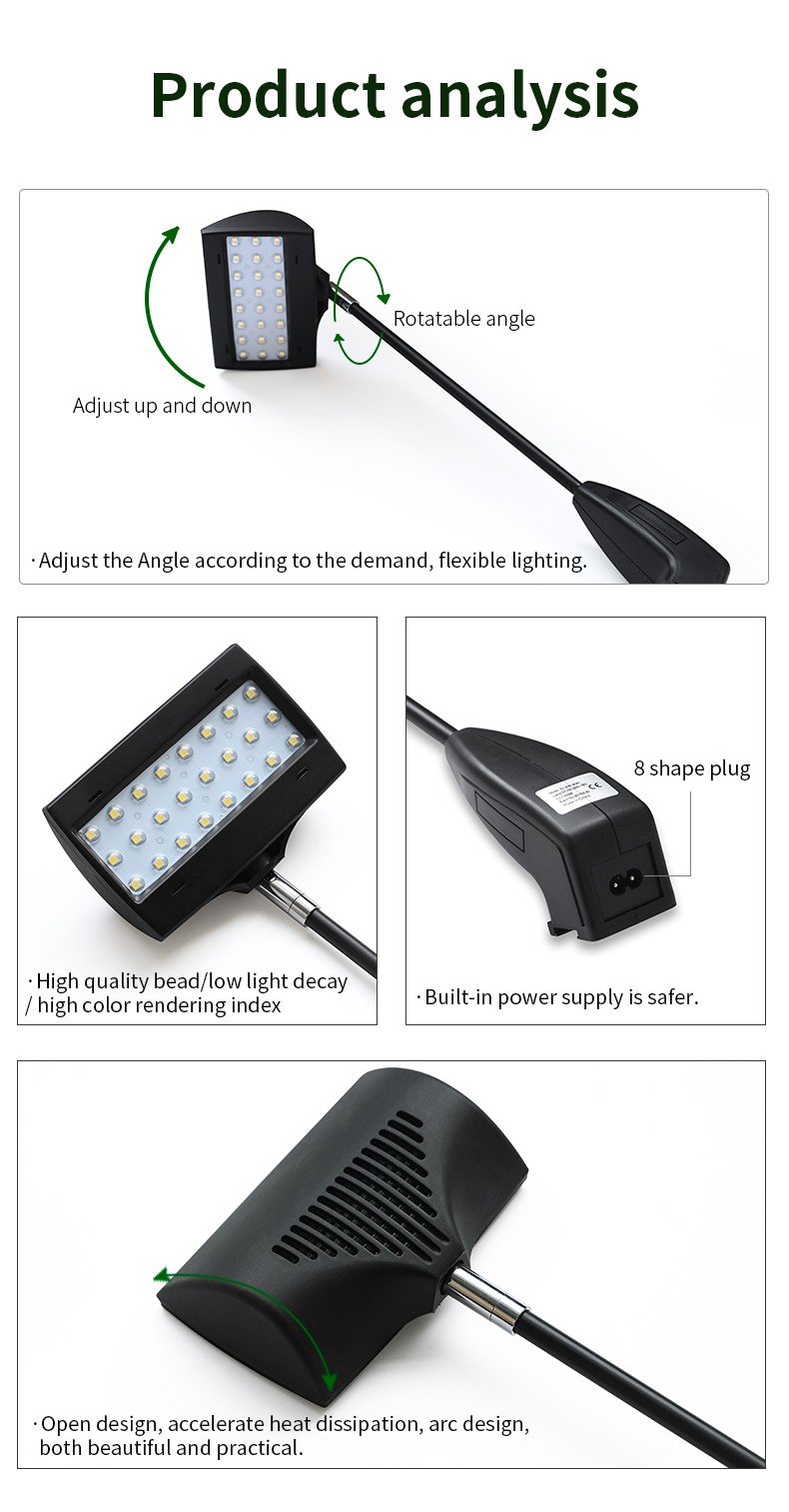

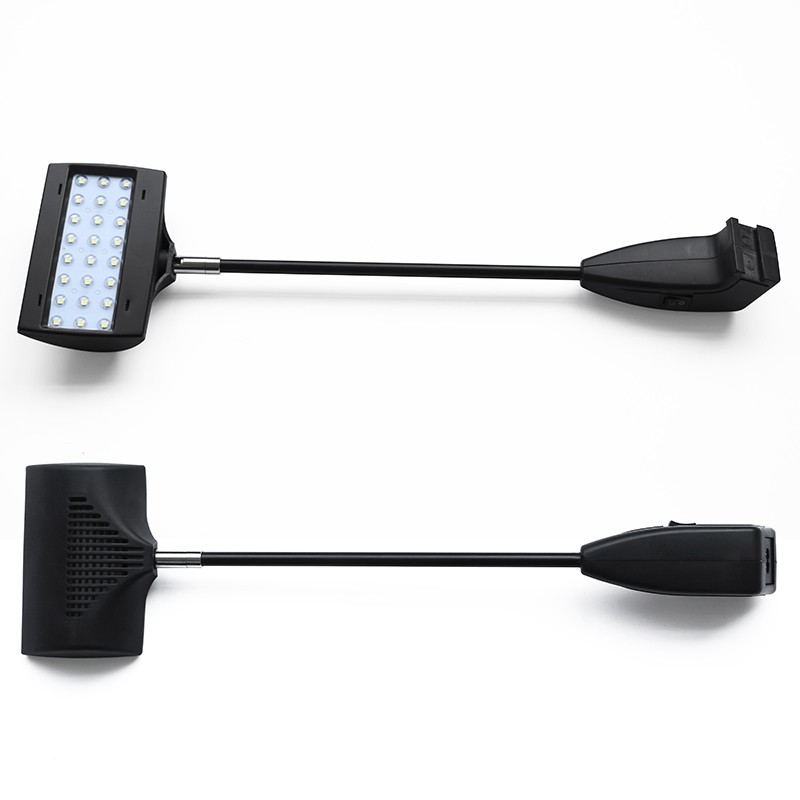

The head can be tilted and rotated to aim the 60° beam toward the graphic. Rear openings are visible behind the LED head, while the supply is built into the base. Specify the destination mains plug, required lead length and fixing arrangement with the enquiry; confirm the mechanical fit to the frame.
Choose the finish and white-light version
Choose black or silver to suit the display frame. The specification lists a 3000–7000K colour-temperature range, and the images illustrate warm, neutral and cool lighting appearances. Select the required order version and use a sample to check how it illuminates the printed graphic.
Plan lamp spacing for exhibition graphics

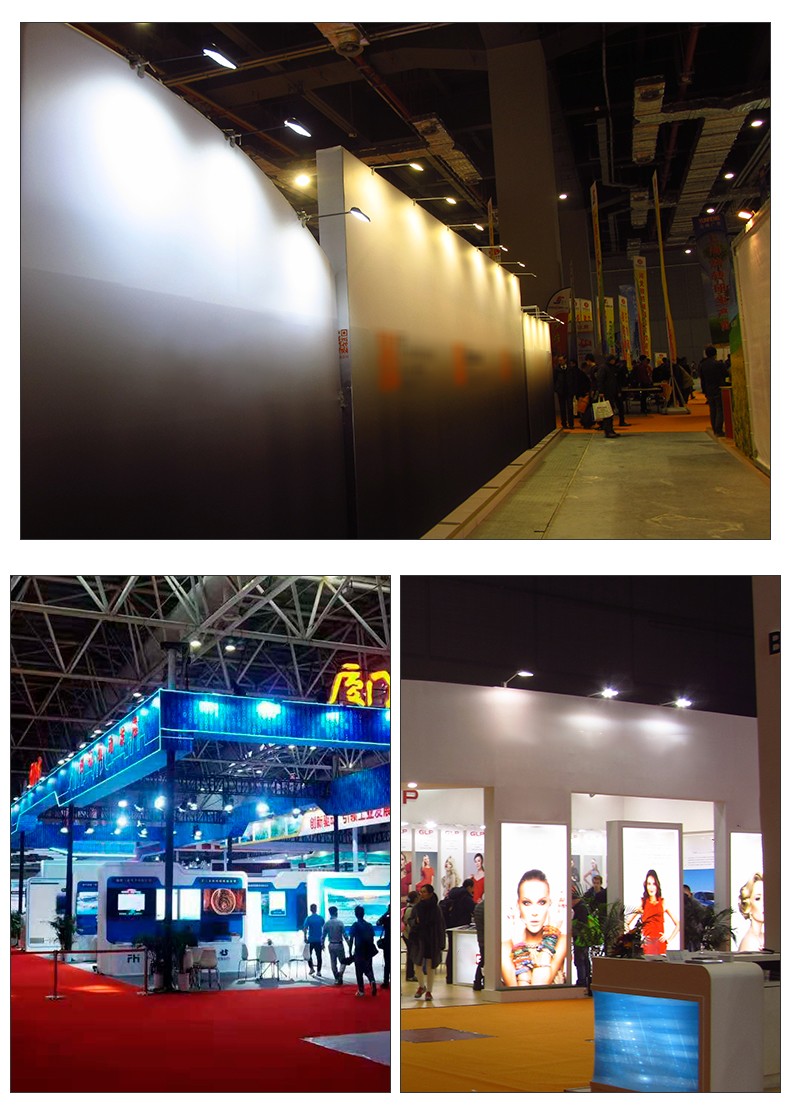

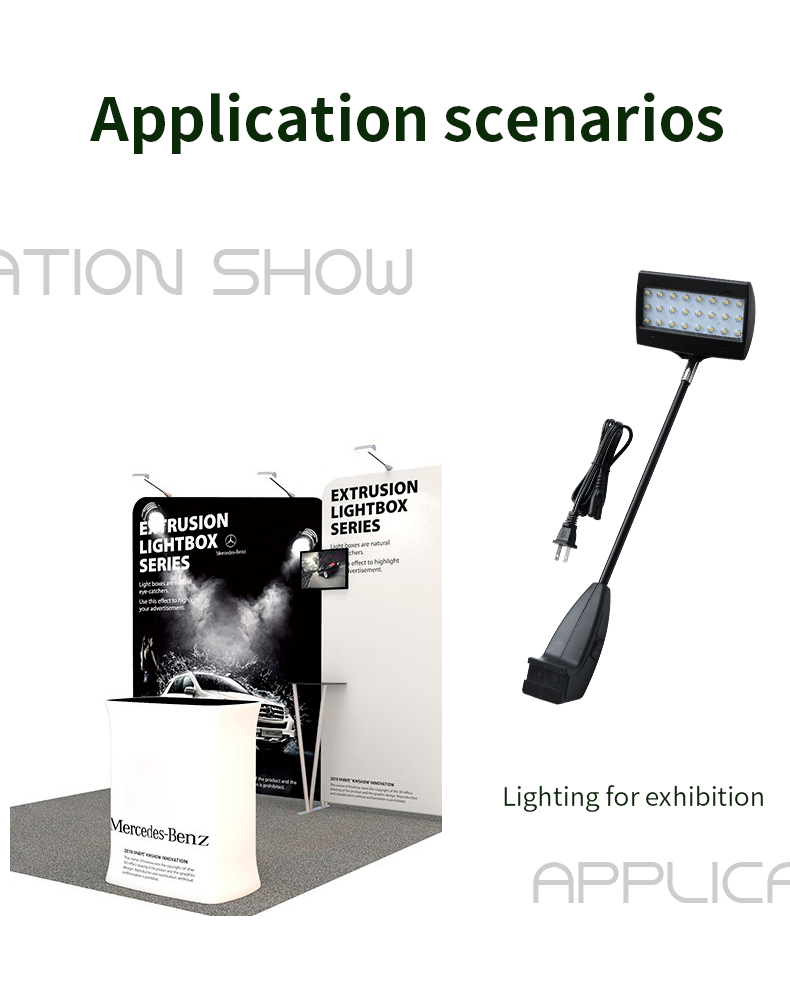

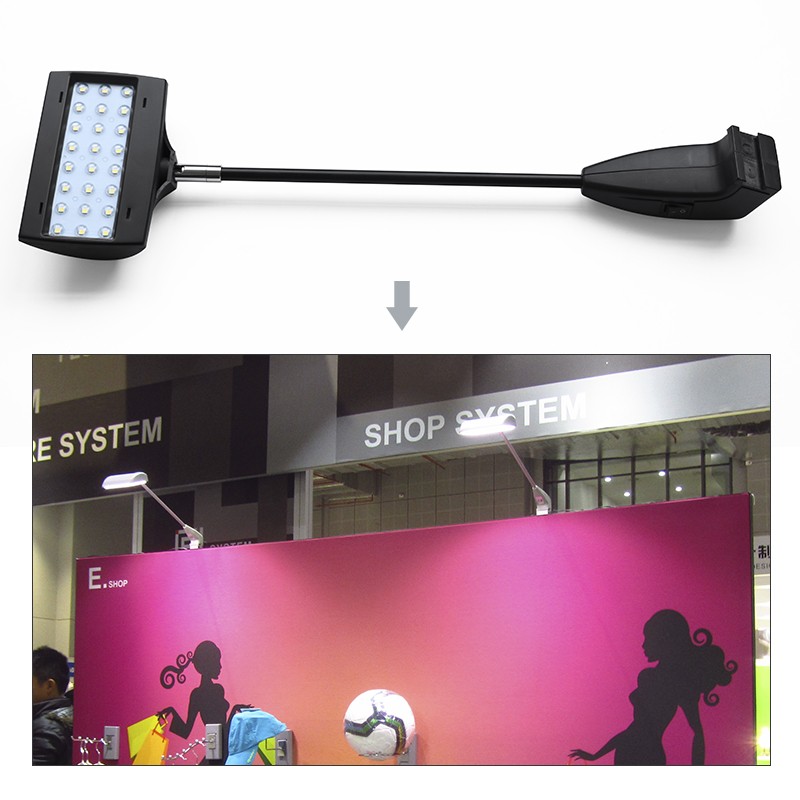

The application images show arm lights above portable panels and exhibition walls. Lamp quantity and spacing depend on the panel dimensions, mounting height and desired emphasis. Send a drawing or frame measurements with the planned lamp positions so the configuration can be reviewed.
Questions for 24-LED display-light buyers
Does this model have input and output connectors?
The listed connector for SL-2081-N24L is a figure-eight plug. If you need a multi-lamp connection layout, provide the required arrangement so a suitable connector version and lead set can be confirmed.
What colour-rendering specification is listed?
The parameter sheet specifies CRI ≥70. If your project requires a higher colour-rendering value, include the requirement in the enquiry and request model-specific technical confirmation and a sample.
Which details are needed for a bulk quotation?
Include the model, quantity, black or silver finish, white-light version, frame profile, destination mains plug and lead requirements. Wholesale orders start from 20 pcs, with lower unit prices at larger quantities.
Sample evaluation and factory supply
Samples are available to assess the fixing, finish and lighting on the graphic. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported. Sample cost, shipping, custom schedules and transit are confirmed separately.
