50-LED arm lighting with a 120° beam

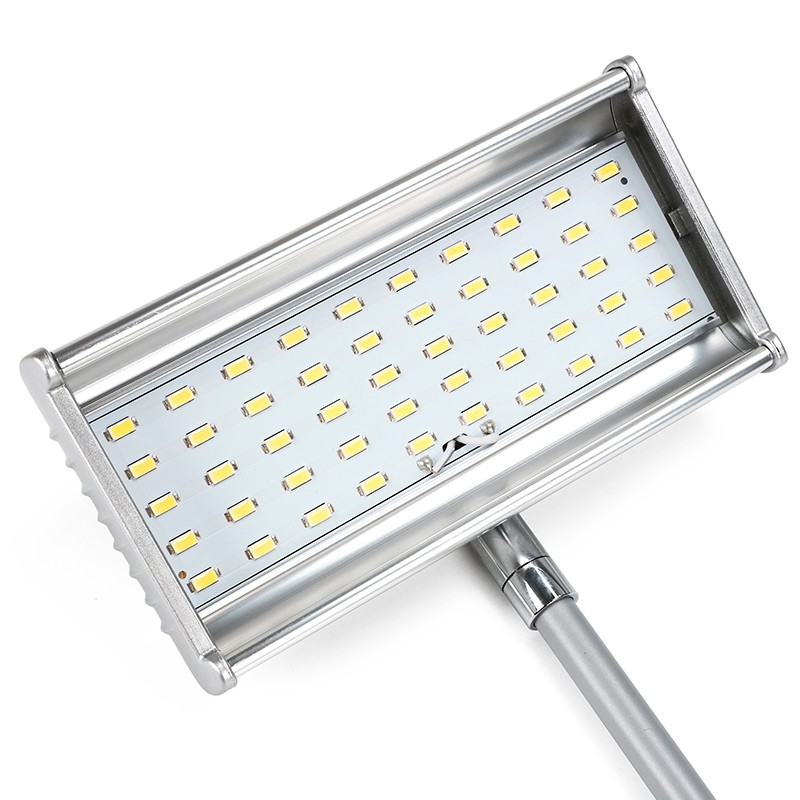

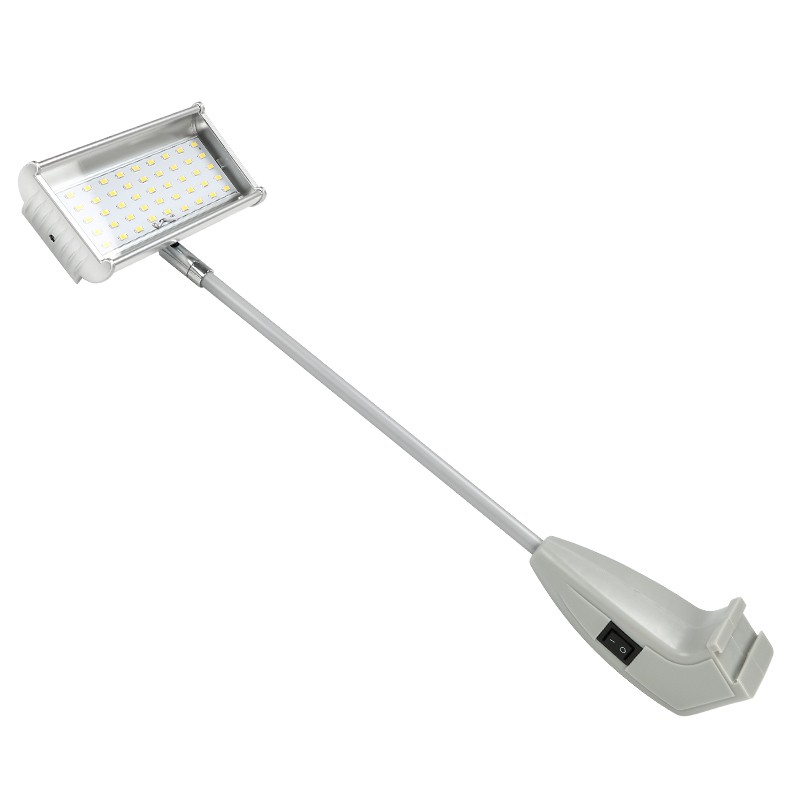

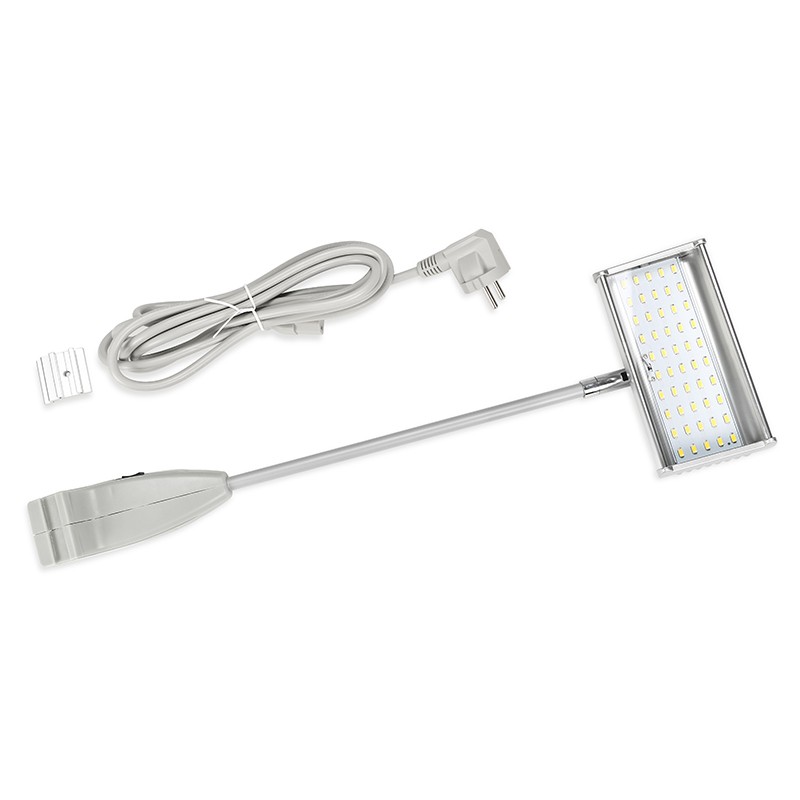

The SL-2075-N50L is a 21W LED display arm light with 50 LEDs, specified 1700 lm output and a 120° beam. The technical sheet lists AC 100–240V input, a three-pin plug and dimensions of 460 × 146 × 40 mm. A base on/off switch is shown in the product close-up.
For panel-lighting kits, evaluate the wide beam from the intended mounting position and match the fitting to the frame. Specify the graphic size, lamp spacing, warm, neutral or cool white version, destination plug and packing requirements so the configuration can be quoted for the complete order.

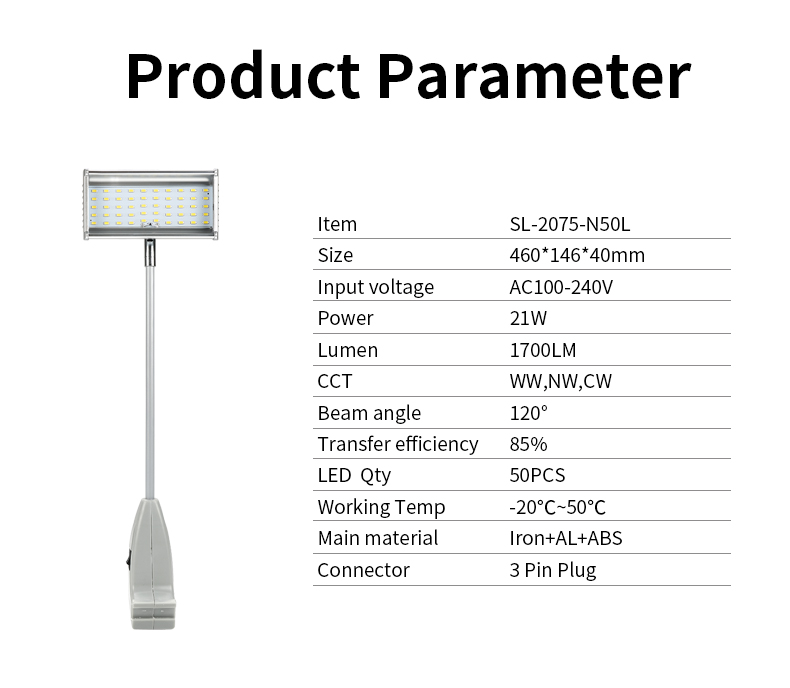

21W wide-beam display-light specifications
| Specification | SL-2075-N50L |
|---|
| Model | SL-2075-N50L |
| Power | 21W |
| Light output | 1700 lm |
| LED quantity | 50 pcs |
| Input voltage | AC 100–240V |
| Beam angle | 120° |

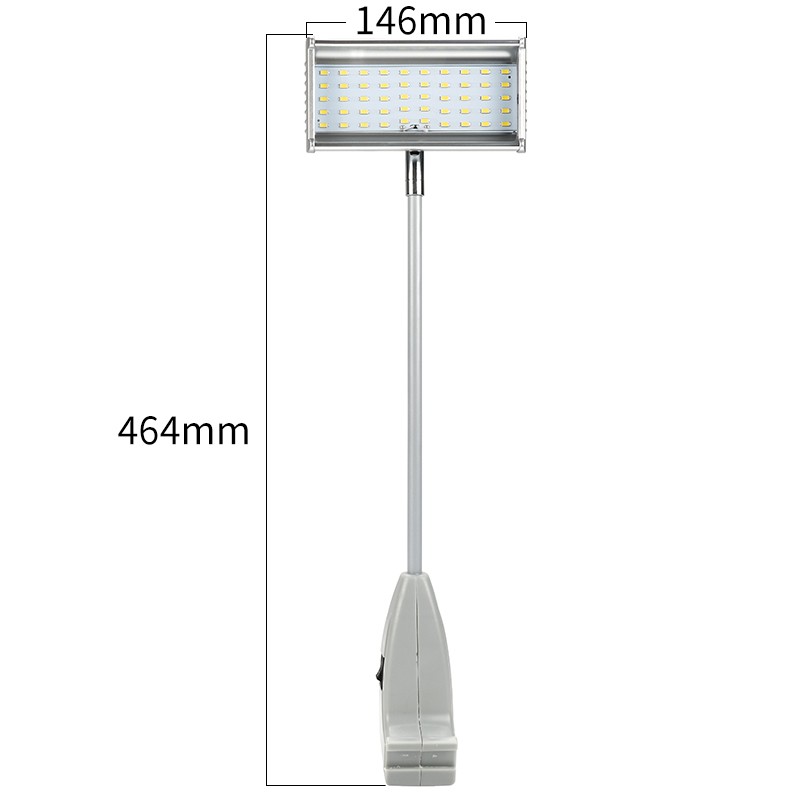

| Dimensions | 460 × 146 × 40 mm |
| White-light options | Warm white / neutral white / cool white; specify the order version |
| Main materials listed | Iron + aluminium + ABS |
| Connector | Three-pin plug |
| Control | Base on/off switch pictured |
| Optional fittings | Forward slider / reverse slider / 0505 or 0509 aluminium clamp / 0520 fitting |
| Working-temperature range | -20°C to +50°C |
Match the frame fitting and position the head

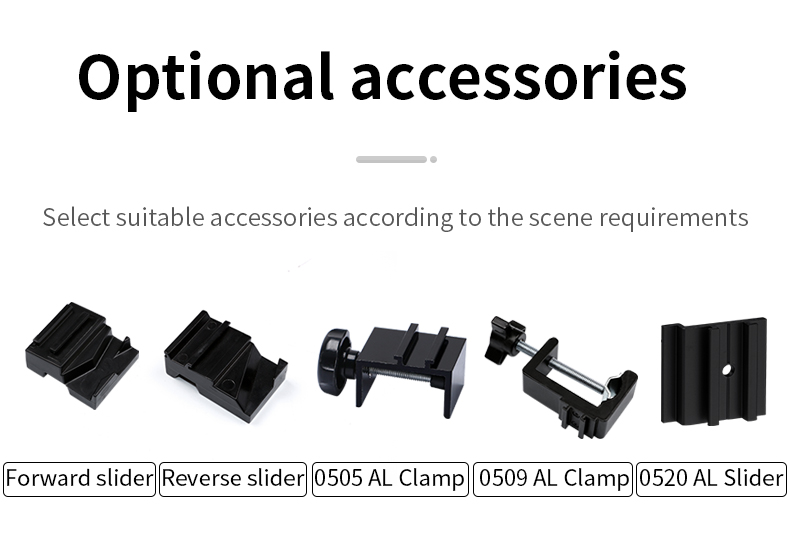

The accessory illustration shows forward and reverse sliders, 0505 and 0509 aluminium clamps and a 0520 fitting. Match the fitting to the frame section and available fixing space. The adjustable head joint lets you aim the beam toward the graphic; provide the mounting position and frame drawing for confirmation.
Base switch and white-light order choices

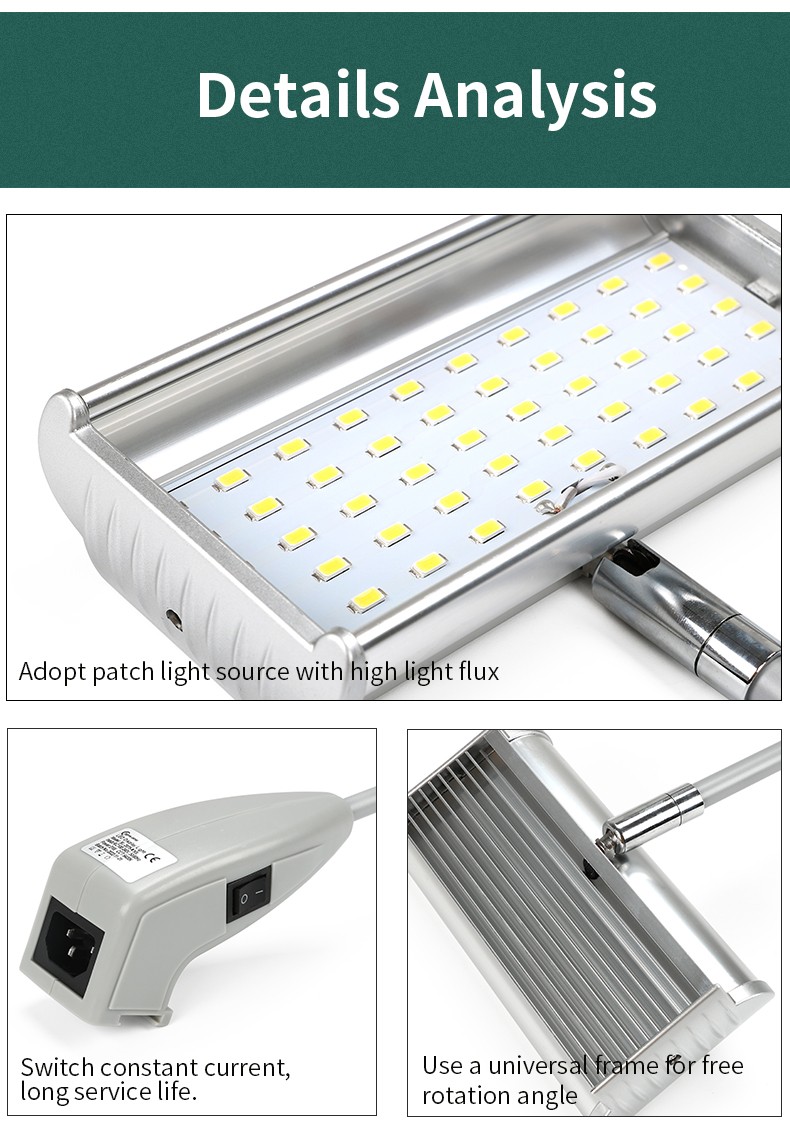

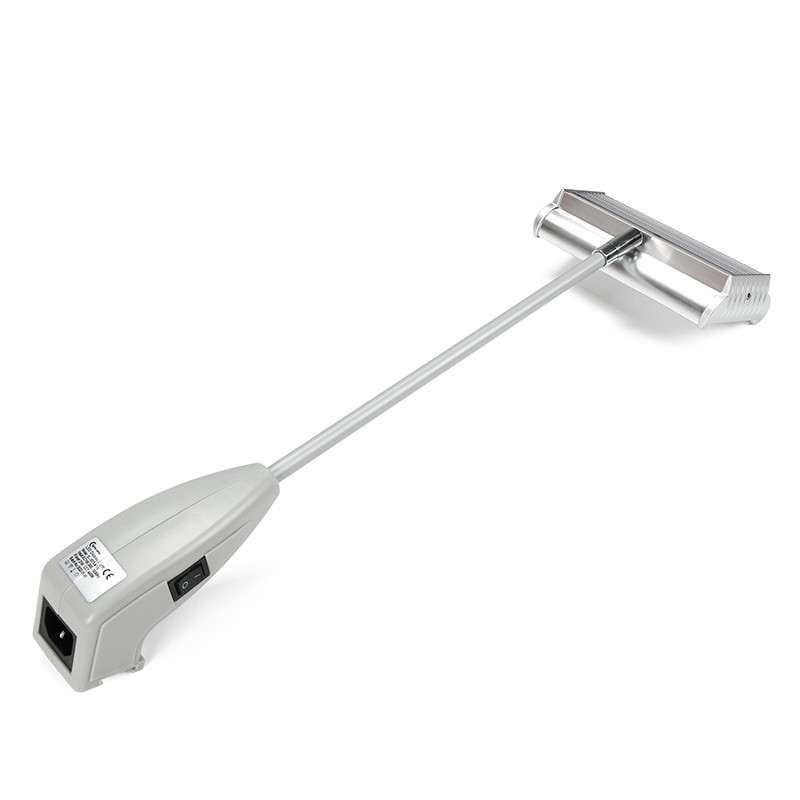

The product close-up shows a physical on/off switch on the base, a three-pin power connector and ribs behind the LED head. Specify the destination mains plug and required power-lead length with the enquiry.
Choose warm white, neutral white or cool white for the order. Evaluate the 120° beam on the intended panel to check coverage and appearance from the selected mounting position.
Panel applications and protective packing

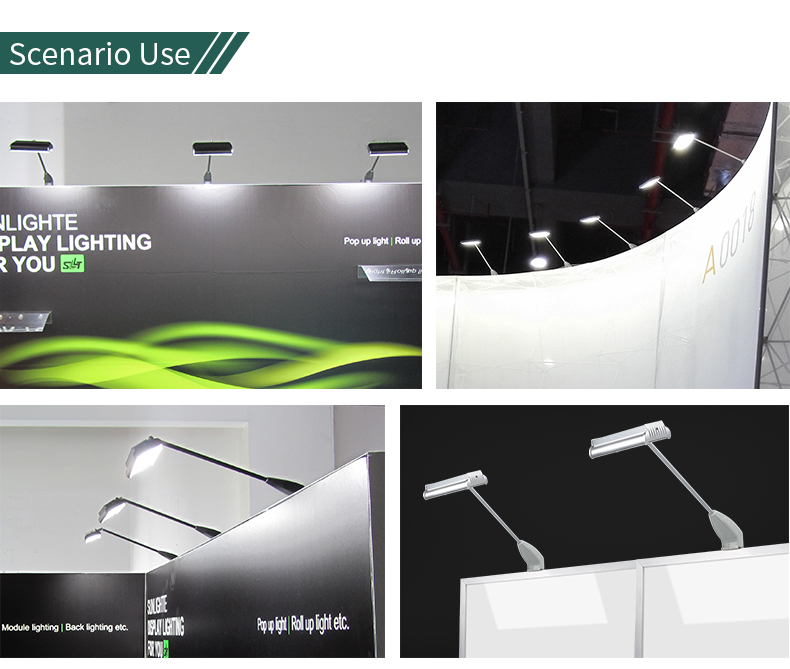

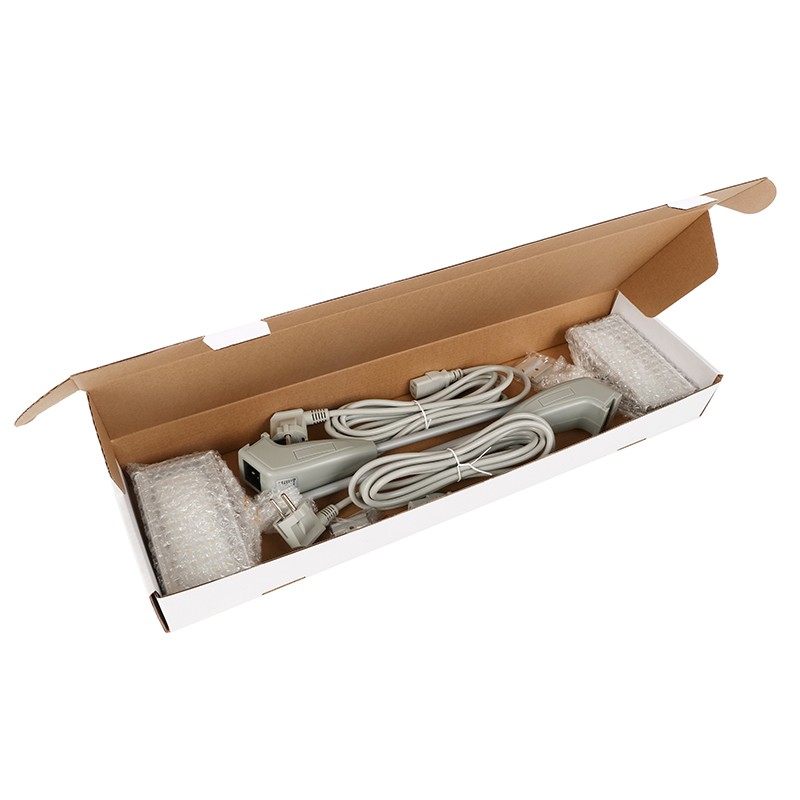

Application images show the lamps above printed panels and exhibition walls. Send the graphic dimensions, mounting height and planned lamp spacing when requesting a lighting kit. The packing example shows a lamp and lead in a protective carton; agree the kit contents, lamps per carton and branding requirements with the quotation.
Questions for 50-LED panel-light procurement
How does the 120° beam affect lamp selection?
The listed beam angle is 120°, with 1700 lm output. Use the panel dimensions and mounting position to assess coverage, and evaluate a sample alongside the intended graphics and surrounding stand lighting.
Does the base switch change the colour temperature?
The pictured base switch provides on/off control. Warm, neutral and cool white are order choices; specify the required version when enquiring.
Can I purchase a complete lamp and fitting kit?
Specify SL-2075-N50L, quantity, white-light version, frame profile, fixing, destination plug, lead length and packing requirements. Orders start from 20 pcs, with lower unit prices at higher quantities. Kit contents are confirmed with the quotation.
Samples, branding and production scheduling
Samples are available to check the fixing and lighting appearance. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported. Confirm sample cost, shipping, custom production schedules and transit separately.
