470mm 20W LED module lights with mounting and sensor options

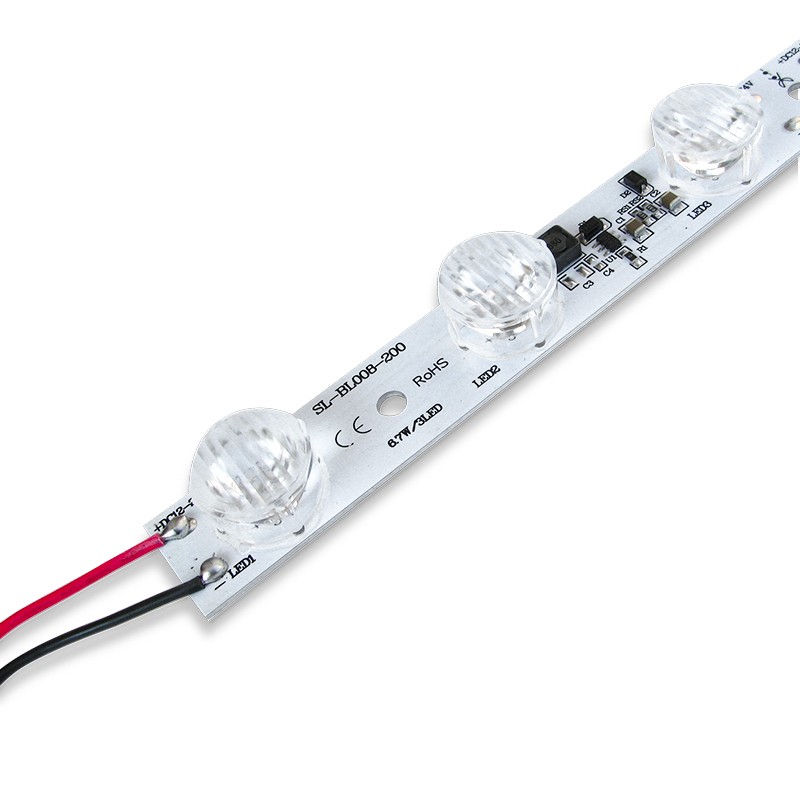

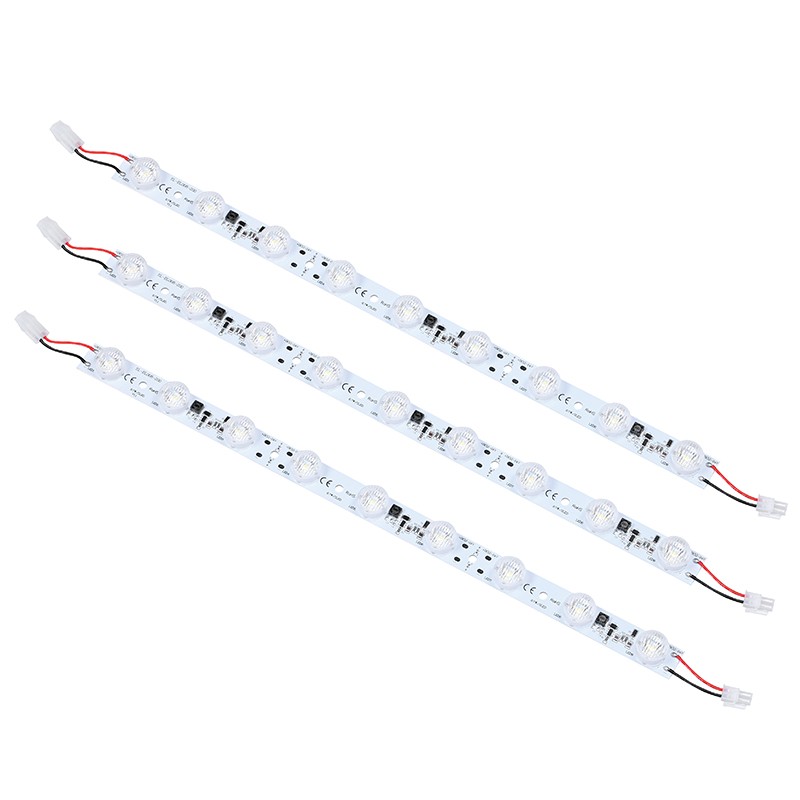

Specify the light source, fixing method and external control for the assembly. SL-BL008-200 is the 20W ±10% version in the original product table, rated at 2000 lm ±10% with 6000–7000K cool white light and 10 × 40° optics. Its listed size is 470 × 23.8 × 15mm, with a large 3P terminal connector and 7cm leads.
For lightbox manufacturers, furniture-lighting integrators and wholesale component buyers, choose the board-hole version and connector layout alongside any sensor requirement. Supply the frame or cabinet drawing and intended switching behaviour to define a matching sample and itemised project quotation.
SL-BL008-200 20W module technical specification
| Specification | SL-BL008-200 |
|---|
| Ordering model | SL-BL008-200 |
| Power | 20W ±10% |
| Luminous flux | 2000 lm ±10% |
| Working voltage in product table | 12–24V DC |
| Cool-white order range | 6000–7000K |
| Lens angle | 10 × 40° |
| Complete dimensions in product table | 470 × 23.8 × 15mm |
| Connector | Large 3P terminal |
| Lead length for 20W version | 7cm |
| Fixing-hole versions | Square hole / round hole, optional |
| LED package illustrated | 3535 |
| Aluminium substrate thickness | 1.6mm |
| Colour-rendering order option | CRI 90+ available; specify with the order |
Choose the 20W version and optical assembly
The original table compares a 17W SL-BL008-170 with the 20W SL-BL008-200. This page uses the 20W column, including 2000 lm ±10% and the 7cm lead specification. Identify SL-BL008-200 in the enquiry to match the required output and lead arrangement.

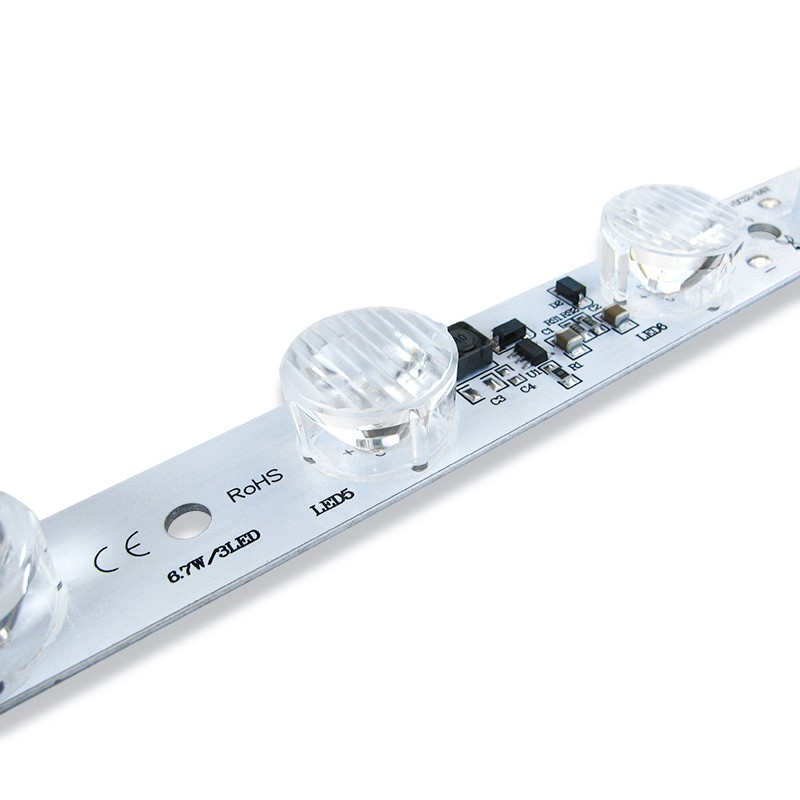

The construction artwork identifies 3535 LEDs, 10 × 40° optical lenses and a 1.6mm aluminium substrate. Use the complete assembly dimensions in the product table when planning the enclosure, and request the approved dimensional drawing where fixing tolerances matter.
Round-hole or square-hole mounting configuration
Round and square fixing holes are listed as optional versions. The frame-profile illustration shows a hand screw and nut for round holes and a hand-tightened fastener for square holes. Provide the groove section and fixing positions to select the matching board and hardware.
A separate installation example shows direct surface fixing with self-tapping screws. Agree the board-hole version, mounting parts and accessory quantities for the quoted assembly.
External sensor and power connection options
The optional external switches shown are hand-sweep, door and motion sensors. The hand-sweep and door illustrations list 3–8cm sensing distance; the motion option lists 3–5m and a 30-second switch-off delay after departure. Select the switching behaviour and installation position for the cabinet or interior project.
The wiring example shows a power unit, connection lead and linked light bars. Confirm the selected input voltage, power-unit specification, connector mating and permitted bar quantity for the delivered version. Itemise the sensor, leads, power unit and fixing parts in the supply scope.
Lightbox and furniture project purchasing
The application artwork includes commercial advertising displays, retail interiors and cabinet lighting. Send the intended enclosure, face material, bar layout and installation drawing for sample assessment. CRI 90+ white LEDs can be specified as an order option.
Samples are available, with cost and destination shipping confirmed separately. Wholesale supply starts at 20 pcs and higher quantities receive lower unit prices. Standard lead time is 12–18 days, subject to the agreed configuration and custom work; transit is separate. OEM, ODM and private-label requirements can be included in the enquiry.
20W lens module purchasing questions
Which lead specification applies to SL-BL008-200?

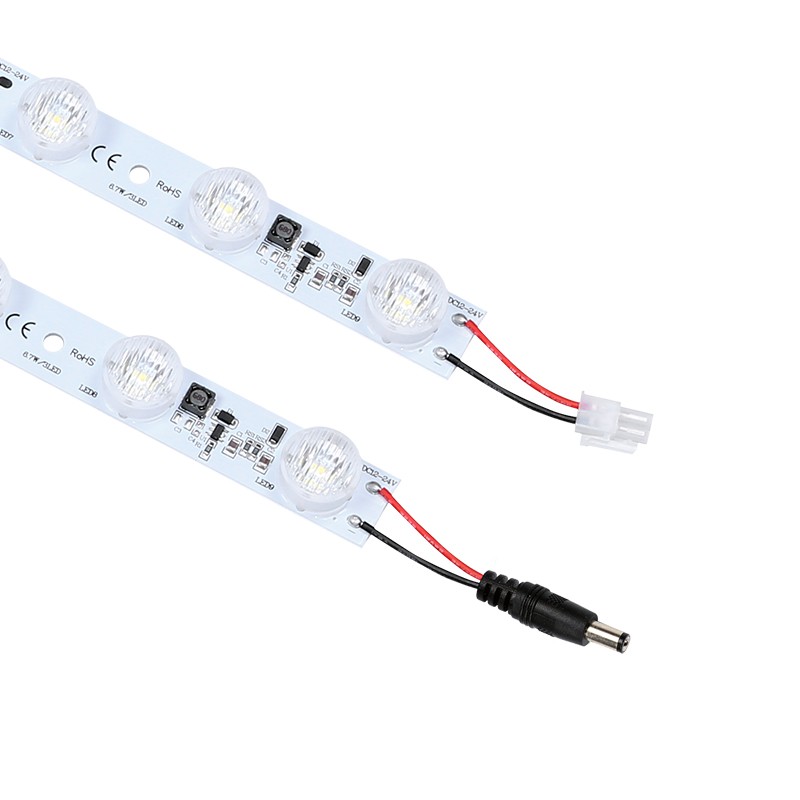

The 20W column lists a large 3P terminal with 7cm leads. Specify SL-BL008-200 and provide the mating connection details to approve the cable and plug version with the sample.
Can I select a board for square-hole frame fixing?
Square and round hole versions are listed as options. Send the frame-groove section so the board-hole version and hand-fastener or screw-and-nut hardware can be chosen together.
Can a door sensor be included for cupboard lighting?
An external door sensor is one of the illustrated options. State the cabinet layout and switching requirement so the sensor, electrical version, power unit and leads can be included as agreed quotation items.
How do I request samples for an OEM 20W module order?
Send the model, quantity, cool-white and CRI requirements, hole version, connector details and destination country. Add the project drawing, sensor choice, marking and packing requirements. Sample charges and production configuration are confirmed before supply.
