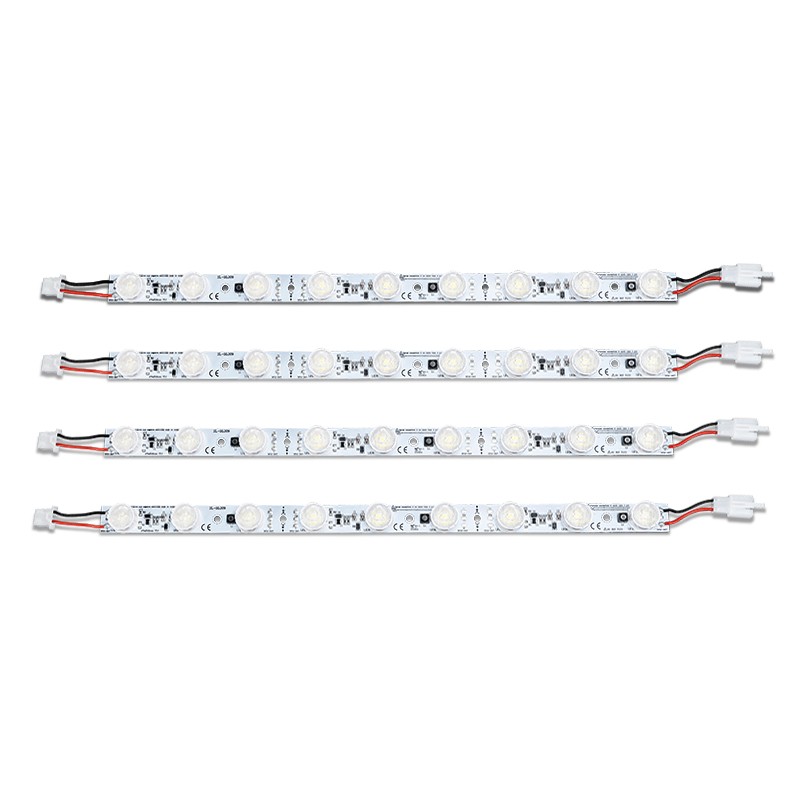

470mm LED cabinet light bars with external sensor options
Plan a lens-equipped light source for a cabinet, wardrobe or interior-lighting project. SL-BL009-120-S is the catalogue ordering reference for a 470 × 23 × 16mm bar, specified at 12W and 1000 lm ±10%. The original application artwork shows use with optional external hand-sweep, door and motion sensors.
For furniture-lighting integrators, cabinet manufacturers and project wholesalers, select the white-light version and switching behaviour alongside the mounting position. Provide the cabinet or enclosure drawing, connection requirements and target quantity to define the sample and an itemised project quotation.

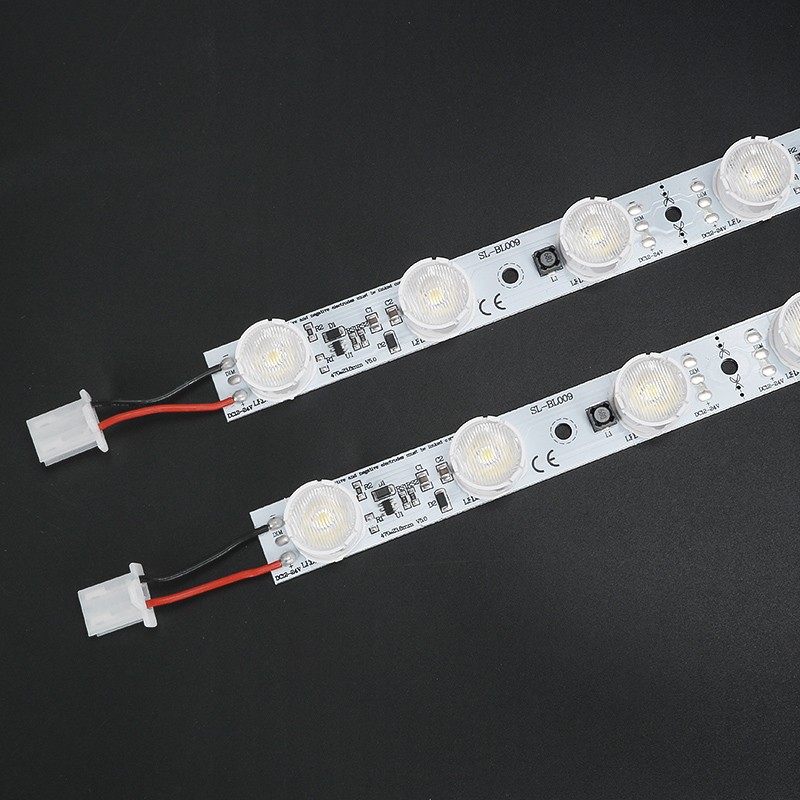

470mm cabinet-lighting bar technical data
| Specification | SL-BL009-120-S |
|---|
| Catalogue ordering reference | SL-BL009-120-S |
| Complete dimensions | 470 × 23 × 16mm |
| Power | 12W |
| Luminous flux | 1000 lm ±10% |
| Warm-white order range | 3000–3500K |
| Neutral-white order range | 4700–5300K |
| Cool-white order range | 6000–7000K |
| Colour-rendering order option | CRI 90+ available; specify with the order |
| External sensor choices | Hand-sweep / door / motion; specify supply scope |

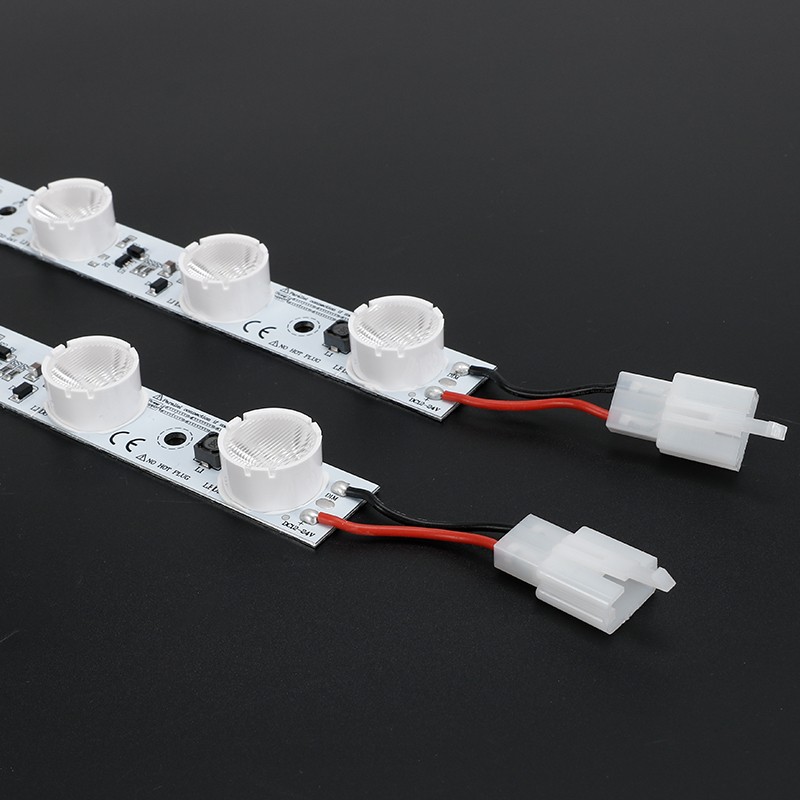

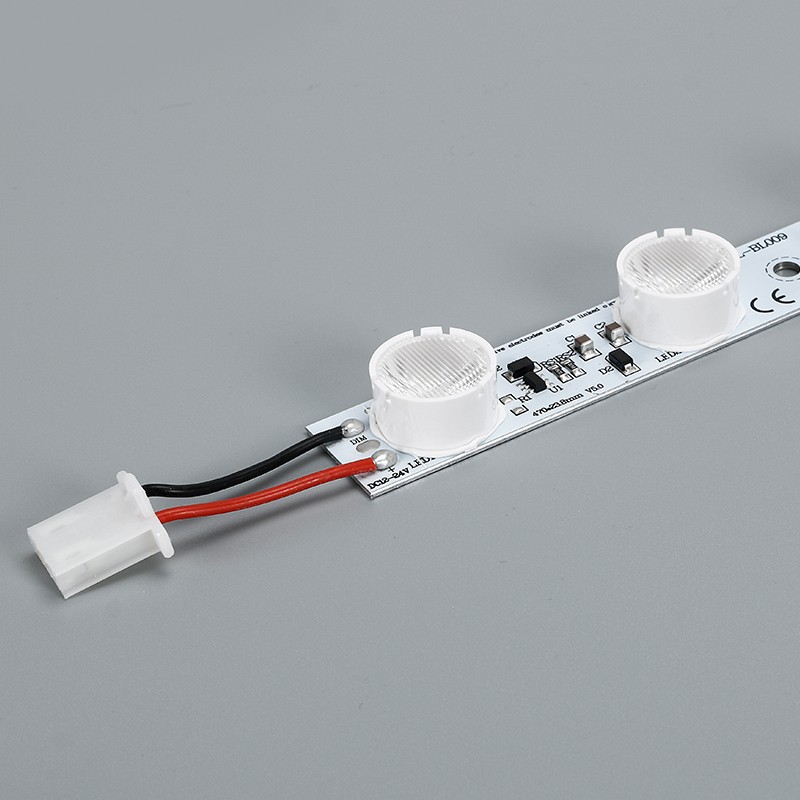

| Connections pictured | Red and black leads with white plugs |
| Warranty | 2 years; confirm coverage with the quotation |
Choose how the cabinet lighting switches
The original sensor artwork offers three external switching options. The hand-sweep illustration lists 3–8cm sensing distance and shows a sweep to turn the light on or off. The door-sensor illustration lists 3–8cm and shows the light switching with door opening and closing.
The motion-sensor illustration lists a 3–5m sensing distance and a 30-second switch-off delay after people leave. Specify the intended behaviour, mounting position and installation conditions, then review the chosen sensor in the project sample.
Itemise the selected sensor, electrical supply, connectors and leads with the quotation. Agree the bar input requirement and the compatible control configuration before ordering the assembled project components.
White-light appearance for furniture and interiors
Select 3000–3500K warm white, 4700–5300K neutral white or 6000–7000K cool white when ordering. These are white-light supply versions; choose the range for the required cabinet or interior appearance.
CRI 90+ white LEDs are available to order. Include the colour-rendering requirement with the selected white-light range and request the relevant technical information for the quoted sample. Assess the lens source with the actual cabinet surfaces, display face or diffuser.
Mounting clearance and profile-fixing selection

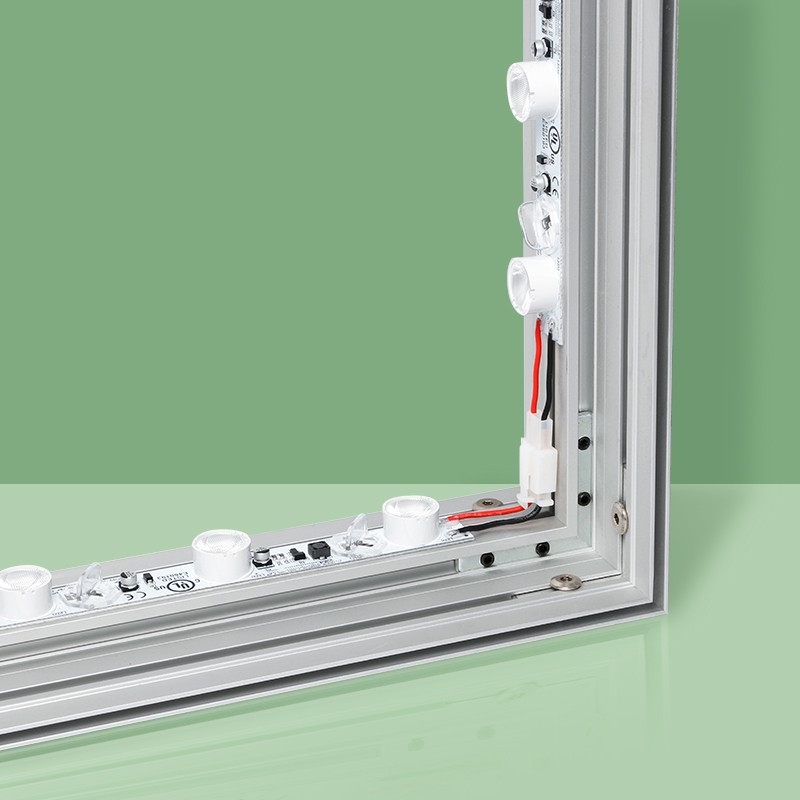

Use the complete 470 × 23 × 16mm dimensions to check the installation space. The profile instructions illustrate a hand screw and nut for a round-hole board and a hand-tightening fastener for a square-hole board. Match the supplied board version and fixing parts to the intended profile.
The original artwork also presents lightbox and replacement-source concepts. For these projects, provide the enclosure drawing, existing electrical details and fixing positions to define the compatible configuration and supplied parts.
Wholesale project documentation and supply scope
The product-quality artwork states a two-year warranty. Confirm the covered configuration and conditions with the quotation. Request current model-specific technical and compliance documents for the project market, including the certificate holder and relevant model scope.
Specify the required bar quantity, chosen sensor, connection leads, fixings and packing or marking. Samples, OEM, ODM and private-label enquiries are supported; sample cost and shipping are confirmed for the destination.
Sensor-option cabinet light bar procurement questions
Which sensor can I specify for a wardrobe or cupboard project?
The original artwork lists optional hand-sweep, door and motion sensors. For a wardrobe door, provide the door travel and sensor mounting position; for hand-sweep or motion switching, state the required behaviour and layout. Agree the selected sensor and supplied parts with the quotation.
Are the sensor and power unit included with every light bar?
Define these items in the project supply scope. Request an itemised quotation identifying the selected external sensor, matching electrical supply, leads and connectors alongside the bar quantity.
Can I order a high-CRI white-light version for furniture lighting?
Yes. CRI 90+ white LEDs are available to order. Select the required white-light range and include the colour-rendering requirement so the quoted sample and production configuration can match the project specification.
What are the bulk-order quantity and usual production schedule?
Wholesale orders start at 20 pcs and larger quantities qualify for lower unit prices. Standard lead time is 12–18 days; confirm the schedule for the LED version, sensor selection and custom requirements. Transit time is agreed separately.
