COB display arm lighting with an aluminium base

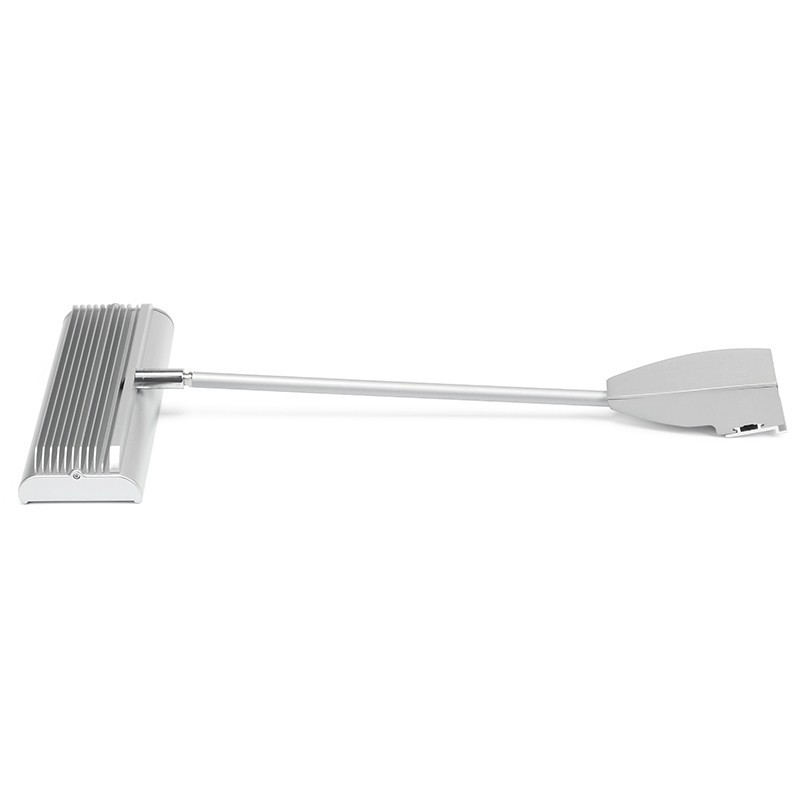

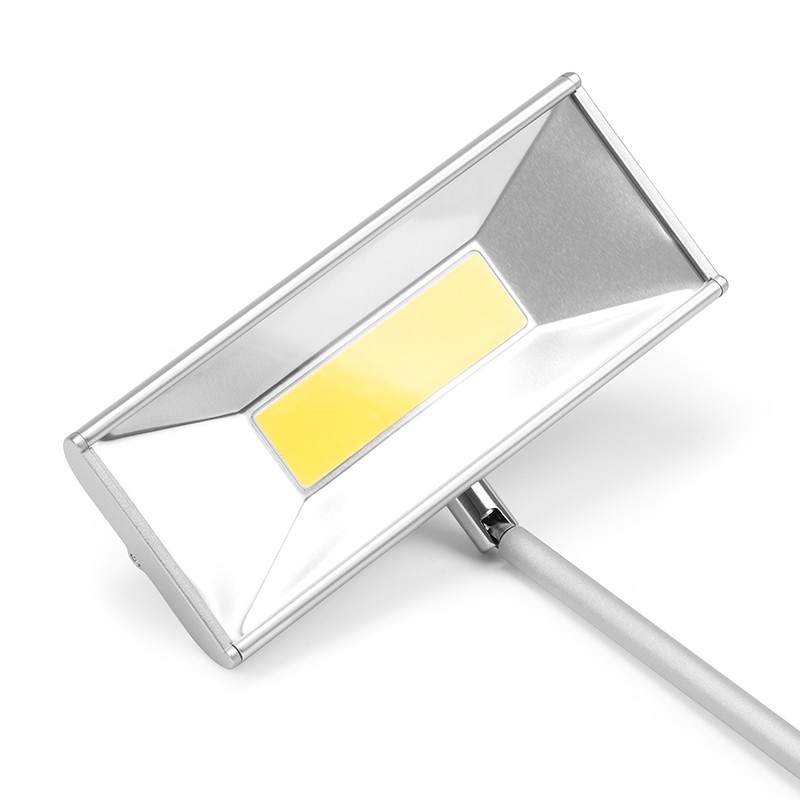

The SL-031-06-COB200 is a 20W COB display arm light with specified 1800 lm ±10% output, a 120° beam and dimensions of 460 × 146 × 37 mm. Its silver aluminium base and adjustable head provide a mounting and aiming arrangement for exhibition graphic panels.
For display-system suppliers, the main ordering choices are the base fitting, external power supply, white-light configuration and complete kit. Include the frame profile and project quantity with the model so the mechanical and electrical arrangement can be quoted together.

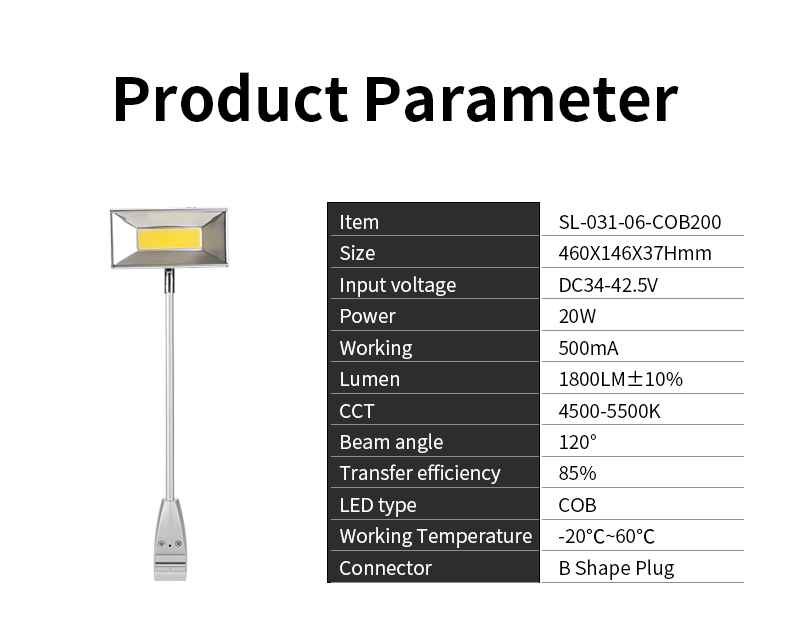

Technical data for the aluminium-base COB model
| Specification | SL-031-06-COB200 |
|---|
| Model | SL-031-06-COB200 |
| Power | 20W |
| Specified light output | 1800 lm ±10% |
| LED source | COB |
| Beam angle | 120° |
| Lamp input configuration | DC 34–42.5V |
| Operating current listed | 500 mA |
| Dimensions | 460 × 146 × 37 mm |
| Listed colour temperature | 4500–5500K |
| Connector | B-shape plug |
| Mounting base | Aluminium shoe base with fixing plate |
| Head positioning | Adjustable joint |
| Power kit | Specify a matching supply with the quotation |
| Operating temperature | -20°C to +60°C |
Fit the base to the display profile

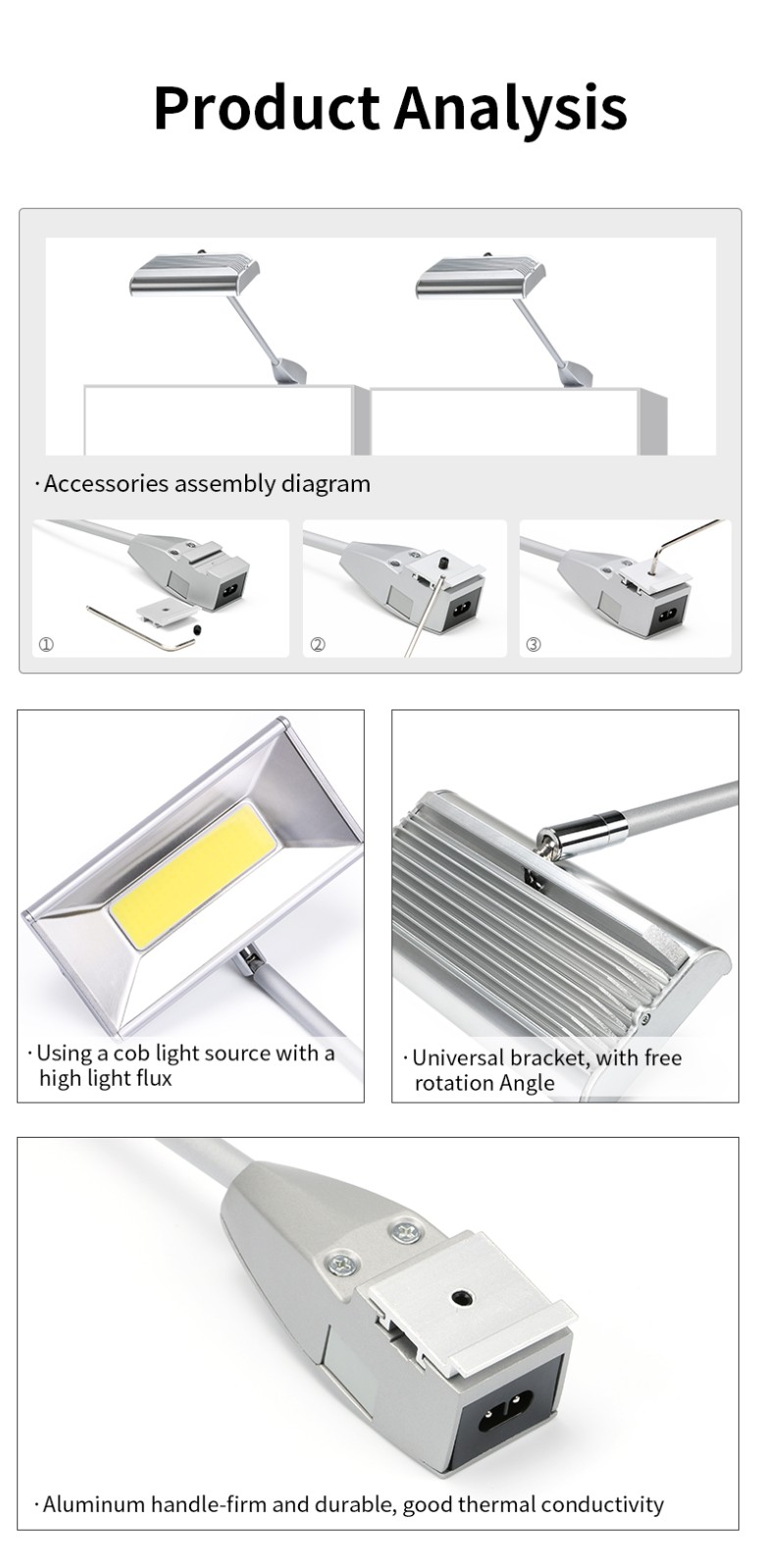

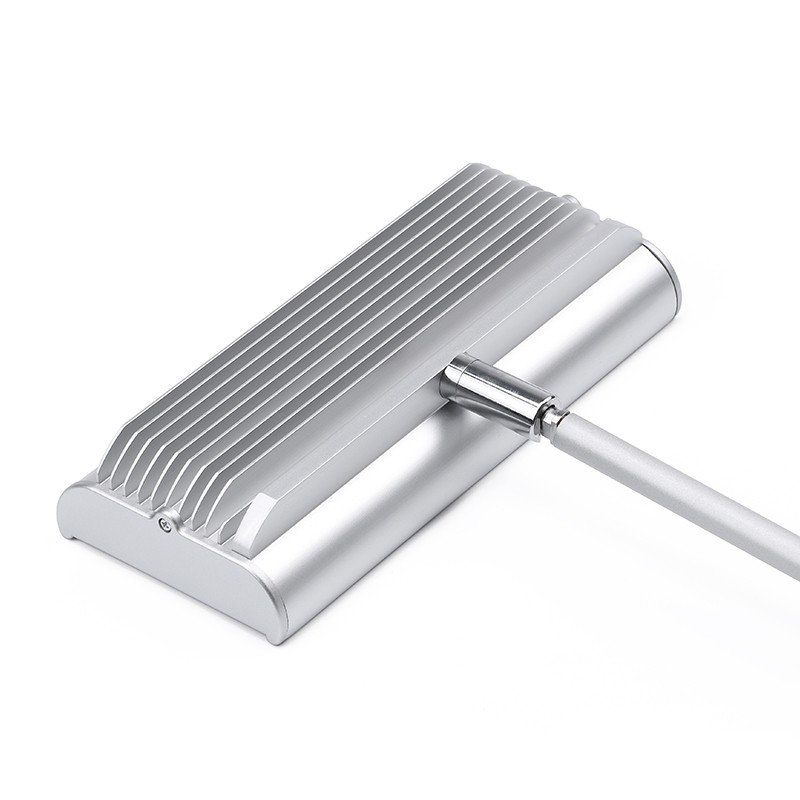

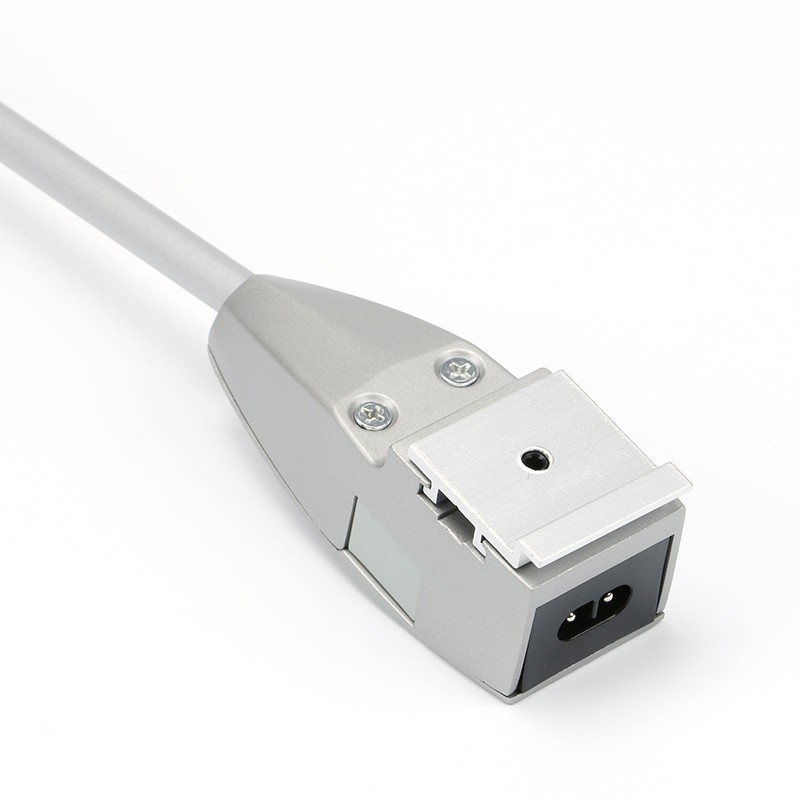

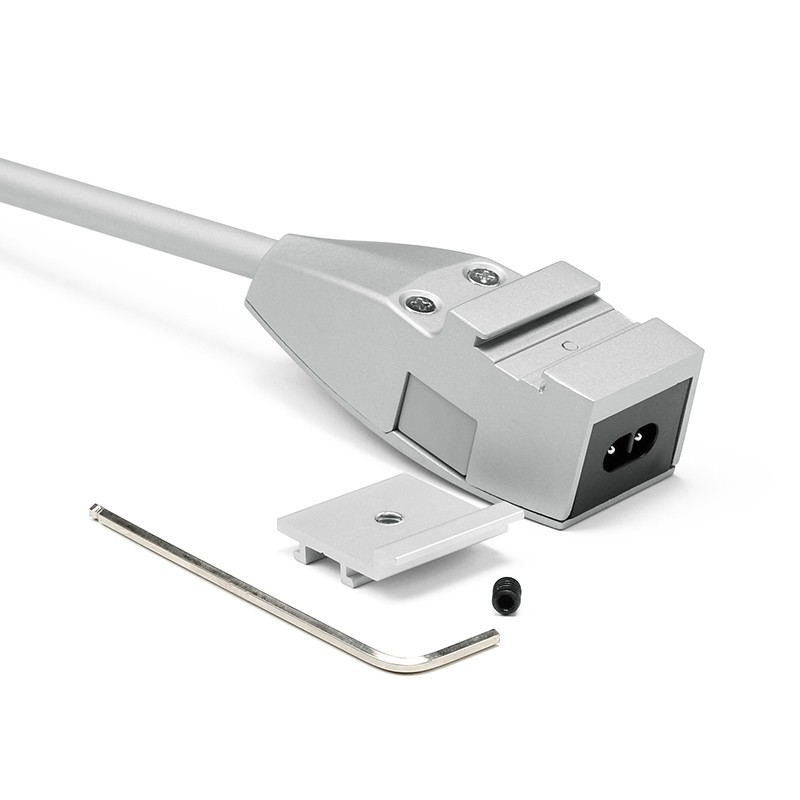

The assembly illustration shows a fixing plate fitted to the aluminium base. The lamp head has an adjustable joint and rear ribs, allowing its direction to be set towards the graphic.
Provide the frame section, fixing dimensions and lamp position. The fitting is selected for the particular display profile rather than assumed from the appearance of an existing bracket.
Specify the neutral-white configuration
The listed colour-temperature range is 4500–5500K. Compare the sample with the actual artwork, fabric or printed panel to assess the required appearance.

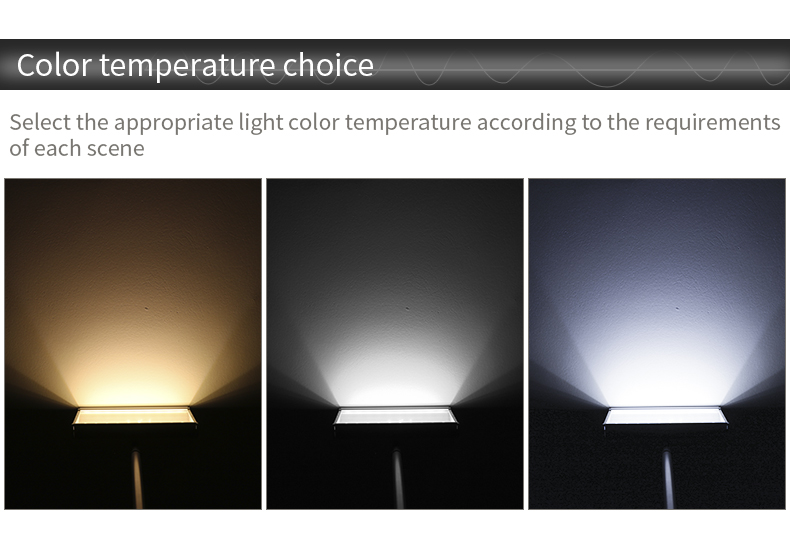

Warm and cool examples are retained in the image guide. Include any different Kelvin target in the enquiry so the configuration can be checked before sample production.
Specify the lamp and matching power kit
The lamp configuration is DC 34–42.5V with listed 500 mA operating current. Specify a matching supply, B-shape connection and destination mains plug with the kit enquiry.
The packing example shows the lamp and leads protected in individual packaging, followed by outer cartons. Confirm the supply, lead lengths, fittings, labels and the components per kit with the bulk quotation.
Application planning for exhibition graphic walls

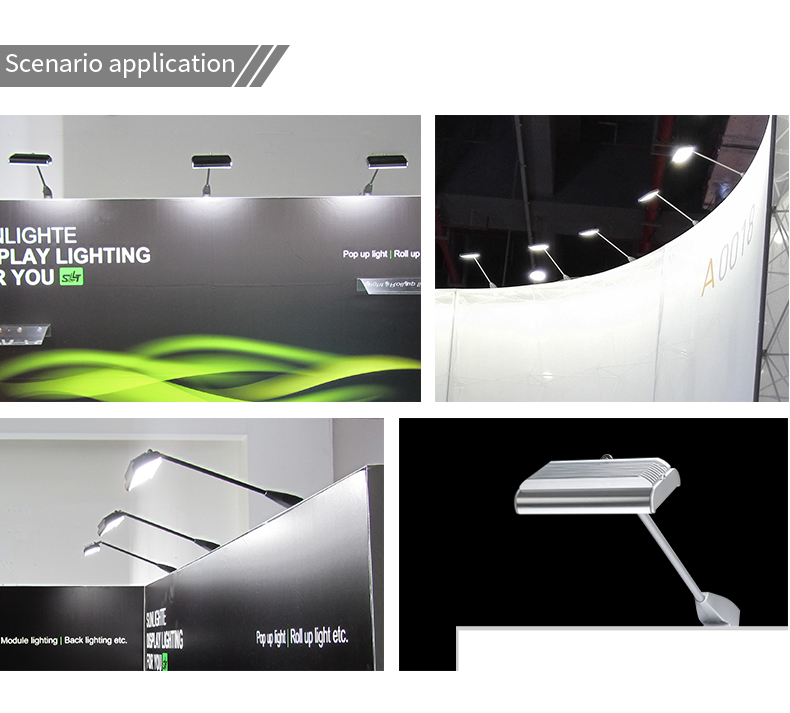

The application images show lamps mounted along the tops of graphic walls and exhibition panels. Share the panel dimensions and planned mounting distance to define the sample test and kit layout.
A display drawing or installation photo helps identify the fixing points and cable route for contractors installing several repeat kits.
Questions from display-light distributors
What distinguishes this aluminium-base model?

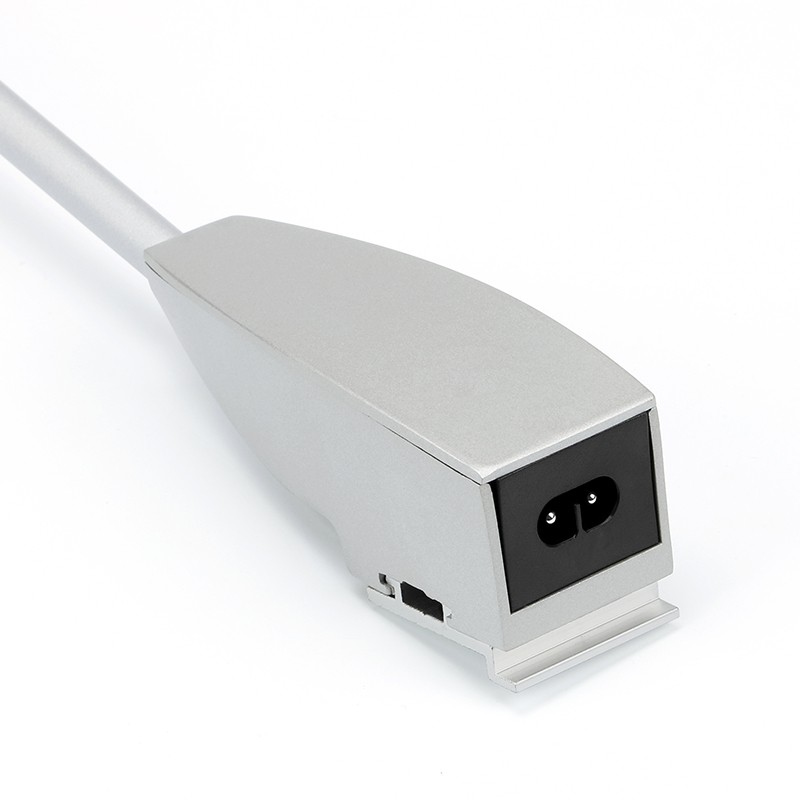

SL-031-06-COB200 has the pictured aluminium shoe base and listed dimensions of 460 × 146 × 37 mm. Use the model number when specifying the fitting and replacement kit.
What power supply should I specify?
The selected supply must match the listed DC 34–42.5V and 500 mA operating configuration and B-shape connection. Include the supply and destination plug in the quotation request.
How do I request factory pricing and samples?
Send the model, quantity, frame fitting, power configuration and destination. Orders begin at 20 pcs; larger quantities receive lower unit prices. Samples can be supplied with cost and shipping confirmed.
OEM supply and delivery planning
OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; custom schedules and transport time are confirmed separately. State any packaging or market-document requirements with the quotation request.
