313mm LED lightbox bars with a CRI 90+ ordering option

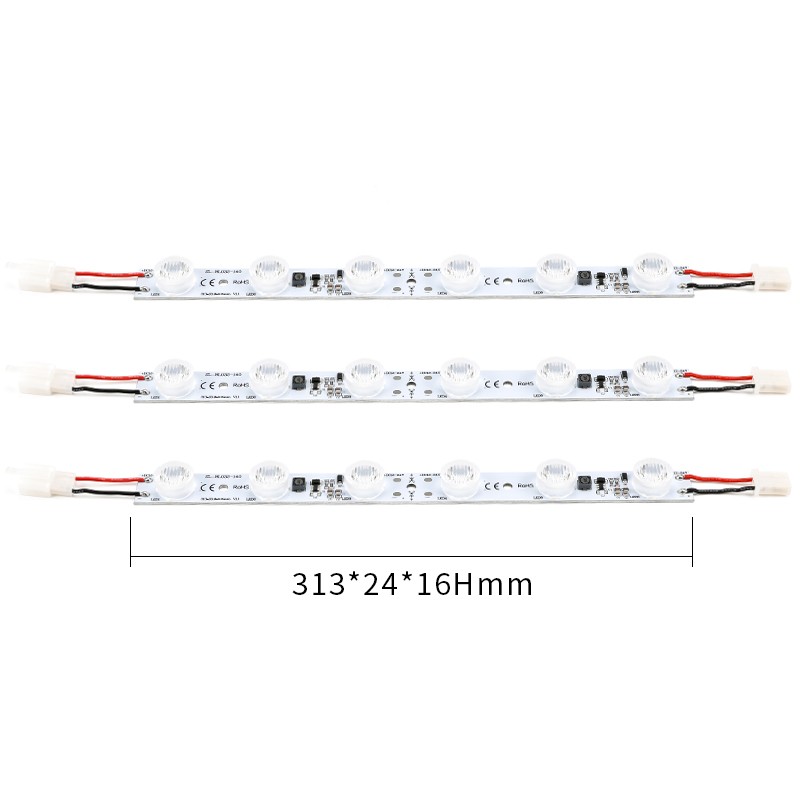

Specify a six-LED bar for an advertising lightbox or illuminated display frame. SL-BL032-140 measures 313 × 24 × 16mm and is rated at 14W, 24V DC and 1250–1350 lm. Its individual lenses have a listed 10 × 40° beam angle, and CRI 90+ white-light LEDs are available to order.
For sign makers, shopfitters and lightbox manufacturers, the key choices are the white-light range, colour-rendering specification, frame fixings and connection layout. Include these requirements with the target quantity so the sample can represent the configuration needed for production.

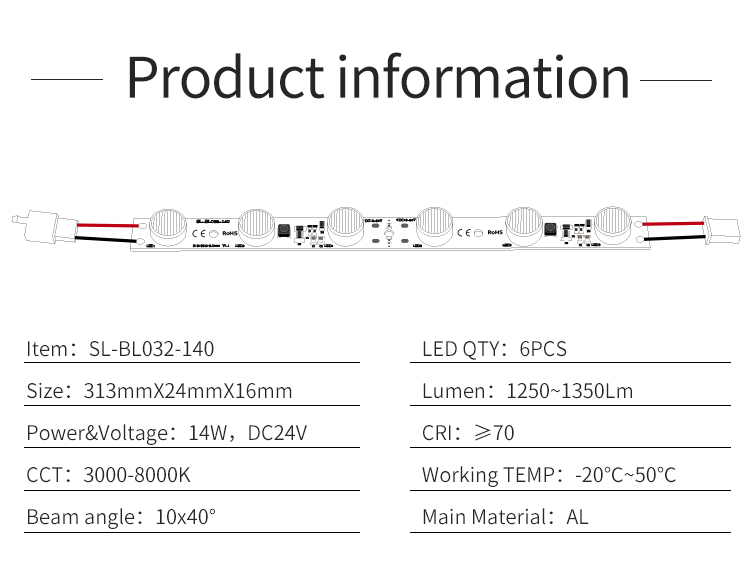

14W six-LED lightbox bar technical specification
| Specification | SL-BL032-140 |
|---|
| Model | SL-BL032-140 |
| Dimensions | 313 × 24 × 16mm |
| Power | 14W |
| Input | 24V DC |
| LED quantity | 6 pcs |
| Luminous flux | 1250–1350 lm |
| Lens angle | 10 × 40° |
| White-light order range | 3000–8000K |
| Colour-rendering order option | CRI 90+ available; specify with the order |
| Operating temperature | −20°C to +50°C |
| Support material | Aluminium |
White-light appearance and high-CRI ordering
The parameter sheet lists a 3000–8000K white-light ordering range. Warm, natural and cool appearance photographs help identify the required version; confirm a specific range for the sample and production order.
CRI 90+ LEDs are available as an ordering option. State the required colour-rendering specification alongside the white-light range and request matching technical information for the agreed sample.
Frame fixing, lead connections and shorter assemblies

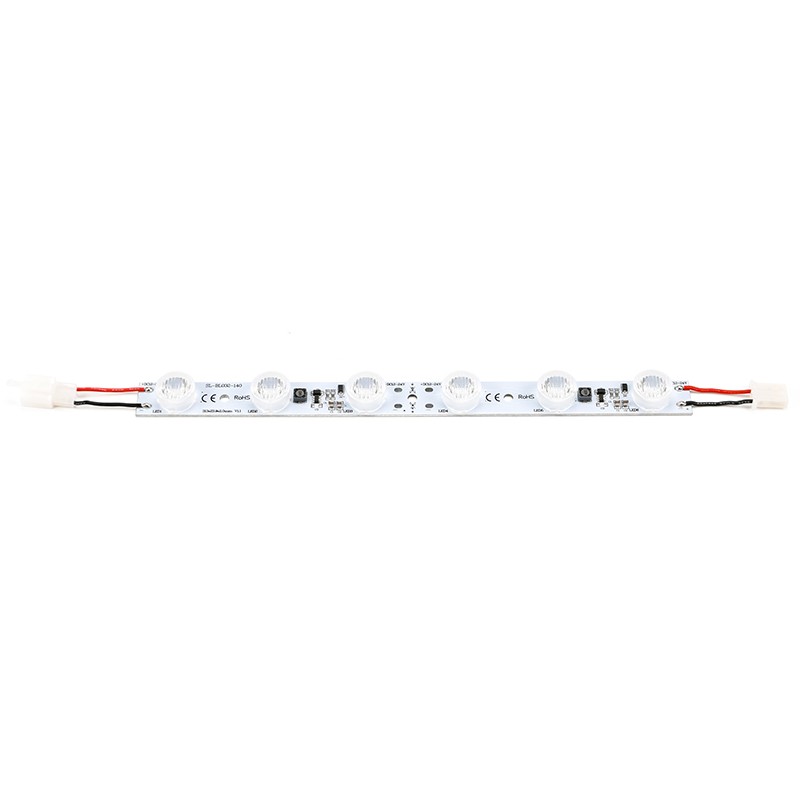

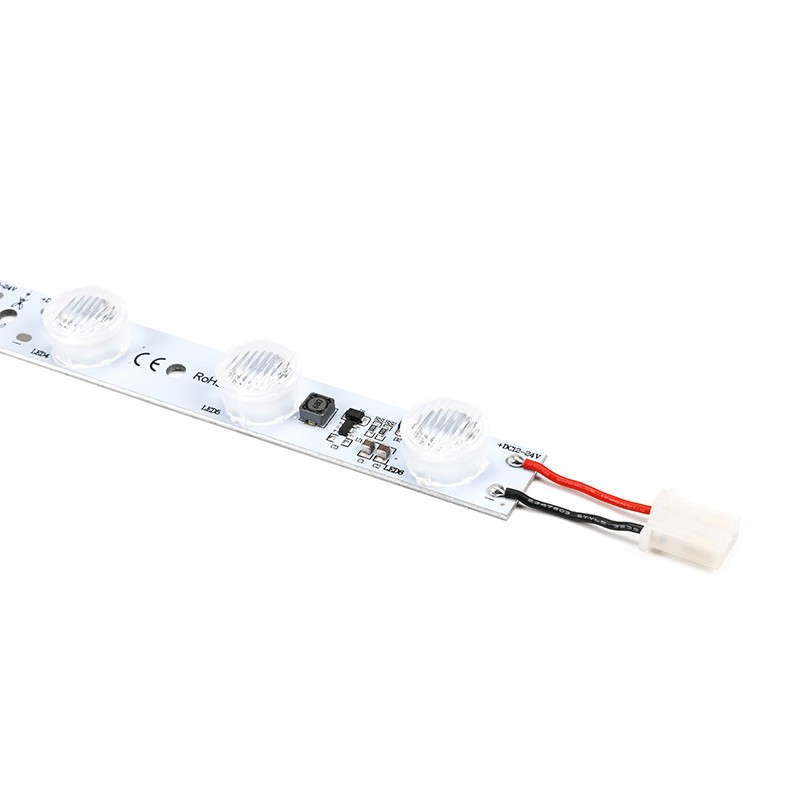

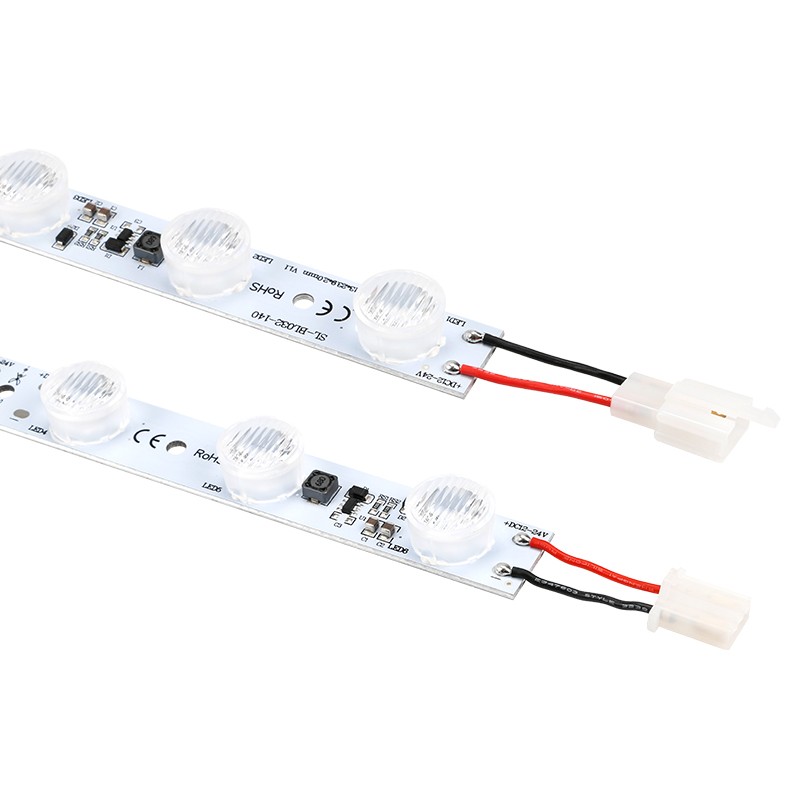

The pictures show an aluminium-supported lens bar with red and black leads and white plugs. Confirm polarity, connector compatibility and the matching 24V DC supply for the installation.

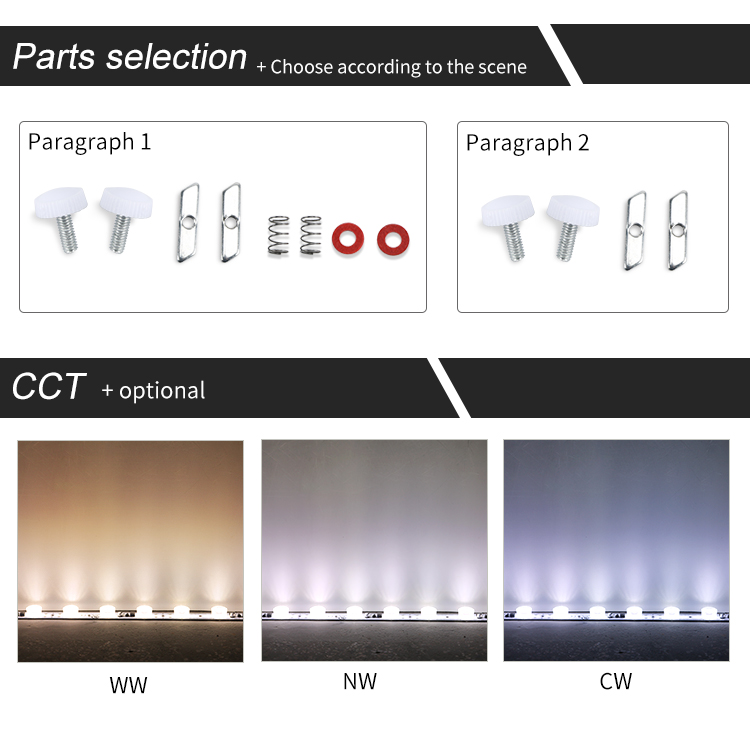

Two fixing-part arrangements are pictured, using white threaded knobs and metal pieces; one also includes springs and red washers. Provide the frame section to agree the mounting method, clearances and supplied hardware.

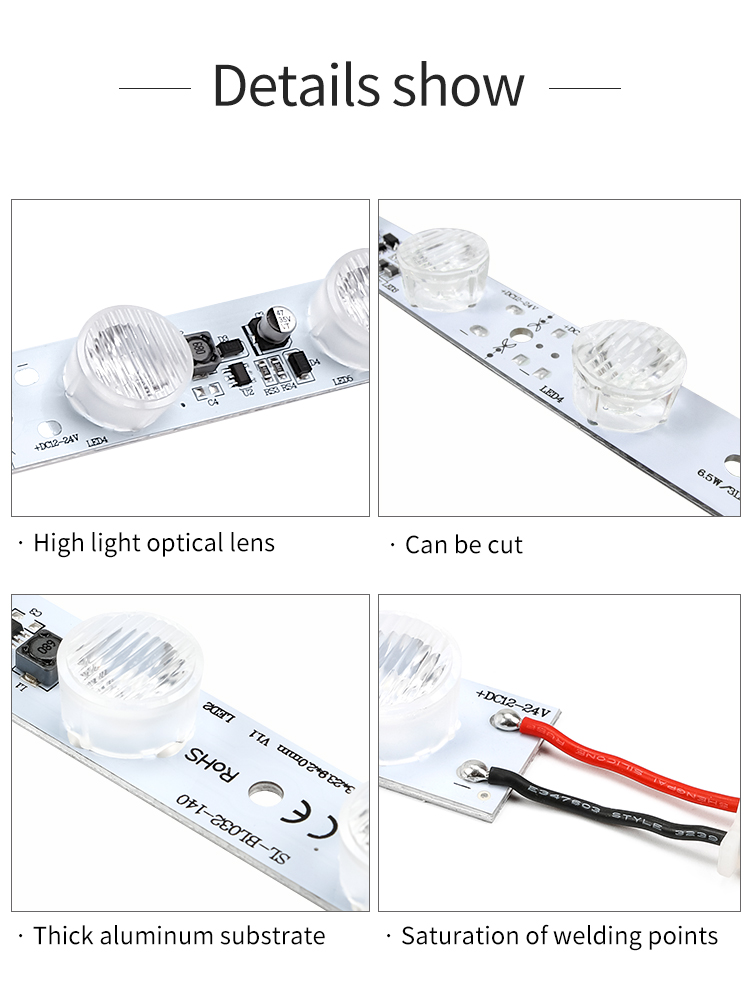

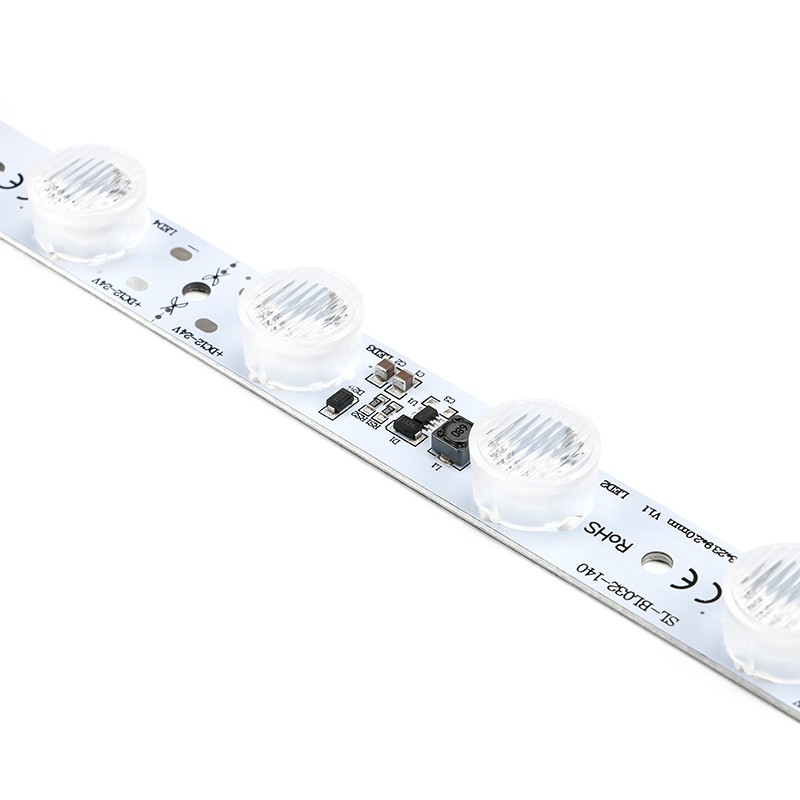

The detail image illustrates marked segmentation positions. If a shorter assembly is required, request an approved cut layout and confirm the resulting power, wiring and connection points. Agree the delivered format before production.
Lightbox applications and wholesale packing

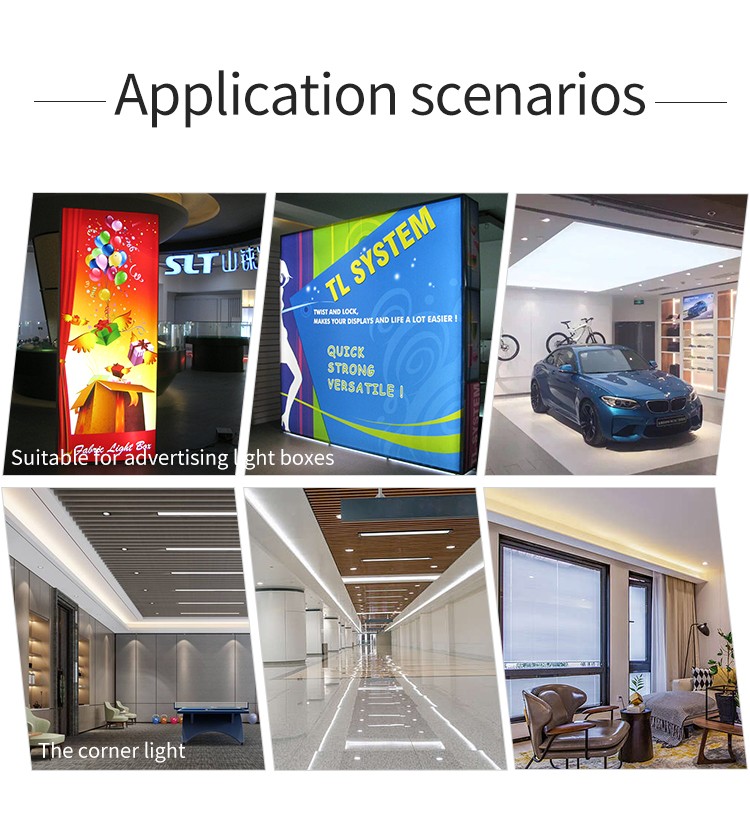

The original artwork shows advertising lightboxes and interior lighting concepts. Use a sample in the intended enclosure and graphic material to check lens direction, bar positions and white-light appearance.
Packaging pictures show individual white boxes and packed cartons. Confirm the number of bars, fixing parts, connection leads and marking required. Samples, OEM, ODM and private-label enquiries are supported; sample cost and shipping are confirmed separately.
Six-LED lightbox bar purchasing questions
Can this 14W lightbox bar be ordered with CRI 90+ LEDs?
Yes. Specify CRI 90+ and the desired white-light range with the enquiry so the quoted sample and production configuration can match the colour-rendering requirement. Request the relevant model-specific technical information for your project.
Can the 313mm bar be supplied in a shorter layout?
The original detail image shows segmentation positions. Share the required finished length and frame drawing to confirm a permitted cut layout, revised electrical data and connection arrangement before ordering.
Which fixing parts should I request for the display frame?
Provide the frame profile, fixing-hole arrangement and available clearance. Select the applicable pictured mounting set and confirm the supplied hardware quantity with the quotation.
What quantity and production schedule apply to wholesale orders?
Orders start at 20 pcs, with lower unit prices at larger quantities. Standard lead time is 12–18 days; confirm the schedule for the white-light version, CRI requirement, quantity and custom packing. Transit time is agreed separately.
