950mm RGB LED Ladder Light - 8.6W, Four-Wire Connections

950mm RGB LED ladder lights for colour backlighting

Specify the RGB light source and control arrangement for the display project. The catalogue ordering reference SL-BM068-12L-RGB5050 covers a 950 × 20 × 7.6mm bar listed at 8.6W, 24V DC and twelve LEDs, with 170° optics. The product sheet gives 230 lm with the red, green and blue channels all illuminated.

For illuminated-sign manufacturers, display integrators and wholesale lighting buyers, define the intended colour operation together with the bar layout, power unit and mating leads. Provide the enclosure drawing, graphic material and control requirements to approve a matching sample before bulk production.

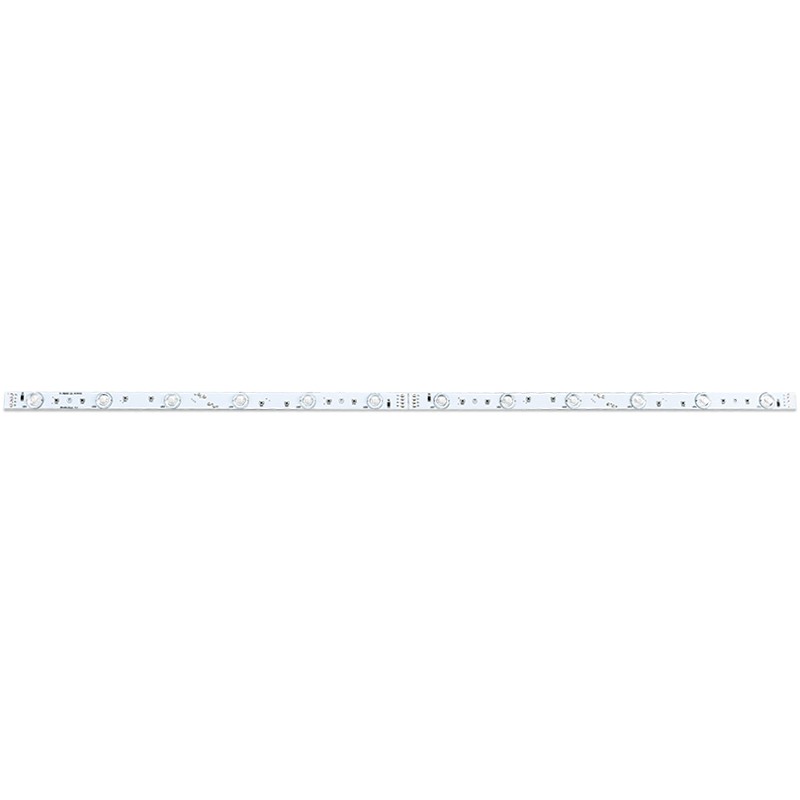

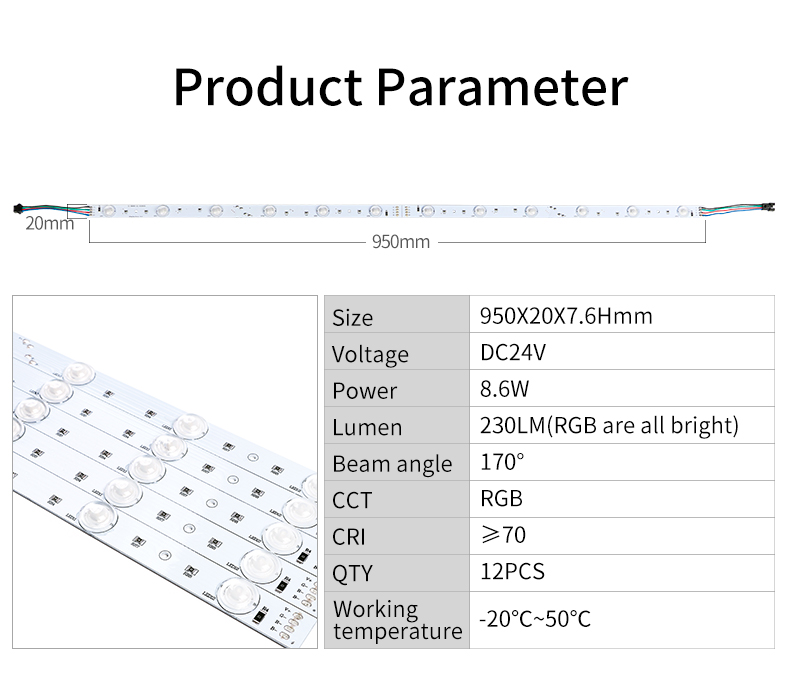

950mm RGB ladder bar technical specification

Four-wire RGB connection and control requirements

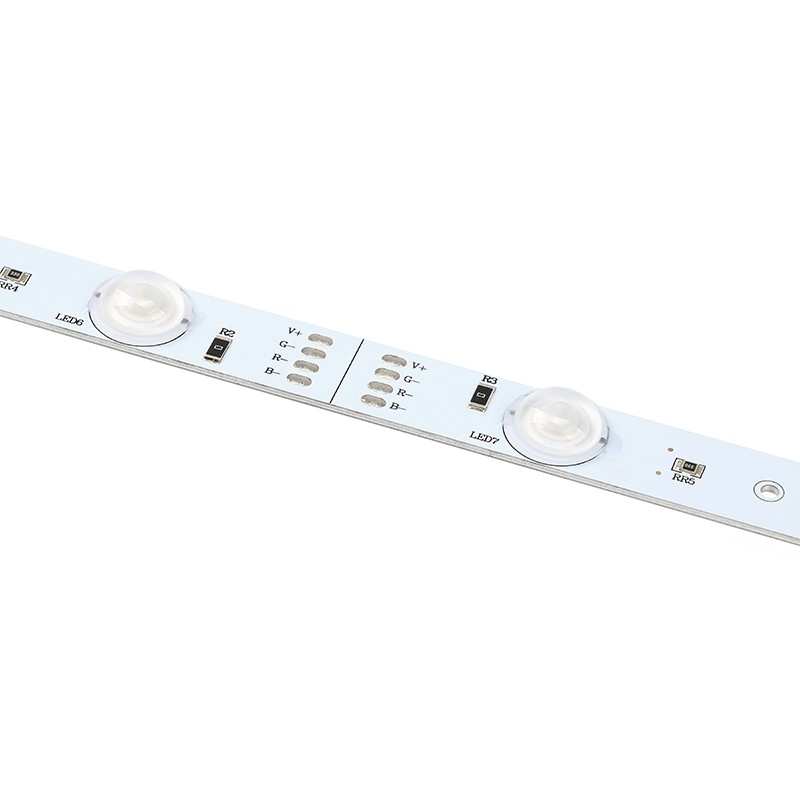

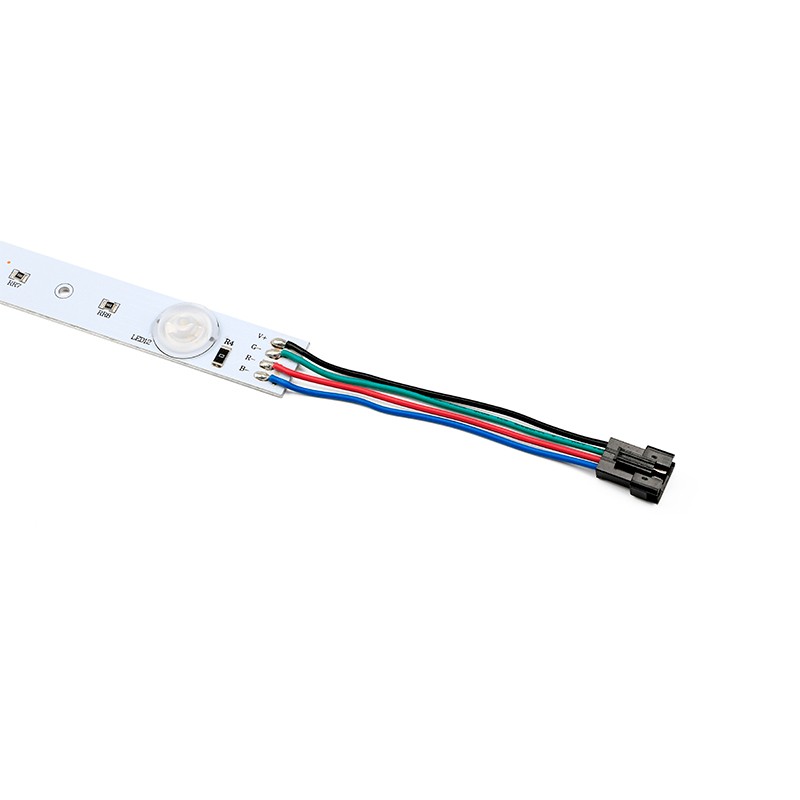

The detail picture shows four leads soldered to V+ and G, R and B channel markings. Confirm the supplied channel mapping and mating connectors when selecting the power unit and RGB control equipment.

State the intended colour operation and control-system requirements with the enquiry. The sample quotation should identify the light bars, any control equipment, power unit and connection leads required for the project. Approve the electrical arrangement and permitted bar quantity before assembly.

Colour appearance and display-layout assessment

The colour artwork illustrates a range of appearances for project selection. Approve the required RGB appearance and operation using the intended graphic and enclosure so the selected control configuration matches the display concept.

The 230 lm figure in the sheet applies with all RGB channels illuminated. Confirm channel-specific data where the project requires a defined single-colour output. The source has a listed 170° optic and complete 950 × 20 × 7.6mm dimensions for layout assessment.

RGB backlighting samples and wholesale production

The application pictures include advertising lightboxes, coloured display arrays and retail-lighting concepts. Provide the face material, bar positions, cable route and control requirement to define a sample for the actual enclosure.

Samples are available, with cost and destination shipping confirmed separately. Wholesale orders start at 20 pcs and larger quantities receive lower unit prices. Standard lead time is 12–18 days, with custom work and transit agreed separately. OEM, ODM and private-label requirements can include markings, assembly grouping and packing specifications.

RGB ladder backlight purchasing questions

Does 230 lm apply to each individual RGB colour?

The product sheet states 230 lm with red, green and blue all illuminated. Request channel-specific technical data if the project needs a defined single-colour output.

What control information is needed for a four-wire RGB sample?

Provide the intended colour operation, control-system requirements and electrical layout. Confirm the delivered channel mapping, mating leads, power unit and selected control equipment with the sample quotation.

Which reference should I use in a bulk RGB bar enquiry?

Use the catalogue ordering reference SL-BM068-12L-RGB5050 with the bar quantity, enclosure drawing, graphic material, control requirements and delivery country. Add lead, OEM marking and packing requirements to define the supply scope.

How should the bar layout be approved for a display?

Use the 950 × 20 × 7.6mm dimensions and proposed mounting positions in the project drawing. Approve a sample with the intended graphic, selected colour operation and agreed electrical configuration before placing the bulk order.
