Aluminium-clamp lighting for exhibition display panels

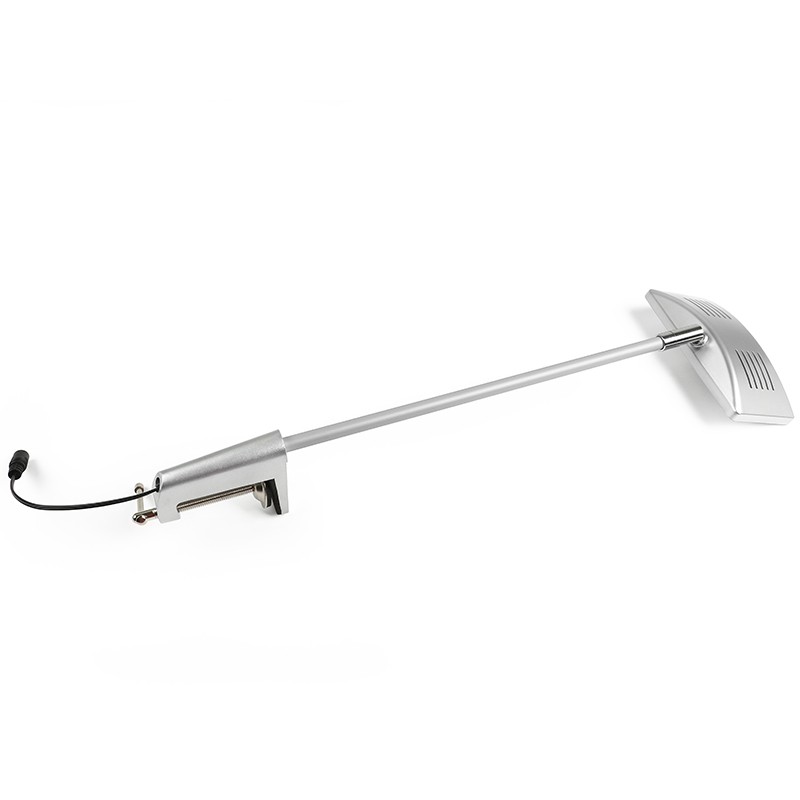

The SL-006-78L is a 7W aluminium-clamp display light with 78 LEDs, specified 450 lm output and a 60° beam. Its silver long-arm assembly measures 535 × 140 × 35 mm, with a DC plug and DC 12V input. The adjustable head directs light towards the graphic face.
For display-system suppliers and stand contractors, define the clamp position, frame dimensions and power connection before placing a bulk order. Send the graphic size, required white-light version and lamp quantity to specify a sample kit for the intended frame.

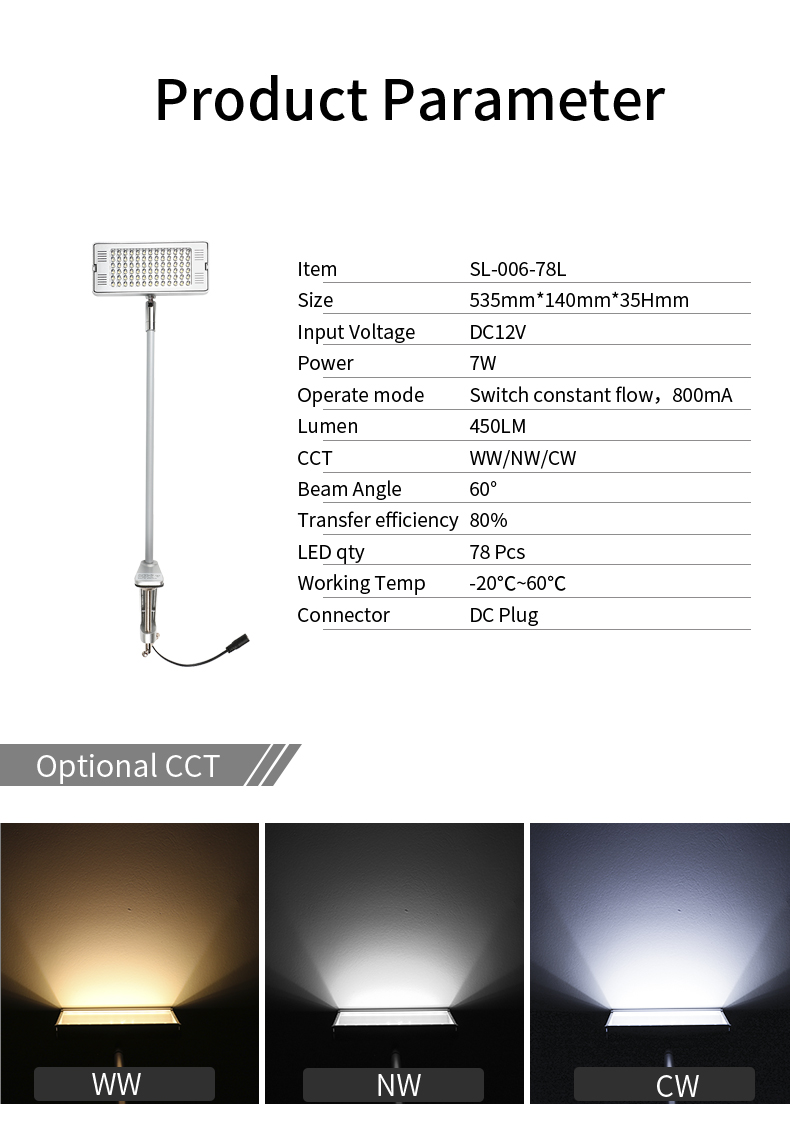

7W aluminium-clamp lamp specifications
| Specification | SL-006-78L |
|---|
| Model | SL-006-78L |
| Power | 7W |
| LED quantity | 78 |
| Specified light output | 450 lm |
| Beam angle | 60° |
| Lamp input | DC 12V |
| Operating current listed | 800 mA |
| Dimensions | 535 × 140 × 35 mm |
| White-light order versions | Warm white / Neutral white / Cool white |
| Connection | DC plug |
| Mounting | Aluminium G-clamp |
| Head positioning | Adjustable joint |
| Operating temperature | -20°C to +60°C |
Check the clamp fixing and aim the head

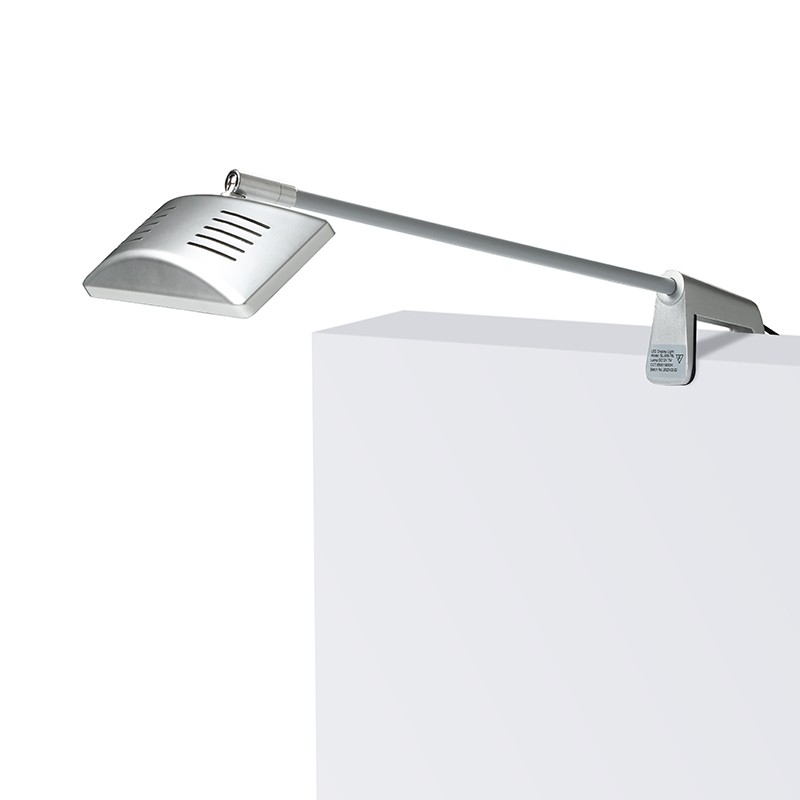

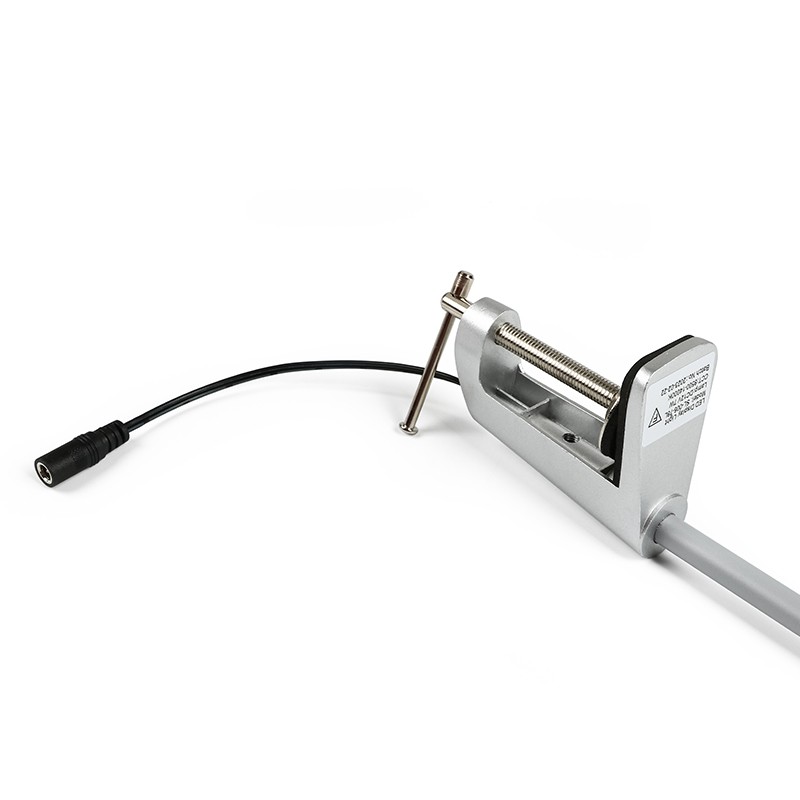

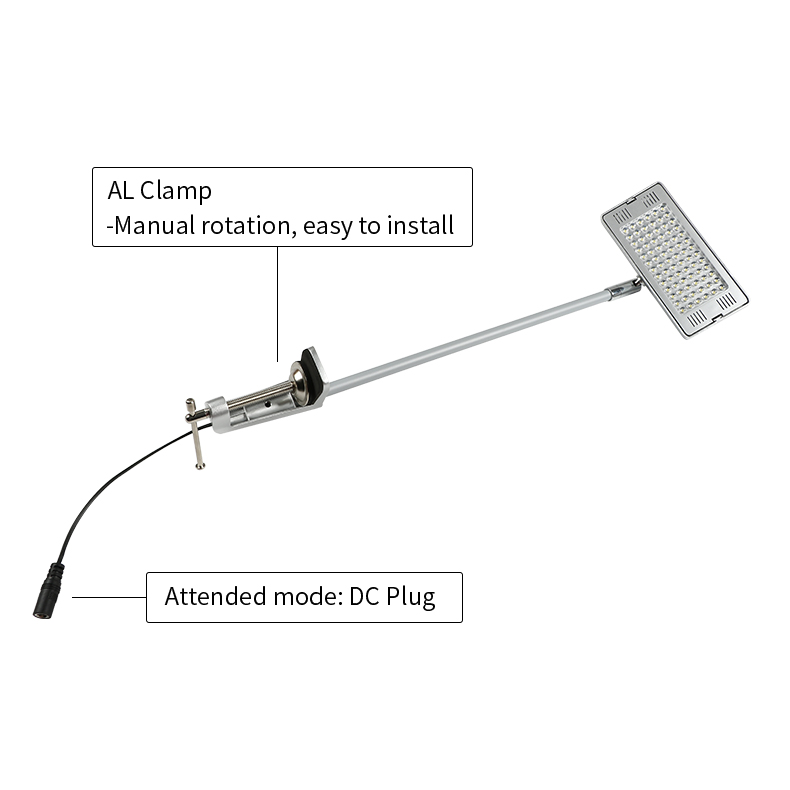

The aluminium G-clamp uses a screw adjustment to secure the arm at the fixing point. Provide the frame cross-section, thickness and intended mounting position so the fitting can be checked.

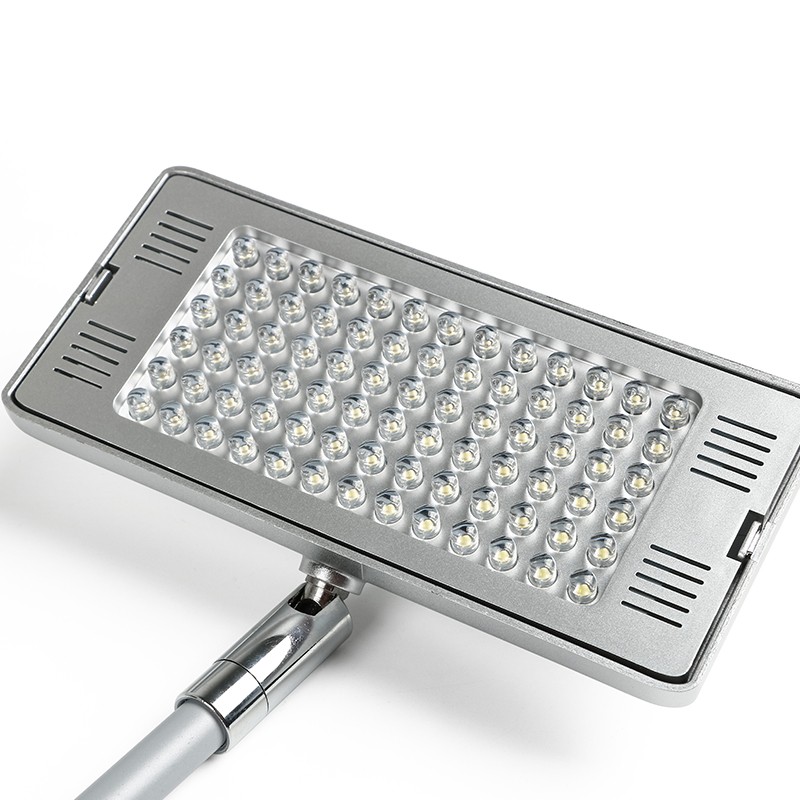

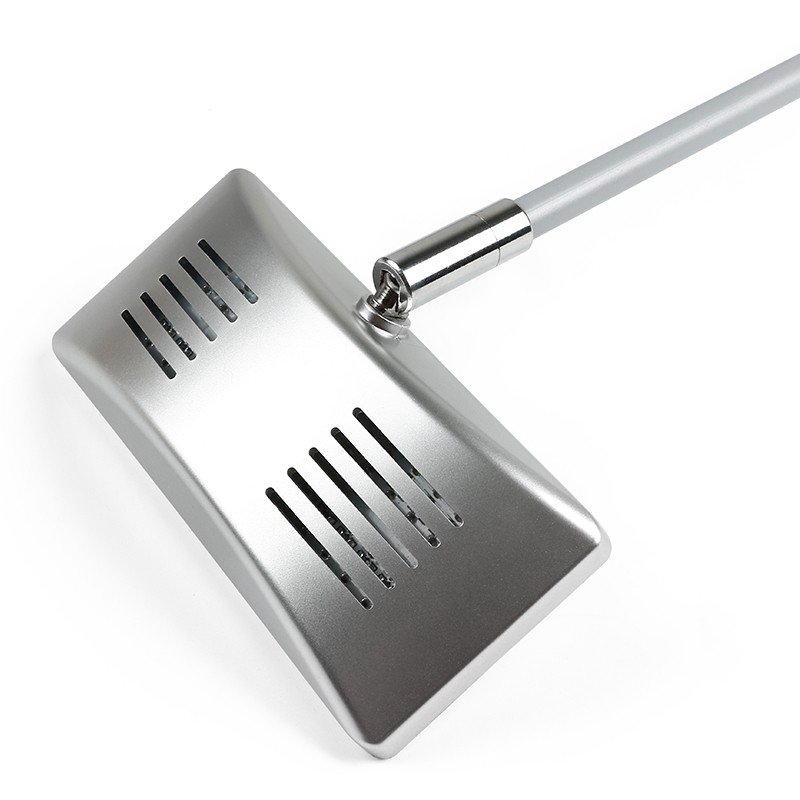

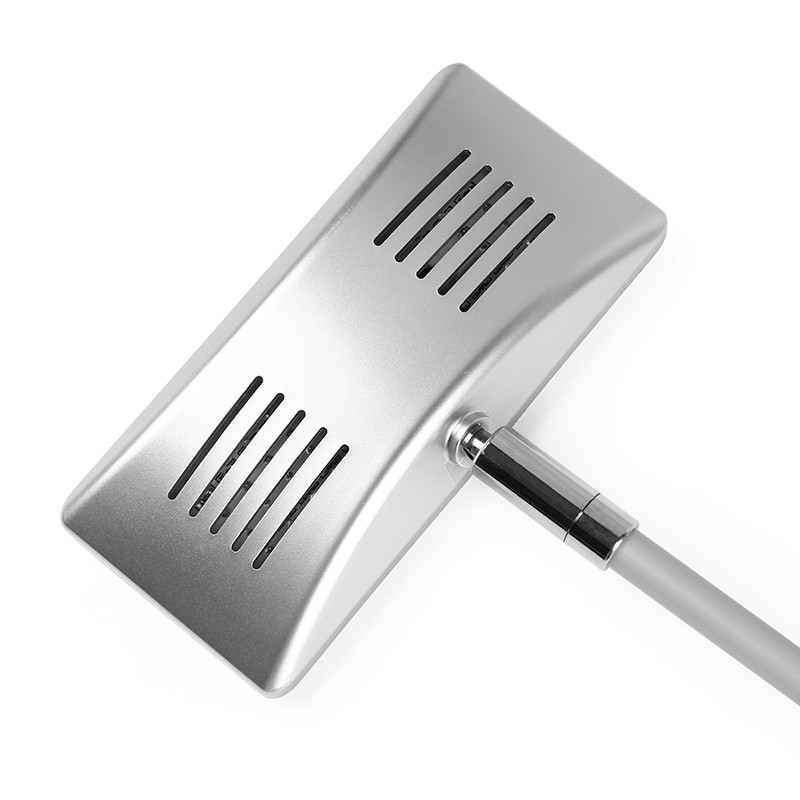

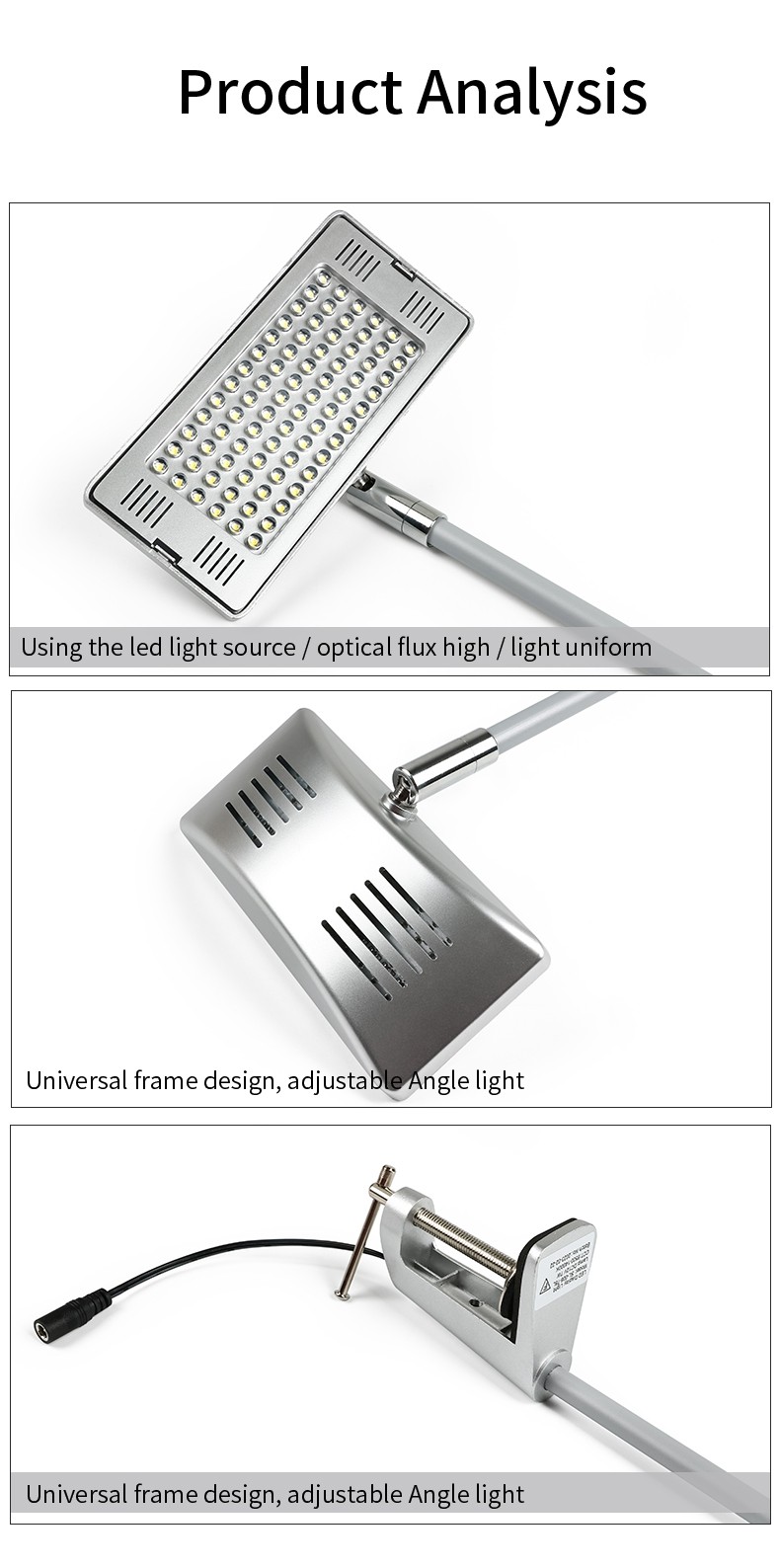

The head joint provides aiming adjustment, and ventilation slots are visible on the rear cover. Test the proposed lamp position on a sample frame before confirming the project quantity.
Plan white-light versions and graphic coverage
Choose warm, neutral or cool white when specifying the order. The original sheet identifies WW, NW and CW; confirm the exact available colour-temperature range for the selected version with the quotation.

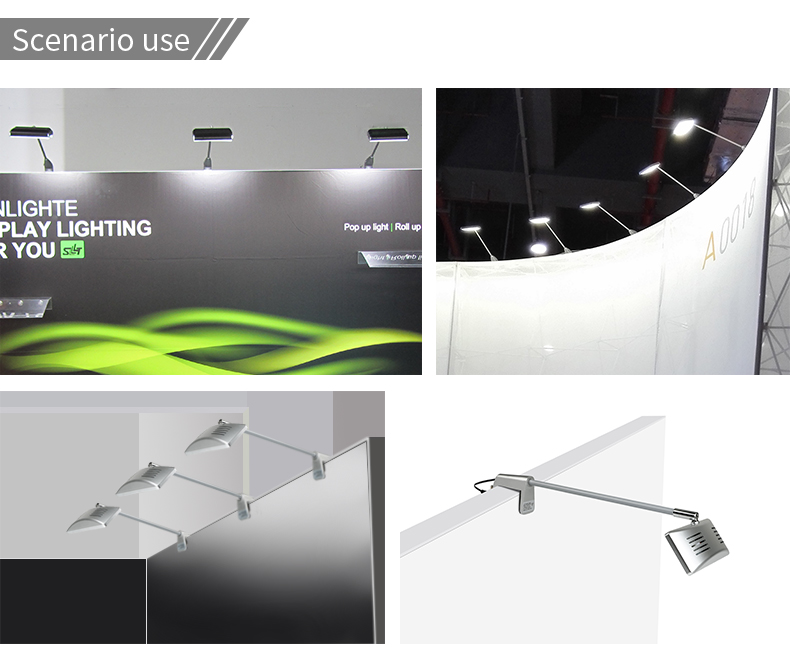

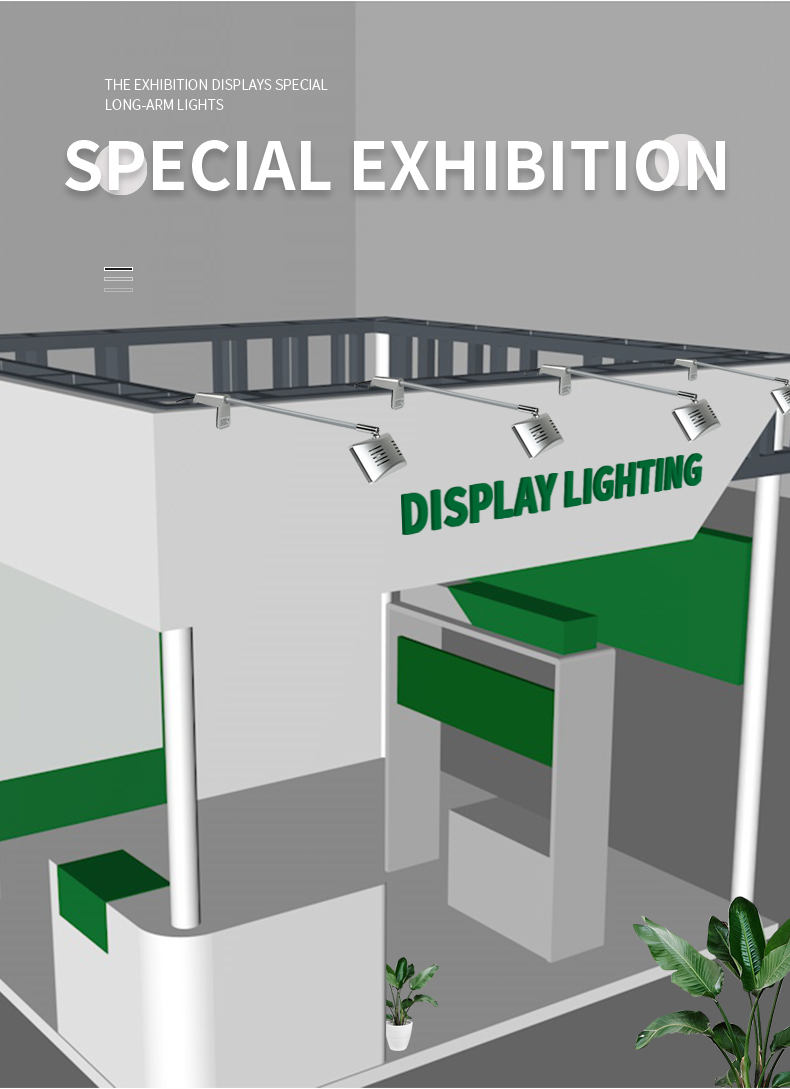

The examples show lamps above exhibition graphic panels. Use the panel dimensions, mounting height and surrounding lighting to evaluate beam overlap and lamp spacing.
Specify the 12V supply and protected packing

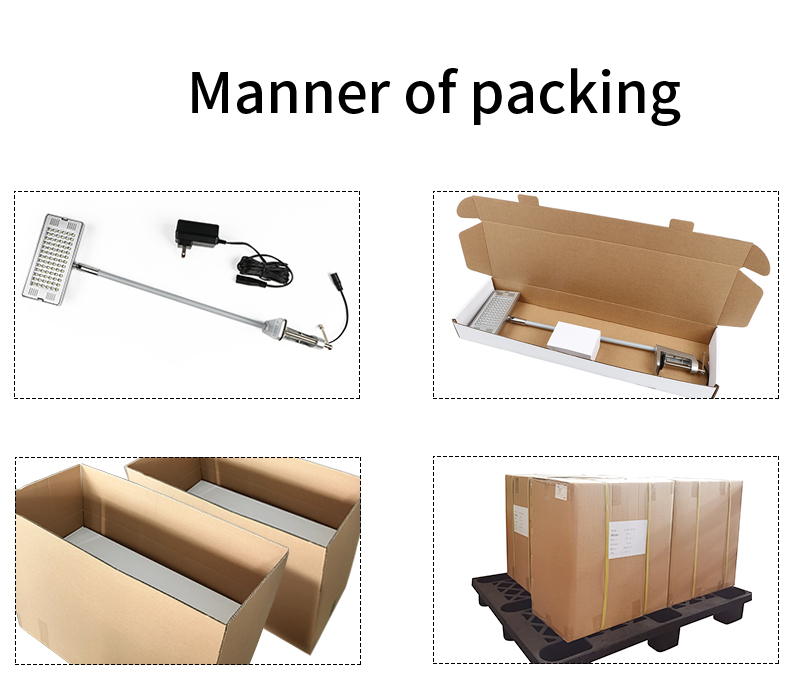

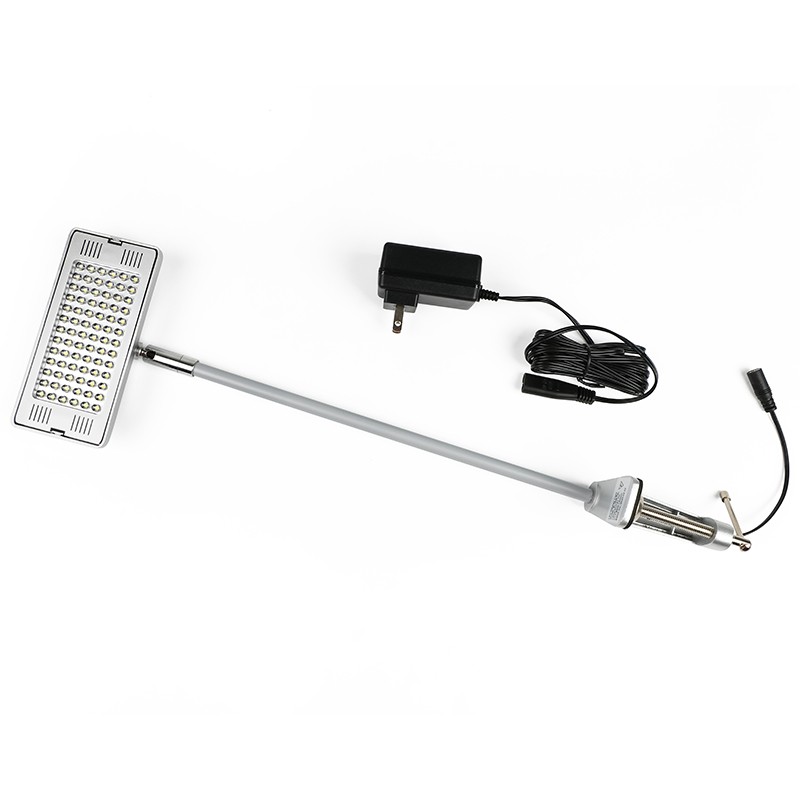

The lamp is listed for DC 12V with 800 mA operating information. The packing example shows a wall-plug power unit; request the matching connection, destination plug and electrical configuration as a complete kit.
Individual lamp cartons and outer cartons are pictured. Confirm the included components, lead lengths, carton quantities and any branding requirements for the wholesale order.
Questions for clamp-light procurement
What information is needed to check the clamp?
Send the frame profile, thickness, available fixing area and lamp position. These dimensions allow the aluminium G-clamp arrangement to be checked for your display.
Can I order a warmer or cooler light appearance?
Specify warm, neutral or cool white with the enquiry. Confirm the exact colour-temperature version using a sample with the final graphics.
How do I request a sample or bulk kit?
Include SL-006-78L, quantity, frame dimensions, white-light version, power kit and destination. Samples are available; wholesale orders start from 20 pcs, with lower unit prices at higher quantities.
Factory supply and order schedule
Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported. Sample cost, shipping, custom schedules, transit and required model-specific market documents are confirmed separately.
