Clip-on LED lighting for banner stand graphics

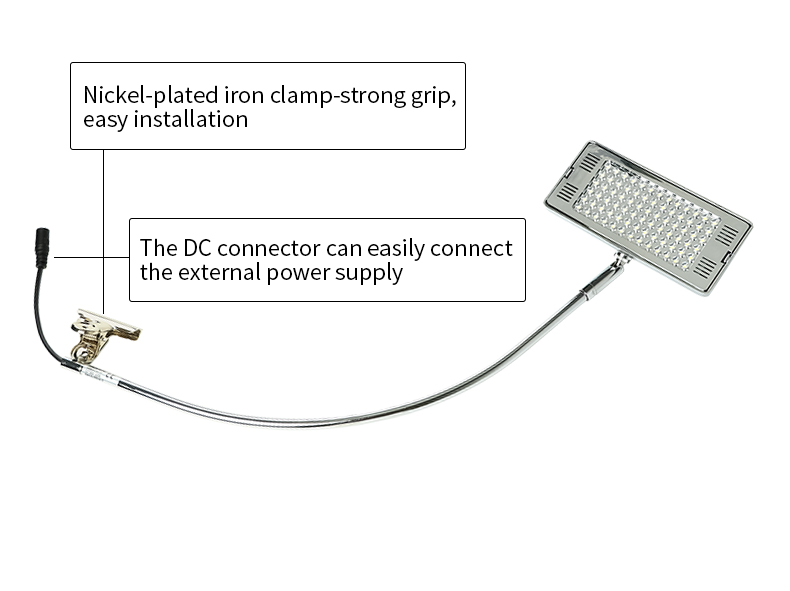

The SL-001-78L is a 7W clip-on LED banner light with 78 LEDs, specified 450 lm output and a 60° beam. Its nickel-plated iron clip and DC plug form a mounting and power arrangement for suitable display structures. Listed dimensions are 505 × 160 × 35 mm, with DC 12V input.
For roller-banner suppliers and portable-display buyers, check the top rail or fixing profile against the clip before ordering. Share the graphic width and height, available mounting area, white-light version and quantity so the sample and wholesale kit can be defined.

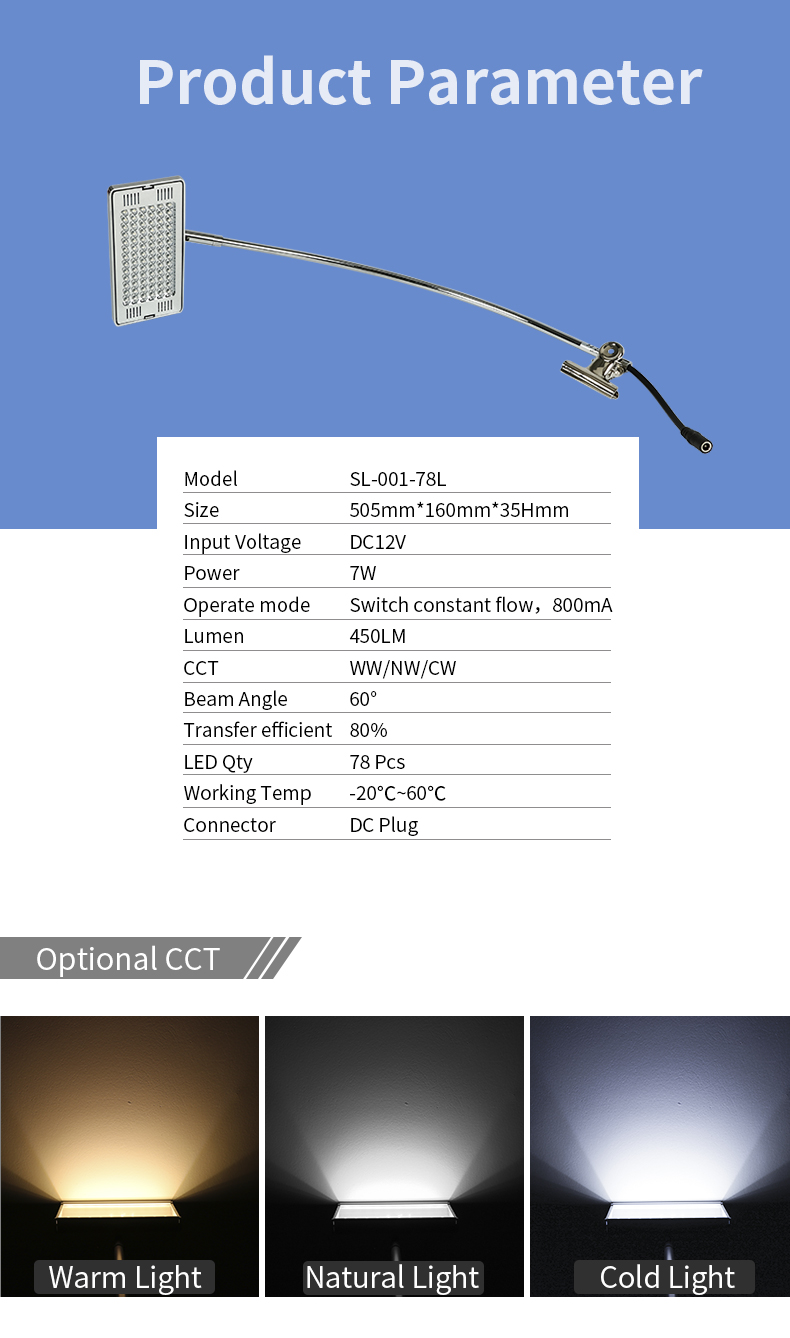

7W clip-on banner-light specifications
| Specification | SL-001-78L |
|---|
| Model | SL-001-78L |
| Power | 7W |
| LED quantity | 78 |
| Specified light output | 450 lm |
| Beam angle | 60° |
| Lamp input | DC 12V |
| Operating current listed | 800 mA |
| Dimensions | 505 × 160 × 35 mm |
| White-light order versions | Warm white / Neutral white / Cool white |
| Connection | DC plug |
| Mounting | Nickel-plated iron clip |
| Head positioning | Adjustable joint |
| Operating temperature | -20°C to +60°C |
Check the clip fixing and aim at the banner face

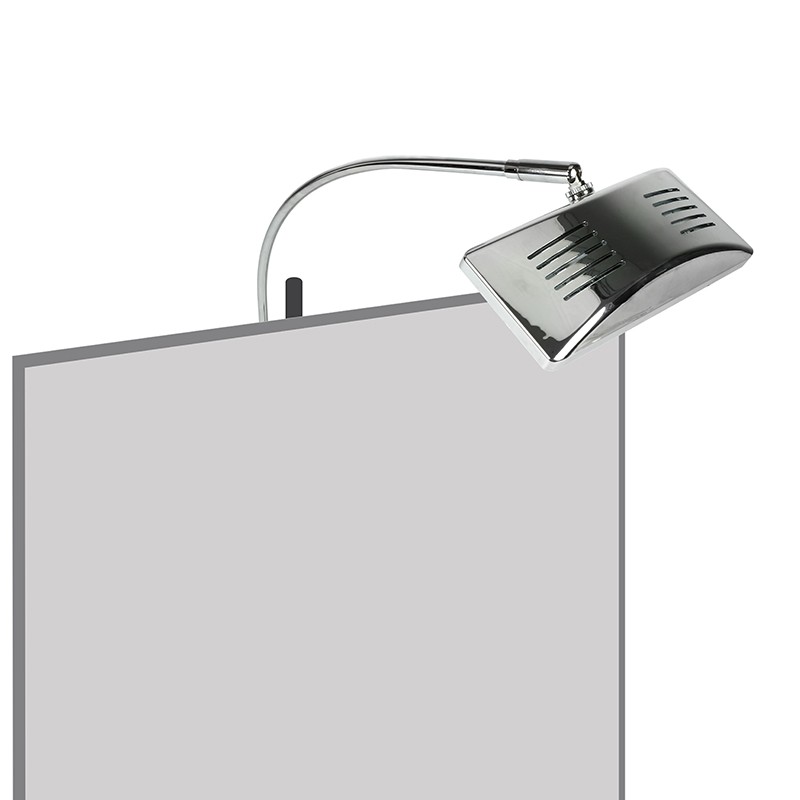

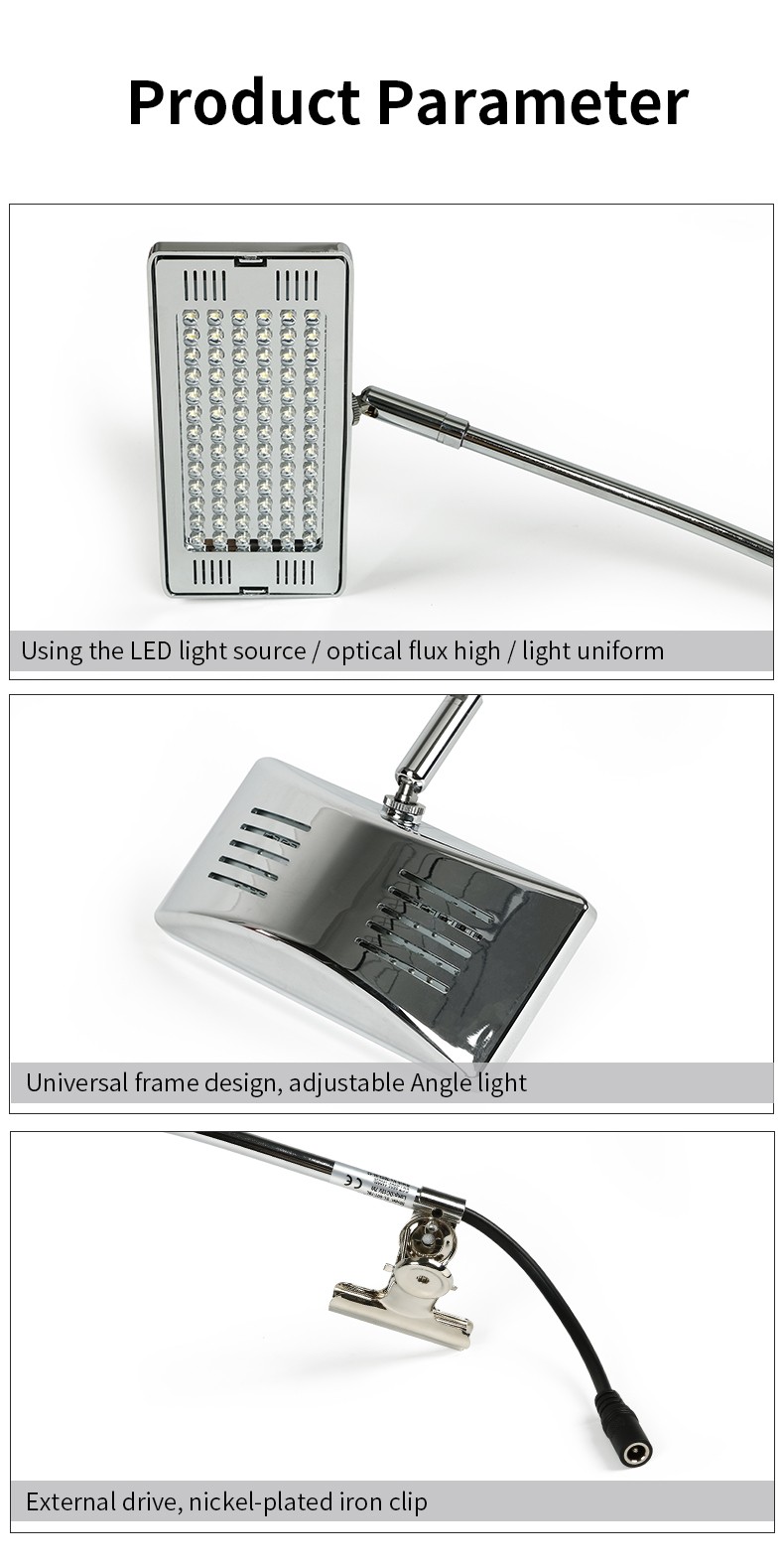

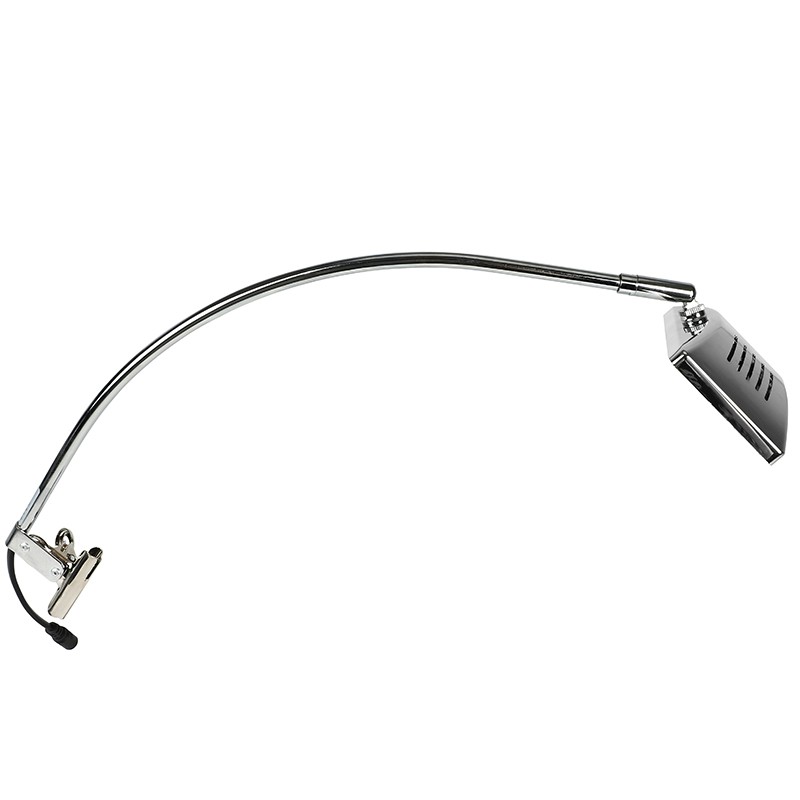

The nickel-plated iron clip grips the selected fixing surface. Supply the top-rail dimensions or frame profile so the arrangement can be checked for your banner stand.

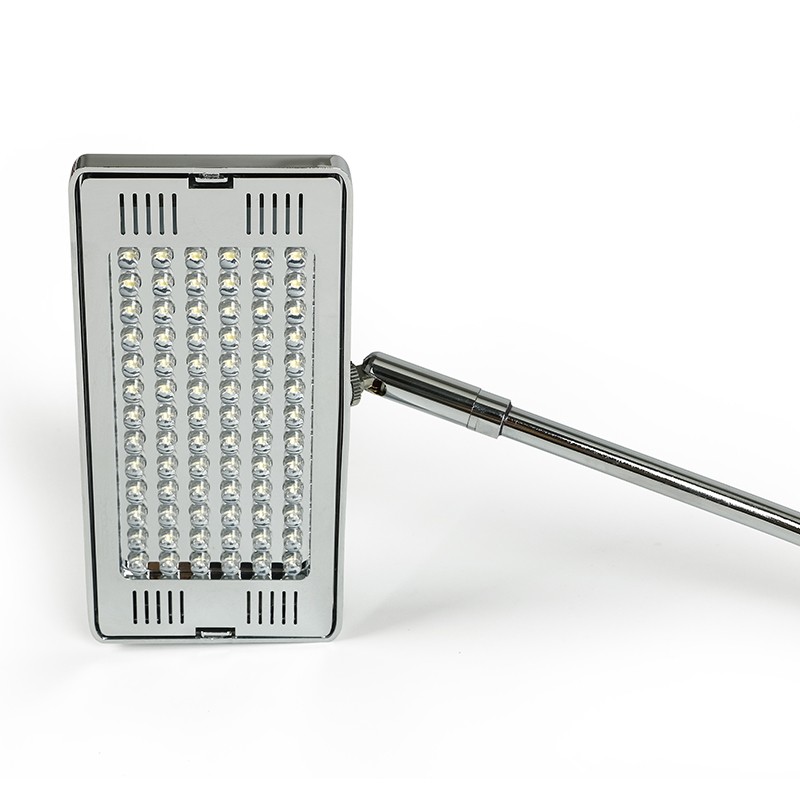

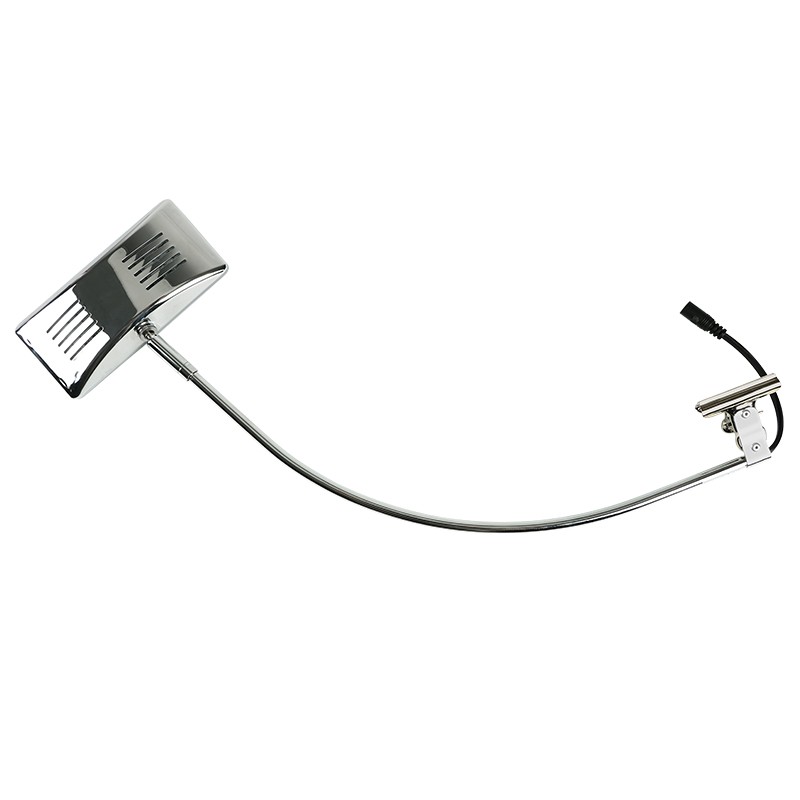

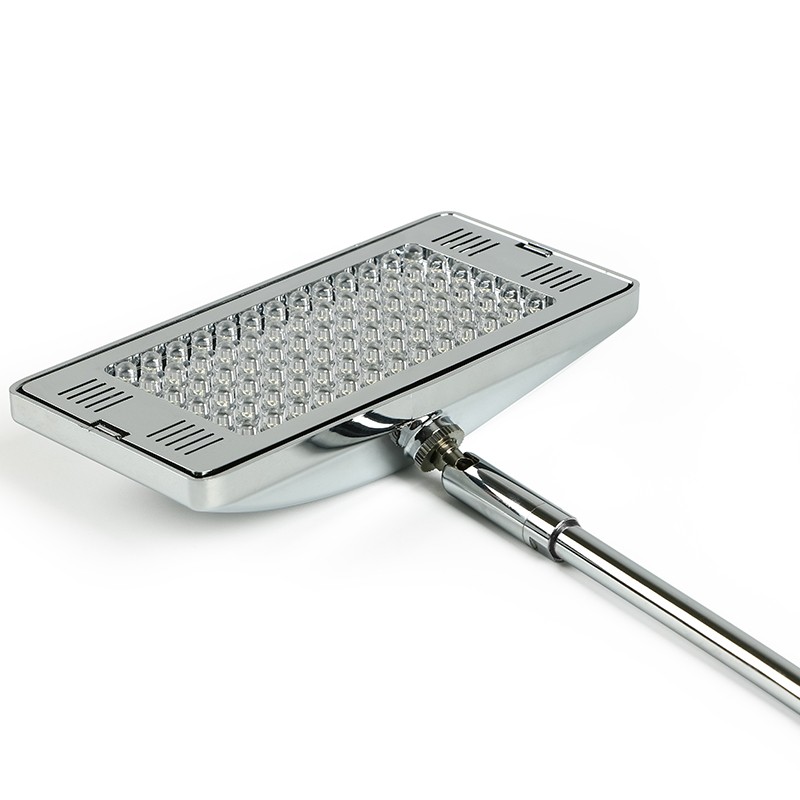

The head joint provides aiming adjustment and the rear cover has ventilation slots. Plan the arm position, graphic clearance and cable route together when evaluating a sample.
Select white-light appearance for roller banners
Choose warm, neutral or cool white with the order. Confirm the exact available colour-temperature range for the selected version; a sample with the printed graphic helps assess the appearance.

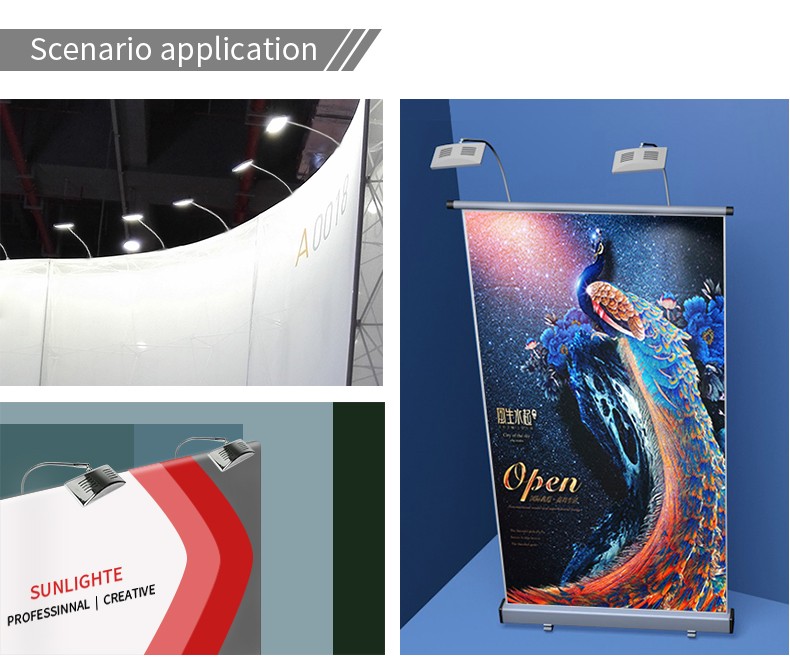

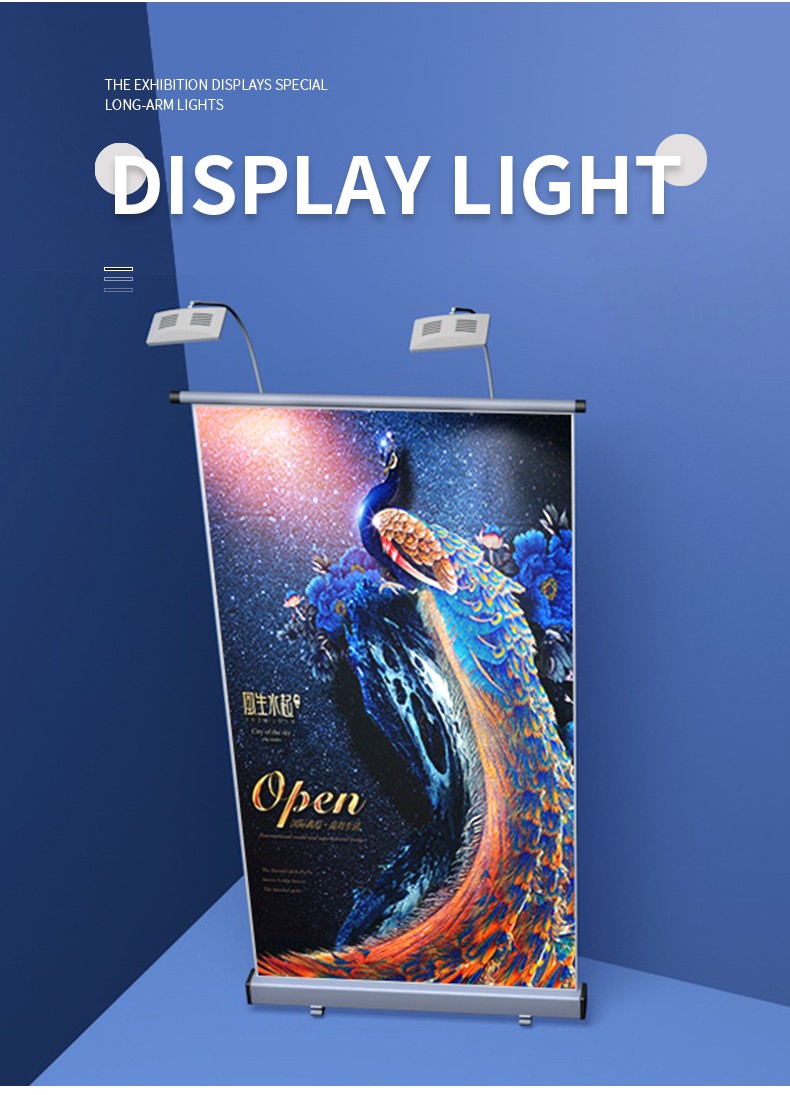

The application images include a roll-up banner and exhibition panels. Use the graphic dimensions and mounting position to determine lamp spacing and beam overlap for the display.
Order the matching supply and portable packing

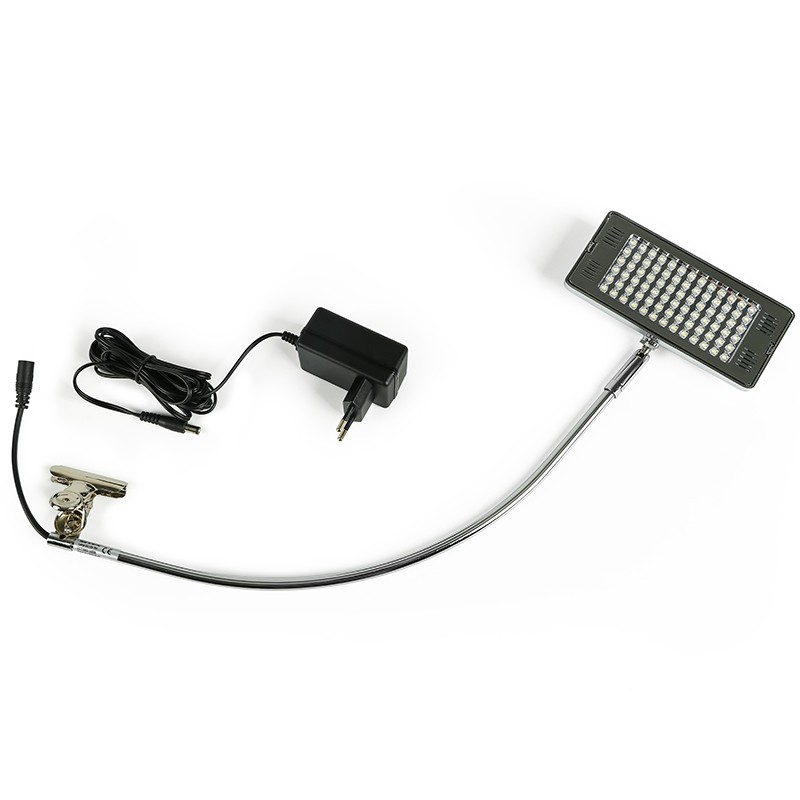

The lamp uses DC 12V with a DC plug and listed 800 mA operating information. Request the matching external power unit, destination plug and leads as a complete configuration.

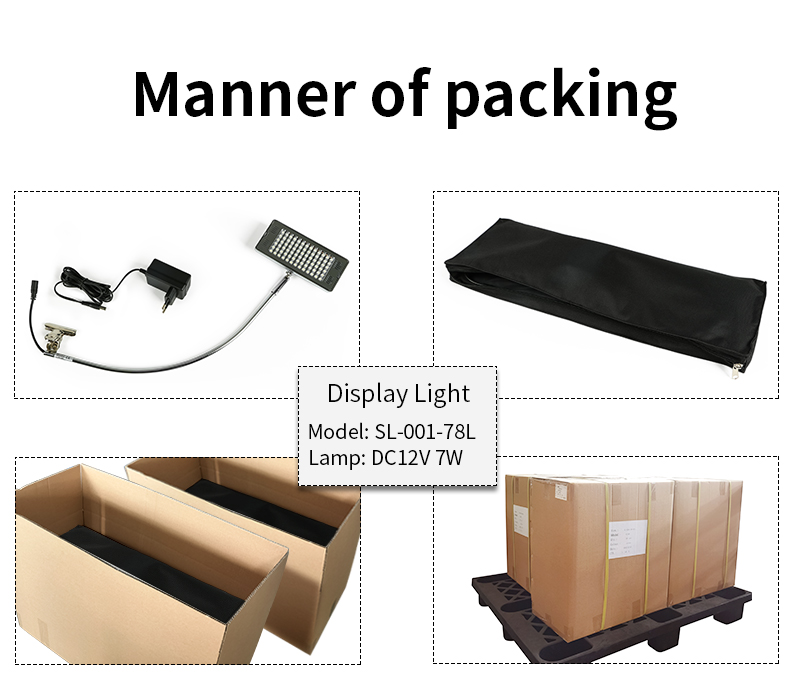

The packing illustration identifies SL-001-78L and DC 12V, 7W, with a power unit, zipped bag and outer cartons. Confirm included components, bag requirements, lead lengths and carton quantities for your batch.
Banner-light purchasing questions
Will the clip fit my roller banner?
Send the fixing profile, top-rail dimensions and available mounting area. The exact fit must be checked before selecting this clip-on kit.
How many lights should I specify?
Provide the banner width and height, mounting positions and surrounding lighting. Evaluate a sample arrangement to establish coverage and overlap before confirming quantity.
What should I include in a wholesale enquiry?
Include SL-001-78L, quantity, banner-frame information, white-light version, power kit and destination. Orders start from 20 pcs, with lower unit prices at higher quantities.
Samples, custom supply and schedule
Samples are available for fitting and graphic-lighting evaluation. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; sample cost, shipping, custom schedules, transit and model-specific documents are confirmed separately.
