Silver LED arm lighting for exhibition graphics

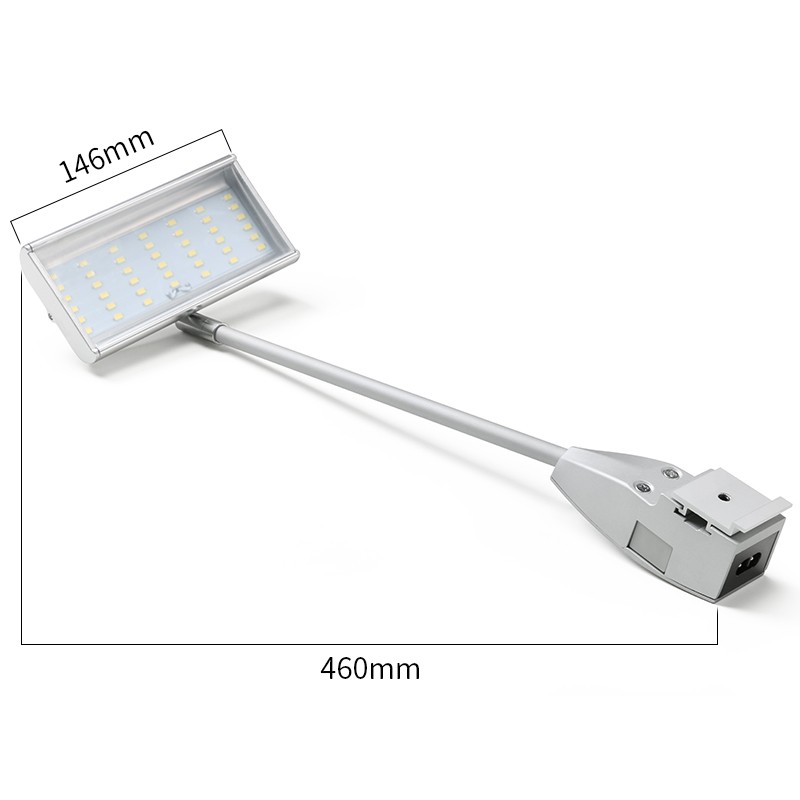

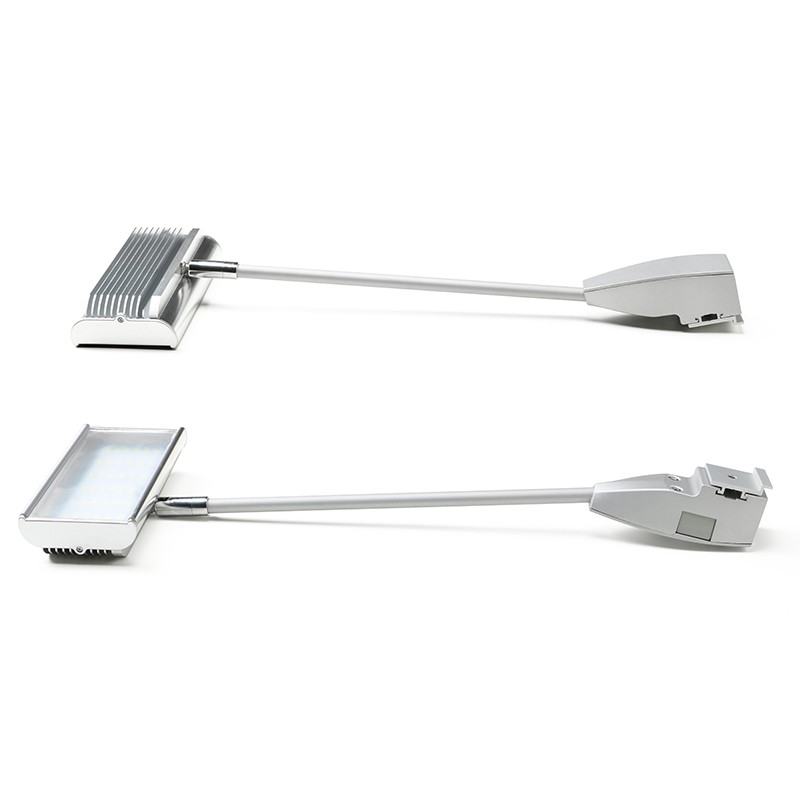

The SL-026-06-42L is a 21W silver exhibition arm light with 42 LEDs, specified 2000 lm output and a 120° beam. Its aluminium base and adjustable head provide a fitting and aiming arrangement for graphic panels, with overall dimensions of 460 × 146 × 40 mm.
For exhibition-light distributors and stand builders, specify the lamp, frame fitting and matching supply together. The listed DC 18–26V and 800 mA operating information, B-shape connection and chosen white-light appearance define the required kit.

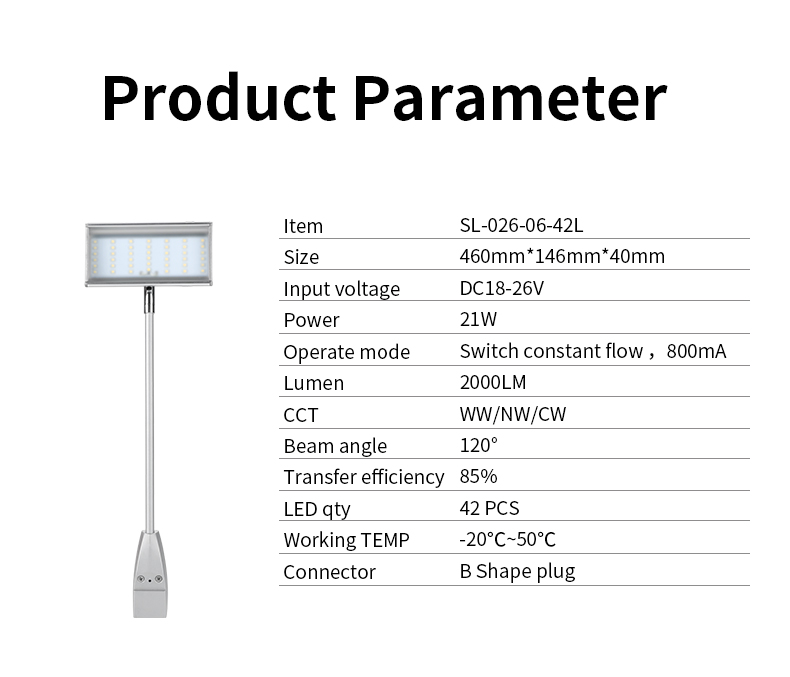

21W silver exhibition-light technical data
| Specification | SL-026-06-42L |
|---|
| Model | SL-026-06-42L |
| Power | 21W |
| LED quantity | 42 |
| Specified light output | 2000 lm |
| Beam angle | 120° |
| Lamp input configuration | DC 18–26V |
| Operating current listed | 800 mA |
| Dimensions | 460 × 146 × 40 mm |
| White-light order options | Warm white / Neutral white / Cool white |
| Connection | B-shape plug |

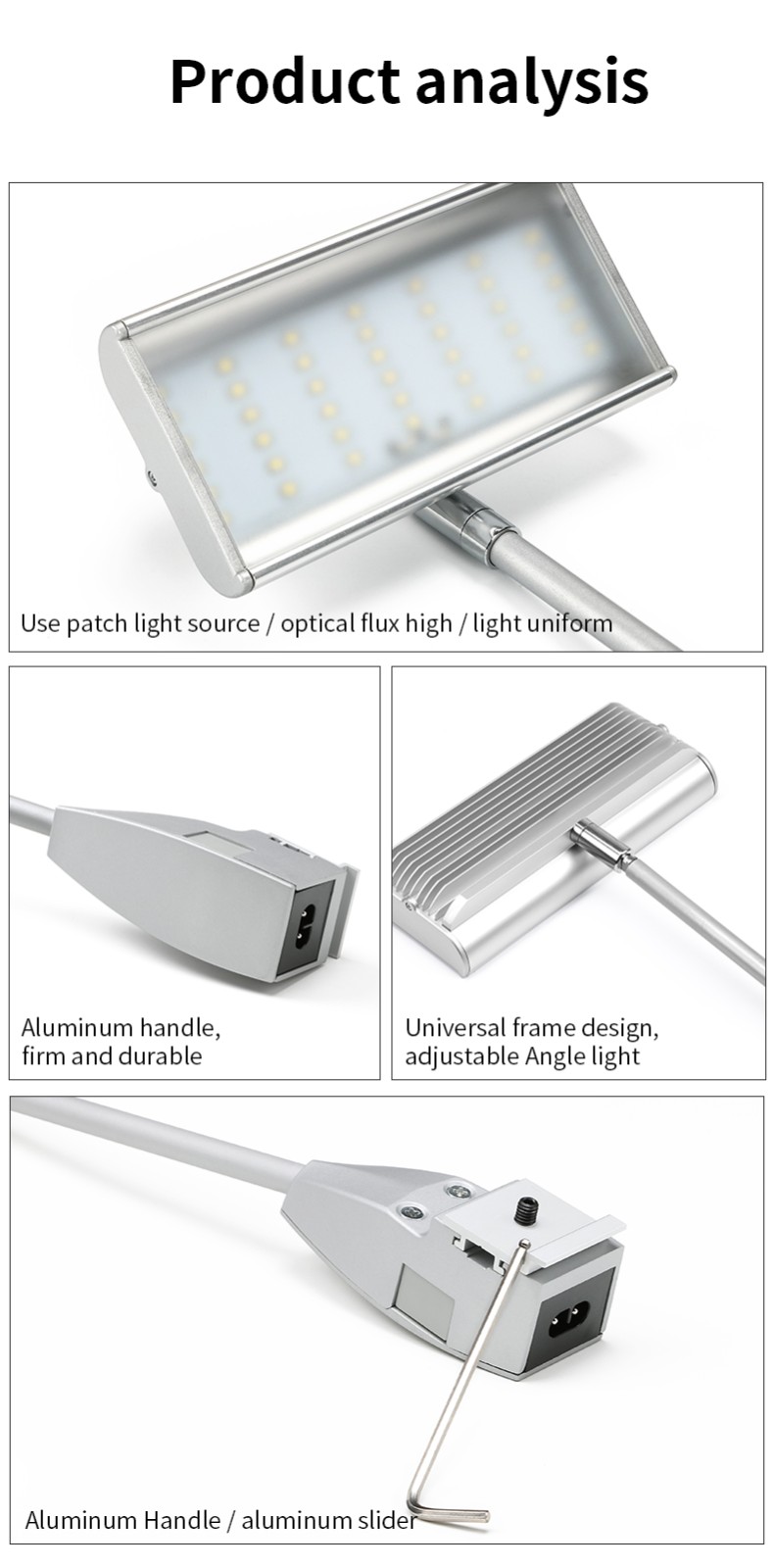

| Base construction | Aluminium base and fixing plate |
| Head positioning | Adjustable joint |
| Optional fittings | Forward/reverse slider; 0505/0525 clamp; 0520 mounting plate |
| Operating temperature | -20°C to +50°C |
Choose the white-light version for the artwork

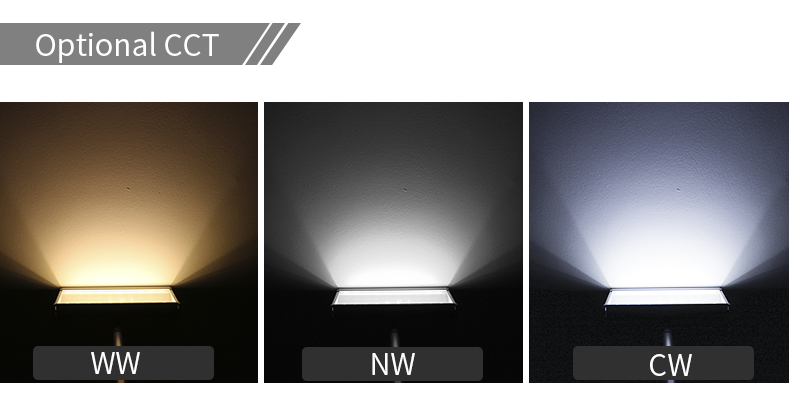

Warm, neutral and cool white appearances are shown as order options. Evaluate a sample alongside the actual printed panel or fabric graphic and the surrounding stand lighting.
State the preferred appearance with the model and quantity. If an exact Kelvin target is required, include it in the enquiry for configuration confirmation.
Mount the aluminium base on the display frame

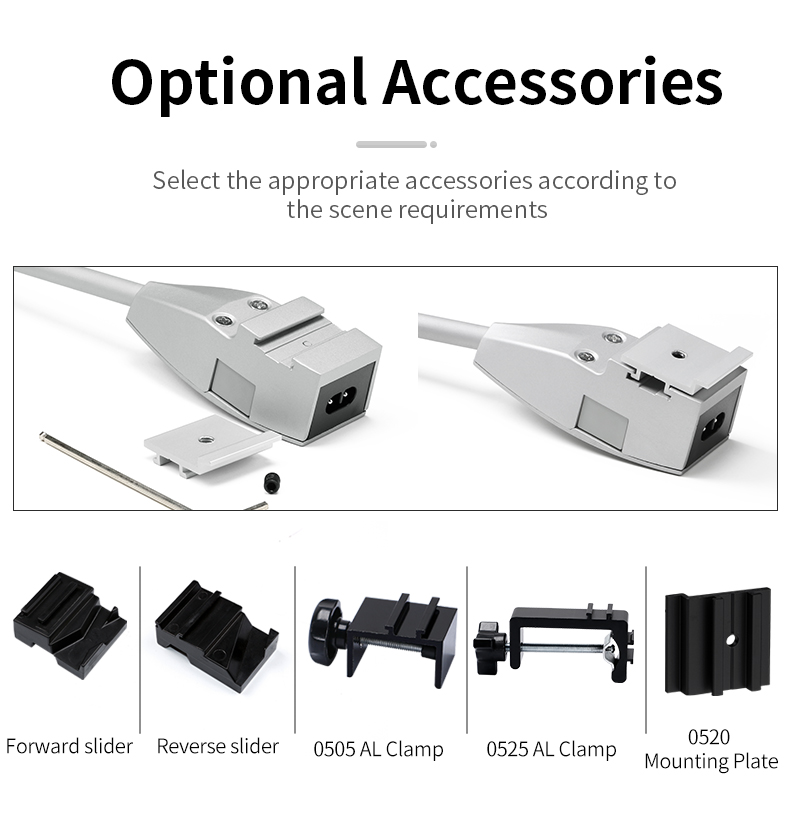

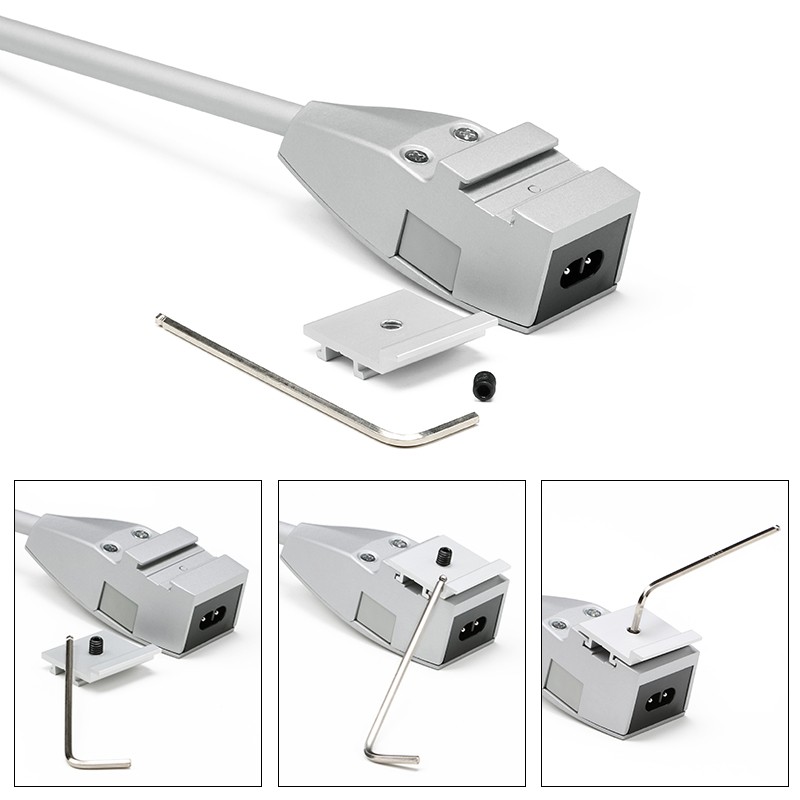

The assembly illustration shows a fixing plate on the aluminium base, with forward and reverse sliders, 0505 and 0525 aluminium clamps and a 0520 mounting plate as accessory options.
Provide the frame section, slot or fixing dimensions and mounting position to select the suitable kit. The adjustable head can then be aimed towards the graphic surface.
Plan the lamp positions along the graphic wall

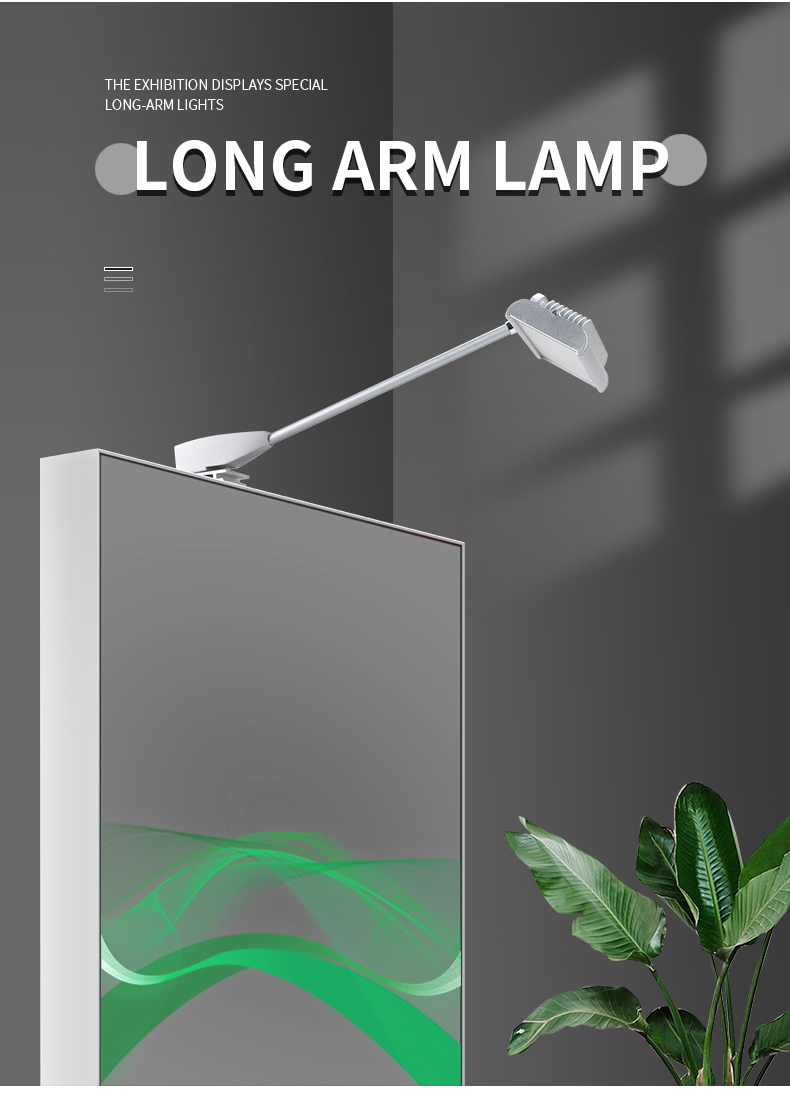

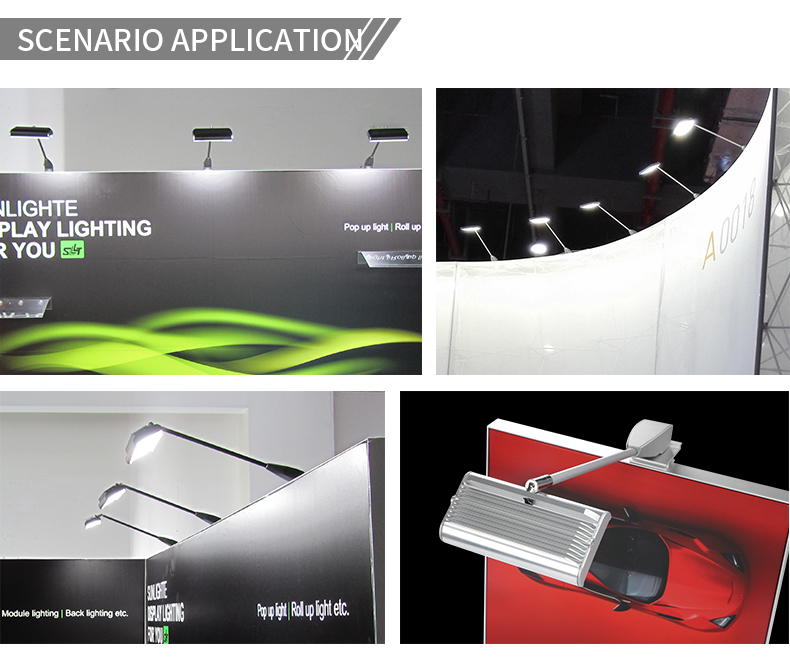

The application examples place silver arm lights above exhibition panels and graphic walls. Use the listed 120° beam, panel dimensions and mounting distance to plan the sample evaluation.
Include the proposed lamp count and cable route with a display drawing. Repeated project kits can then be quoted with the selected fittings and matching power configuration.
Specify the power kit and distributor packaging
The lamp is listed for DC 18–26V with 800 mA operating information and a B-shape connection. Specify the matching supply, destination mains plug and required leads when ordering the lighting kit.

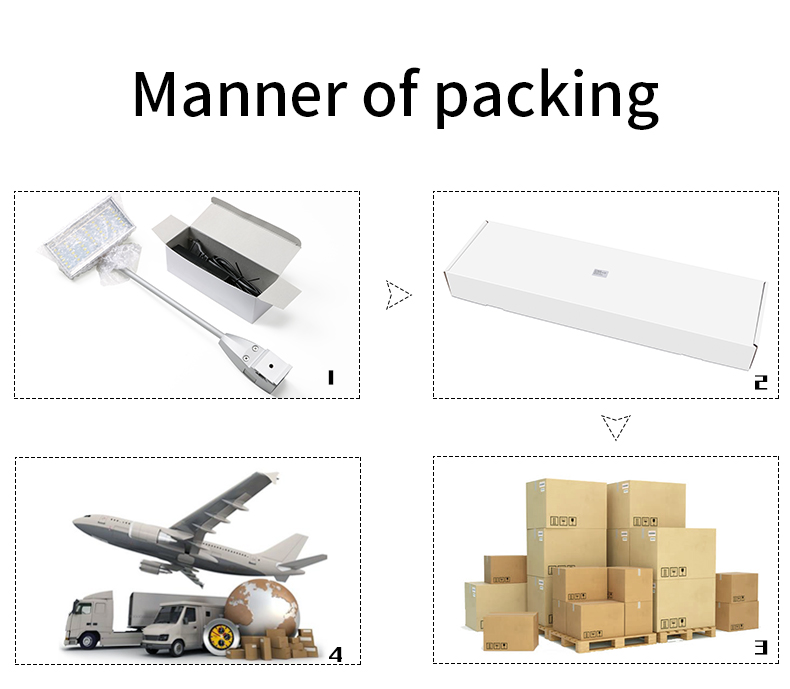

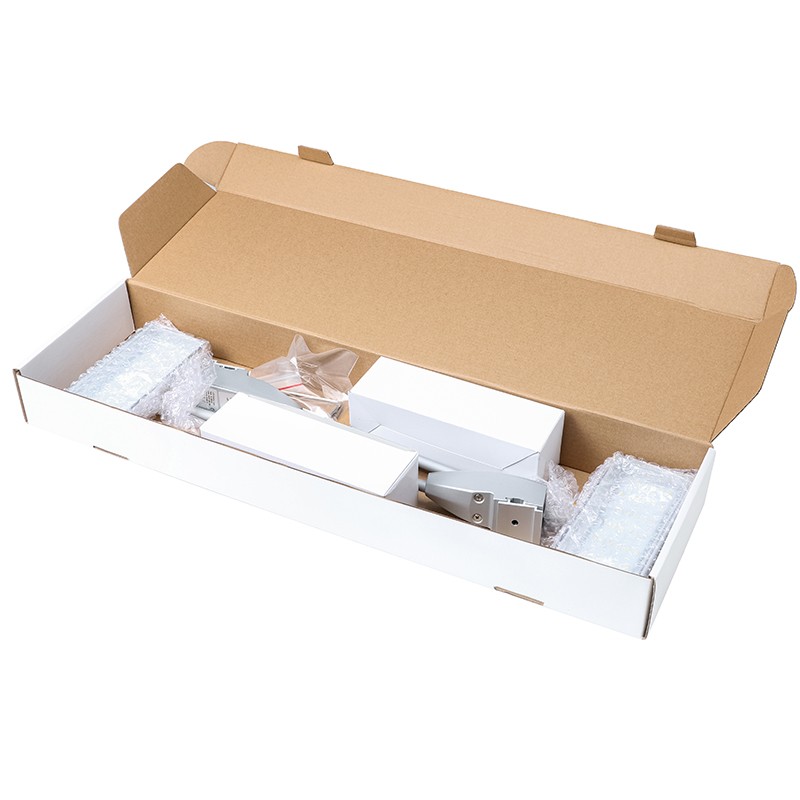

The packing illustration shows the lamp and leads in an individual box, followed by outer cartons. Confirm the included fittings, supply, labels and carton quantities with the wholesale quotation.
Purchasing questions for silver display arm lights
Which white-light options can I order?
The source lists warm, neutral and cool white. State the desired appearance or Kelvin target so the sample and bulk configuration can be confirmed.
Can this replace a lamp on my existing frame?
Provide the current bracket, frame-section dimensions, supply label and connector details. The fitting and electrical arrangement need to match SL-026-06-42L.
How do I request factory pricing and a sample?
Send the model, quantity, white-light appearance, fitting and destination country. Wholesale orders start from 20 pcs, with lower unit prices at higher quantities. Samples are available with cost and shipping confirmed.
Custom supply and production planning
OEM, ODM and private-label enquiries are supported. Standard lead time is 12–18 days; custom work and transit schedules are confirmed separately. Include packing, branding and any model-specific market-document requirements with your enquiry.
