60-LED arm lighting for exhibition backwalls

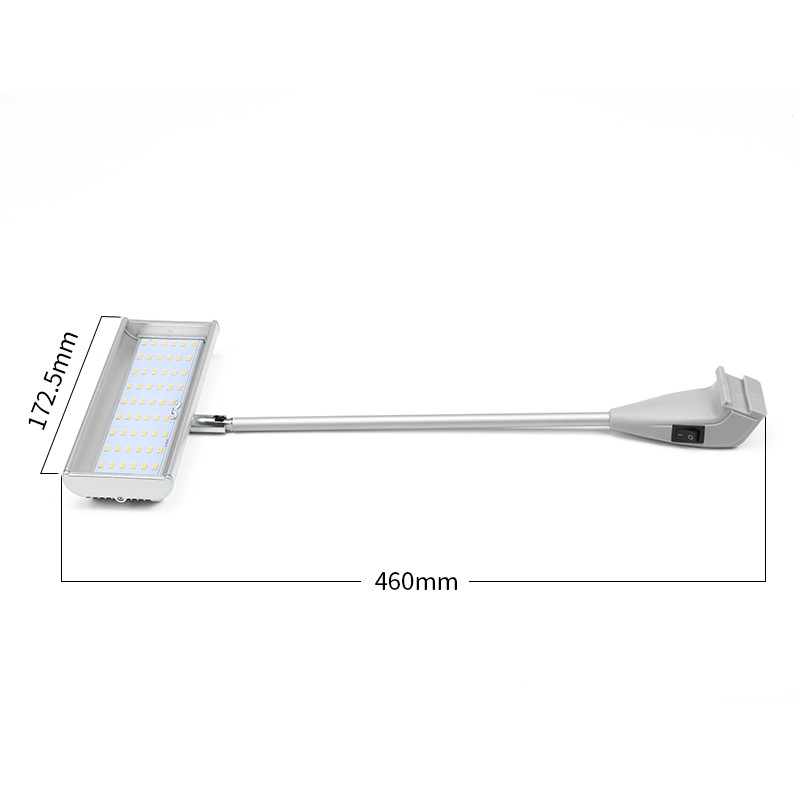

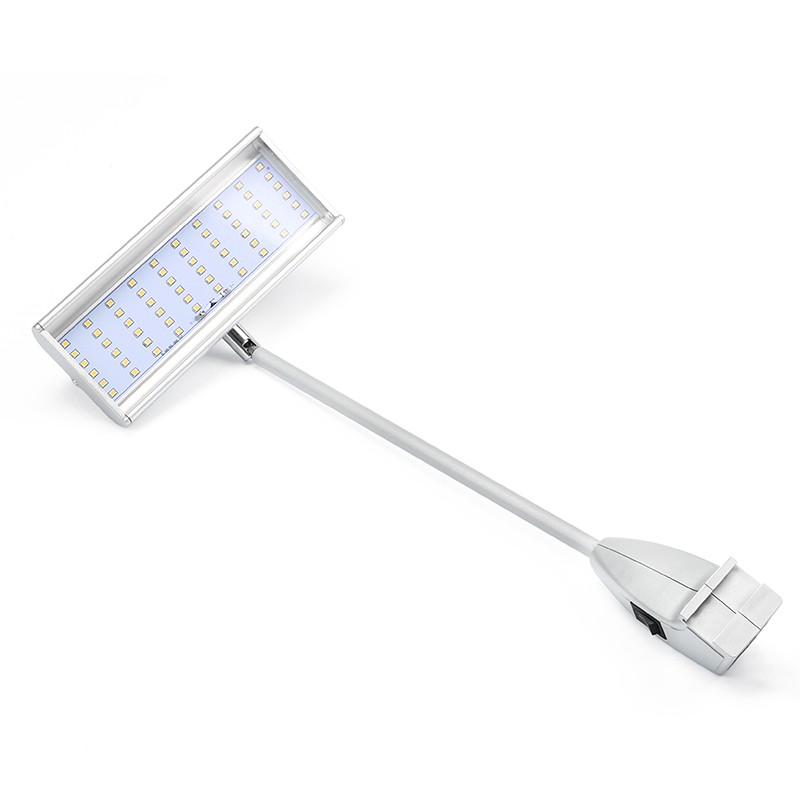

The SL-025-60L is a 30W LED display arm light with 60 LEDs, specified 2500 lm output and a 120° beam. Its adjustable head directs light towards graphic walls and display panels, with dimensions of 464 × 174 × 46.5 mm and a listed DC 36V input configuration.
For contractors fitting multiple backwall panels, select the white-light version, frame fixing and power kit as one configuration. Send the panel dimensions, lamp positions, required fittings and quantity so the complete kit can be quoted for the installation.

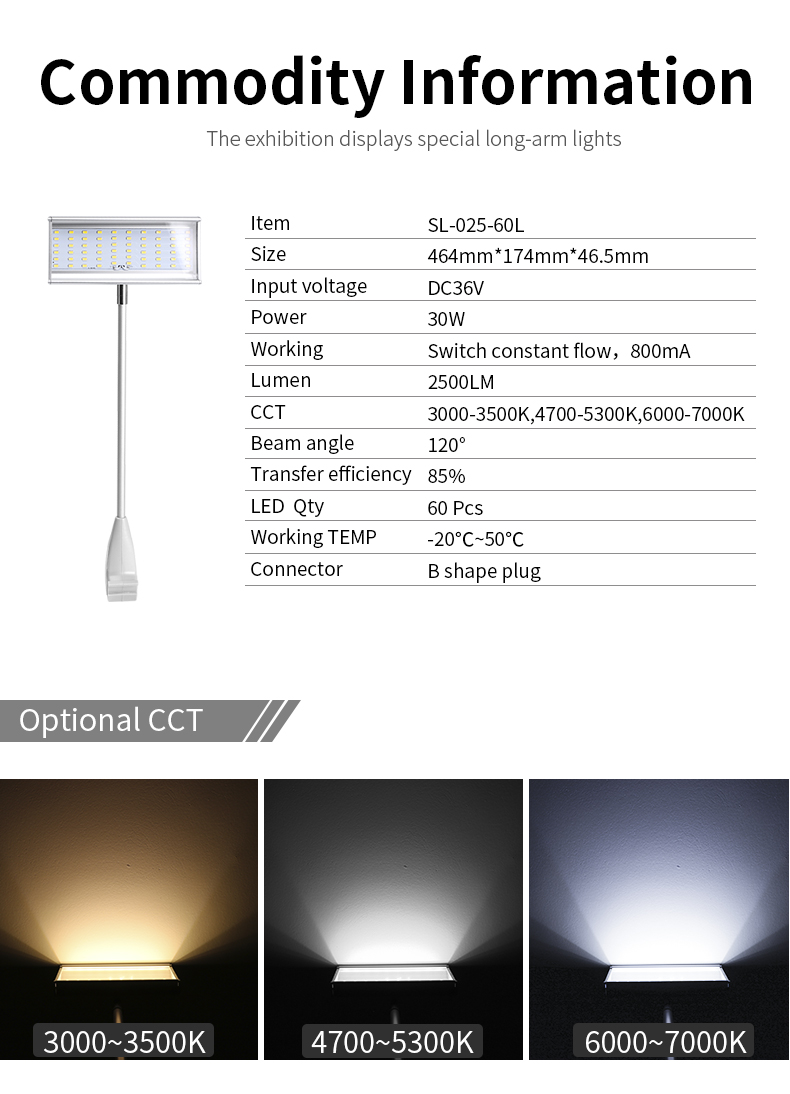

30W 60-LED display-light specifications
| Specification | SL-025-60L |
|---|
| Model | SL-025-60L |
| Power | 30W |
| LED quantity | 60 |
| Specified light output | 2500 lm |
| Beam angle | 120° |
| Lamp input configuration | DC 36V |
| Operating current listed | 800 mA |
| Dimensions | 464 × 174 × 46.5 mm |
| White-light order ranges | 3000–3500K / 4700–5300K / 6000–7000K |
| Connection | B-shape plug |
| Head positioning | Adjustable joint |
| Power kit pictured | External power unit and leads |
| Optional fittings | Forward/reverse slider; 0505/0525 clamp; 0520 mounting plate |
| Operating temperature | -20°C to +50°C |
Select the frame fitting and aim the LED head

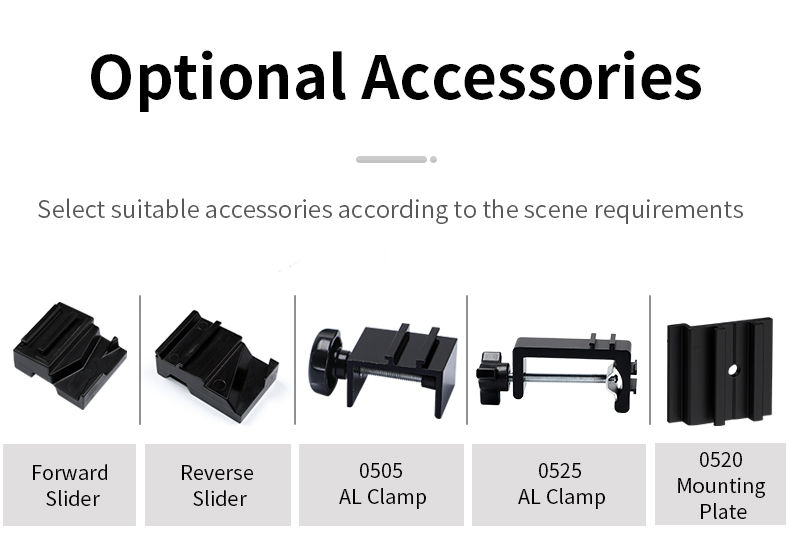

The fitting guide includes forward and reverse sliders, 0505 and 0525 aluminium clamps and a 0520 mounting plate. Supply the display profile and fixing dimensions to choose the appropriate arrangement.

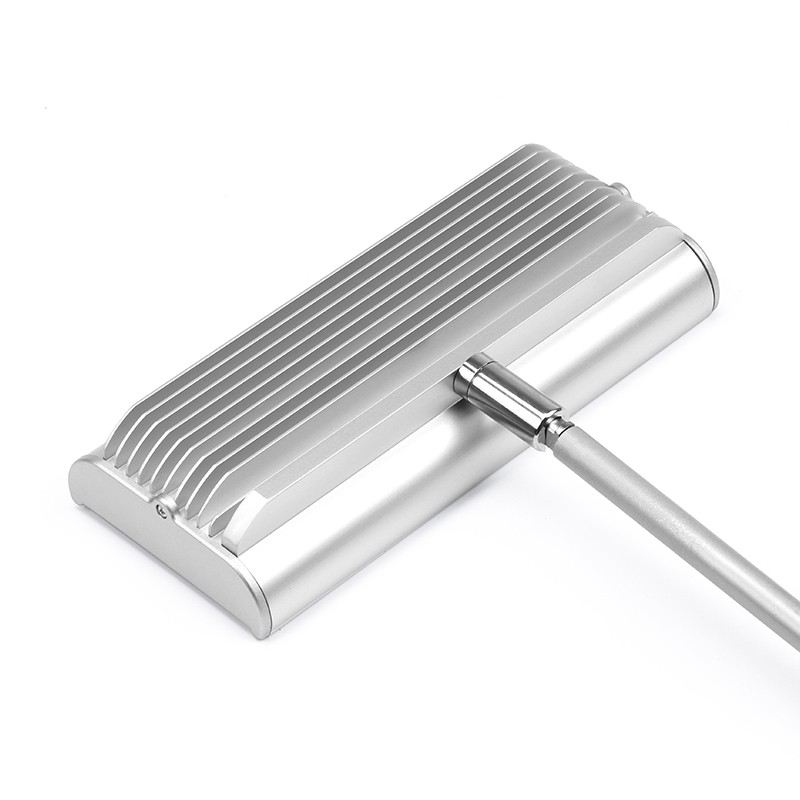

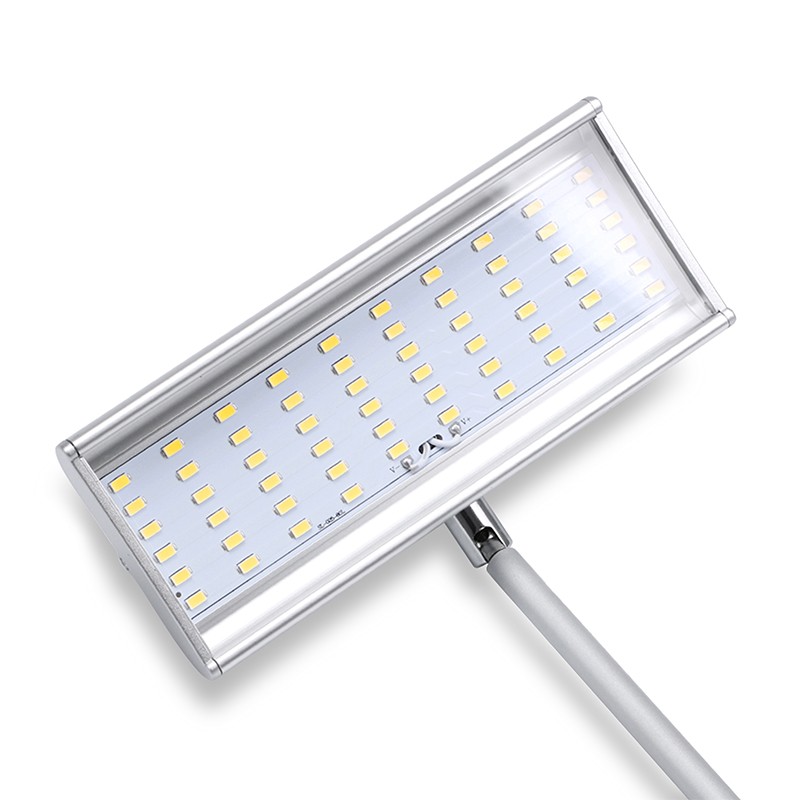

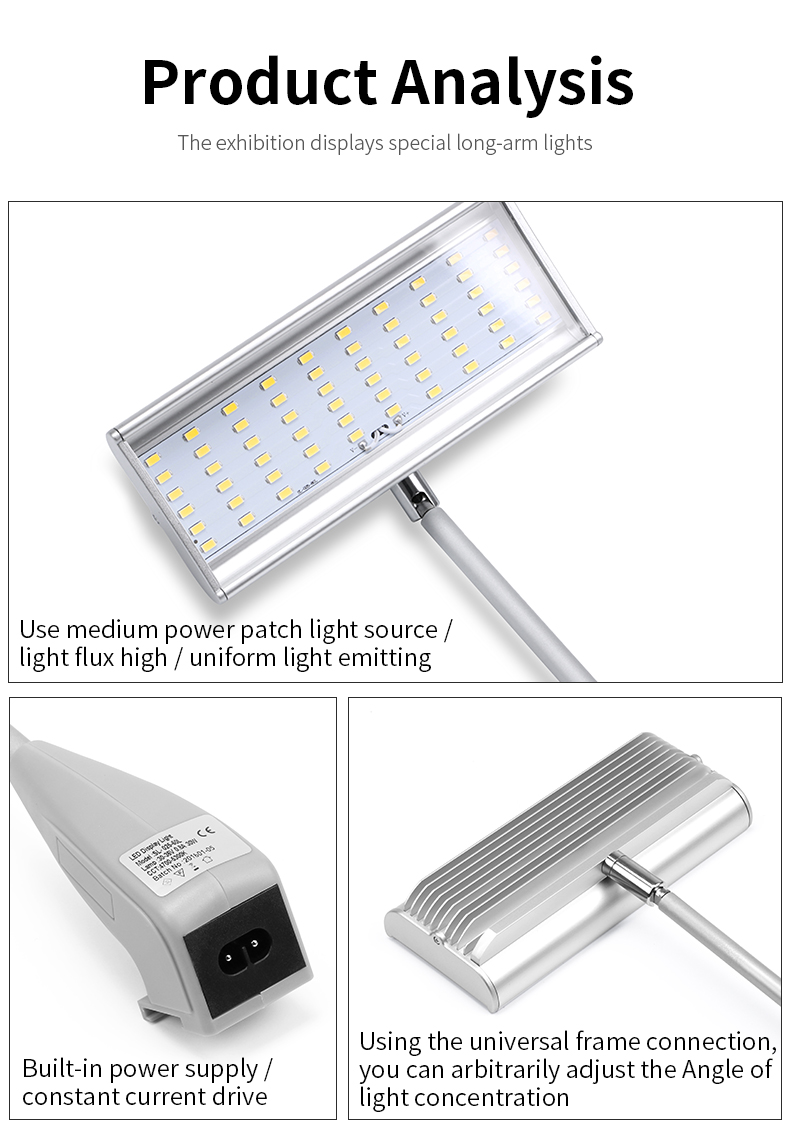

The adjustable head joint sets the direction towards the panel, while the rear ribs form part of the lamp-head construction. The product analysis also identifies constant-current electronics at the base.
Plan white-light versions and backwall coverage
The order ranges are 3000–3500K warm white, 4700–5300K neutral white and 6000–7000K cool white. Choose the version using the graphic colours and surrounding stand lighting.

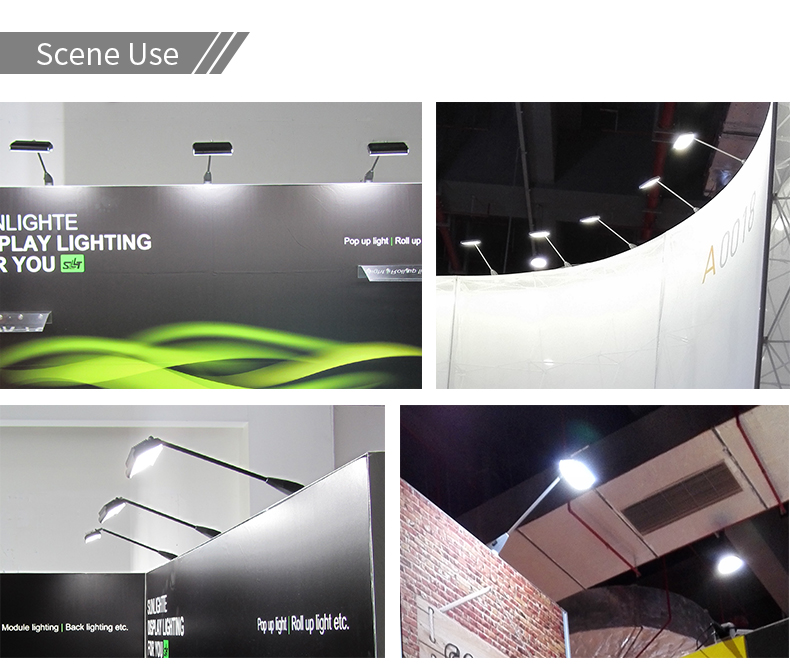

The application examples show lamps along the tops of exhibition walls. Share the panel sizes, available mounting positions and intended lamp-to-graphic distance for the sample test and kit quotation.
Specify a matching 36V supply and protected kit

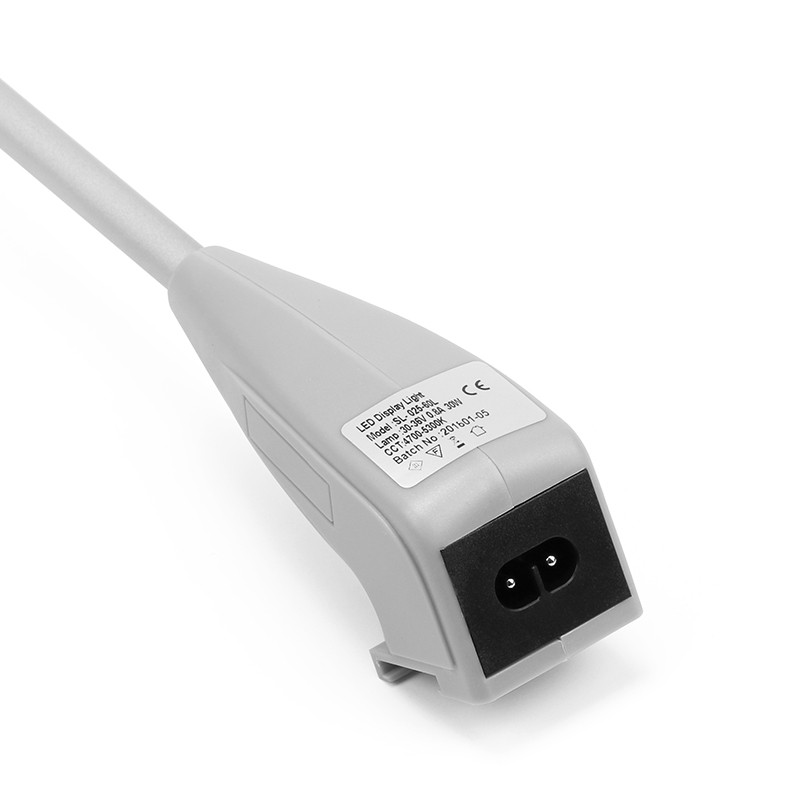

The listed lamp input is DC 36V, with 800 mA operating information and a B-shape connection. Order a matching power unit, leads and the required destination mains plug with the lamp configuration.
The packing illustration shows the lamp, an external power unit and leads, followed by individual and outer cartons. Confirm the components, lead lengths, fitting parts and carton quantities with the bulk quotation.
Questions for 30W backwall-light procurement
Which colour-temperature version should I specify?
Choose 3000–3500K, 4700–5300K or 6000–7000K. A sample evaluated with the final graphics helps define the version for the repeat project order.
Can I use a power unit from another arm light?
Check the supply, connector and electrical arrangement against this DC 36V model and its 800 mA operating information. Send supply-label details before selecting a replacement kit.
What is needed for a wholesale quotation?
Send the model, quantity, white-light range, frame fitting, power kit and destination. Wholesale supply starts from 20 pcs; higher quantities receive lower unit prices.
Samples, OEM supply and lead time
Samples are available for lighting, fitting and connection evaluation. OEM, ODM and private-label requirements can be included with the enquiry. Standard lead time is 12–18 days; sample cost, shipping, custom schedules, transit and model-specific market documents are confirmed separately.
