Clamp-on LED lighting for portable display panels

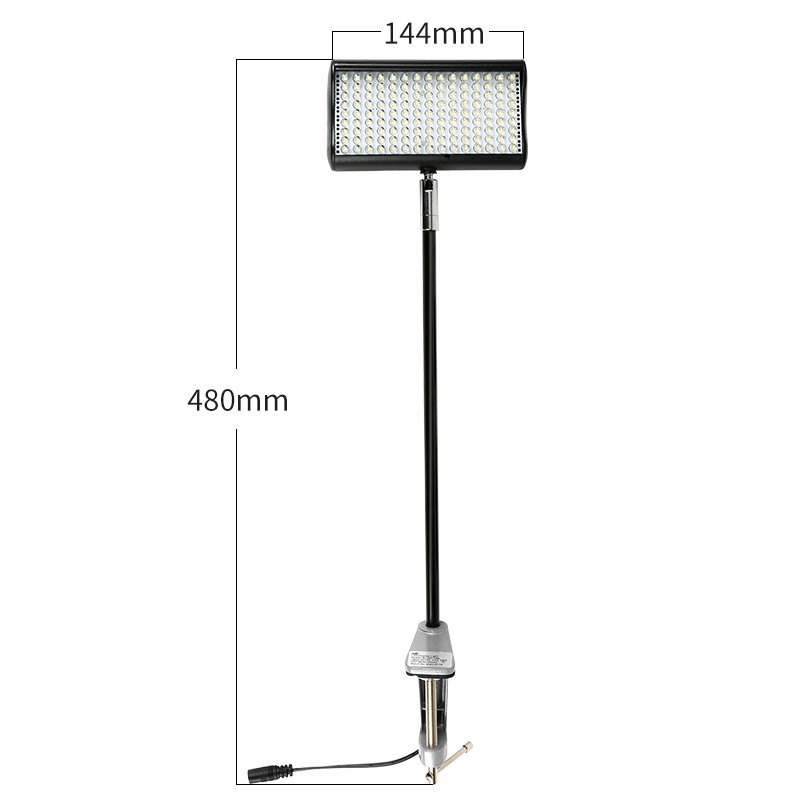

The SL-007-08-135L combines an 11W, 135-LED head with an aluminium G-clamp and DC plug. Listed output is 720 lm through a 60° beam, with DC 12V input and 480 × 144 × 48 mm dimensions. The clamp fixes the arm to a suitable frame without drilling.
For portable-display suppliers, the key selection is the clamp-to-frame fit, followed by the colour-temperature version and matching power kit. Send the frame thickness and profile, graphic dimensions and quantity to define a complete sample or wholesale configuration.

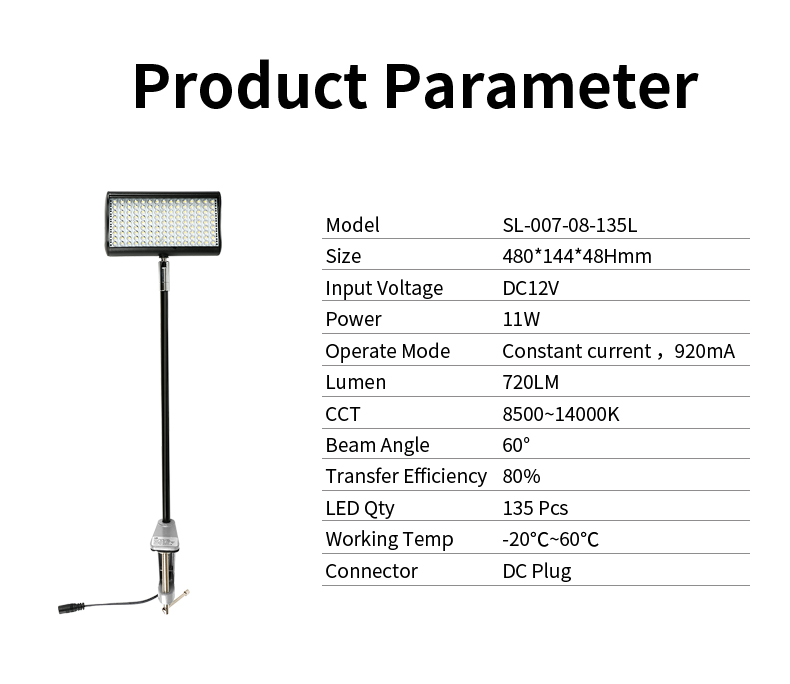

12V G-clamp light specifications
| Specification | SL-007-08-135L |
|---|
| Model | SL-007-08-135L |
| Power | 11W |
| LED quantity | 135 |
| Specified light output | 720 lm |
| Beam angle | 60° |
| Lamp input | DC 12V |
| Operating mode listed | Constant current, 920 mA |
| Dimensions | 480 × 144 × 48 mm |
| Listed colour temperature | 8500–14000K |
| Connection | DC plug |
| Mounting | Aluminium G-clamp; no drilling |
| Head positioning | Adjustable joint |
| Operating temperature | -20°C to +60°C |
Check the frame and set the lamp direction

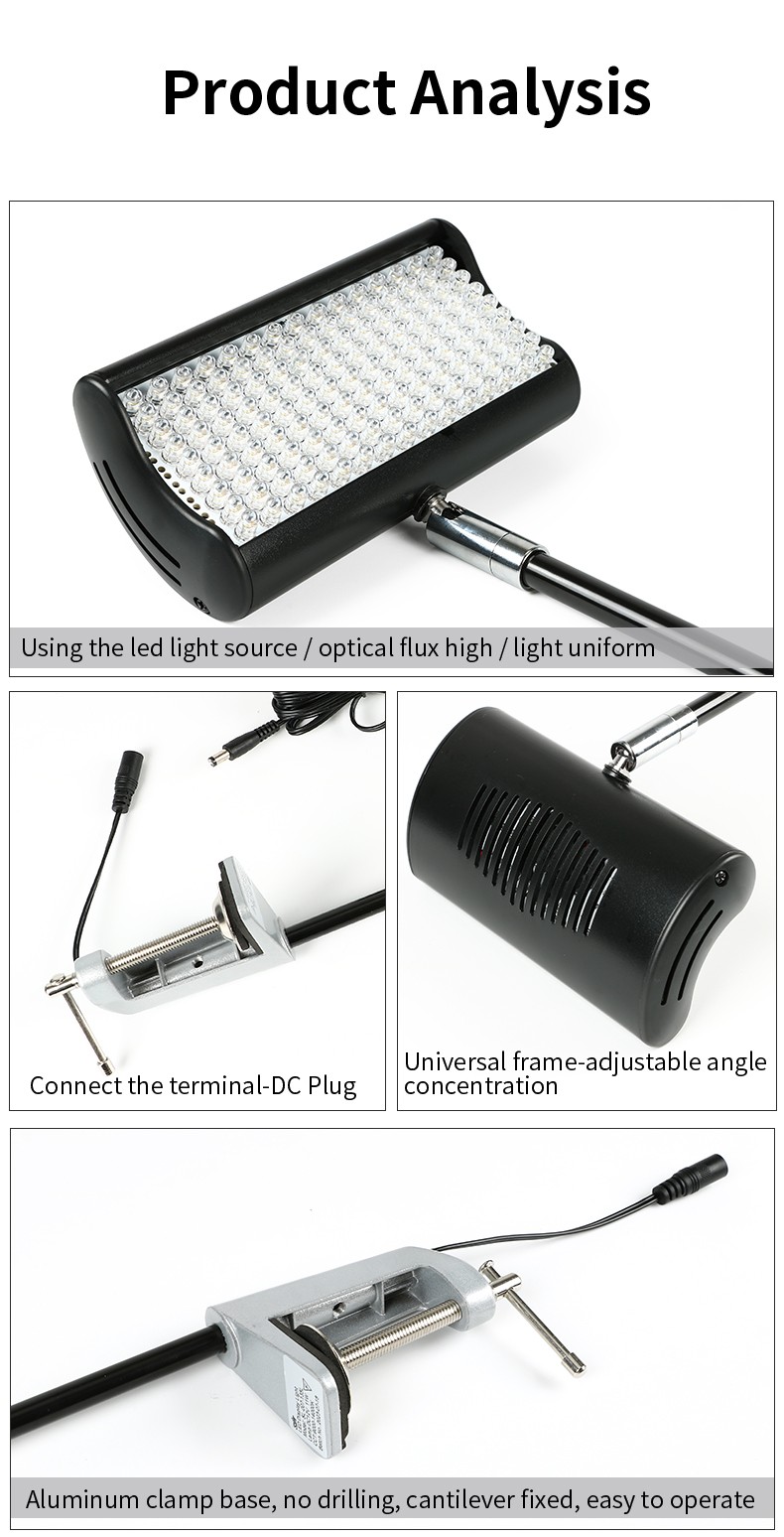

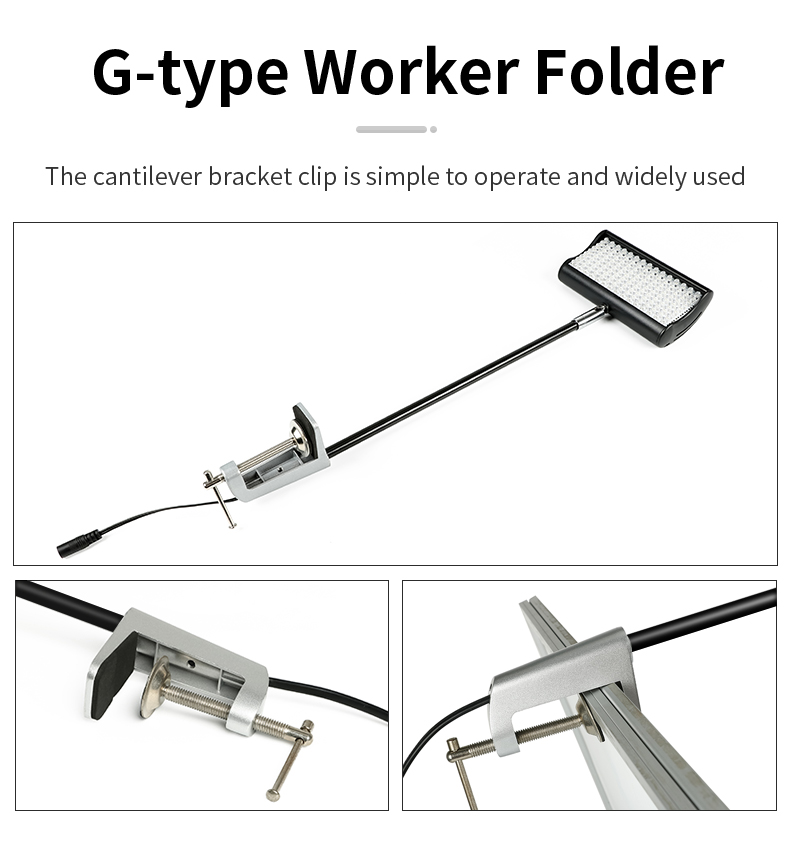

The screw-adjusted aluminium clamp secures the cantilever arm to a suitable frame. Provide the frame profile and fixing dimensions so the clamp can be checked for the intended structure.

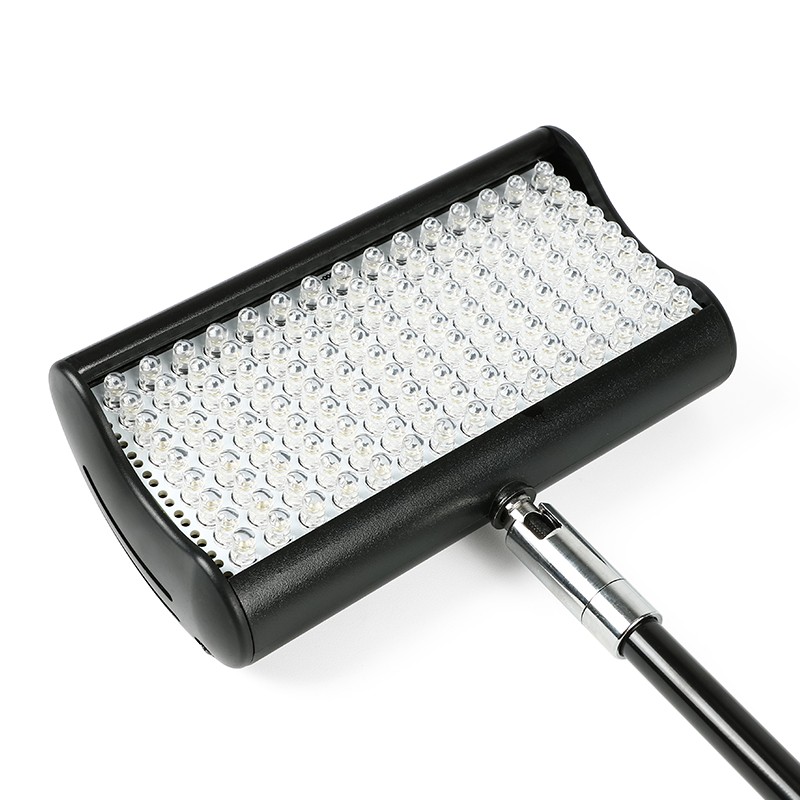

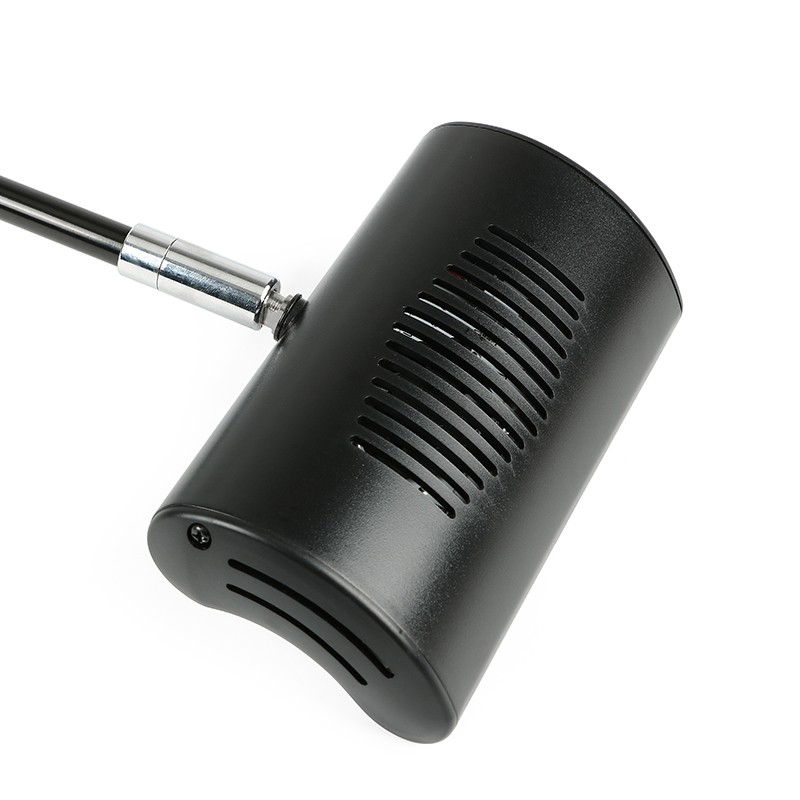

The lamp has a DC plug, an adjustable head joint and rear ventilation slots. Plan the connector position and cable route with the fixing arrangement.
Choose the light appearance for exhibition graphics

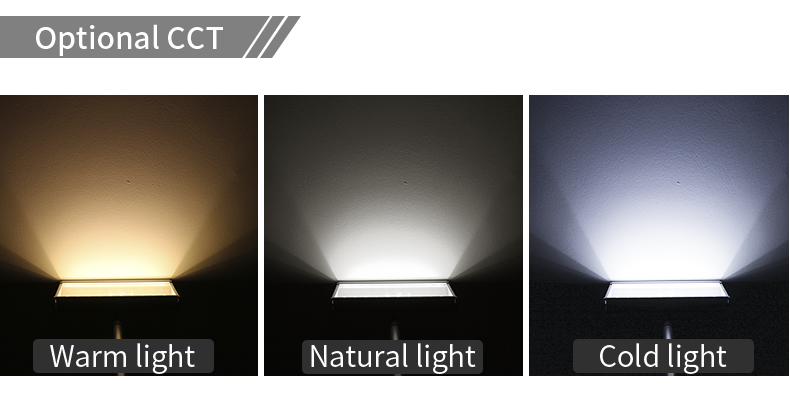

The technical sheet lists 8500–14000K, while the appearance guide illustrates warm, natural and cold light. State the colour temperature needed for your graphics and confirm the exact available version in the sample quotation.

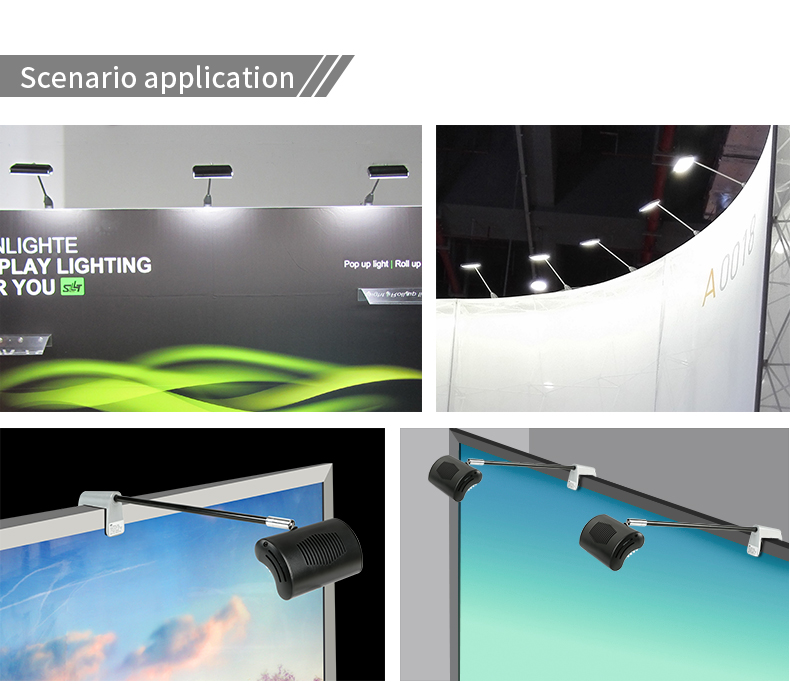

The display examples place the lamp above the graphic face. Use the panel dimensions, arm position and sample result to decide the lamp layout for the project.
Specify a matching DC supply and transport packaging

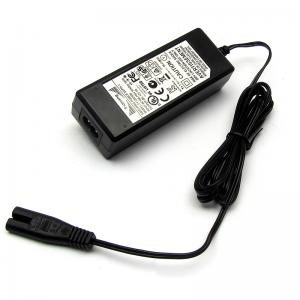

Order the power kit for the listed DC 12V lamp and 920 mA operating information. The packing example shows a wall-plug power unit; confirm the actual input rating, destination plug and DC connection for the order.

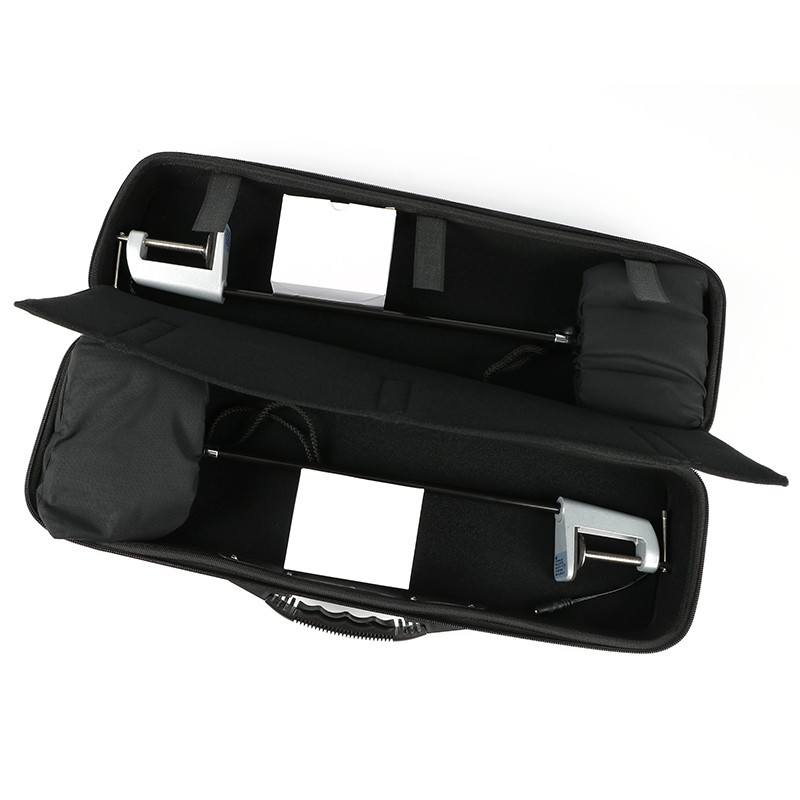

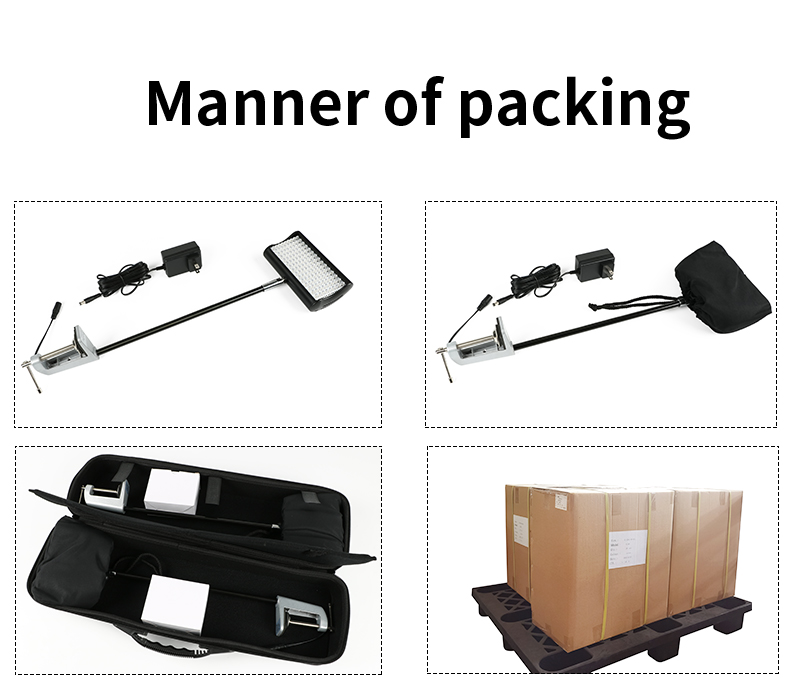

The illustrations include a lamp bag, a carry case for multiple lamps and cartons on a pallet. Request the required packing format and confirm included components, quantities and lead lengths.
Questions about clamp-mounted display lights
What frame information is needed?
Supply the frame cross-section, thickness, fixing location and photos or drawings. These details allow the aluminium G-clamp configuration to be checked before ordering.
Can I reuse an existing power unit?
Send its label and connector dimensions. Compatibility must be checked against DC 12V, the listed 920 mA operating information and the lamp connection.
Can I order a sample or private-label batch?
Samples, OEM, ODM and private-label enquiries are supported. Wholesale orders start from 20 pcs, with lower unit prices at higher quantities; include the fitting, colour temperature, kit and destination.
Lead time and order confirmation
Standard lead time is 12–18 days. Confirm sample cost, shipping, custom requirements, transit and required model-specific market documents with the quotation.
