Black display arm lighting with frame-fixing choices

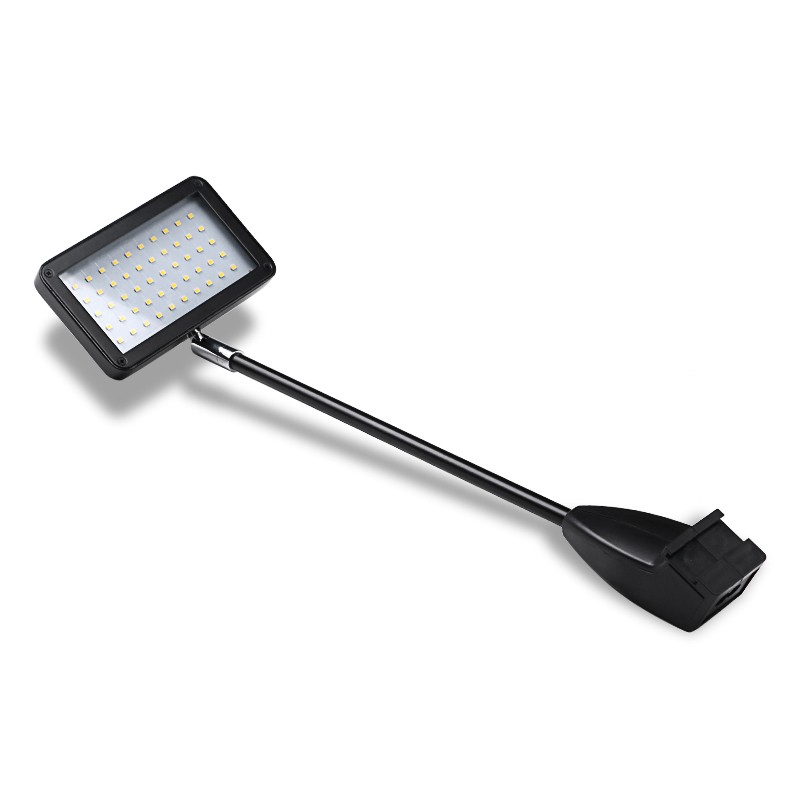

The SL-2082-N50L is an 11W LED display arm light with a 50-LED head, 1000–1200 lm output and a 120° beam. This page features the black aluminium lamp body and its frame-fixing and power-lead choices. The specification lists AC 100–240V and a figure-eight-style plug.
For display suppliers and exhibition contractors, specify the frame section, fixing and cable arrangement as part of the lighting order. Forward or reverse sliders, clamps and a mounting plate are shown as options; a sample can help check the actual mechanical fit and beam on the graphic.

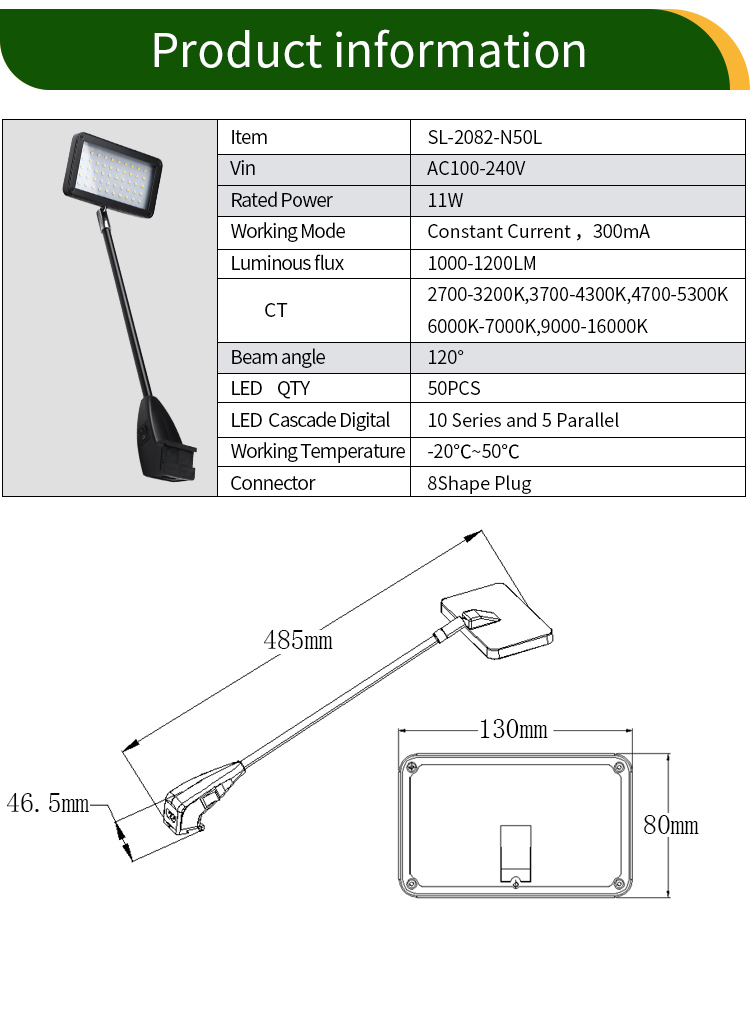

11W black arm-light specifications
| Specification | SL-2082-N50L |
|---|
| Model | SL-2082-N50L |
| Power | 11W |
| Input voltage | AC 100–240V |
| Light output | 1000–1200 lm |
| Beam angle | 120° |
| LED quantity | 50 pcs |

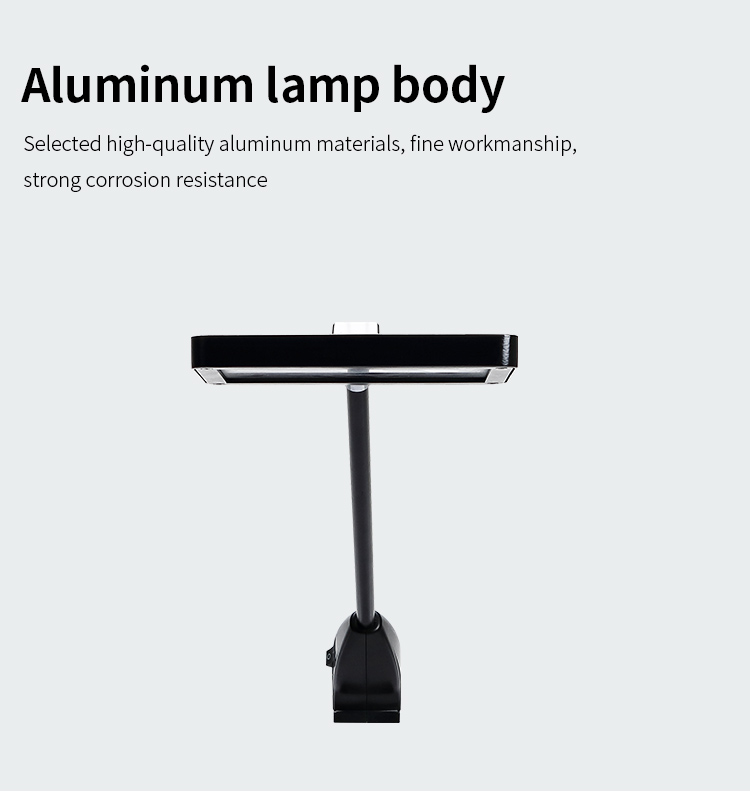

| Lamp body featured | Black aluminium body |
| Dimensions shown | 485 mm length; 130 × 80 mm head; 46.5 mm base dimension |
| White-light order ranges | 2700–3200K / 3700–4300K / 4700–5300K / 6000–7000K / 9000–16000K |
| Head adjustment | 90° upward and downward adjustment illustrated |
| Connector choices | Figure-eight input; input/output version also illustrated |
| Optional frame fittings | Forward slider, reverse slider, 0505 or 0525 aluminium clamp, 0520 mounting plate |
Choose sliders, clamps and the power-lead version

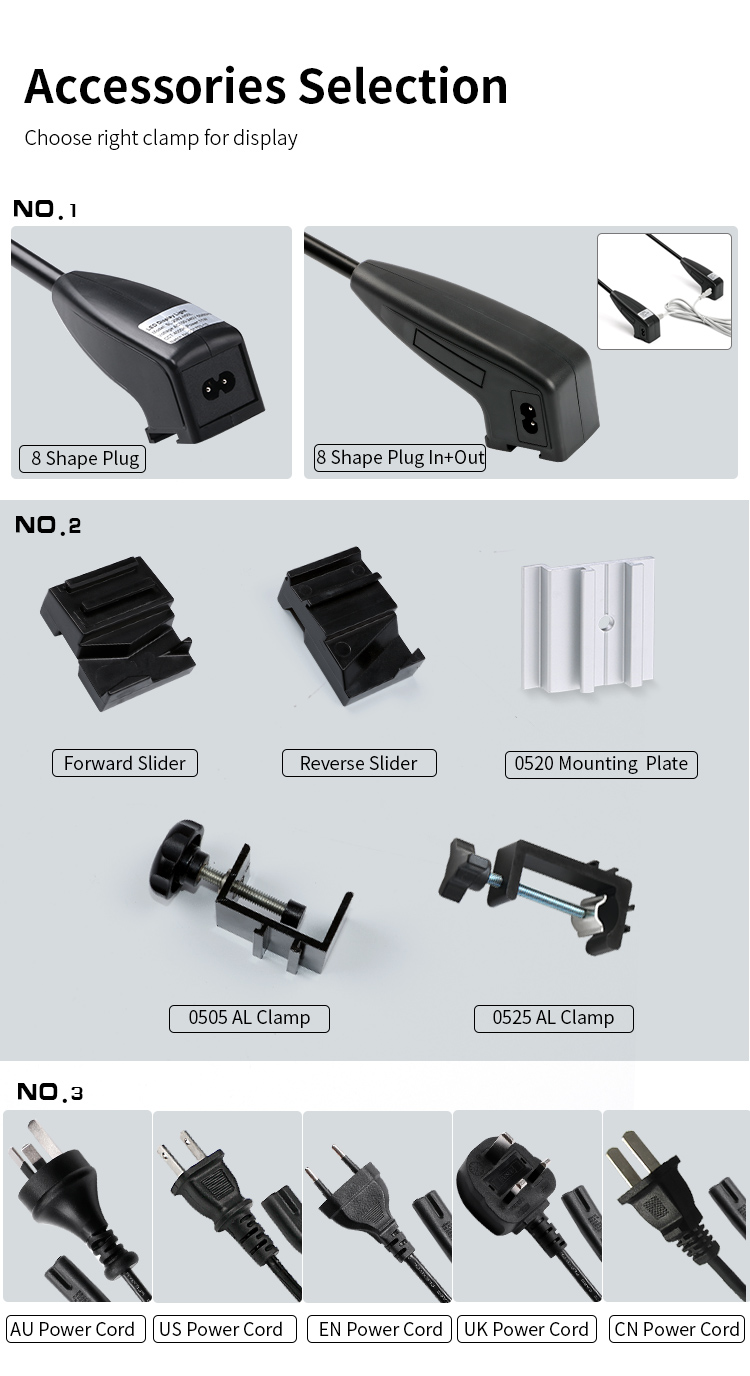

Match the fitting to the display frame. The accessory illustration includes forward and reverse sliders, 0505 and 0525 aluminium clamps and a 0520 plate. Supply the frame profile and fixing dimensions so the arrangement can be checked.

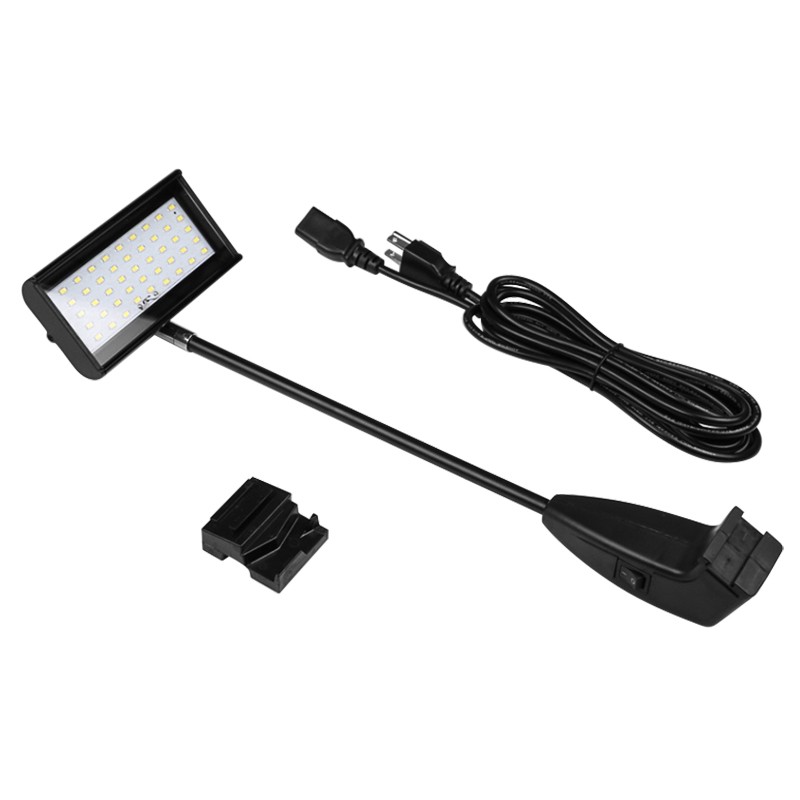

The standard figure-eight input and an input/output version are shown separately. Identify the required connector arrangement, destination country and power lead in the enquiry. Confirm lead lengths and any permitted multi-lamp configuration for the complete order.

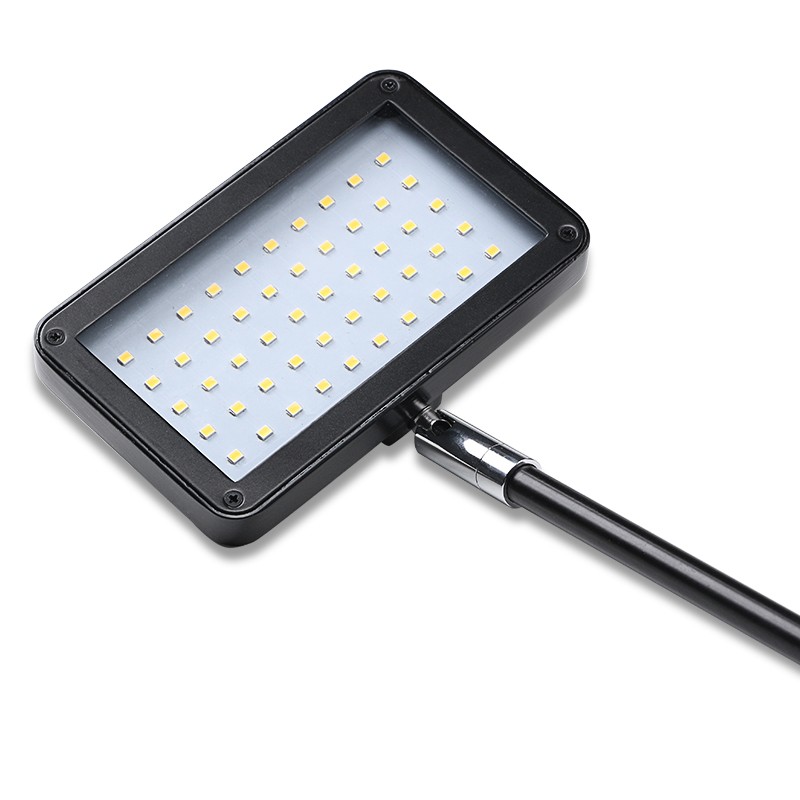

Aim the black aluminium LED head

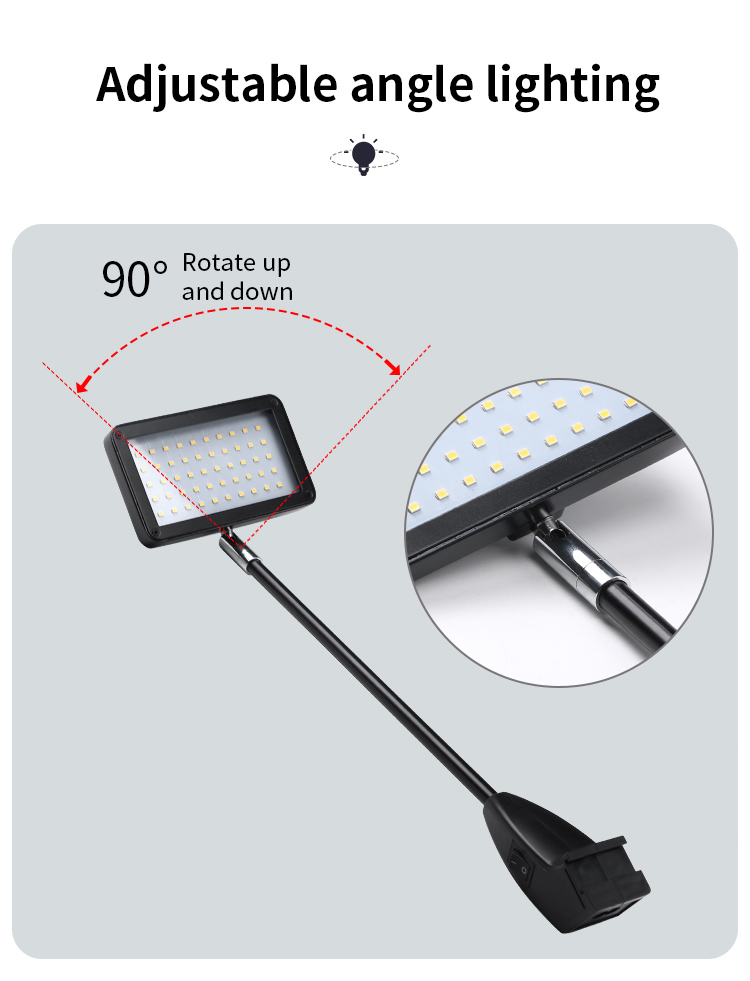

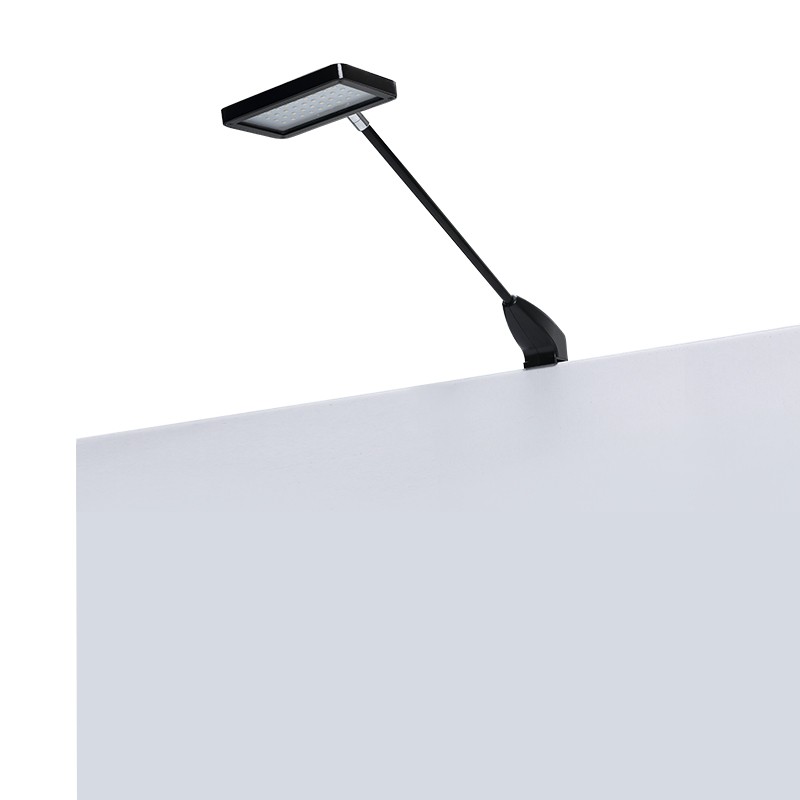

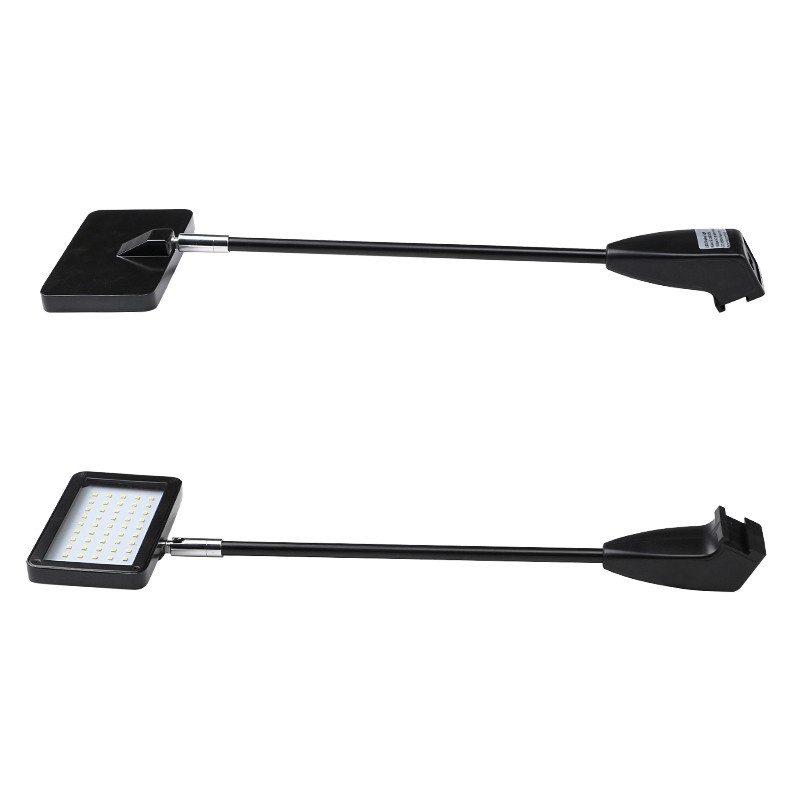

The rectangular head can be aimed above the printed panel, with 90° upward and downward adjustment illustrated. Use the actual panel dimensions and mounting positions to assess lamp spacing and coverage. The black body provides the finish featured in these product images.
Questions for frame-mounted exhibition lighting
Which measurements should I use when selecting a fixing?

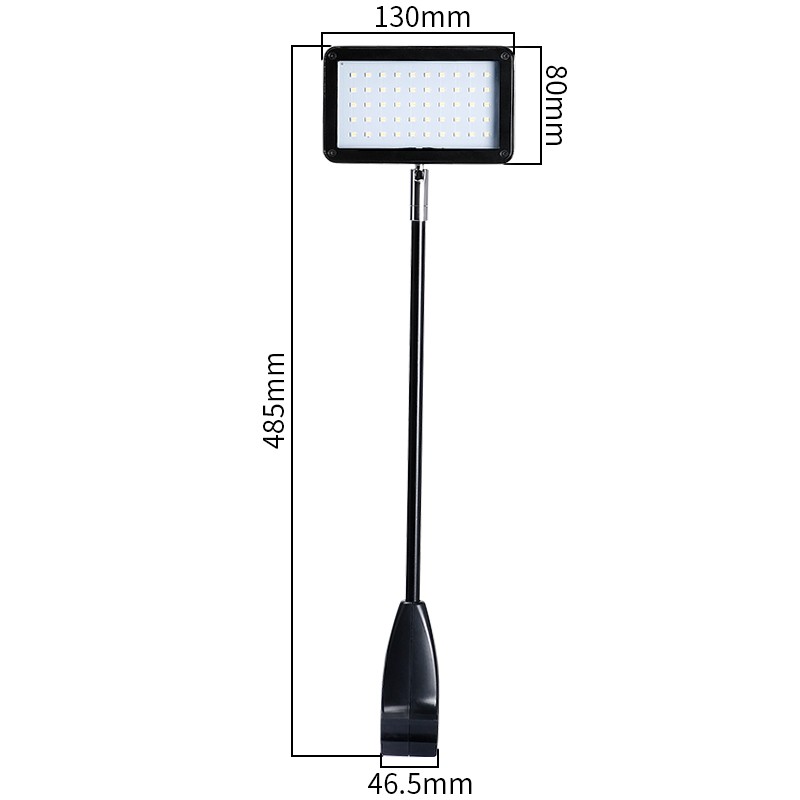

The diagram shows a 485 mm length, a 130 × 80 mm head and a 46.5 mm base dimension. Send the frame section and fixing position as well as these lamp dimensions so the slider, clamp or plate can be checked.
Can I choose a different white-light version?
The listed ranges are 2700–3200K, 3700–4300K, 4700–5300K, 6000–7000K and 9000–16000K. Specify the required order version and confirm its exact configuration and appearance with a sample.
Is this a separate model from the other SL-2082-N50L page?
It belongs to the same SL-2082-N50L model family. This page focuses on the black body, frame fittings and power-lead options. Include the required finish, connector and fixing so the quotation matches the configuration you need.
Wholesale kits, samples and private-label supply
Wholesale orders start from 20 pcs, with lower unit prices at larger quantities. Samples are available for checking the fixing and lighting appearance. Standard lead time is 12–18 days. OEM, ODM and private-label enquiries are supported; confirm custom schedules, sample cost, shipping and transit separately.
Include SL-2082-N50L, quantity, colour-temperature version, frame fitting, connector arrangement, destination plug and packing or branding requirements in the enquiry.
