Clamp and panel mounting references

This gallery presents a close-up of a display arm light clamp and a separate illustration of a lamp positioned above a graphic panel. These references help exhibition stand contractors and display distributors discuss the fixing they need for a banner, display wall or trade fair panel.

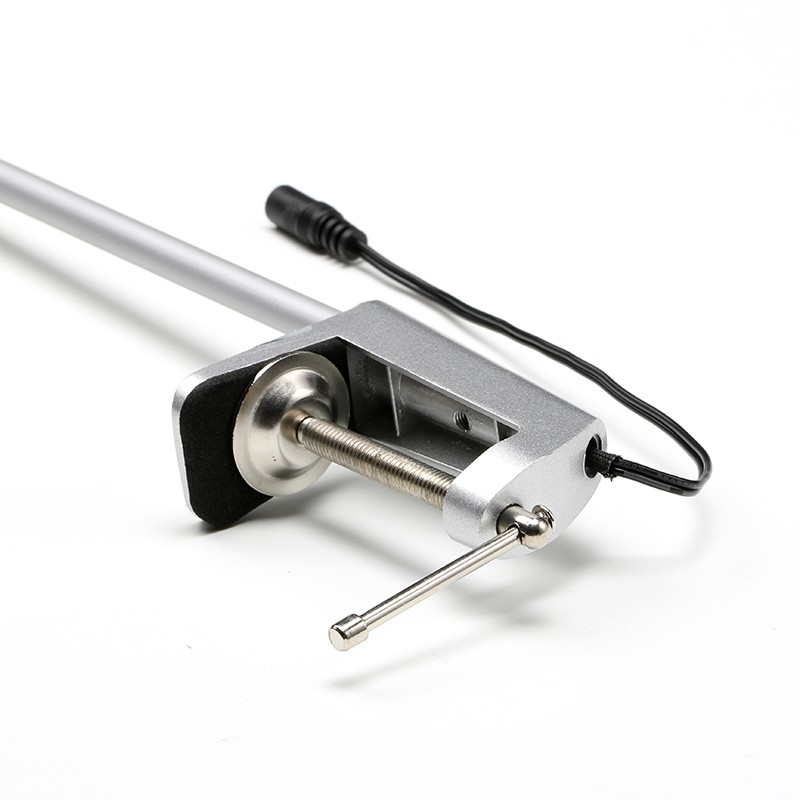

Details visible in the clamp photograph

• Screw adjustment: a threaded screw and hand lever operate the round pressure plate.

• Contact surfaces: the clamp has an opposing inner contact area visible in the opening.

• Arm connection: the lamp arm meets the fixing body behind the clamping area.

• Cable exit: the lead leaves the side of the fixing body, with a connector visible in the photo.

Measure the structure you plan to clamp and compare it with the selected accessory drawing. This photograph does not provide a measured clamping range or identify the electrical rating of the connector. Those details should come from the exact lamp and accessory specification.

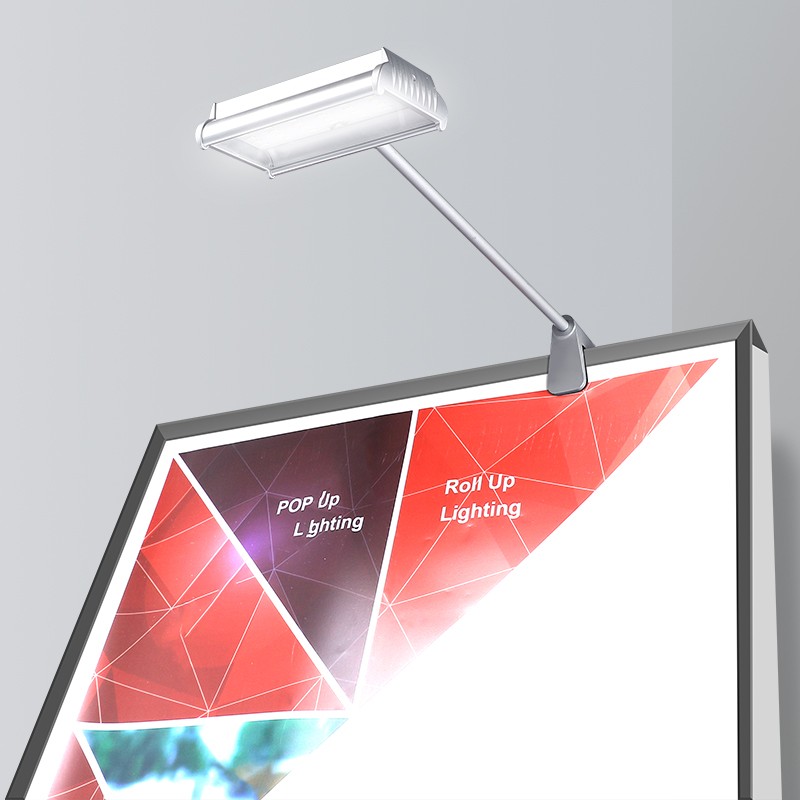

Positioning a lamp above a graphic panel

The second reference shows an arm light above the panel, with its head directed toward the display face. The base in that illustration is a separate mounting reference. Confirm the appropriate lamp-and-fixing combination for your panel rather than assuming both photographs show one supplied kit.

Allow clearance for the graphic, frame assembly and cable. Consider the arm reach, adjustment space and power supply route together with the mounting point. For a repeat display programme, record the approved accessory with the lamp model so the same arrangement can be reordered.

What to send for a fixing review

• Panel thickness or a dimensioned frame profile.

• Front and side photos of the intended mounting position.

• Lamp model, accessory reference and required quantities.

• Required finish, power connection and destination country.

Compare display light clamps and fixing accessories with the exhibition arm light range. Samples can be used to evaluate the intended assembly before a larger wholesale purchase.
