Lighting mounted above a graphic display

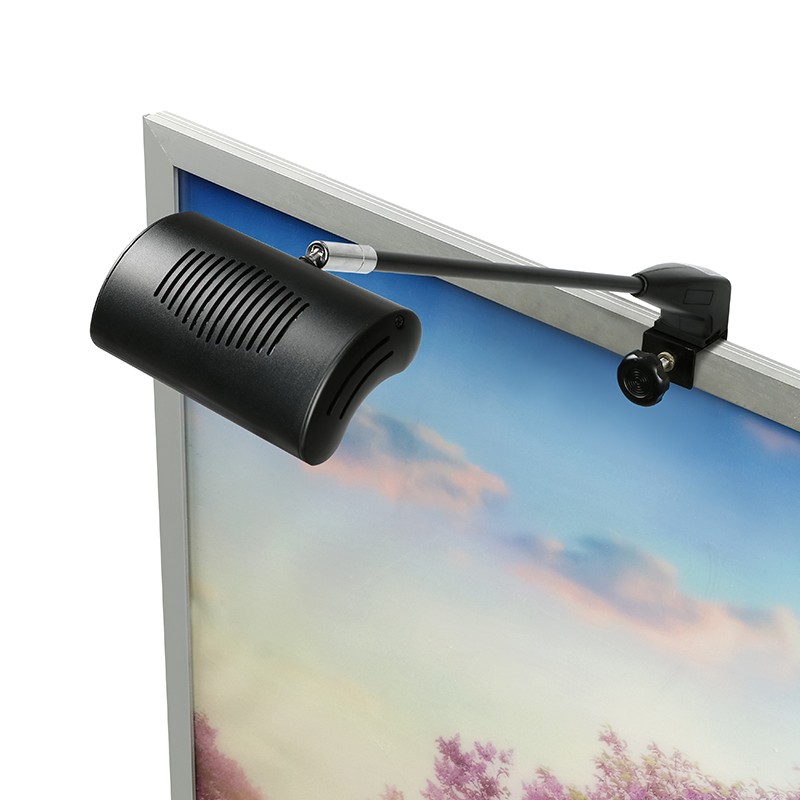

The installation photographs show a display arm light fixed to the top edge of a graphic frame. The arm places the lamp head in front of the display face. A separate packaging photograph shows a fixture and other packed items inside a carry case. These images are reference details for buyers preparing a display lighting assembly.

Check the assembly as a whole

• Top-edge fixing: identify the frame profile and compare it with the mounting accessory for the selected lamp.

• Arm reach: check the distance from the fixing to the graphic and the space available for adjustment.

• Head orientation: position the lamp for the intended display surface using its permitted adjustment.

• Power route: plan the lead, supply connection and cable clearance alongside the graphic.

Provide the actual frame section or panel thickness before ordering. The pictured fixing is an example; a similar frame appearance alone does not confirm accessory compatibility. The exact lamp specification should identify the electrical input, colour option and included components.

Packing and repeat display use

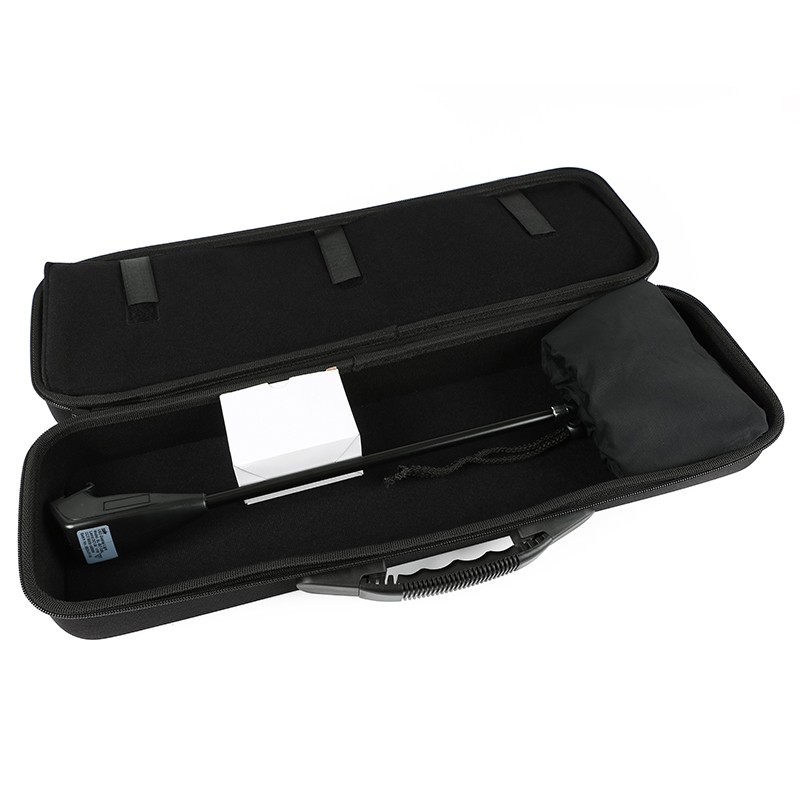

The carry-case photo provides a packing reference. Confirm the case, accessories, cables and quantities included in the quotation rather than assuming every catalogue configuration is supplied with the same set. Keep the lamp and fixing references together so assembly teams can identify the approved combination for repeat orders.

A practical sample check

Mount the sample on the intended frame, fit the graphic and check the adjustment and cable space. Evaluate the displayed image from the normal viewing position. Record the selected lamp, fixing and electrical configuration before buying for a larger display programme.

Prepare the installation enquiry

• Frame or panel drawing with dimensions.

• Front and side photos of the proposed lamp position.

• Lamp model, mounting accessory and quantity required.

• Electrical connection, destination plug and any cable requirements.

• Packing preference and destination country.

Compare display arm lights and fixing accessories for the proposed frame. For bulk procurement, read our sample and wholesale ordering FAQs.
