Side lighting inside a lightbox frame

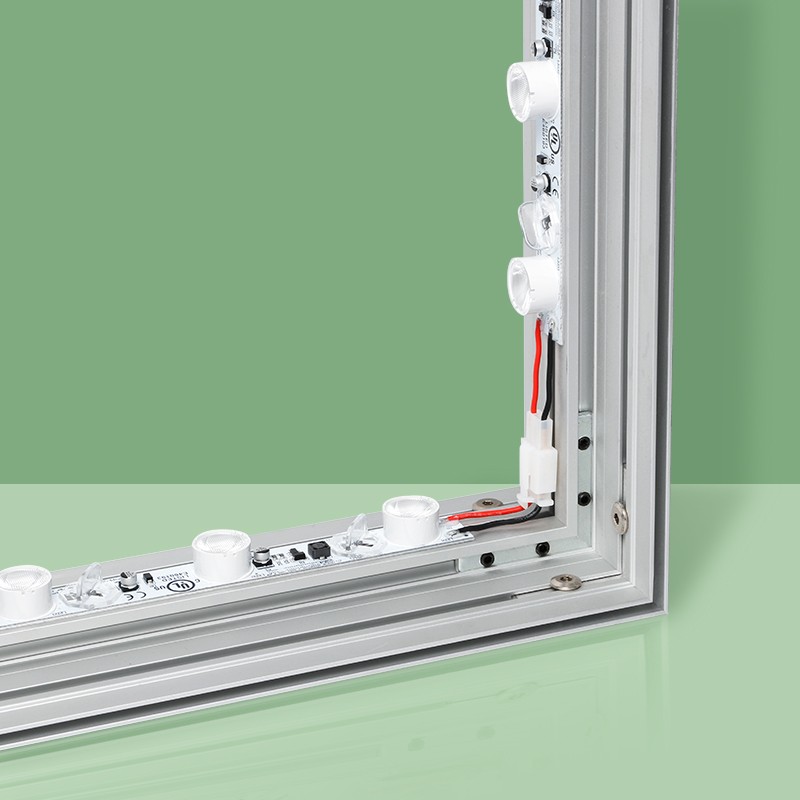

This application photograph shows LED boards with lenses mounted along two sides of a lightbox frame. The corner detail shows the board positions and connecting leads. It is a useful reference for sign makers comparing side-mounted LED lightbox modules and planning the available installation space.

What to check in this arrangement

• Mounting surface: the boards sit along the inner frame. Compare the board dimensions and fixing method with your own profile drawing.

• Lens direction: check the module orientation and intended light path toward the illuminated area.

• Corner connection: allow space for the connecting leads and keep their route clear of the graphic and frame assembly.

• Service access: plan how the modules, leads and power supply can be accessed in the finished construction.

Selecting modules for your cabinet

Start with the illuminated width and height, internal depth and single- or double-sided construction. Send the frame section and the graphic or diffuser material. Compare the exact module's dimensions, specified input, lens option and white-light colour temperature against those requirements.

The photograph is an installation reference. The appropriate module quantity and layout depend on the selected product and cabinet design. Evaluate a sample in the intended construction before confirming a repeat production order.

Information for an application quotation

• Lightbox drawing with face dimensions and internal depth.

• Profile section, mounting positions and wiring space.

• Required module model or a clear photo of an existing board.

• Required colour temperature, matching supply and connector.

• Number of cabinets, module quantity and destination country.

Explore LED lightbox modules and power supply options for a model-specific comparison.
